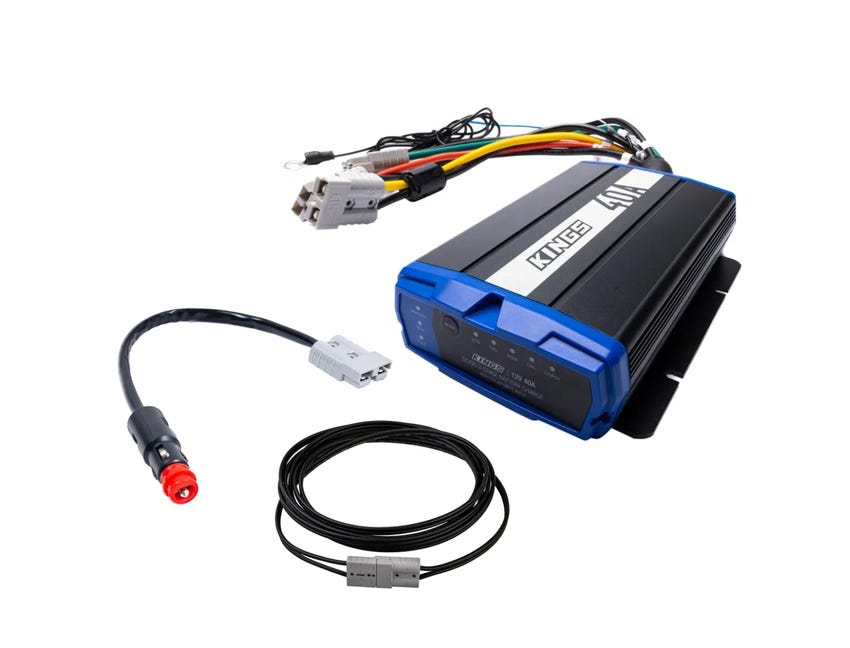

40A DCDC Charger + 6m Extension Lead + Quick-Connect to Cigarette Plug Adapter

Image 1
$238.90

Collect 238 Everyday Rewards points

Log in to MyDeal to link your card
$25.00 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by Outdoor Supacentre Pty Ltd
Secure ways to pay at checkout
The Kings 40A DCDC Charger has a built in high-efficiency MPPT Solar Regulator that will track the maximum power point of a connected solar panel, so long as it has a minimum of 30W input. Connecting your DCDC charger has never been easier - simply connect up the input from your starter battery, the output to your auxiliary battery and then connect a solar panel in seconds all thanks to the quick connect plugs.

• The perfect partner for your portable solar blankets or panels, the 6 metre cable length allowing you to camp in the cool shade and still set up your solar in full sun. Specifically designed for portable solar the 2.5mm2 copper cables minimise voltage drop. The Anderson-compatible quick connect plugs are rated for up to 50A of current and make setting up camp quick and easy.

• The Kings Quick-Connect to Cig Plug Adapter is perfect for setups where you have an available cig socket, but need a Quick-Connect Anderson-style plug - like running a 12v Adventure Oven, or the Kings Drawer or Upright Fridges without the need to hard-wire a quick-connect plug into your vehicle. 1 x adapter with a Quick-Connect Anderson-style connector on one end, and a 12v cig-socket style plug on the other

KINGS 40A DCDC CHARGER


Max. Continuous Charging Current 40A
Max. Output Power 500W
Max. Input Current 47A
Vehicle Input Working Voltage Range (12V) 13.1 - 12.8V
Vehicle Input Working Voltage Range (24V) 26.2 - 25.6V
Min. Input start-up Voltage - Vehicle 10V to recognise battery (12V to start charging)
Solar Input Range 10 - 32V (Minimum 12V to start)
Vehicle Input Working Voltage Range (Ign wire NOT fitted) 12.8 - 18V
Min. Input start-up Voltage - Vehicle (Ign Wire NOT fitted) 13.8V
Min. Aux Battery Voltage (Lithium) 0V (Wake Function)
Min. Aux Battery Voltage (Lead Acid) 4V
Idle Current Draw 15mA
Operating Temperature -20°C to 80°C
Dimensions (LxWxH) 191mm x 131mm x 47mm
Weight ~1.3kg
Temperature Compensation Yes ±18mV/°C
Housing Powder coated aluminium
LED Indicator lights Yes – for connection, charging status and errors
Battery Chemistry Selection Yes – Lithium (LiFePO4), AGM, wet lead acid, gel, calcium
Fuses required Yes – not supplied (50A Suggested)
IP Rating IP66
Built-in Protections Yes - Over Voltage, Reverse Polarity, Over-Temperature Protection



KINGS 6M SOLAR EXTENSION LEAD | 2.5MM2 COPPER


Length 6m
Conductor Material Multi-Strand Copper 51x0.25
Conductor Cross Sectional Area (each wire) 2.5mm2
Insulation Material 0.8mm PVC
Outer Sheath material 1mm PVC
Outer Diameter 9.3mm
Recommended Maximum Current 20A
Operating Temperature Range -5°C~+70°
Plug Type Anderson-style Quick Connect
Plug Rating 50A
Plug Material UL94-V0 Flame Resistant Thermoplastic
Connector Material Copper
Maximum Rated Voltage 300V



KINGS QUICK-CONNECT TO CIGARETTE PLUG ADAPTER


Connections Quick-Connect (50A Anderson-style) to 12v Male Cig Plug
Length 30cm
Internal Fuse 15A

MPN: SC-CO-DC40A-6MLEAD-AND2PLUG
