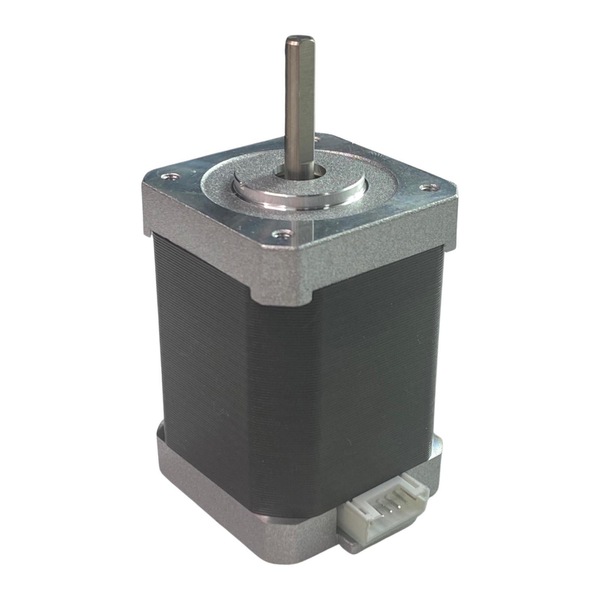

42mm NEMA 17 Stepper Motor 12V
Perfect Stepper Motor for 3D Printer Arduino Projects
The 42mm Hybrid Stepper Motor Series is a versatile family of motors suitable for a wide range of applications. Use with a microstepping driver to reduce vibration and achieve higher step resolution.

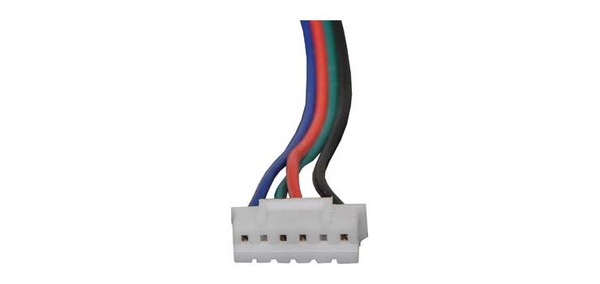

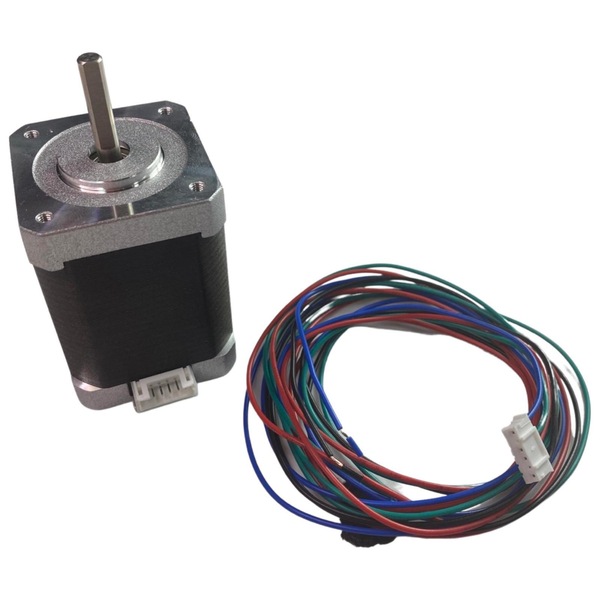

12V 200-step 1.8° 42BYG stepper motor with interface lead. 2 phase type. 0.23Nm holding torque. 5mmØ shaft. NEMA17 M3 mounting hole pattern (31mm). Size: 42x42x34 (25mm shaft). 1m lead.
Specifications:
  • Step angle: 1.8° 5%
  • Voltage: 12V
  • Phases: 2
  • Current: 0.33A
  • Insulation resistance: 100Mohm(500V DC)
  • Inductance: 46 20± Mh
  • Insulation class: B
  • Resistance
  • 34Ω± 10%
  • Weight: 0.20Kg
  • Holding torque: 0.23N/M

GTIN: 9321758211816
