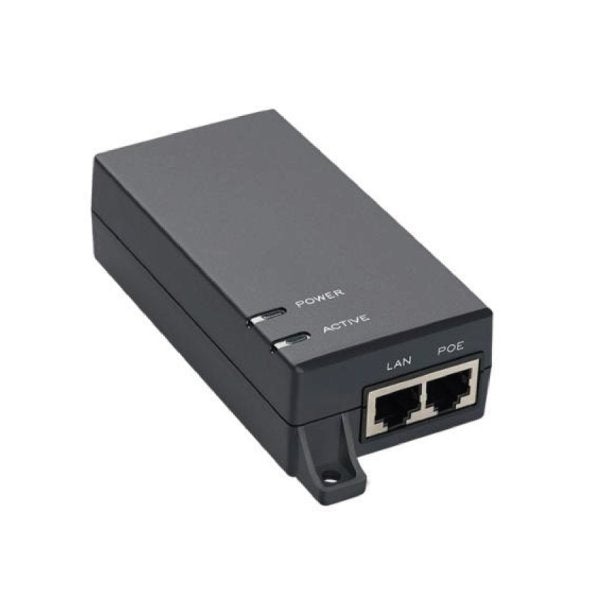

48V DC 30 WATT GIGABIT PASSIVE POWER OVER ETHERNET SUPPLY
48V 30 Watt Gigabit Passive Power over Ethernet Supply. The PT-PSE100G PoE Injector is a single port PoE Injector that is compatible with IEEE 802.at standard. Recently upgraded to a smaller form factor but still comes with the industry leading PoE technology that enables 30W of PoE over standard Cat5 or better cables to easily upgrade IP surveillance devices, WLAN APs and other Ethernet devices.
FEATURES
Output: 48Vdc 630mA 30W
Transmission Rate: 10/100/1000Mbps
Power Pin:4/5(+),7/8(-)
SPECIFICATIONS
Manufacturer's Product Code: PT-PSE100G
Standards: IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-Tx Fast Ethernet, IEEE802.3ab 1000Base-T Gigabit Ethernet, Support terminal equipment with IEEE802.3af/at, RoHS Compliance, WEEE Compliance
Input: 100-240Vac 1.0A 50/60Hz
Output: 48Vdc 630mA
Power Pins: 4/5(+), 7/8(-)
Data Speed: 10/100/1000Mbps
Operating Temperature: 0 to 40
Operating Humidity: 20% to 80%, non-condensation
Storage Temperature: -20 to 70
Storage Humidity: 10% to 90%, non-condensation
Operating Altitude: Up to 2000meters
AC Surge Protection: 1.0KV (5P/5N), L-N 1.2/50 (8/20) Tr/Th us, 2.0KV (5P/5N), L-PE 1.2/50 (8/20) Tr/Th us, N -PE
Case: Plastic
Colour: Black
Mounting: Wall-mounted
IP Rated: IP40
Size: 134mm X 56mm X 33mm
Weight: 175g
Safety Approvals: CE, FCC
EMI: FCC CFR47 Part 15, EN55024, EN55032
EMS: IEC61000-4-2(ESD) ± 6kV(contact), ±8kV(air), IEC61000-4-3(RS) 10V/m(80MHz~2GHz), IEC61000-4-4(EFT) Power Port: ±2kV; Data Port:±1kV, IEC61000-4-5(Surge) Power Port:±1kV/DM, ±2kV/CM, IEC61000-4-6(CS) 10V(150kHz~80MHz)
Immunity: IEC60068-2-6(Vibration), IEC60068-2-27(Impact), IEC60068-2-32(Free Fall)
LED Indicator: Power Indicator: Green, PoE Load Indicator: Green
PACKAGE CONTENTS
1 x 48V Dc 30 Watt Gigabit Passive Power Over Ethernet Supply
1 x 3 Pin IEC Lead
