48V DC 15.4 WATT 802.3AF GIGABIT POWER OVER ETHERNET POWER SUPPLY

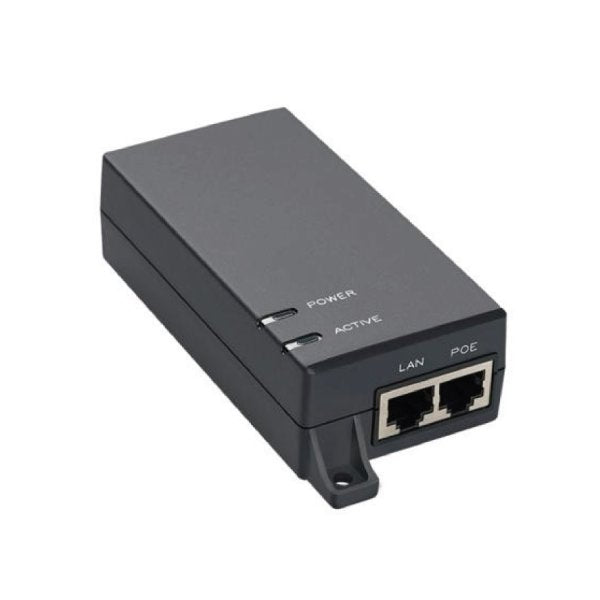

48V DC 15.4 Watt 802.3af Gigabit Power over Ethernet Power Supply. The PT-PSE100GF is a single port PoE Injector. It provides 48Vdc, 0.32A power for remote PDs over 2-pairs. It supports both 10/100 Base-T and Gigabit device. It works for 15.4W PoE PDs, such as wireless APs, Network cameras, IP Phones and other power Ethernet terminals. It complies to IEEE802.3af PoE standard. Suitable for Grandstream Access Points GWN Series.
FEATURES
Output: 48Vdc 320mA 15.4W 802.3af
Transmission Rate: 10/100/1000Mbps
Power Pin: 4/5(+),7/8(-)
SPECIFICATIONS
Manufacturer's Product Code: PT-PSE100GF
Standards: IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-Tx Fast Ethernet,
IEEE802.3ab 1000Base-T Gigabit Ethernet, Support IEEE802.3af PoE standard terminals,
RoHS Compliance, WEEE Compliance
Input: 100-240Vac 0.5A 50/60HZ
Output: 48Vdc 320mA 802.3af
Power Pins: 4/5(+), 7/8(-)
Date Speed: 10/100/1000Mbps
Operating Temperature: 0 to 40
Operating Humidity: 20% to 80%, non-condensation
Storage Temperature: -20 to 70
Storage Humidity: 10% to 90%, non-condensation
Operating Altitude: Up to 2000meters
AC Surge Protection: 1.0KV (5P/5N), L-N 1.2/50 (8/20) Tr/Th us, 2.0KV (5P/5N), L-PE 1.2/50 (8/20) Tr/Th us, N -PE
Case: Plastic
Color: Black
Mounting: Wall-mounted
IP Rated: IP40
Size: 134mm X 56mm X 33mm
Weight: 175g
Safety Approvals: CE, FCC
EMI: FCC CFR47 Part 15, EN55024, EN55032
EMS: IEC61000-4-2(ESD) ± 6kV(contact), ±8kV(air), IEC61000-4-3(RS)
10V/m(80MHz~2GHz), IEC61000-4-4(EFT) Power Port: ±2kV; Data Port:±1kV, IEC61000-4-5(Surge) Power Port: ±1kV/DM, ±2kV/CM, IEC61000-4-6(CS) 10V(150kHz~80MHz)
Immunity: IEC60068-2-6(Vibration), IEC60068-2-27(Impact), IEC60068-2-32(Free Fall)
LED Indicator: Power Indicator: Green, PoE Load Indicator: Green
PACKAGE CONTENTS
1 x 48V Dc Gigabit Power Over Ethernet Power Supply
1 x 3 Pin IEC Lead
SKU: PT-PSE100GF
