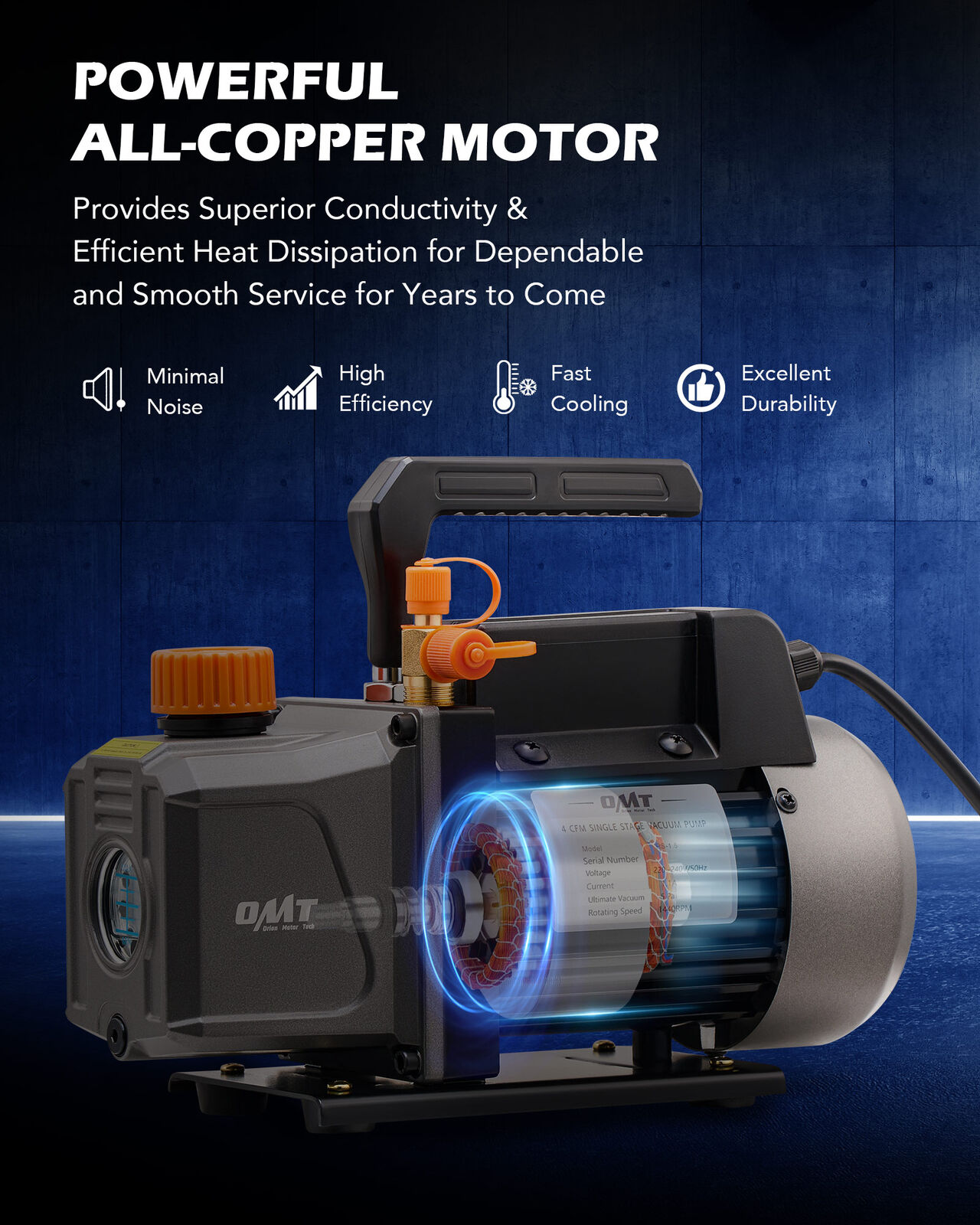

• ALL-COPPER MOTOR
• COMPACT & PORTABLE
• MINIMAL NOISE
• WIDE COMPATIBILITY
• MULTIPURPOSE OIL CAP

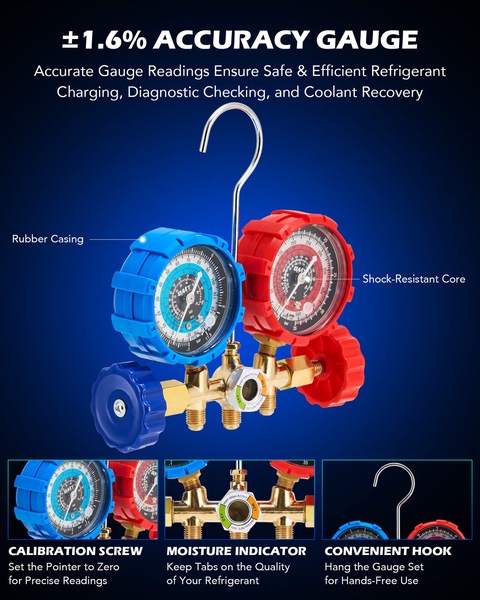

• 3-WAY GAUGE SET
• SHOCKPROOF GAUGE

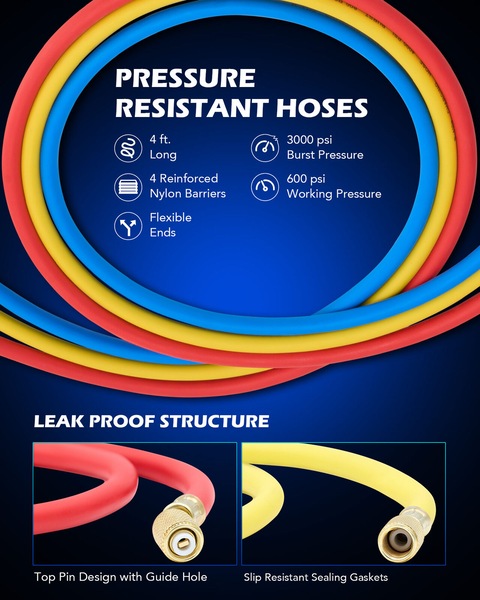

• PRESSURE RESISTANCE HOSES
• 4-LAYER NYLON BARRIERS
• FAST HEAT DISSIPATION

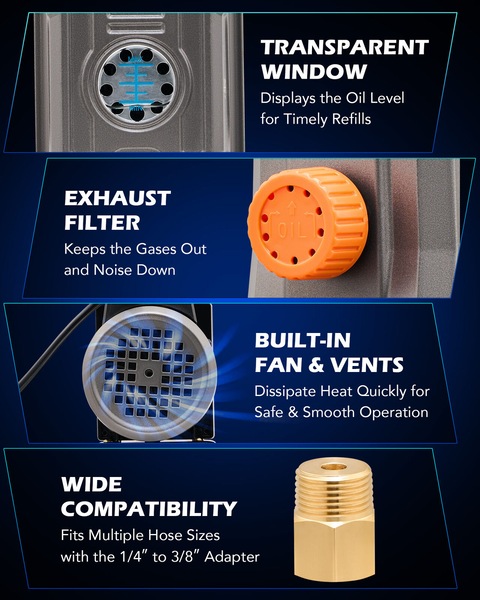

• CONVENIENT SIGHT GAUGE
• EASY OIL DRAINAGE
• SHOCKPROOF BASE
• BUILT TO LAST
• R134A QUICK COUPLERS
• R134A CAN TAPS

• Material: Aluminum Alloy, A3 Steel, Copper, Rubber, Plastic
• Rated Power: 1/3 hp (248W)
• Ultimate Vacuum: 37.5 Microns (5 Pa)
• Evacuation Speed: 4 cfm (0.1 m3/m)
• Compatible Refrigerants: R134a, R12, R22, R502
• Low-Pressure Gauge Range: -15 to 250 psi (-1 to 17.5 Bars)
• High-Pressure Gauge Range: -15 to 500 psi (-1 to 35 Bars)
• Max. Hose Pressure: 3000 psi (207 Bars)
• Hose Length: 4 ft. (1.2 m) ea.
• Reservoir Capacity: 7.9 fl. oz. (225 mL)
• Included Oil Volume: 8.5 fl. oz. (250 mL)
• Net Weight: 19.8 lb. (9 kg)

• 1x Vacuum Pump
• 1x Manifold Gauge Set
• 1x R134a Self-Sealing Can Tap
• 1x R134a Puncture Can Tap
• 1x Evacuation/Charging Hose
• 1x Low-Pressure Hose
• 1x High-Pressure Hose
• 1x Low-Pressure Quick Coupler
• 1x High-Pressure Quick Coupler
• 1x 1/2 in. to 1/4 in. Adapter
• 1x 1/4 in. to 1/2 in. Adapter
• 1x 1/4 in. to 3/8 in. Vacuum Adapter
• 1x Vacuum Pump Oil
• 1x Pair of Work Gloves
• 1x Teflon Tape
• 1x Storage Case
• 1x Instruction Manual

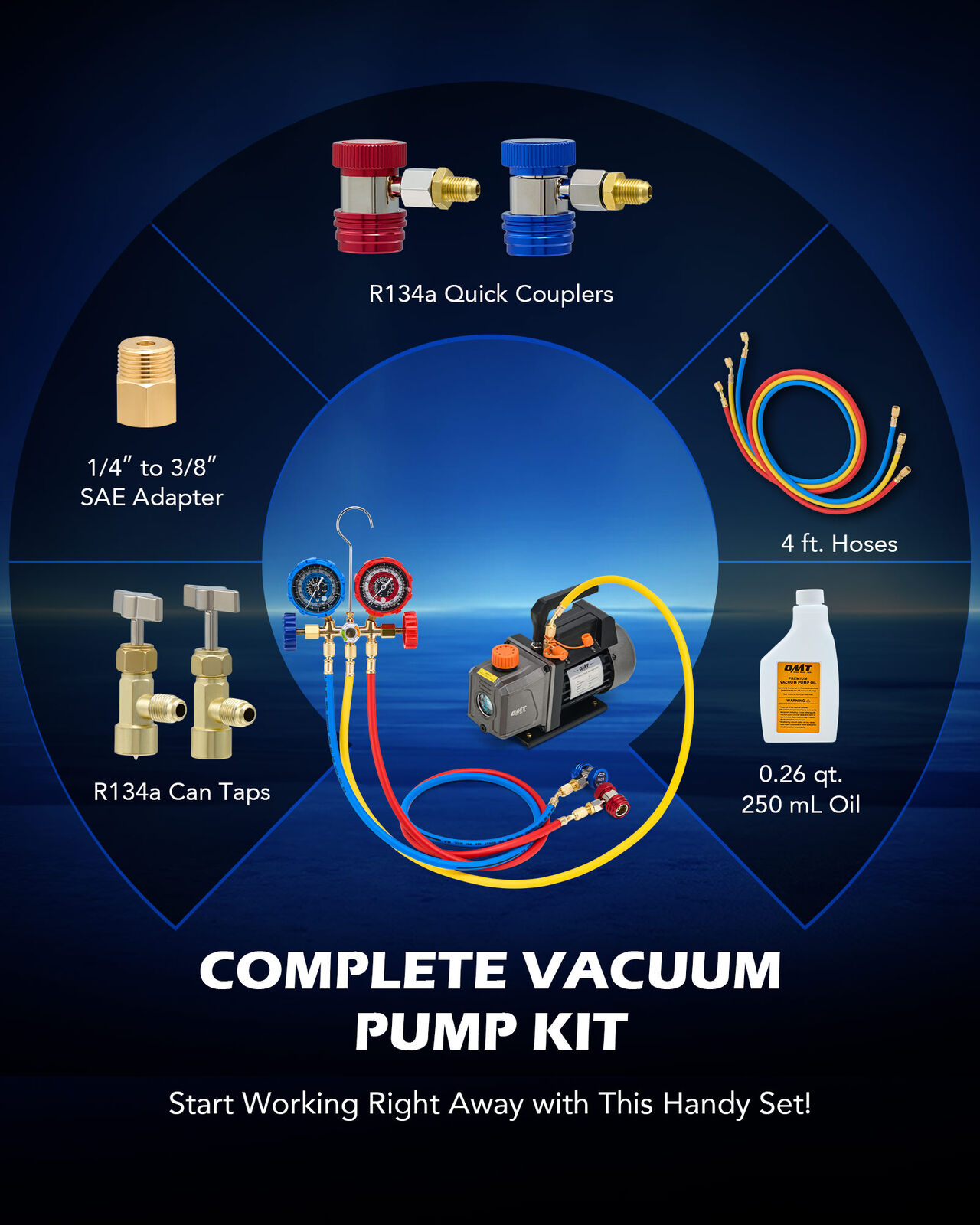

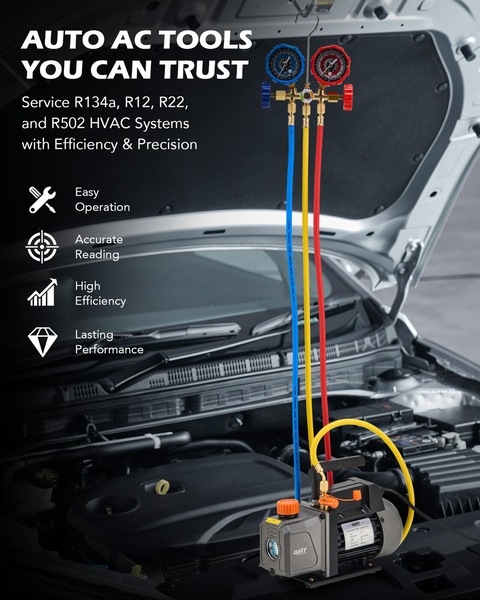

This professional automotive air conditioner tool set includes a powerful 1/3 hp vacuum pump, a manifold gauge set, 3 hoses, a 1/4" to 3/8" adapter, a 1/4" to 1/2" adapter, a 1/2" to 1/4" adapter, R134a can taps, an 8.5 fl. oz. oil, and other accessories needed for easy refrigerant evacuation, recharging, and more!

Made of quality copper and lightweight aluminum alloy, our air rotary-vane vacuum pump provides efficient, dependable, and long-lasting service. The 3 color-coded hoses have a 4 foot reach and 3000 psi burst pressure.

Our 4 cfm pump can draw your system down as low as 37.5 microns (5 Pa). Its innovative design prevents oil backflow and overheating for safe operation. The 7.6 fl. oz. reservoir includes a sight glass and a scale for easy monitoring of the oil level and its quality.

The lubricating and absorptive oil comes included, along with one-size-fits-most gloves for quick and clean replacement. The dual ports and adapters allow this set to handle any low-tonnage HVAC systems using R22, R134a, R12, or R502 coolants.

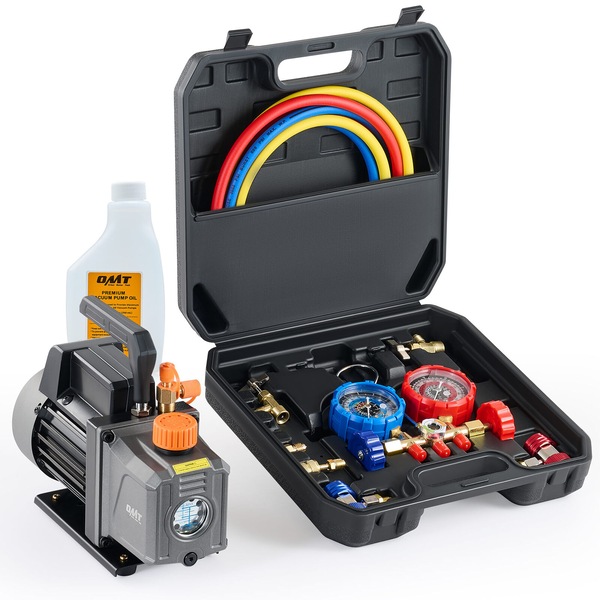

Weighing only around 20 pounds, this vacuum pump and gauge kit comes with a blow-molded case to keep everything organized and easy to store and transport between jobs.
