Collect 32 Everyday Rewards points
Dispatch in 2 business days

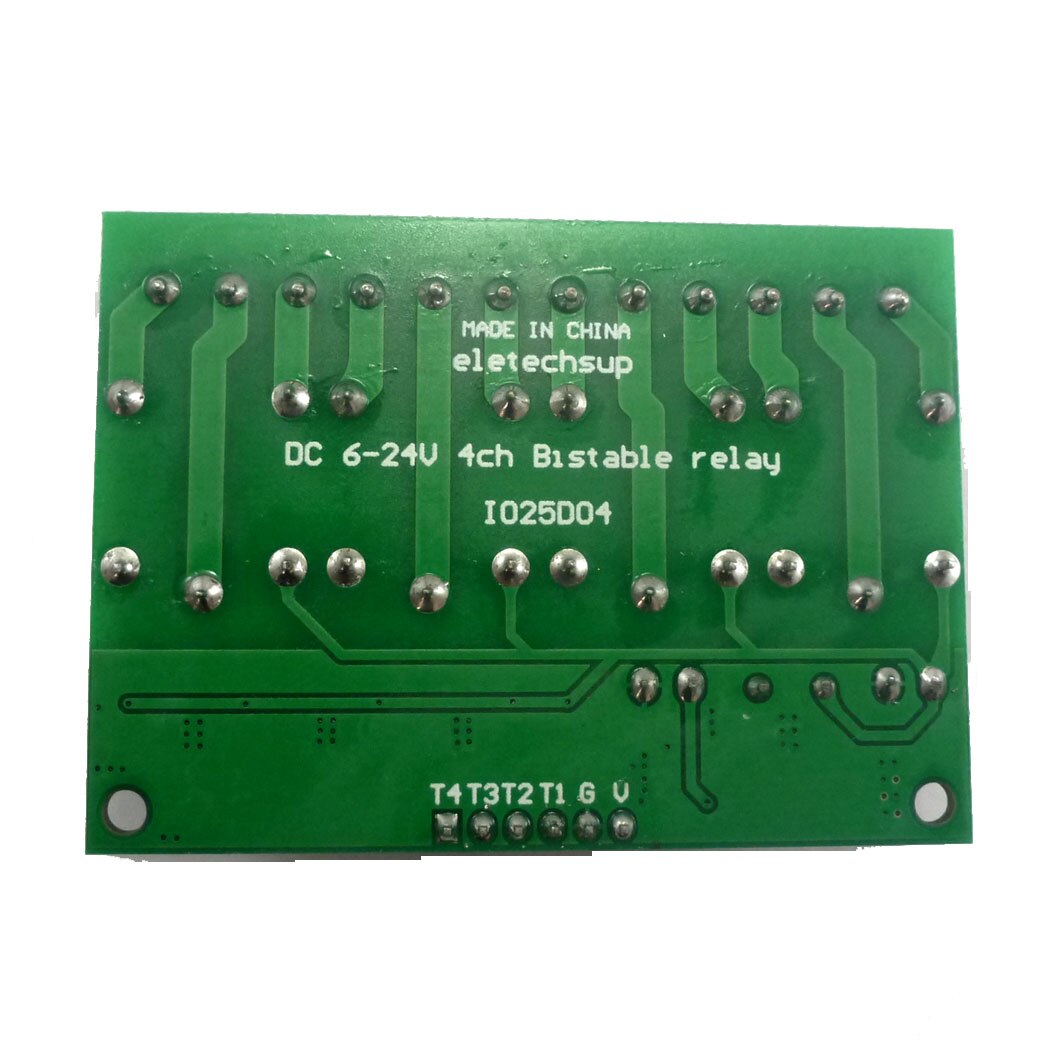

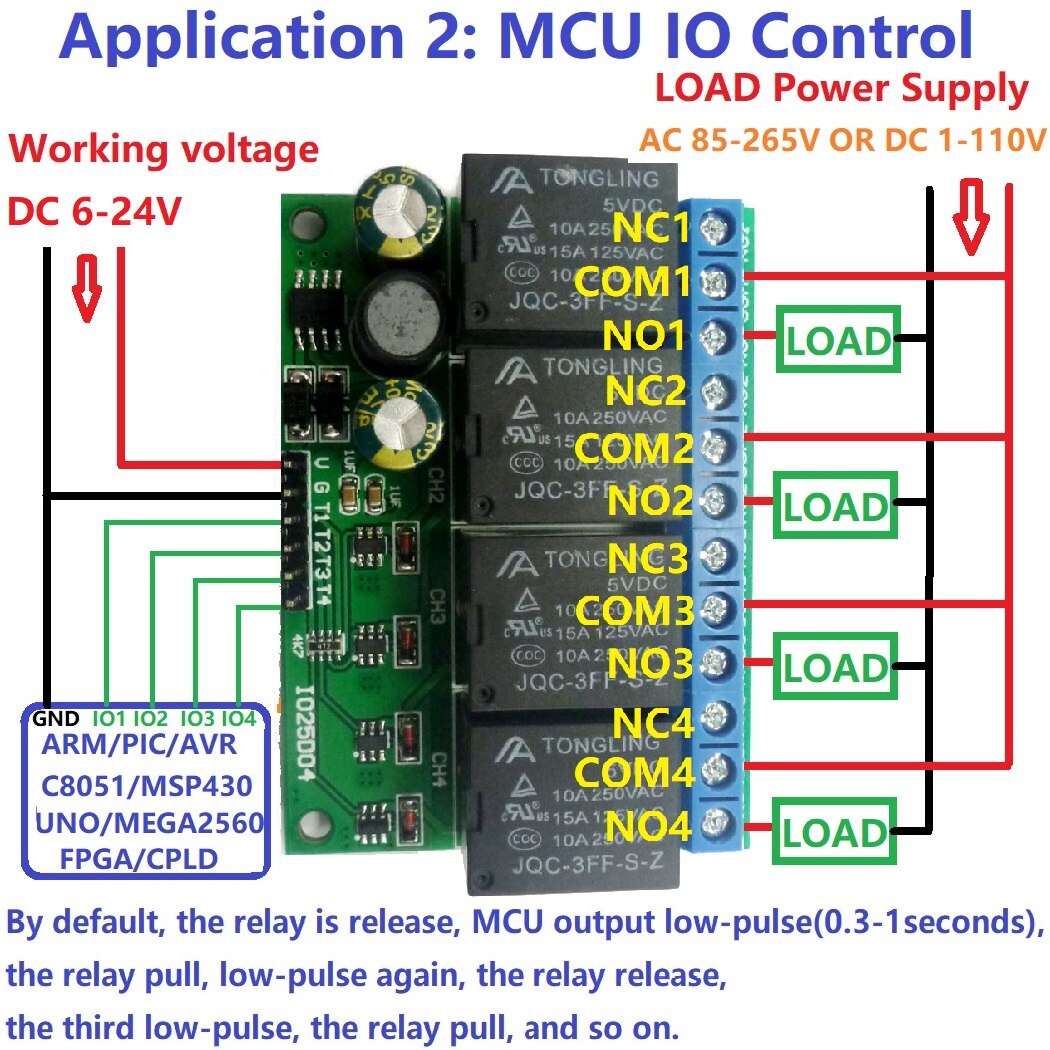

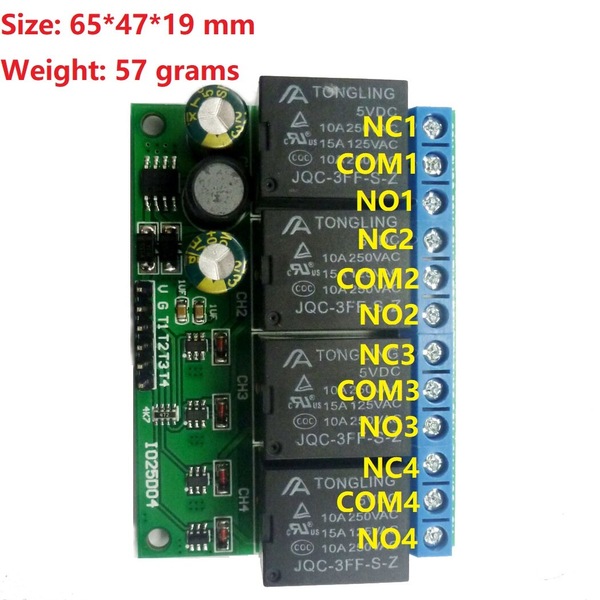

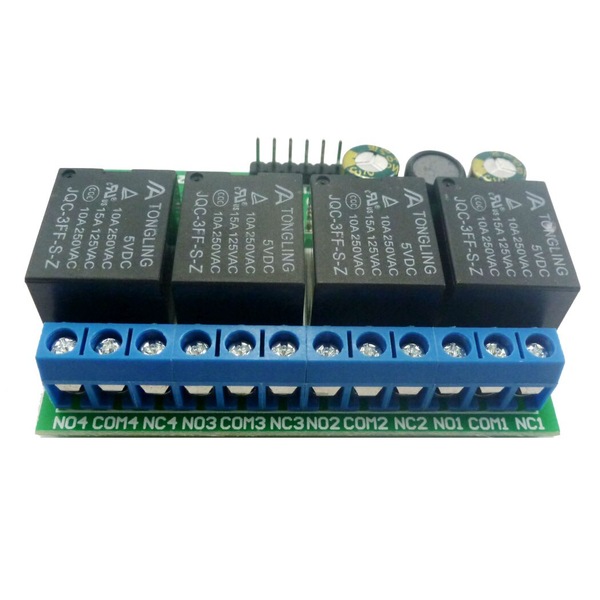

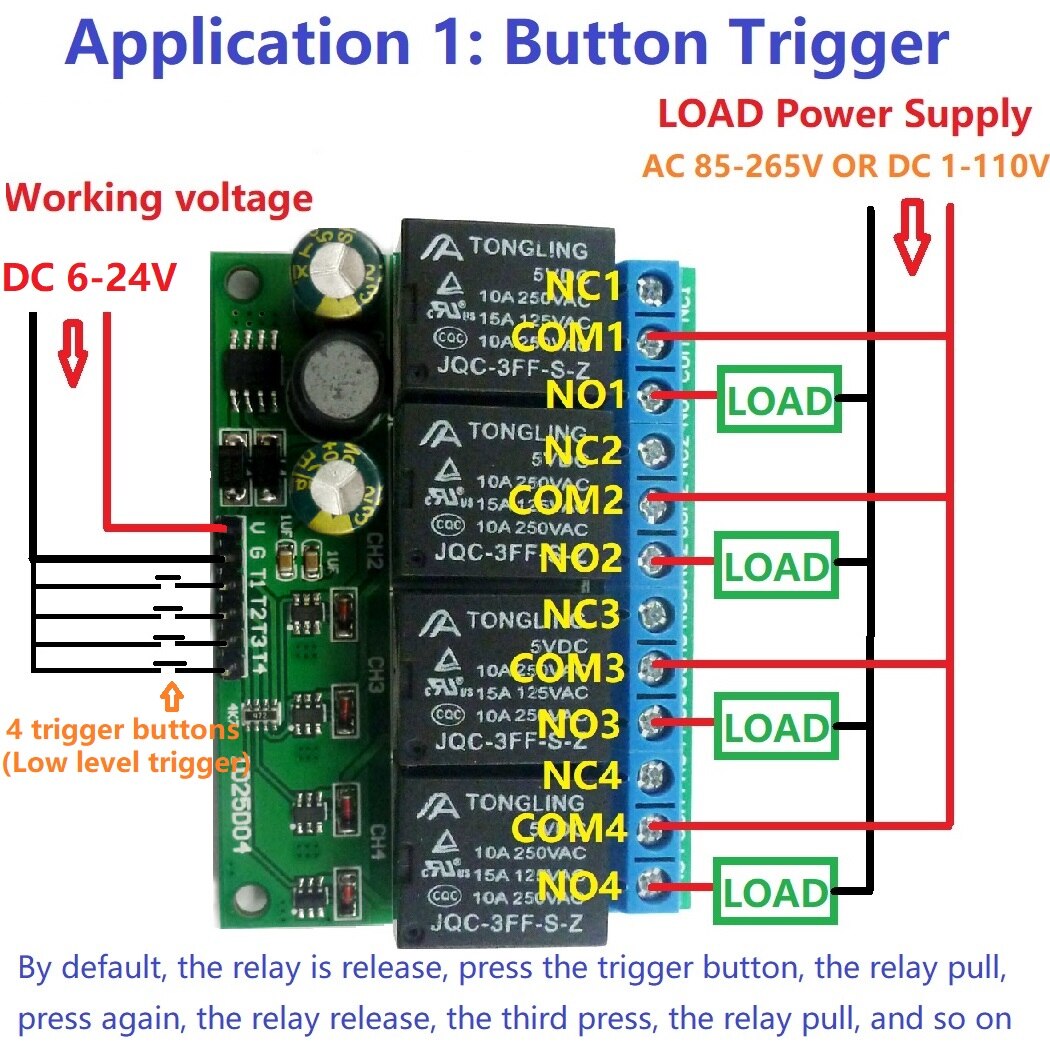

| Description: ? Working voltage: DC 6-24V Working current: 1 relay 37MA;2? relay 73 MA; 3? relay 1 10MA; 4? relay 146 MA Standby current: 2mA Load current: AC 250V / 10A, DC 30V / 10A Trigger mode: Low pulse trigger Size: 65mm * 47mm? * 19mm (L * W * H),? Small size??? Weight: 57 g ? This is a bistable (self-locking) relay module,Trigger once, the relay pull (and holds);Trigger again, the relay releases (and holds) ? Module interface: 1. V: positive power supply (VCC) 2. G:? negative power supply (GND) 3. T1? : Trigger port 1 4. T2? : Trigger port 2 5. T3? : Trigger port 3 6. T4? : Trigger port 4 ? Relay outputs: 1. NO: normally open relay interface 2. COM: Common Interface Relays 3. NC: normally closed relay interface ? USE 1: By default, the relay is release, press the trigger button, the relay pull, press again, the relay release, the third press, the relay pull, and so on. USE 2: By default, the relay is release, MCU output low-pulse(0.3-1seconds), the relay pull, low-pulse again, the relay release, the? third low-pulse, the relay pull, and so on. ? Typical applications: ? Automotive electronics Motor LED Smart Home Emergency lighting MCU development board Toy car PLC Packing list:1 pcs? 4 Channel DC 6-24V?? Self-locking? Relay Module |
GTIN: 774048926881
Estimated Delivery Time Frame:12-20 business days
Ask a Question About This Product
Reference ID: 7039930
