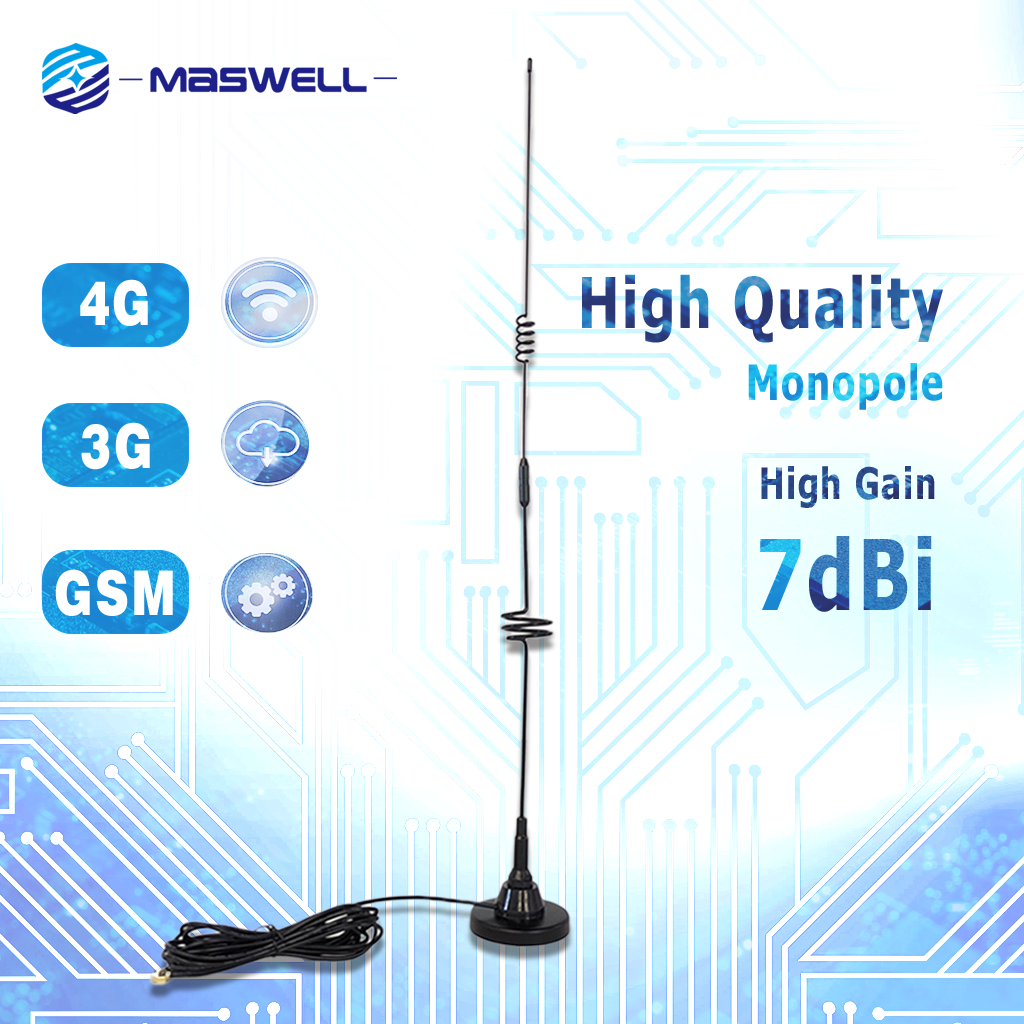

4G Antenna 3G Cellular Extremely High gain 7dBi SMA male connector_high quality
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
Collect 32 Everyday Rewards points
Collect 32 Everyday Rewards points

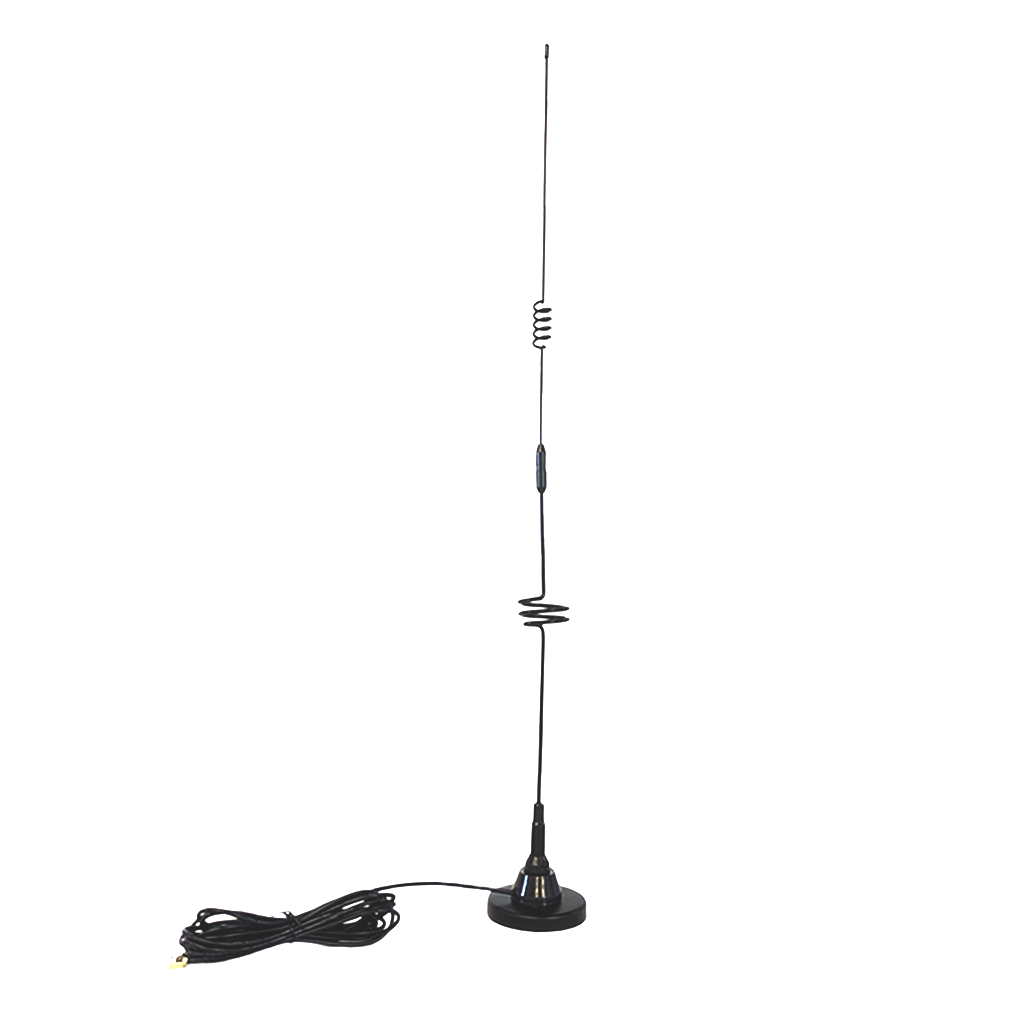

Dipole antenna with Magnetical mounting on bottom
Ideal for GSM 2G/3G/4G weak signal boosting of modem or car.
 Double loaded to supply HIGH GAIN (7 dBi)
ITEM ID:AN_GSM_825

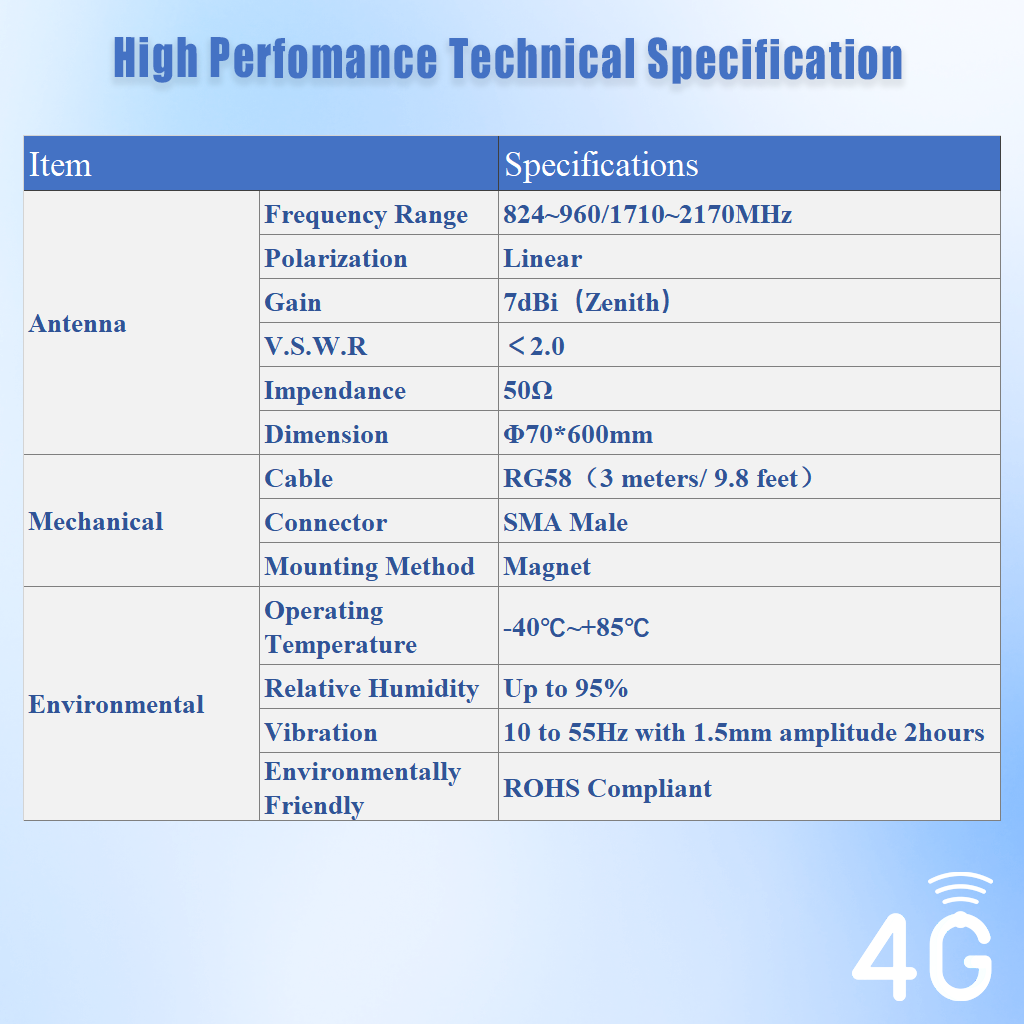

Frequency 824~960 MHz / 1710~2170 MHz
Polarisation linear
V.S.W.R <2.0 : 1
Band Width ±5 MHz
Impendence 50 ohm
Typical Gain 7 dBi

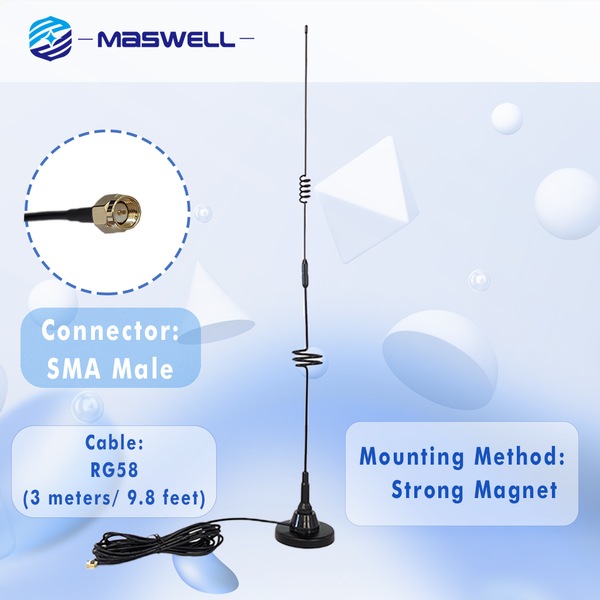

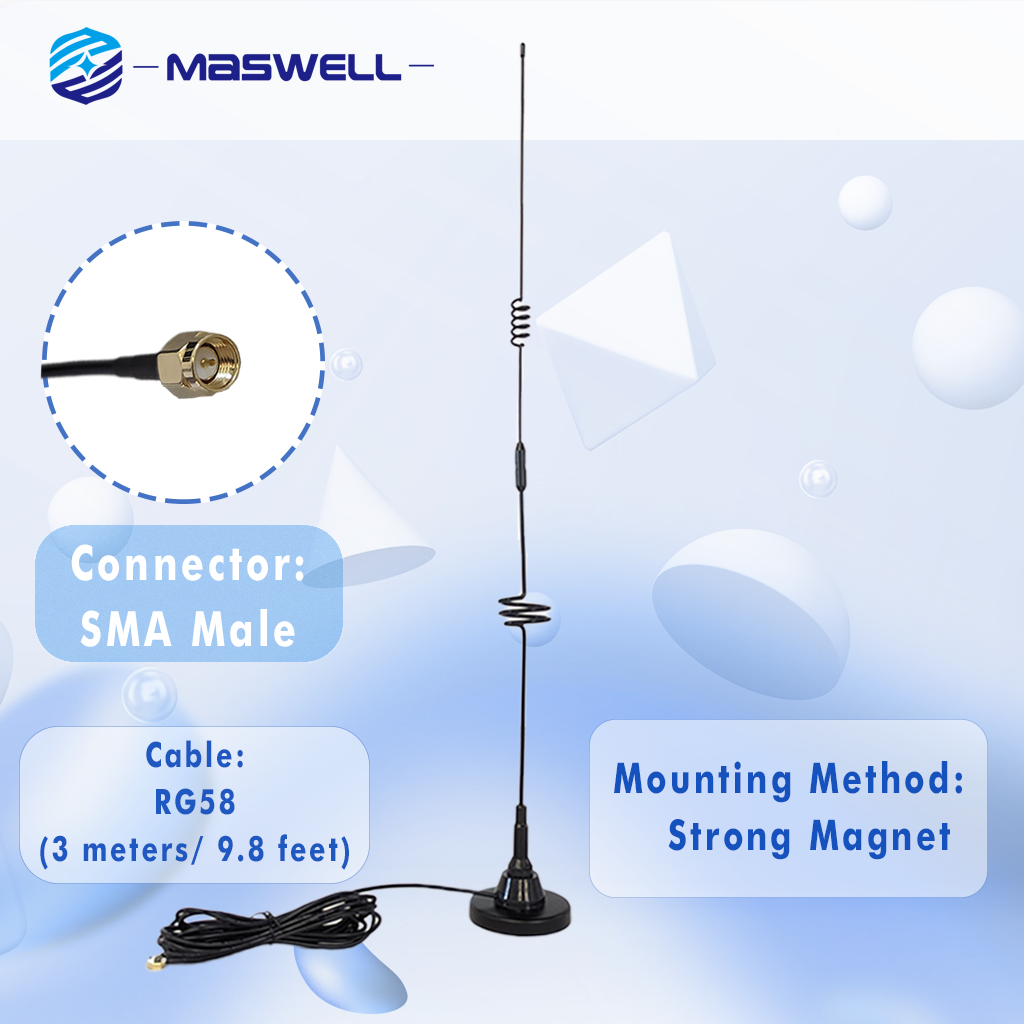

Cable RG58 (3m)
Connector SMA Male
Working Temp -40 Degrees Celsius~+85 Degrees Celsius
Size: Φ70*600mm
Mouting type: Magnetical
Ingress Protection IP67
Vibration 10 to 55Hz with 1.5mm amplitude 2hours
Environmentally Friendly ROHS Compliant
GTIN: 738956625489
Estimated Delivery Time Frame:15
