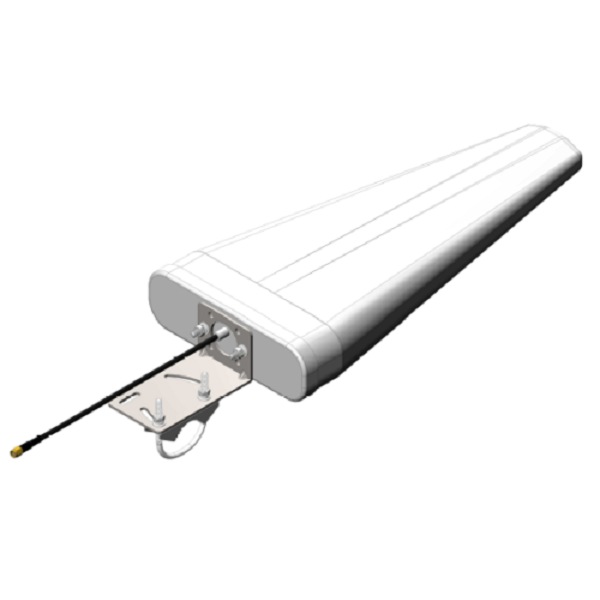

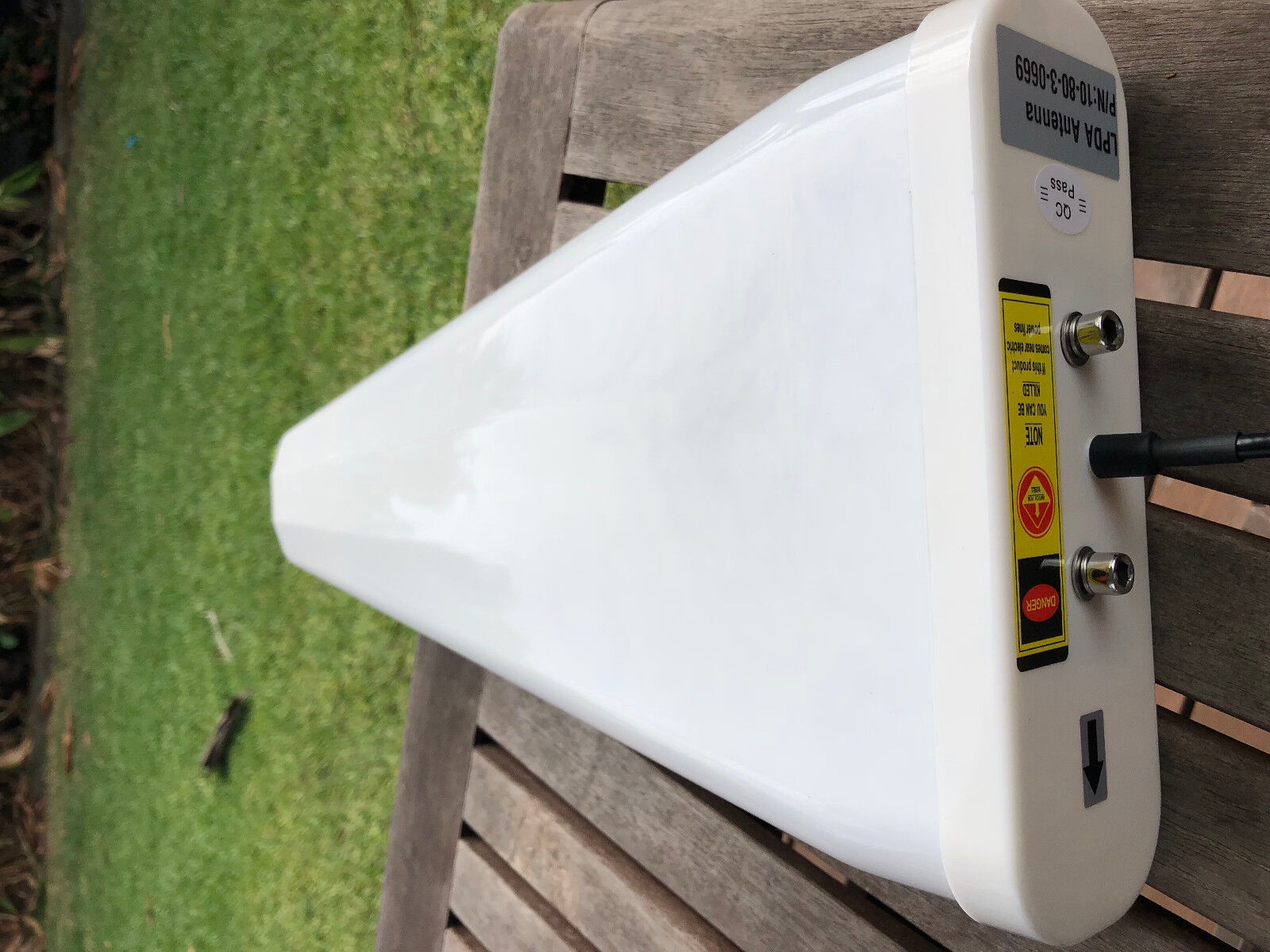

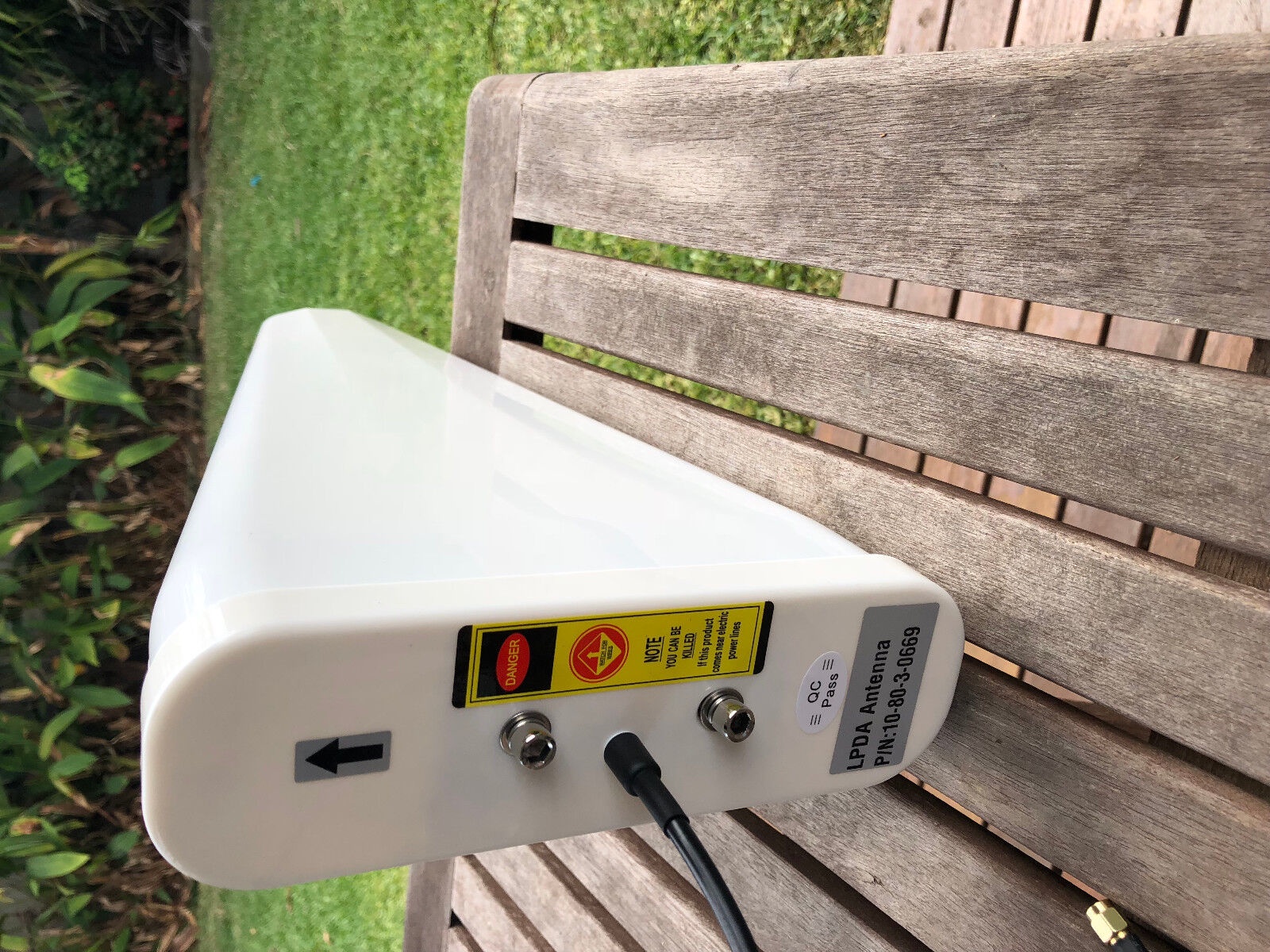

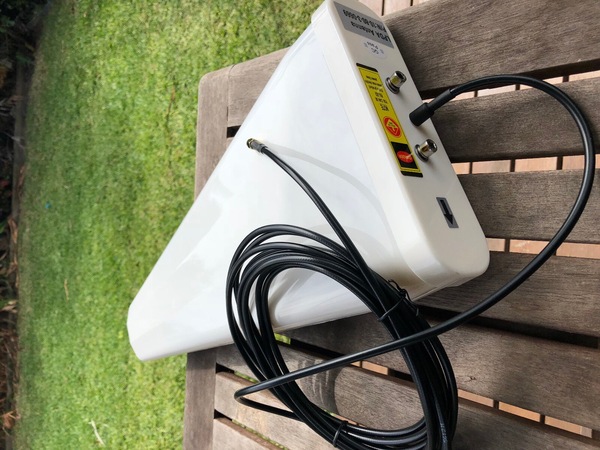

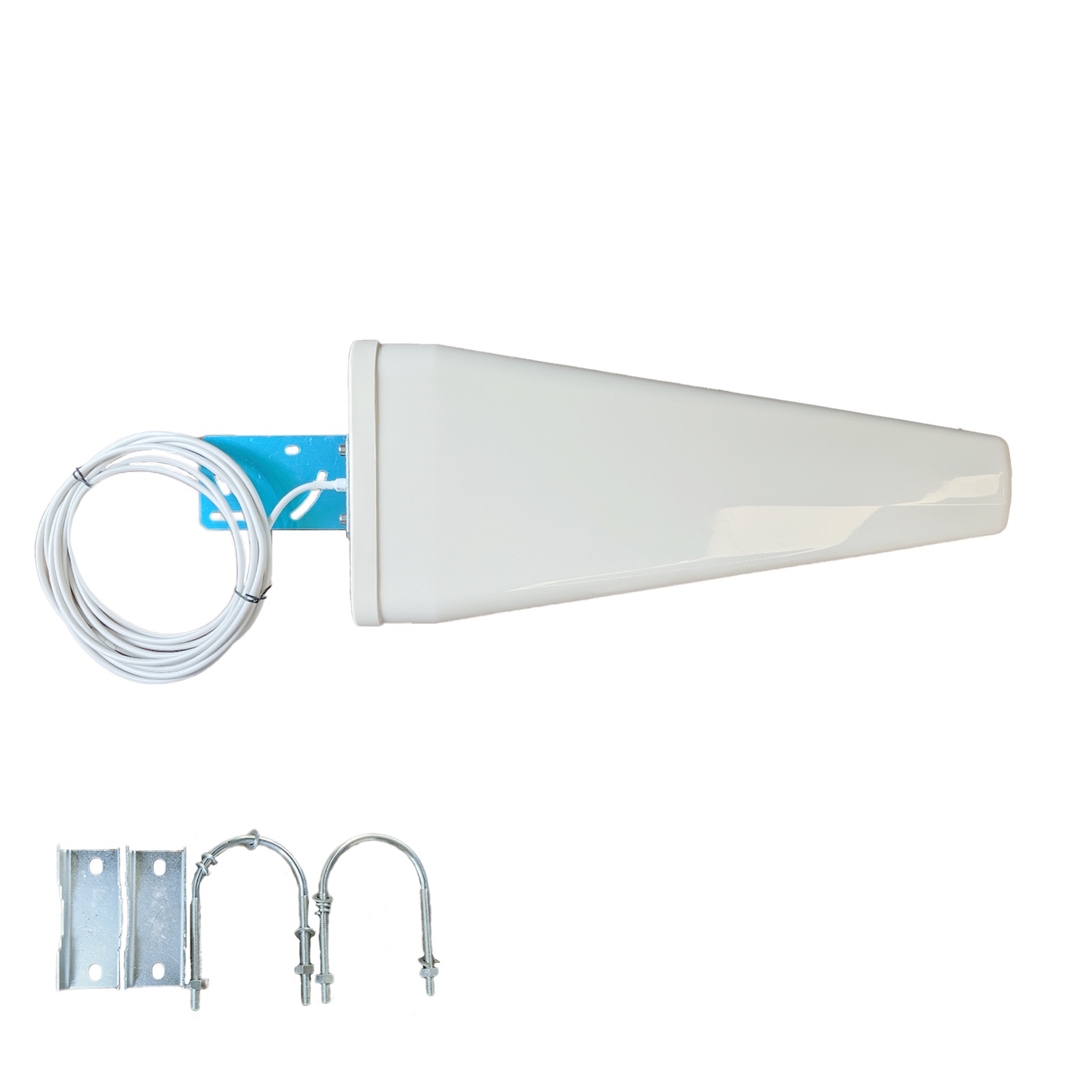

4G LTE 3G Cellular Log Periodic Antenna High Gain (11.0 dBi) wideband LPDA GSM

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
Image 11
Hurry! 3 items left!
$119.99

Collect 119 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by RF Outlet
Secure ways to pay at checkout

ITEM ID:AN_GSM_LPA_101

High quality ABS antenna radome

7/24 Operation Capability

Applications:

GSM/3G/4G/LTE 900/1800/PHS system and WIFI!

Repeater station system

Long distance telecommunication


Specifications:

Electric specifications:

Frequency 800MHz-2500MHz very wideband
Band Width 1700 MHz

Gain 11 dBi

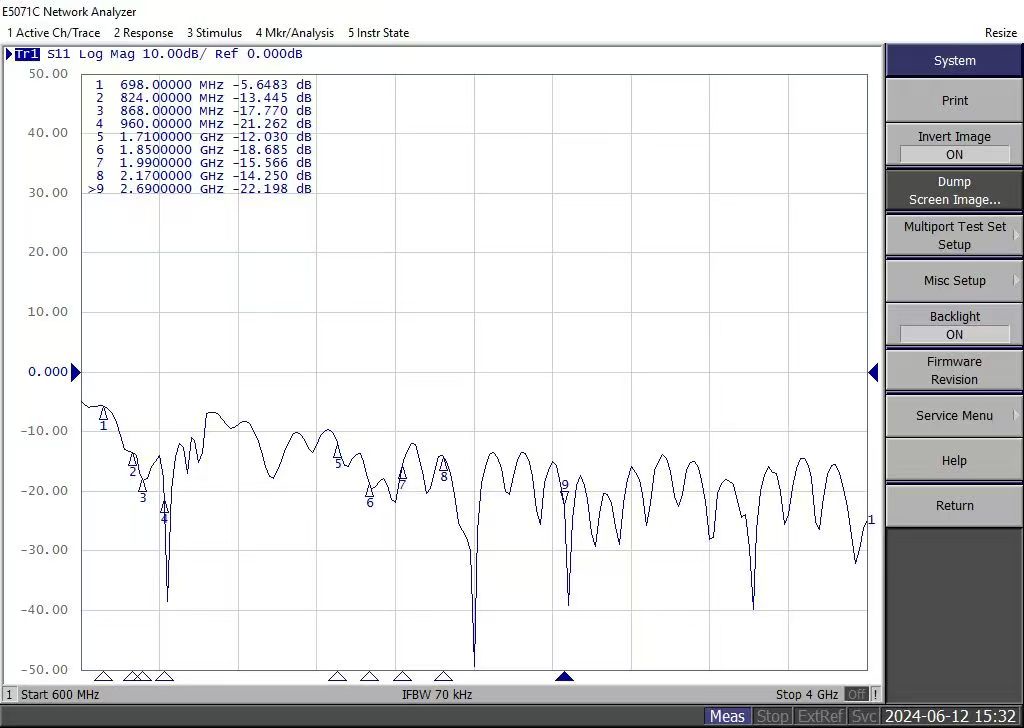

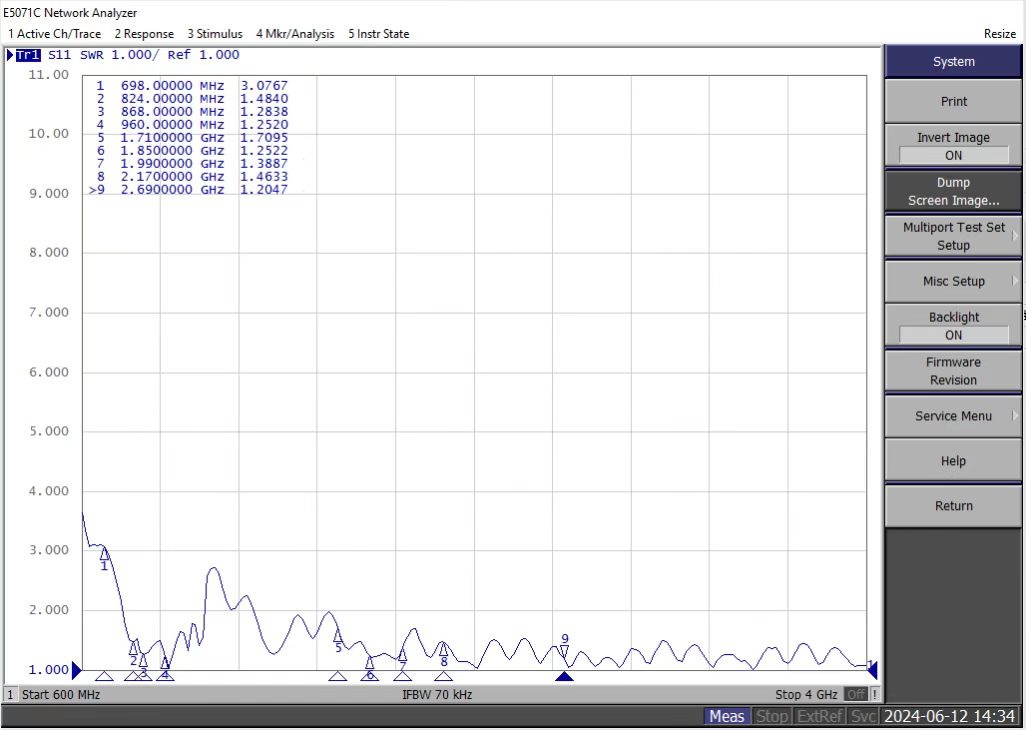

V.S.W.R ≤2

Input Impendence 50 ohm

Polarization: linear horizontal or vertical

Maximum power: 100W

Lightning protection: DC ground

Mechanical specifications:

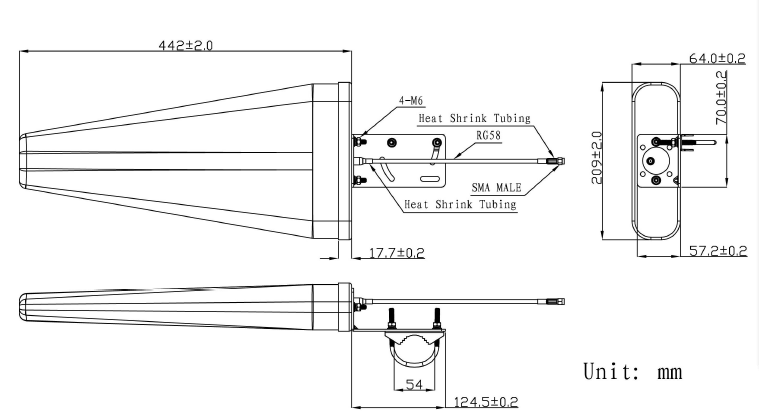

Dimensions: 442*210*57 mm

Cable type: RG58/U

Antenna weight: 0.43 kg

Working Temp -40 Degrees Celsius ~+85 Degrees Celsius

Cable Length: 5m

Connector type: SMA male

Outdoor wall/roof mount antenna for GSM/3G/4G signal boosting with dual frequency band and high gain (11.0 dBi)

Suitable for Telstra, Optus, VHALTE 1800,LTE 850 and 3G/4G and wifi

GTIN: 747356052283
