Features:

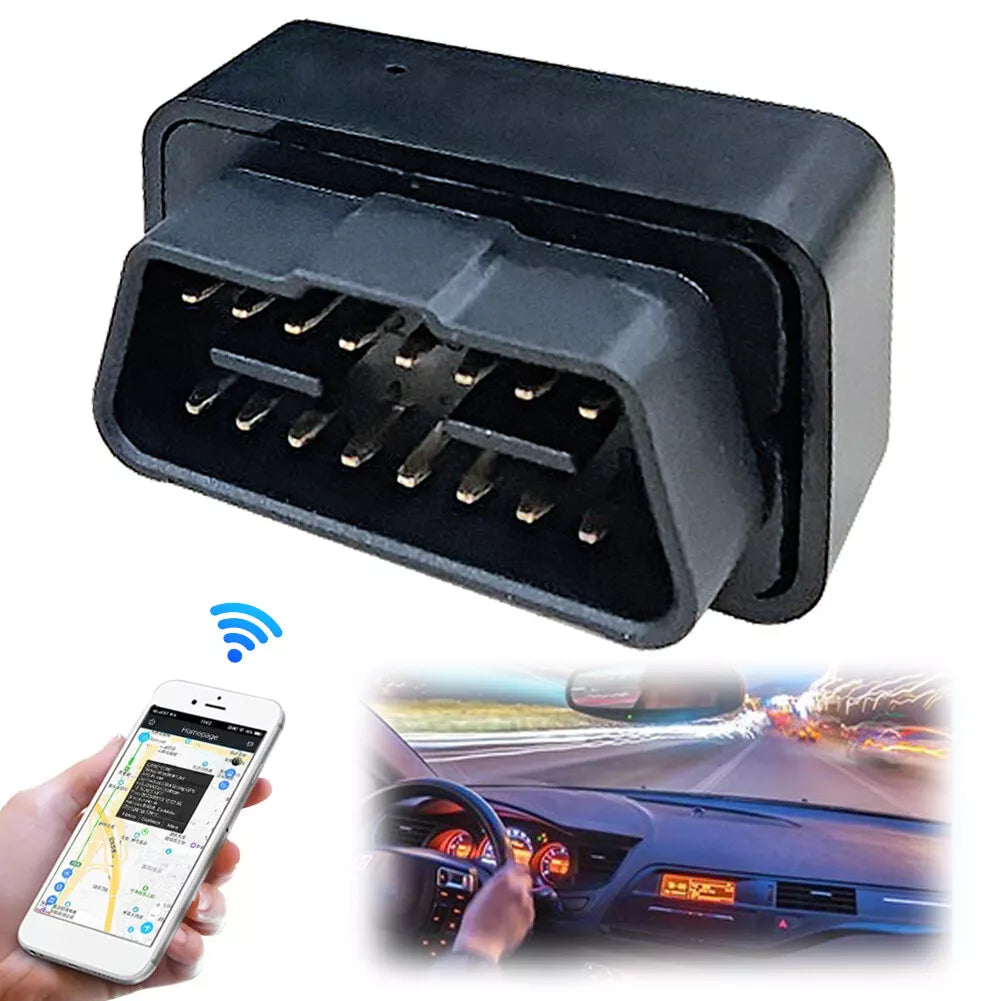

• Real-time tracking using Google Maps You will can real-time track the device on Google maps via mobile phone, tablet and computer, and the minimum data upload interval is 10 seconds!
• History Route Playback It can record the uploaded data of the tracker up to 6 months. You can playback the history route of the device within 6 months via both the web platform and APP!
• Geo-fence Set up a geo-fence for the tracker, the unit will send alarm information to APP and web server, or send a SMS alarm to the admin number when it goes out of or get in this district.
• Loosing Alarm When the tracker is accidentally fall off or taken off by someone, it will sense then send an alarm message to the authorized number.
• Shock Alarm After you set the shake alarm, please keep the tracker being stationary for 5 minutes, then the function will start working. It will send SMS "sensor alarm!" to the admin number when the unit get shocked.
• Overspeed Alarm This alarm works only with continuous positioning mode. When the unit speed is exceed the speed you preset, it will send message "speed alarm!" to the admin number every 5 minutes.

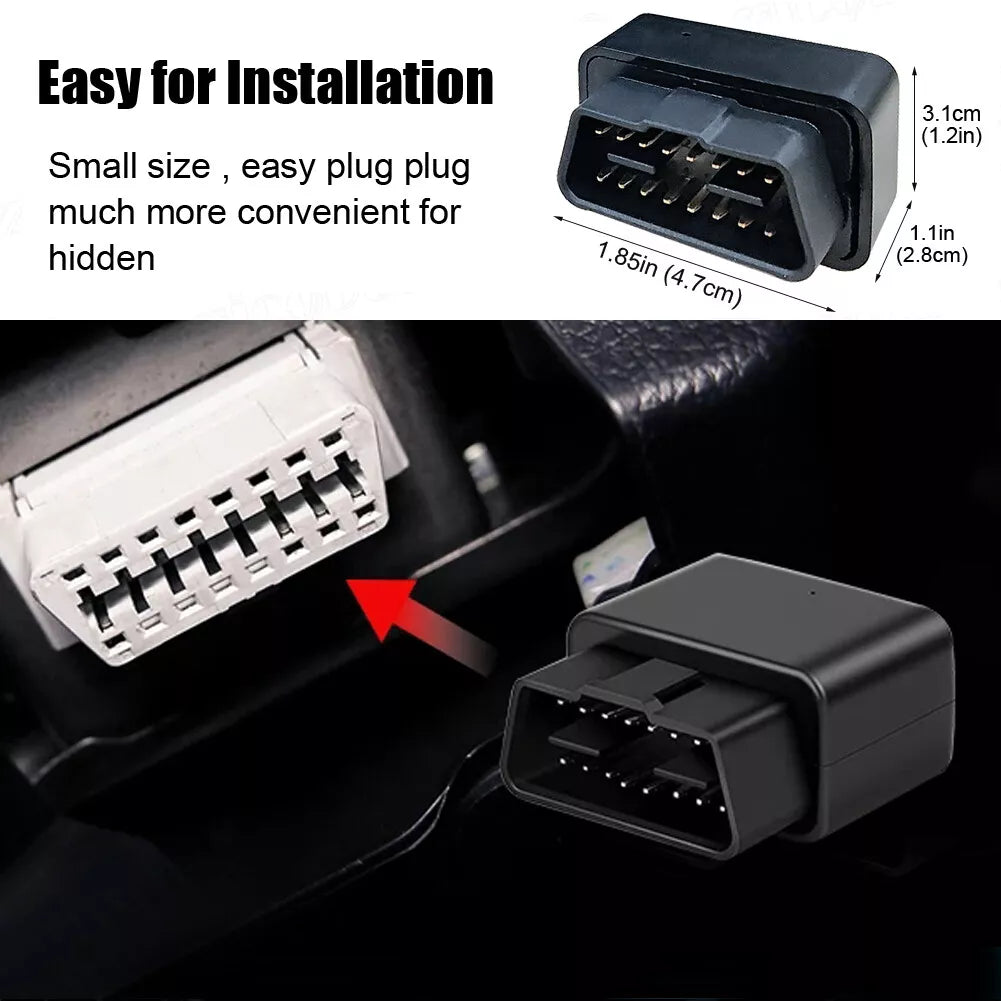

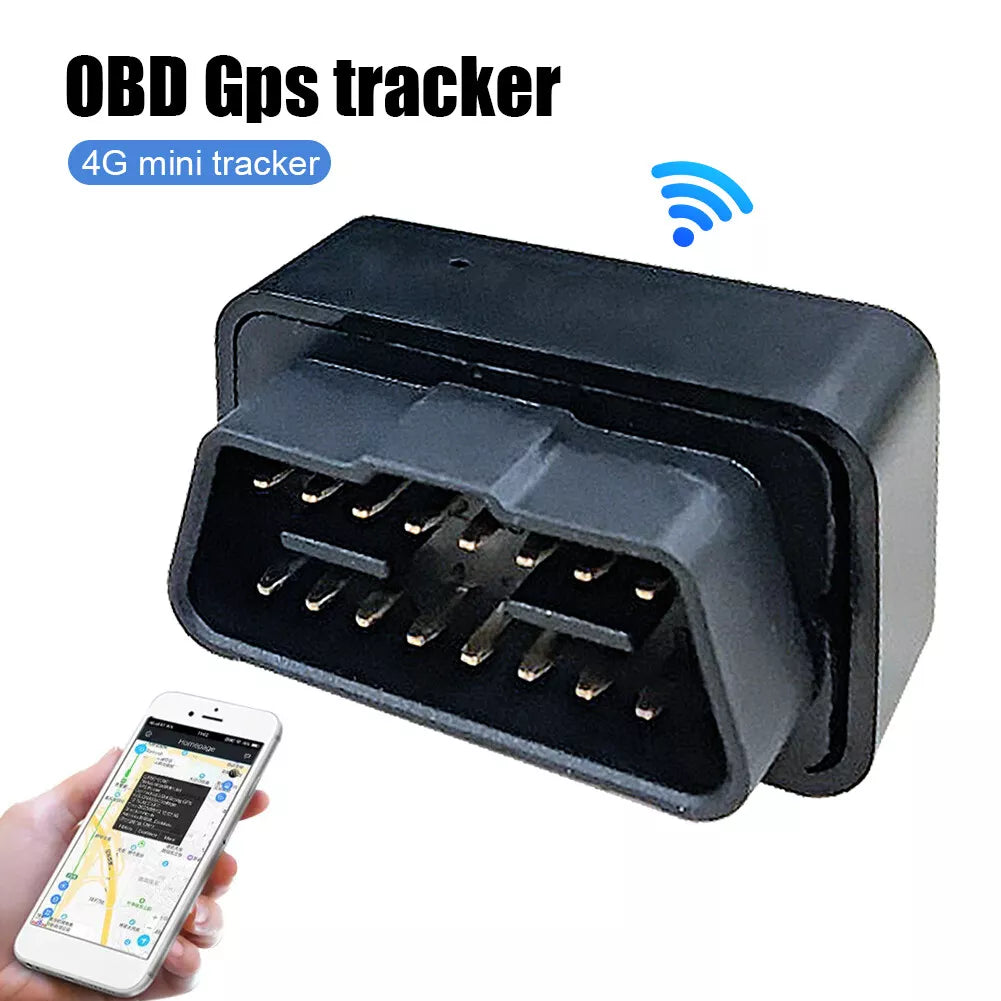

• One Second to Install Simple OBD Plug-in
  Personal account for fleet management If you buy multiple units, we can set up a personal account for you so that you manage multiple units on the APP or website at the same time!
• 2 Sleep Modes to Save Power You can set the sleep time mode or sleep shock mode for your device by sending commands to the device to save power when the device is idle.
• Website Tracking:Click on the platform URL link and log in with the ID number or account name to track and manage your tracker. The website tracking is more suitable for fleet management to manage multiple trackers.
• Multi tracking ways on Phone, Tablet & Desktop APP Tracking ,Visit the APP store to download the APP. Log in to the APP by the ID number of tracker assigned.

Specification:

• Dynamic Output Range: -15~108dbm
• Receiving Sensitivity: -107dBm
• Protocol: 808
• Working Frequency Range: GSM 900/1800; TDD B34/38/39/39/40/41; FDD B1/3/5/8
• Positioning Accuracy: 1-5 meters (outdoor open area)
• WIFI Positioning Accuracy: 15-100 meters (with WIFI signal coverage)
• LBS Base Station Positioning: 200-1000 meters (no signal indoors)
• Working Temperature: -20 o C~+78C
• Storage Humidity: 30%~80% non condensing
• Working Voltage: DC9V-35V
• Working Current: 12V/65mA
• Sleep Current: 12V/10mA
• Battery Capacity: 60mAh

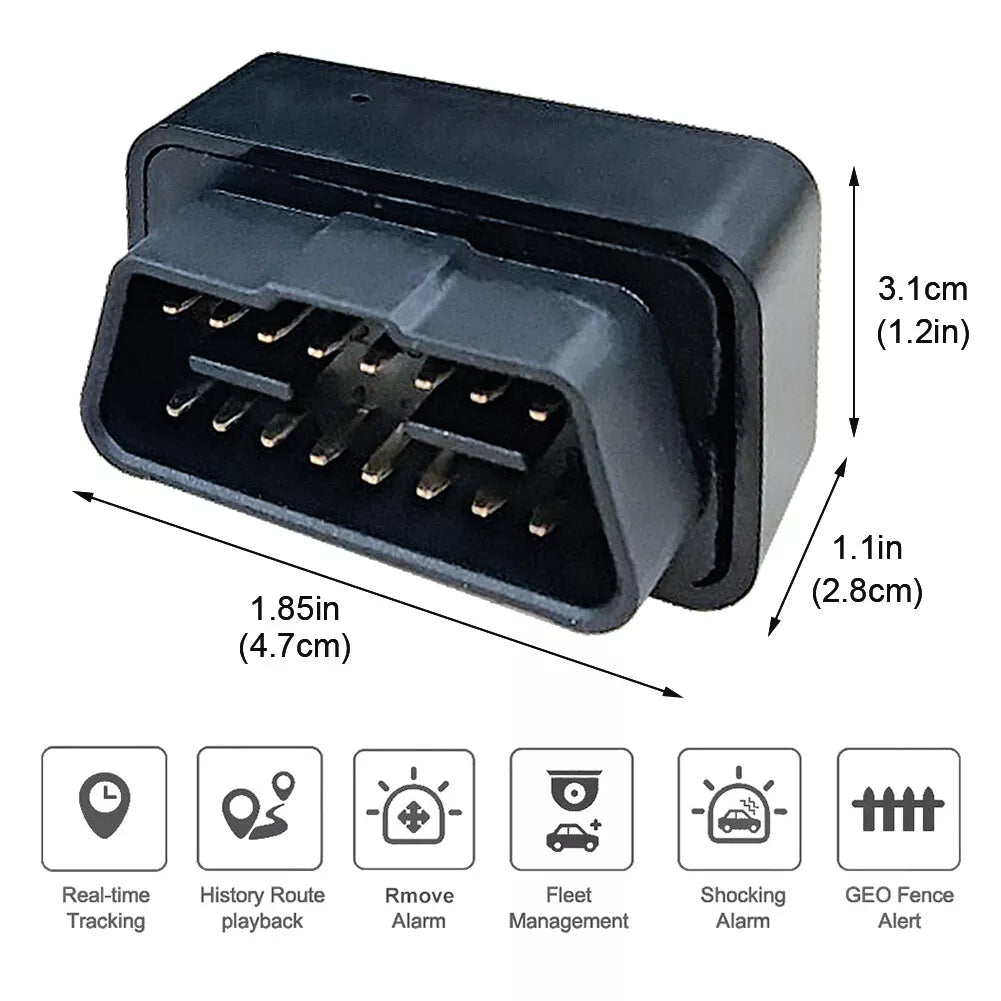

• Product Size: 29x47.3x28mm

Package Includes:

• 1 x Tracker
• 1 x Instructions
