1. Product introduction

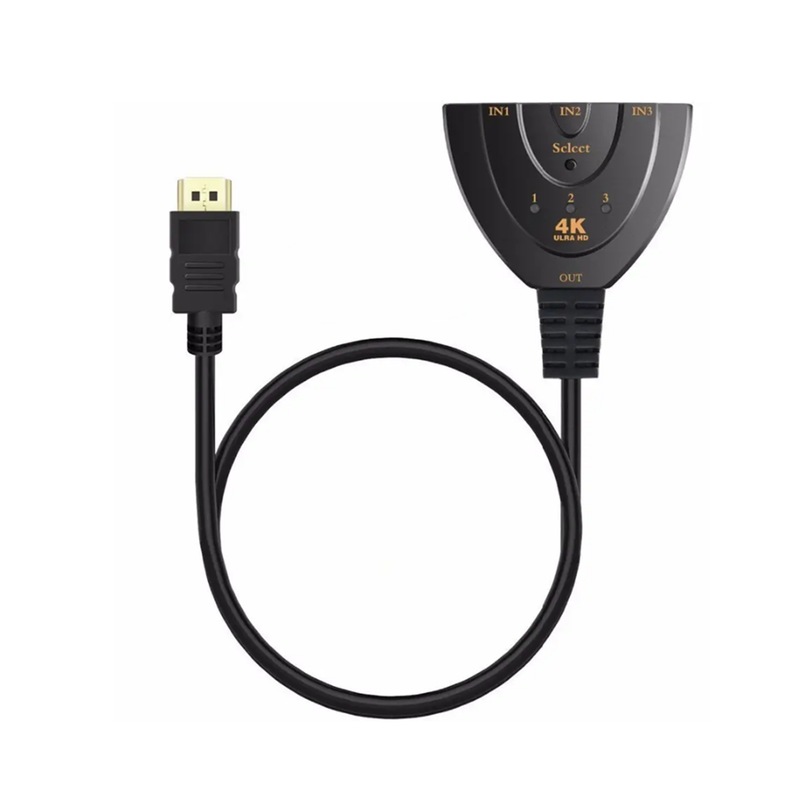

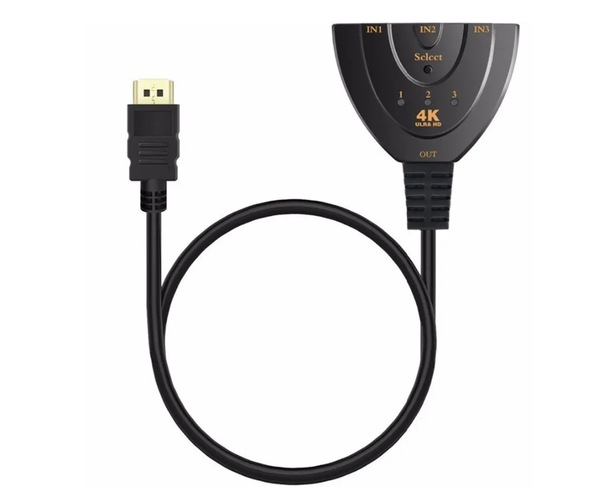

This is a high performance 3 x HDMI input and 1 x HDMI digital/analog audio output switcher. It supports HDCP repeater function and quick switch HDMI input port. The system supports all 3D TV formats in addition to all HDTV formats up to 4Kx2K. In addition, the user can arbitrarily select the signal source through the remote control, which brings great convenience to the user.

Two: Product features:

Three HDMI 1.4 signals can be freely switched to an HDMI1.4 display device.

Compatible with HDCP 1.3

Support dark 30-bit, 36-bit

Support Blu-ray DVD24/50/60fs/HD-DVD/xvYcc

Audio format DTS-HD/Dolby-trueHD/LPCM7.1/DTS/DOLBY-AC3/DSD

Supports signal timing resizing.

Using AWG26 HDMI 1.4 version standard cable, the input transmission distance can reach 15 meters, and the output transmission distance can reach 25 meters.

The input terminal can be remotely switched through infrared, or can be controlled directly by pressing the button.

Can automatically skip unconnected sources

With memory function, when restarting or reconnecting, it can restore to the last connection state.

No signal loss

easy installation

External 5V/0.8A power adapter (support power supply, without power supply)

Connection and operation:

Connect the switcher's input port to the HDMI source via an HDMI cable.

Connect the output port of the switch to the HDMI display device via an HDMI cable.

Connect the 5V power supply to the 3x1 HDMI.

Product description analysis:

1. Multi-function switching function: intelligent or manual

2. Support the highest video resolution 3840*2160P 4K

3. Support 225MHz/2.25Gbps single channel (6.75Gbps all channels) bandwidth

4. Support 12bit single channel (36bit all channels) dark technology

5. Support HDCP

6. Support uncompressed audio, such as LPCM

7. Support compressed audio, such as DTS digital, Dolby digital (including DTS-HD and Dolby True HD)

8. Support 3D format, including 1080p@23.98/24Hz, 720p@59.94/60Hz/50Hz, bandwidth up to 250MHz

Product scope and use:

1. Product application: Compatible with a variety of high-definition video sources, as well as a variety of HD-DVD formats, sky set-top boxes, PS game consoles, Xbox360, etc. Application and computer, ipad, DVD, smart phone, etc.

2. Purpose: Efficiently transmit high-definition audio/video signals to high-definition display terminal equipment

Specification:

Material: ABS

Weight: 161g

Length: 50cm

Package: 1*Switcher
