The product supports 1 HDMI input, 1 HDMI loop output and 4 CAT outputs. It can extend the signal transmission distance up to 35 meters at the
resolution of 4K2K@60Hz, 50 meters at 4K2K@30Hz, 60 meters at 1080P@ 60Hz via a single CAT6/6a/7 cable. The product supports up to 7.1CH HD audio pass-through. It supports audio extract function and advanced EDID management.
Features
HDMI 2.0, HDCP 2.2 / 1.x and DVI 1.0 compliant
Support 18Gbps video bandwidth
Support video resolution up to 4K2K@50/60Hz 4:4:4
Support 3D, HDR, HDR10+, HLG and Dolby vision
Support up to 7.1CH HD audio pass-through
Support digital and analog audio de-embedded output
Extend the signal transmission distance up to 35 meters at the resolution of
4K2K@60Hz, 50 meters at 4K2K@30Hz, 60 meters at 1080P@60Hz via a
single CAT6/6a/7 cable
Support 1 HDMI input, 1 HDMI loop output and 8 CAT outputs.
Support one-way IR control signal pass-through
Advanced EDID management
Support one-way PoC function (only from transmitter to receiver)
Compact design for easy and flexible installation

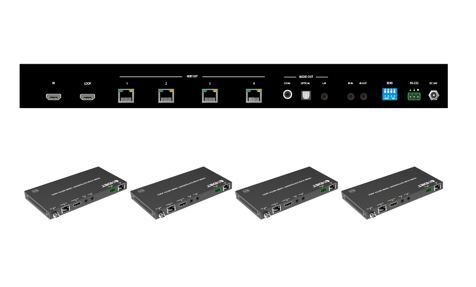

Package Contents:

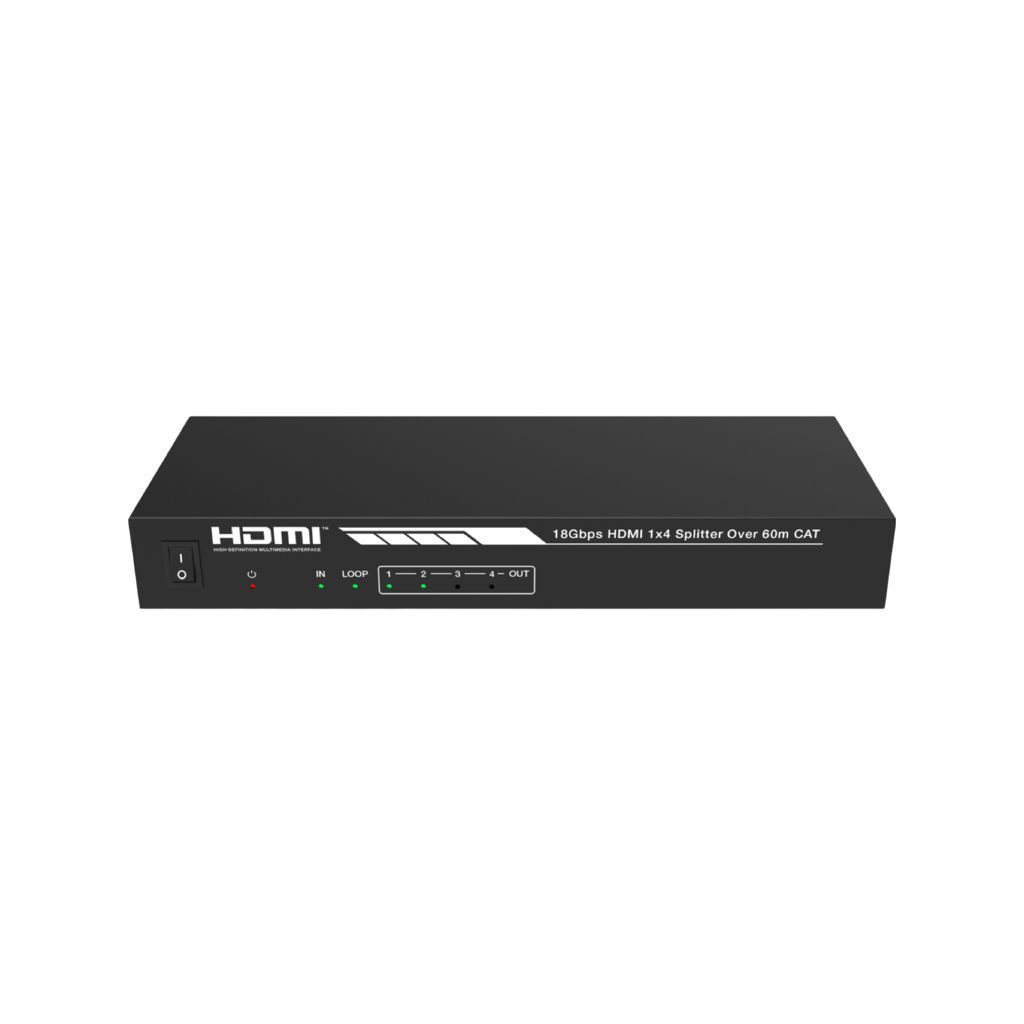

① 1× 18Gbps 1×4 HDMI Splitter over 60m CAT

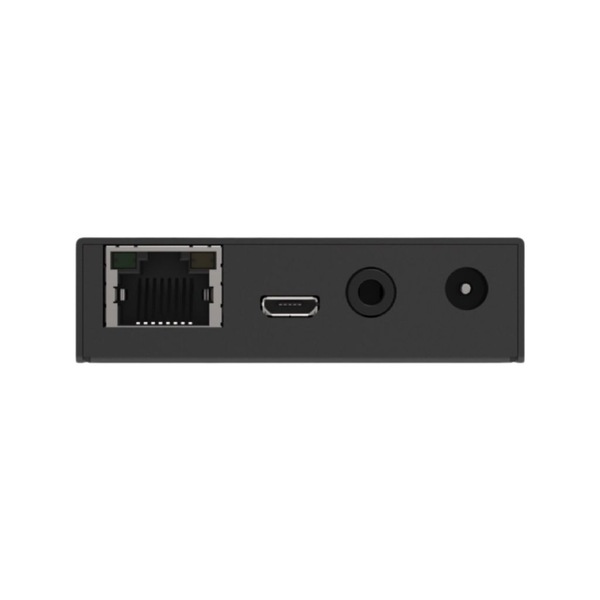

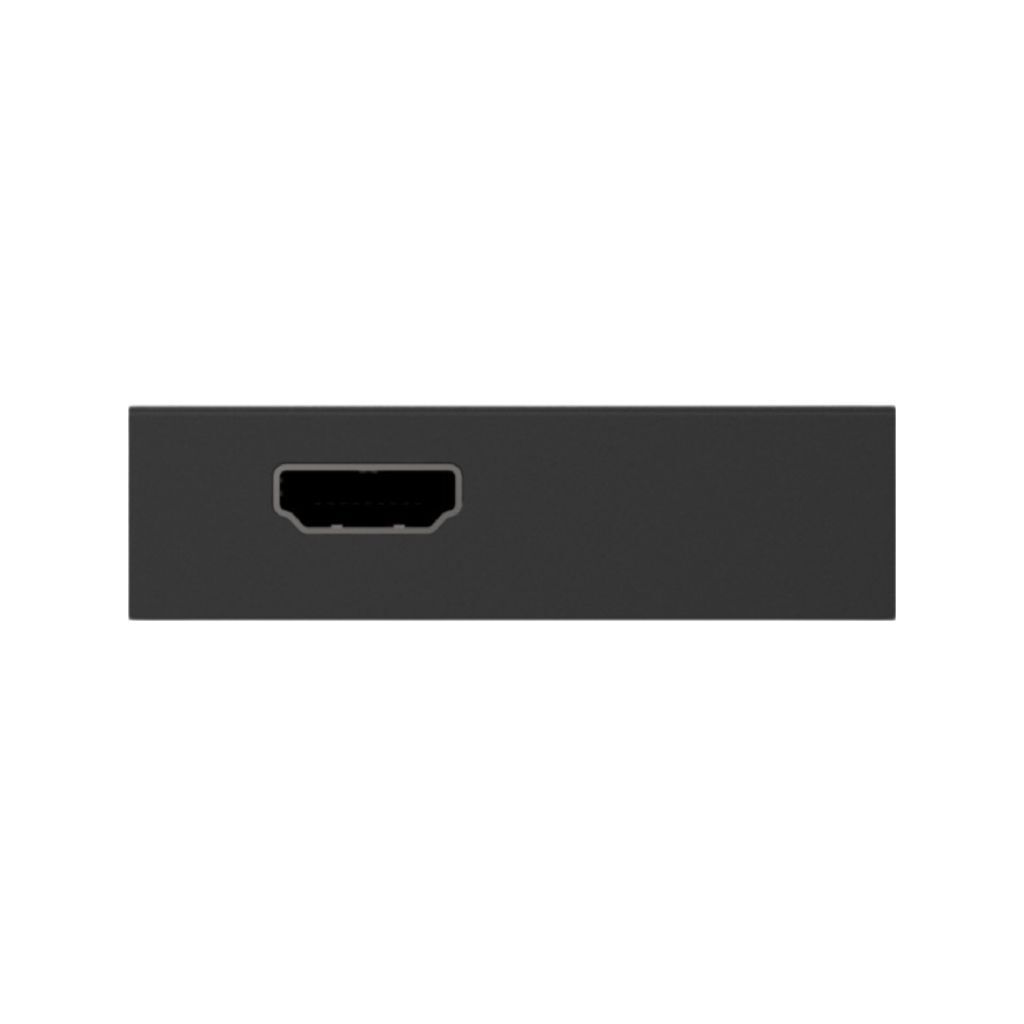

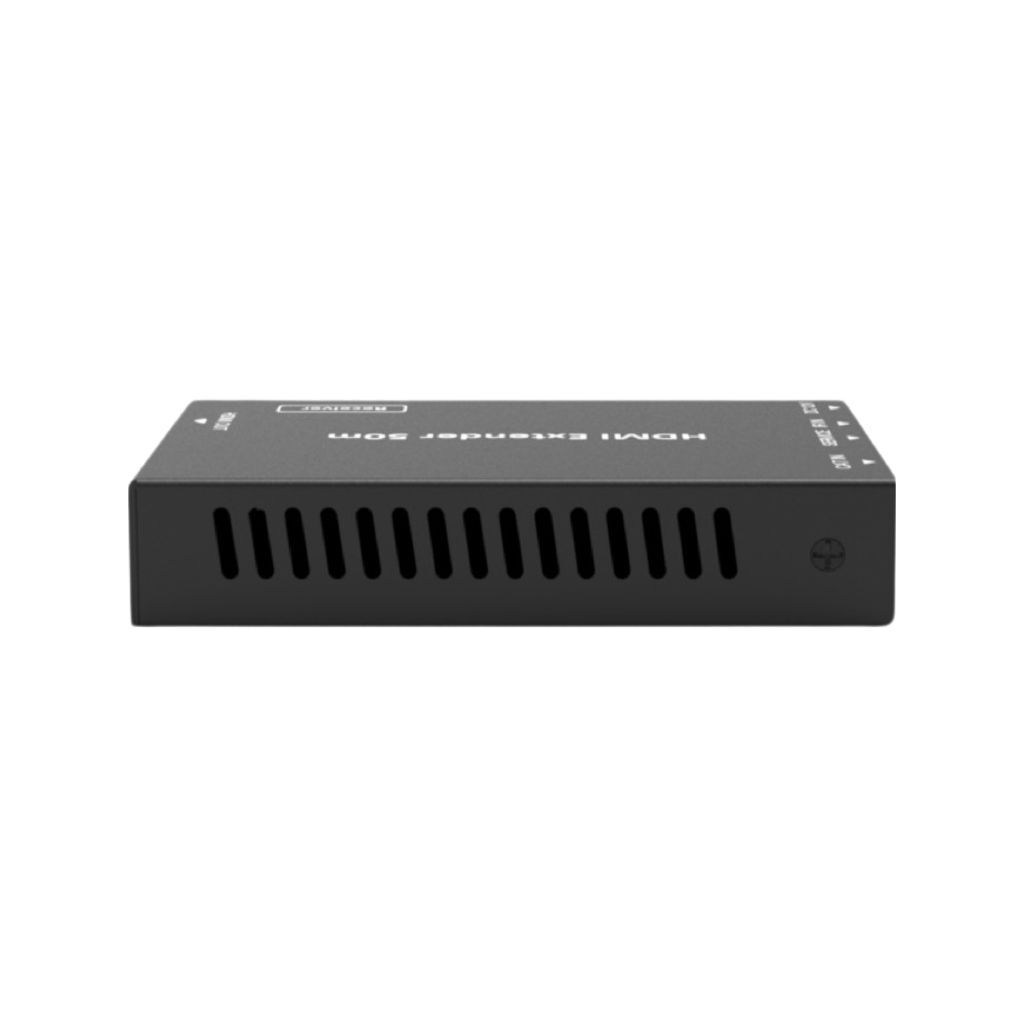

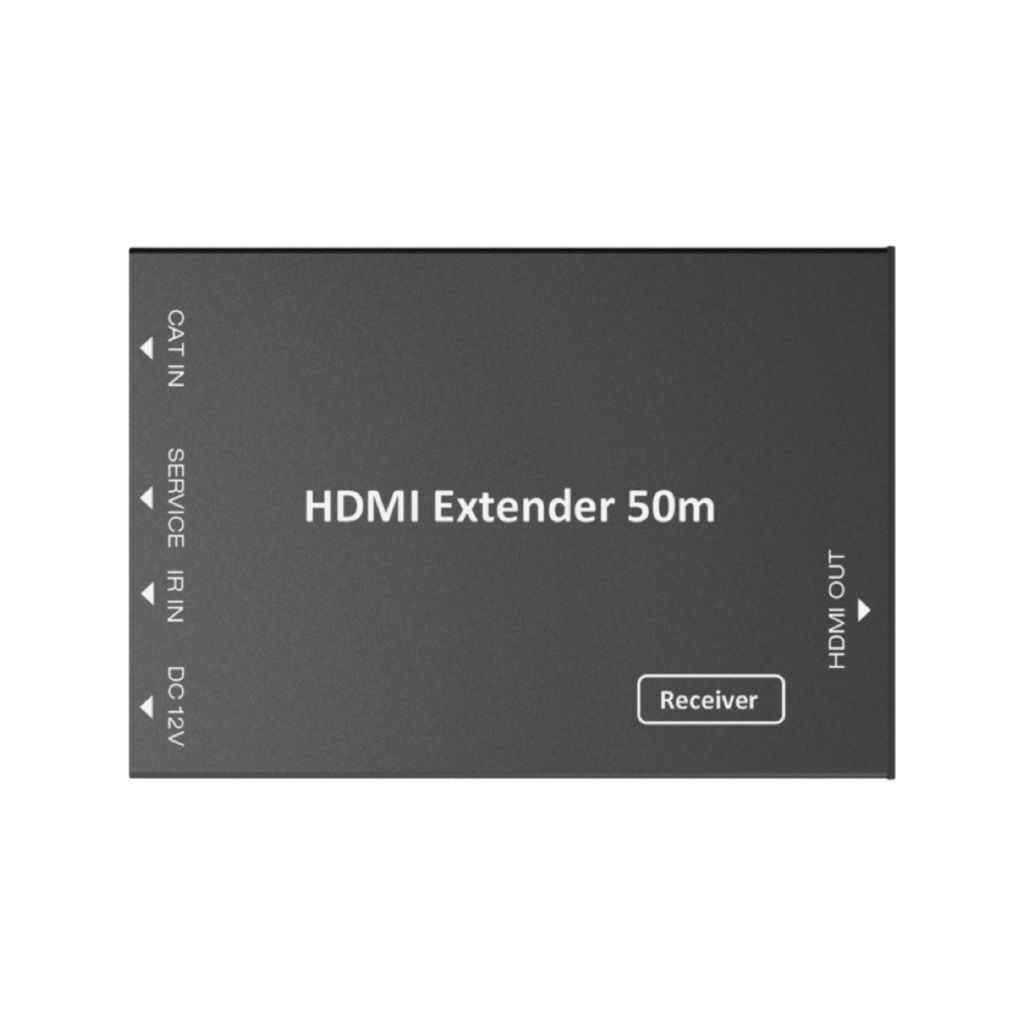

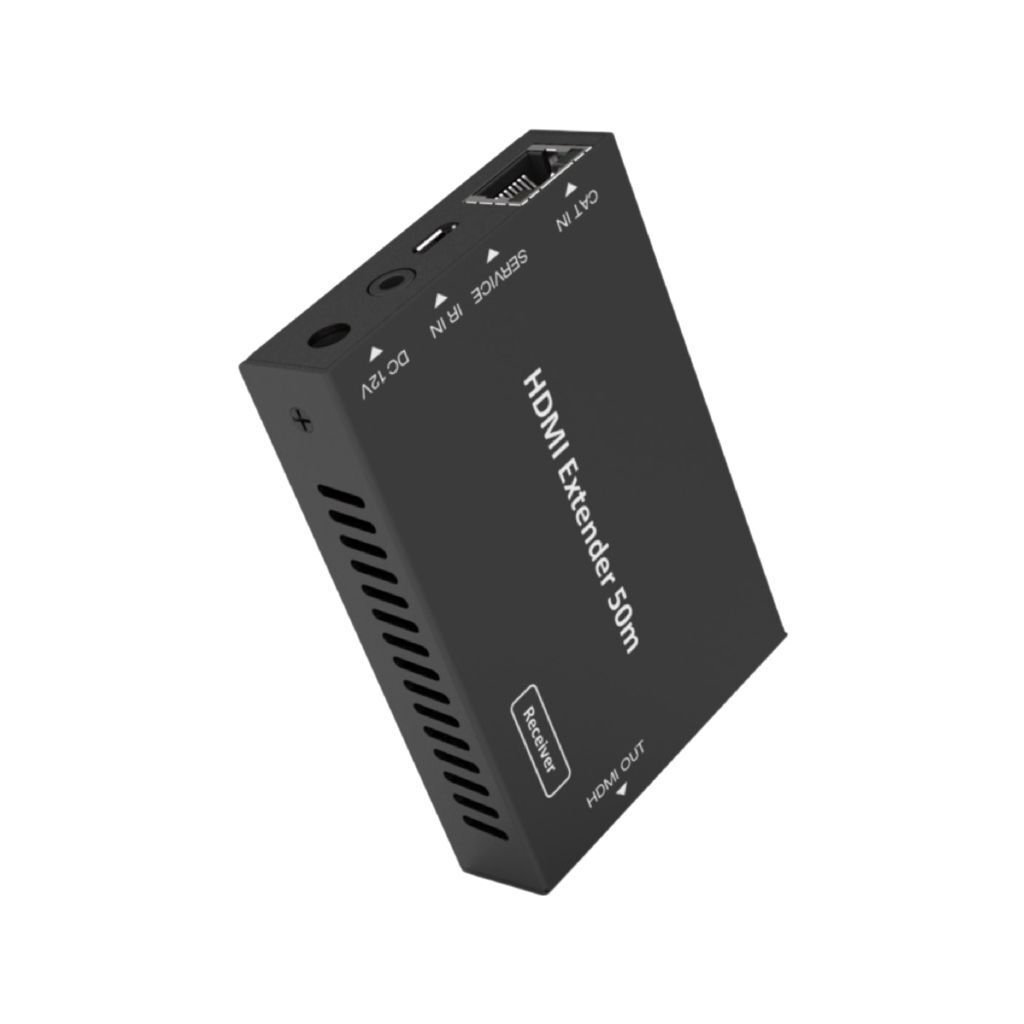

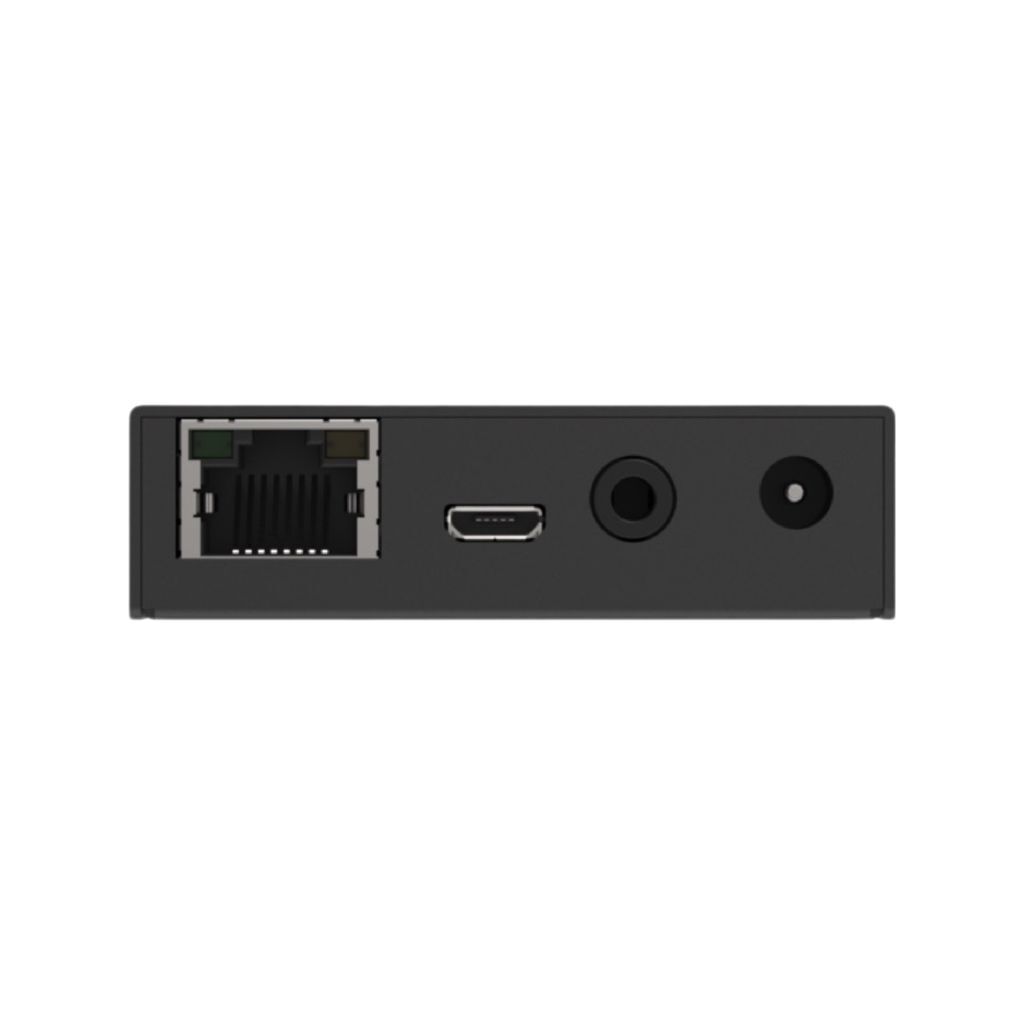

② 8× CAT Receiver
③ 1× IR Blaster Cable (1.5 meters)
④ 8× 20K~60KHz IR Receiver Cable (1.5 meters)
⑤ 1× 12V/2.5A DC Locking Power Adapter
⑥ 1× User Manual
Specifications:
HDMI Compliance HDMI 2.0
HDCP Compliance HDCP 2.2/1.x
Video Bandwidth 594MHz/18Gbps
Video Resolution Up to 4k2k@50/60Hz 4:4:4
Color Depth
8-bit,10-bit,12-bit(1080p@60Hz)
8-bit (4K2K@60Hz YUV4:4:4)
8-bit,10-bit,12-bit(4K2K@60Hz YCbCr 4:2:2/4:2:0)
Color Space RGB, YCbCr 4:4:4 / 4:2:2. YUV 4:2:0
HDR Support HDR10, HDR10+, HLG, Dolby vision
HDMI Audio Formats
LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS,
DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master
Audio, DSD
Coaxial Audio Formats
LPCM2.0, LPCM5.1, Dolby Digital2/5.1CH
Analog Audio Formats PCM 2.0

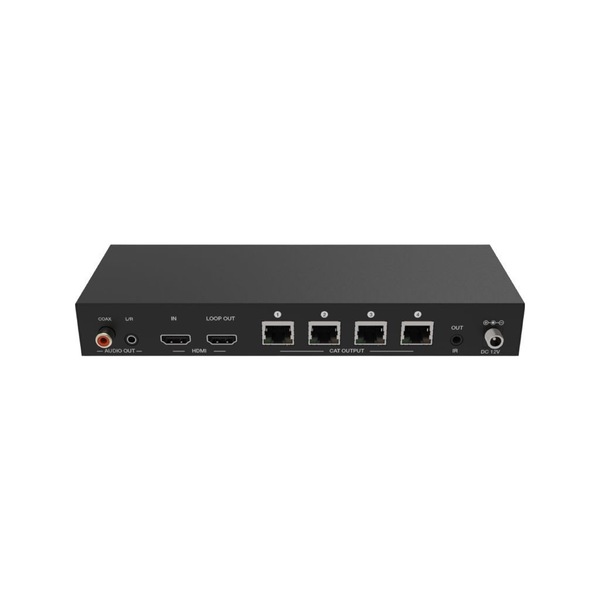

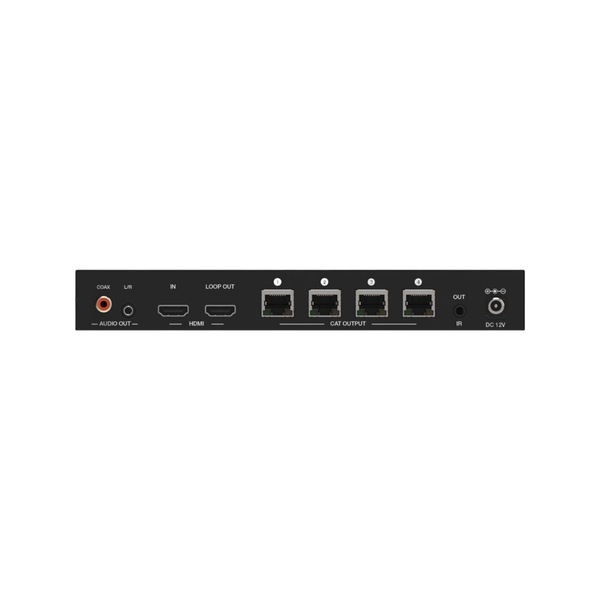

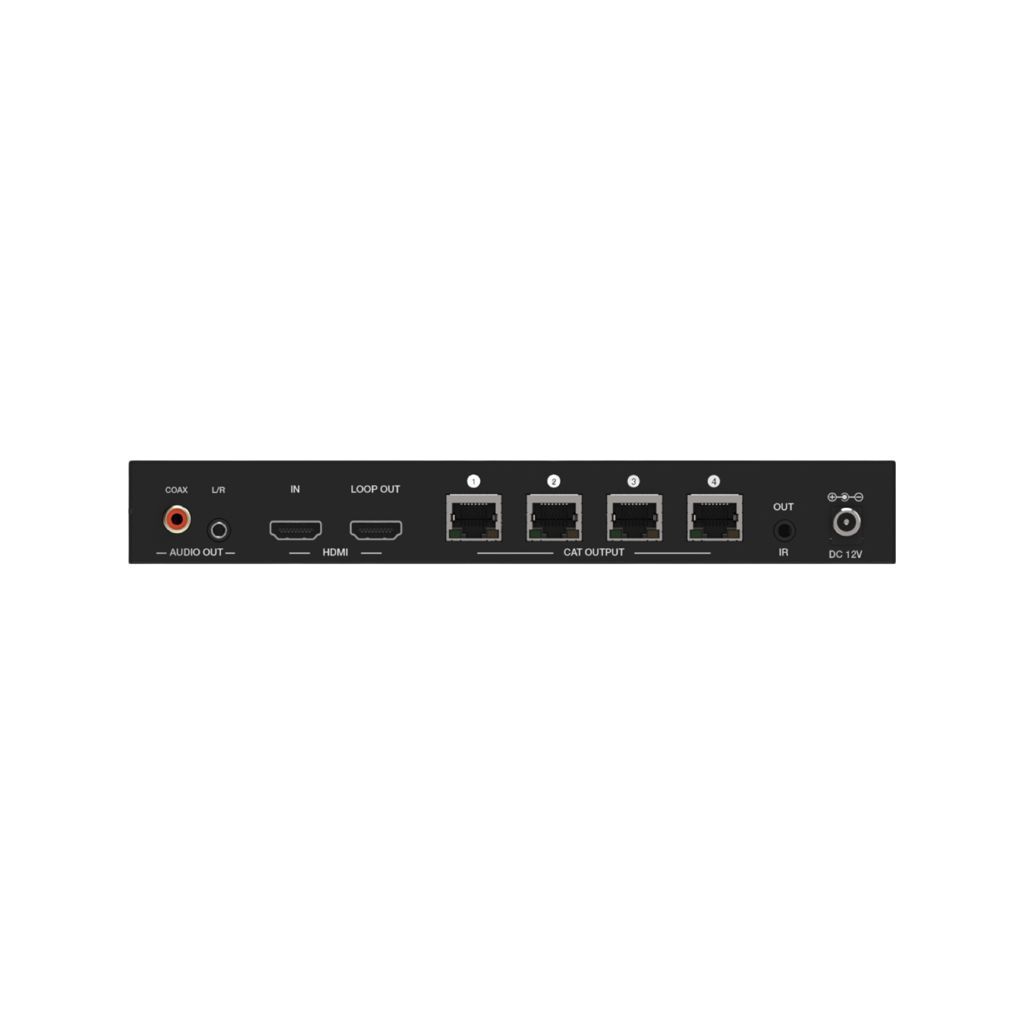

Input
1×HDMI Type A (19-pin female)
Output
1×HDMI Type A (19-pin female）
4x CAT OUT [RJ45, 8-pin female]
1x Coaxial Audio OUT [RCA]
1x L/R Audio OUT [3.5mm Stereo Mini-jack]
Video Resolution
HDMI Audio Formats
LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS,
DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master
Audio, DSD
Connection
HDMI Compliance HDMI 2.0
HDCP Compliance HDCP 2.2/1.x
Support HDR10, HDR10+, HLG, Dolby vision
Color Space RGB, YCbCr 4:4:4 / 4:2:2. YUV 4:2:0
HDR
Color Depth
8-bit,10-bit,12-bit(1080p@60Hz)
8-bit (4K2K@60Hz YUV4:4:4)
8-bit,10-bit,12-bit(4K2K@60Hz YCbCr 4:2:2/4:2:0)
Control
1×SERVICE (Micro USB, Update port）
1x EDID DIAL switch [5-pin]
1x IR OUT [3.5mm Stereo Mini-jack]
12 Month Warranty
