4K HDMI 4 Input 2 Output Matrix Switcher Splitter w/ Audio Splitter & EDID

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
$79.95

Collect 79 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Oz Direct
Secure ways to pay at checkout

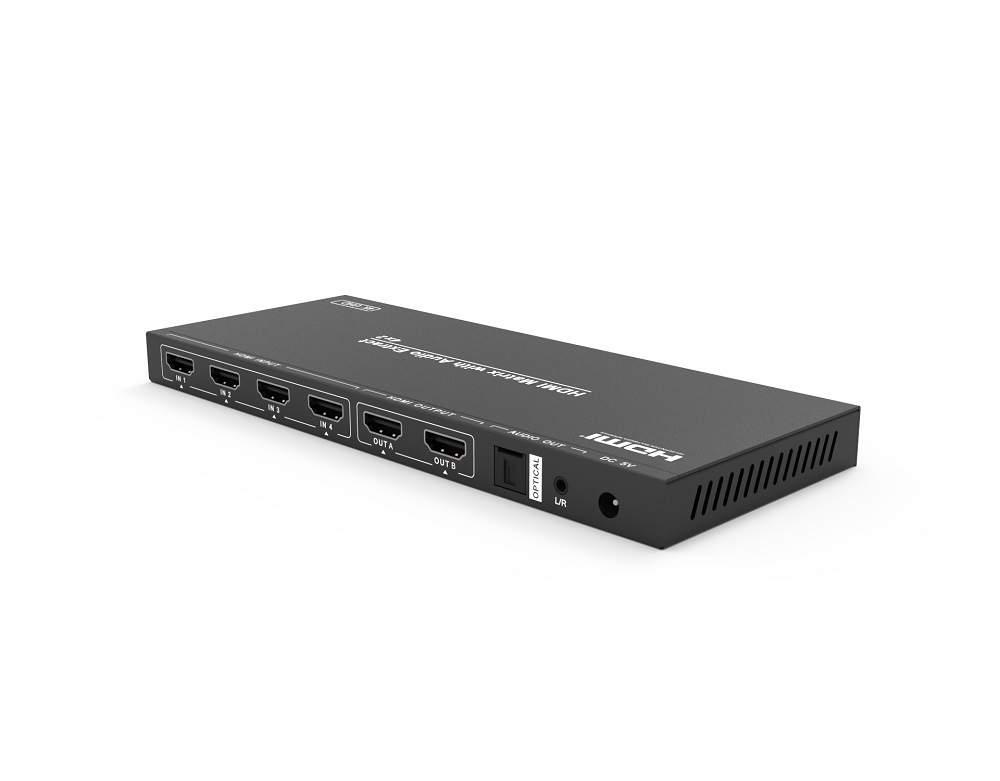

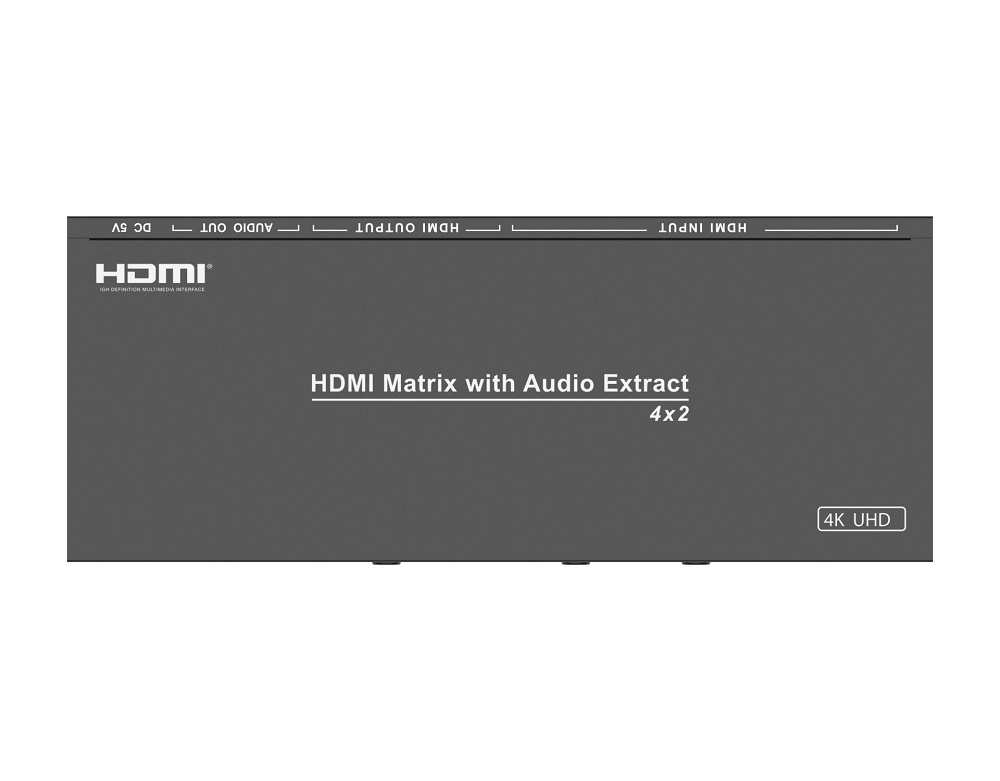

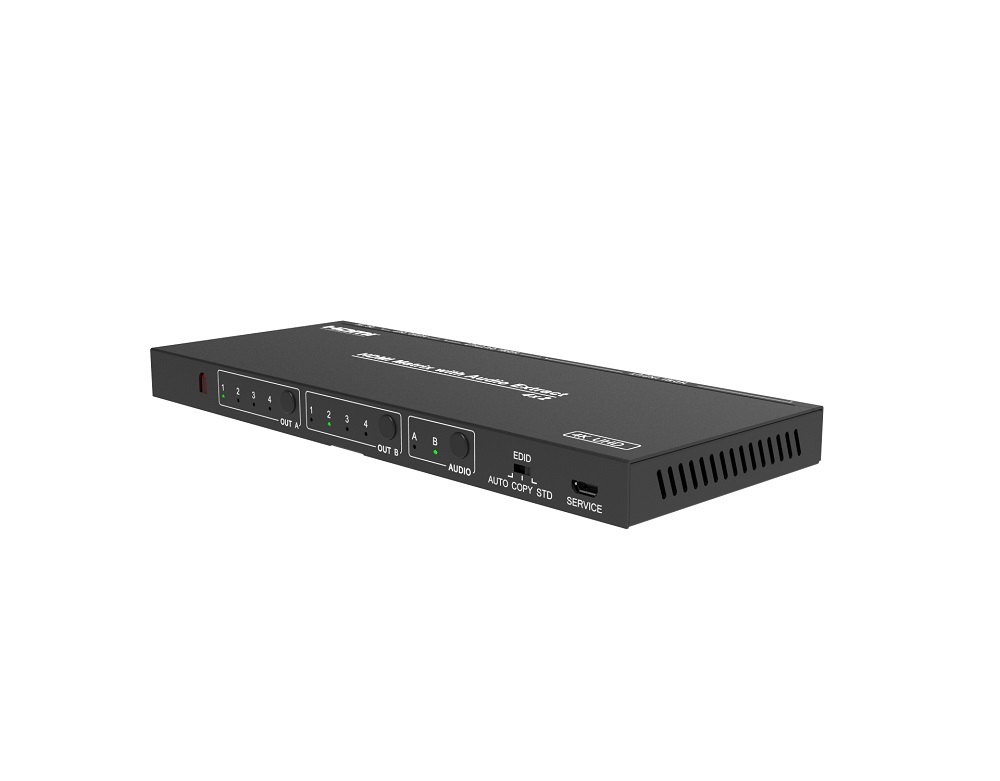

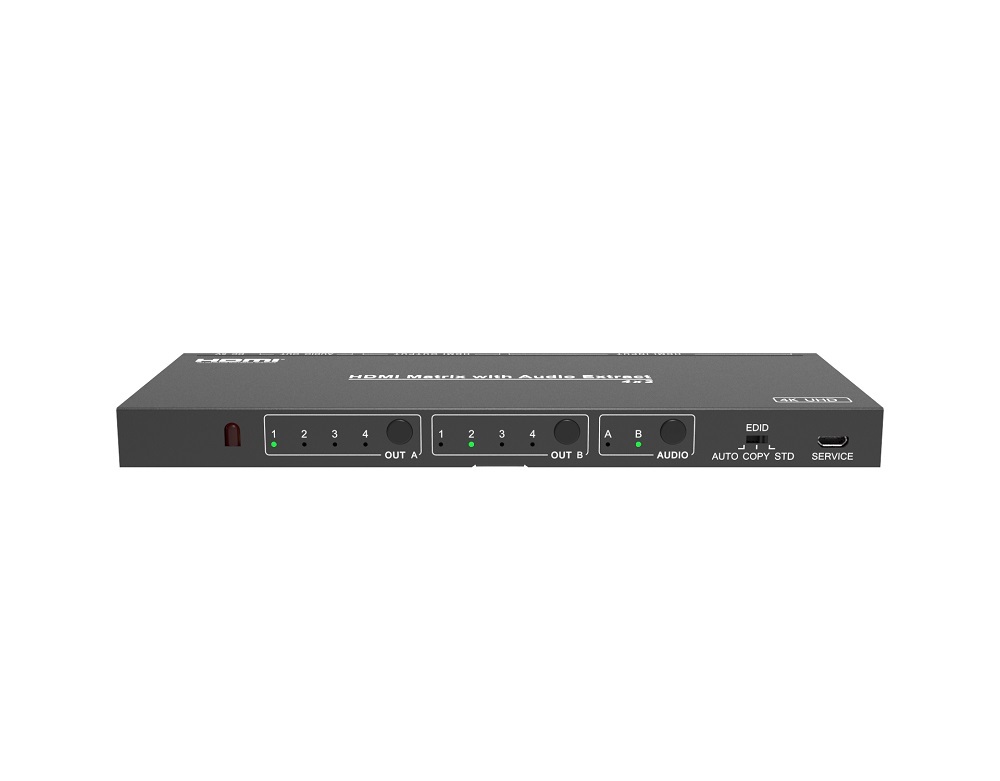

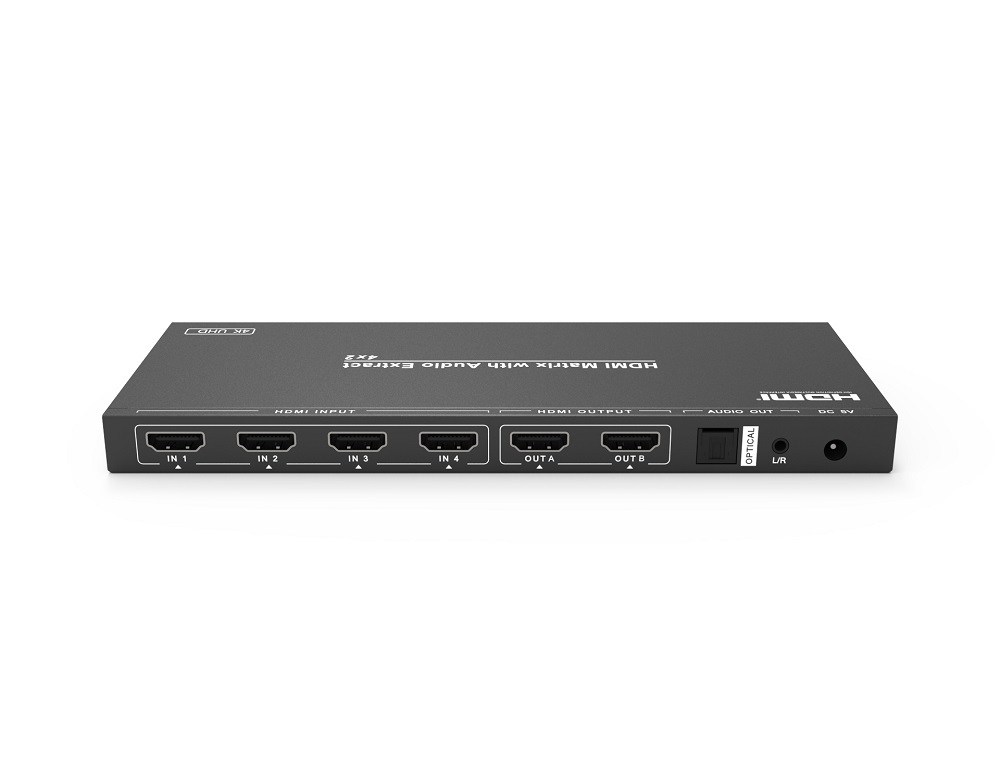

4K HDMI 4 Input 2 Output Matrix Switcher Splitter w/ Audio Splitter & EDID
4 x 2 HDMI True Matrix with Audio Splitter & EDID
This true 4K HDMI Matrix Switcher is capable of switching between 4 HDMI inputs and displaying or splitting the signal to 2 LCD Displays or TV. It has a built-in Audio Splitter for connecting the Digital Toslink (fibre optic) Audio output or Analogue Line Level via 3.5mm Stereo socket to an Amplifier/Receiver or Soundbar. It also has an EDID management support to ensure that the highest resolution and setting can be selected.
Comes with a remote controller for ease of use. Suitable for newer 4K HDMI devices such as PS4 Pro, XBOX S One, Foxtel IQ4, etc.

Features:
  • HDCP2.2/HDCP1.4  and DVI 1.0 compliant.
  • Supports HDMI resolution the maximum up to 4K2K@50/60Hz (4:2:0).
  • Supports digital and analog audio extract output from output A or output B.
  • EDID can be selected AUTO, COPY and STD mode via
Technical
HDCP Compliance    HDCP 2.2 and HDCP 1.4
Video Bandwidth    297Mbps
Video Resolutions    480P@60Hz, 720P@60Hz, 1080P@60Hz, 1080P 3D@60Hz, 4K24/30Hz, 4K2K@50/60Hz (4:2:0)
Color Depth    8-bit, 10-bit, 12-bit
Color Space    RGB/YCbCr 4:2:0, YCbCr 4:4:4, YCbCr 4:2:2
HDMI Audio Formats    PCM2.0/5.1/7.1CH, Dolby 5.1, DTS5.1, Dolby-TrueHD, DTS-HD
L/R Audio Formats    Analog stereo 2CH
Optical Audio Formats    LPCM[2.0/2.1]CH, Dolby 5.1, Dolby True HD, Dolby DD+, DTS
5.1, DTS-ES 6, DTS-HDMA 5.1, DTS HD-HRA 5.1
ESD Protection    Human-body Model:
±8kV (Air-gap discharge) , ±4kV (Contact discharge)
Connections
Input ports    4×HDMI Type A [19-pin female]
1×IR Receiver Window
Output ports    2×HDMI Type A [19-pin female]
1×L/R Audio out [3.5mm Stereo Mini-jack]
1×Optical out [S/PDIF]
Mechanical
Housing    Metal Enclosure
Color    Black
Dimensions    200mm(W)×80mm(D)×16mm(H)
Weight    328g
Power Supply    Input: AC100~240V 50/60Hz, Output: DC5V/1A
(US/EU standards, CE/FCC/UL certified)
Power Consumption    2W (max)
Operating
Temperature    0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature    -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity    20~90% RH (non-condensing)

Specifications:

12 Month Warranty

GTIN: 9351634026845
