Premium quality.

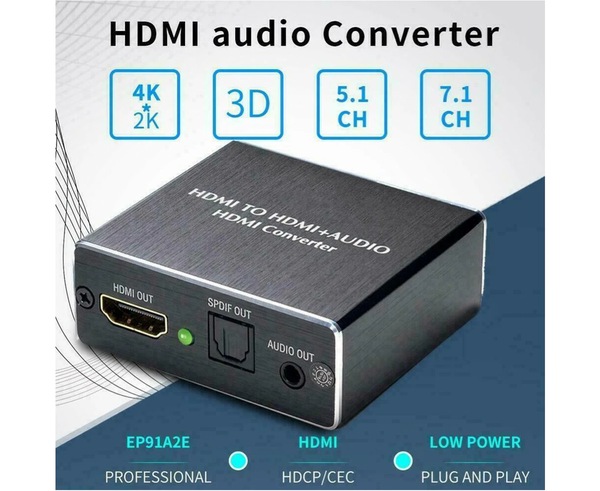

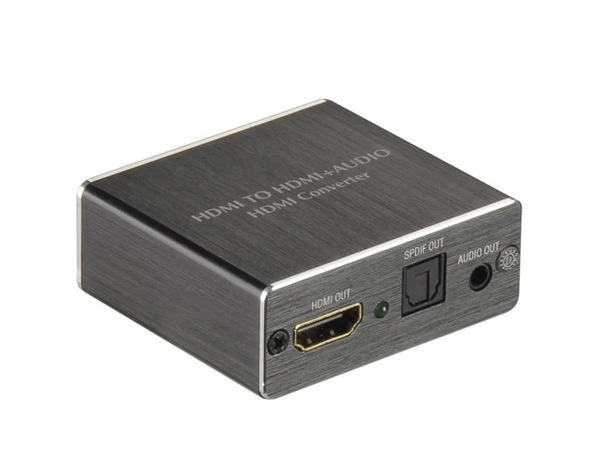

This 4K x 2K HDMI audio extractor not only meet the ideal image of the HDTV but also meet the need for extract audio from an HDMI source. It can extract the digital audio signal embedded in HDMI source and convert it through 3.5mm og audio output and SPDIF output at the same time. The SPDIF output both can support 2CH audio or 5.1CH audio including Dolby Digital 5.1CH and DTS 5.1CH.
Supports 24 bit/deep color 30bit, 36bit per channel(36bit all channel) deep color; Supports Video EDID Pass Through, Audio EDID Settings: Pass, 2CH and 5.1CH
SPDIF and L/R audio support output separately to amplifier without connecting TV/Monitor; Input resolution up to 4K x 2K, 1080P/60Hz, 3D/24Hz. For some devices with low power HDMI ports(Such as PS4, PS4 Slim, and other Device), Please USE PHONE ADAPTER to charger it(Just come with a USB Cable)
3.5mm audio output supports 2CH PCM stereo audio only. SPDIF Output supports 2CH PCM, 5.1CH Dolby Digital, DTS. The HDMI audio extractor will output the Dolby True-HD, DTS-HD, AC3, DTS, DSD audio format, But can't decode these audio formats. If your Amplifier or soundbar can't support these audio formats, there will no audio on your soundbar or amplifier, so please set audio format on HDMI Source to PCM/ LPCM audio format.
Suitable for various HDMI source devices like Roku or Chromecast without dedicated audio output as well as Blu-ray/ DVD/ HD player, cable/satellite box, Fire TV, Apple TV, PS3/4, , PC/laptop, HD camera, HD DVR, etc

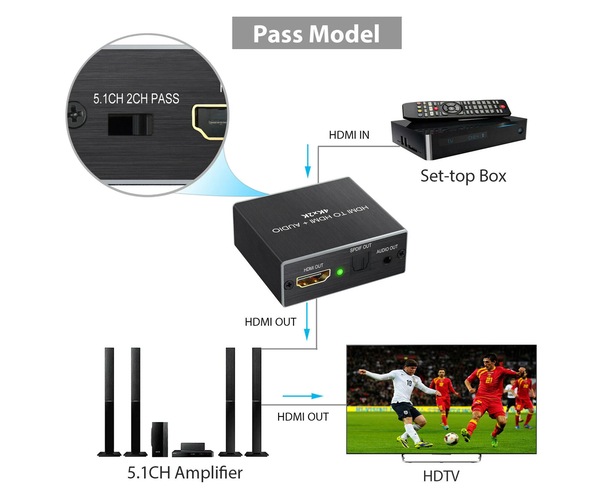

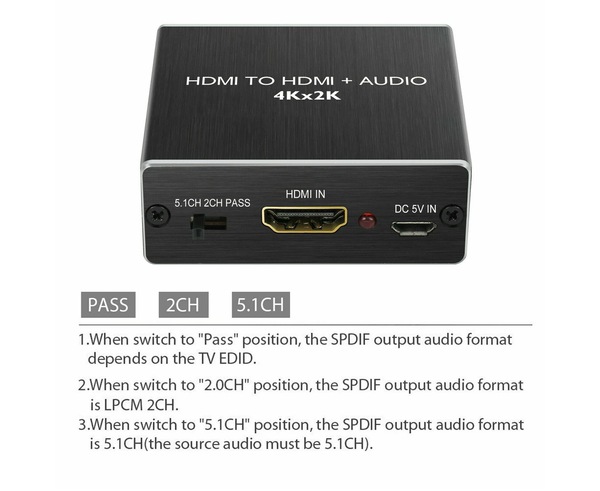

Three ing audio EDID settings:- Pass: HDMI pass mode. The audio and video can be converted from the HDMI output. SPDIF and L/R will not output any sound
2CH Mode: Extract the digital 2CH PCM stereo audio signal from the HDMI input and the HDMI/ SPDIF and L/R output stereo audio
5.1CH Mode: Extract 5.1 Dolby Digital/ DTS and output via HDMI/ SPDIF.
Kindly Note:- 1.Not Support Dolby Digital Plus audio, it supports DTS Audio and Dolby digital audio.
2.USB POWER- USB POWER- For some devices with low power HDMI ports(Such as PS4, PS4 Slim, and other Device), Please USE PHONE ADAPTER to charger it(Just come with USB Cable)
3.NOT SUPPORT copyright protected content; Astro game headsets

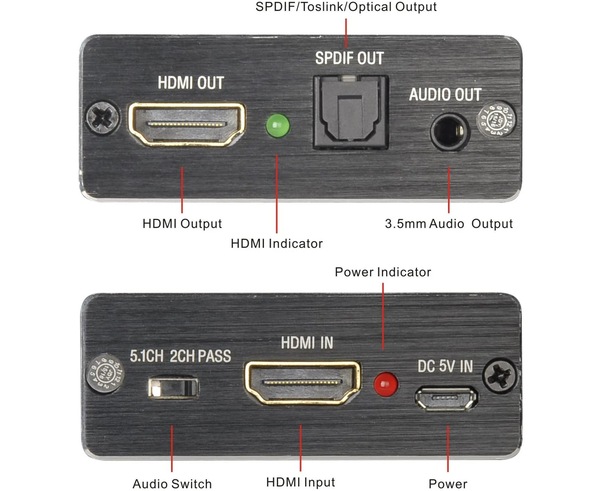

Specification:- Input Port: 1x HDMI IN, 1x Micro USB Power Port, 3x EDID Audio(Pass/2CH/5.1CH)
Output Port: 1x HDMI OUT, 1x SPDIF(Optical), 1x 3.5mm Jack
HDC Version: HDCP1.4
HDMI Version: HDMI1.4b

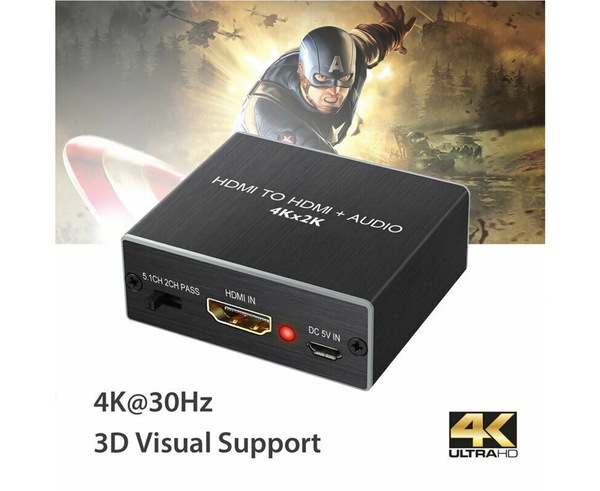

HDMI Resolution: 2160P@30Hz/ 1080P@50/60Hz/ 1080i/720p/576i/480p/480i
Support Video Color Format: 24Bit/Deep Color 30Bit, 36Bit
Max Bandwidth: 340MHz
Max Baud Rate: 10.2Gbps
Max Working t: 500mA
Input Cable Distance: <=7m AWG26 standard cable HDMI
Output Cable Distance: <=8m AWG26 standard cable HDMI
Package Includes- 1 X HDMI Audio Extractor
1 x Micro USB cable
1 X User Manual
Premium quality.
This 4K x 2K HDMI audio extractor not only meet the ideal image of the HDTV but also meet the need for extract audio from an HDMI source. It can extract the digital audio signal embedded in HDMI source and convert it through 3.5mm og audio output and SPDIF output at the same time. The SPDIF output both can support 2CH audio or 5.1CH audio including Dolby Digital 5.1CH and DTS 5.1CH.
Supports 24 bit/deep color 30bit, 36bit per channel(36bit all channel) deep color; Supports Video EDID Pass Through, Audio EDID Settings: Pass, 2CH and 5.1CH
SPDIF and L/R audio support output separately to amplifier without connecting TV/Monitor; Input resolution up to 4K x 2K, 1080P/60Hz, 3D/24Hz. For some devices with low power HDMI ports(Such as PS4, PS4 Slim, and other Device), Please USE PHONE ADAPTER to charger it(Just come with a USB Cable)
3.5mm audio output supports 2CH PCM stereo audio only. SPDIF Output supports 2CH PCM, 5.1CH Dolby Digital, DTS. The HDMI audio extractor will output the Dolby True-HD, DTS-HD, AC3, DTS, DSD audio format, But can't decode these audio formats. If your Amplifier or soundbar can't support these audio formats, there will no audio on your soundbar or amplifier, so please set audio format on HDMI Source to PCM/ LPCM audio format.
Suitable for various HDMI source devices like Roku or Chromecast without dedicated audio output as well as Blu-ray/ DVD/ HD player, cable/satellite box, Fire TV, Apple TV, PS3/4, , PC/laptop, HD camera, HD DVR, etc
Three ing audio EDID settings:- Pass: HDMI pass mode. The audio and video can be converted from the HDMI output. SPDIF and L/R will not output any sound
2CH Mode: Extract the digital 2CH PCM stereo audio signal from the HDMI input and the HDMI/ SPDIF and L/R output stereo audio
5.1CH Mode: Extract 5.1 Dolby Digital/ DTS and output via HDMI/ SPDIF.
Kindly Note:- 1.Not Support Dolby Digital Plus audio, it supports DTS Audio and Dolby digital audio.
2.USB POWER- USB POWER- For some devices with low power HDMI ports(Such as PS4, PS4 Slim, and other Device), Please USE PHONE ADAPTER to charger it(Just come with USB Cable)
3.NOT SUPPORT copyright prot
