HDCP Version: HDCP1.4
HDMI Version: HDMI1.4B
HDMI Resolution: Up to 2160P@30HZ / 1080@50 / 60HZ /1080I / 720P 1576I / 480P / 480I

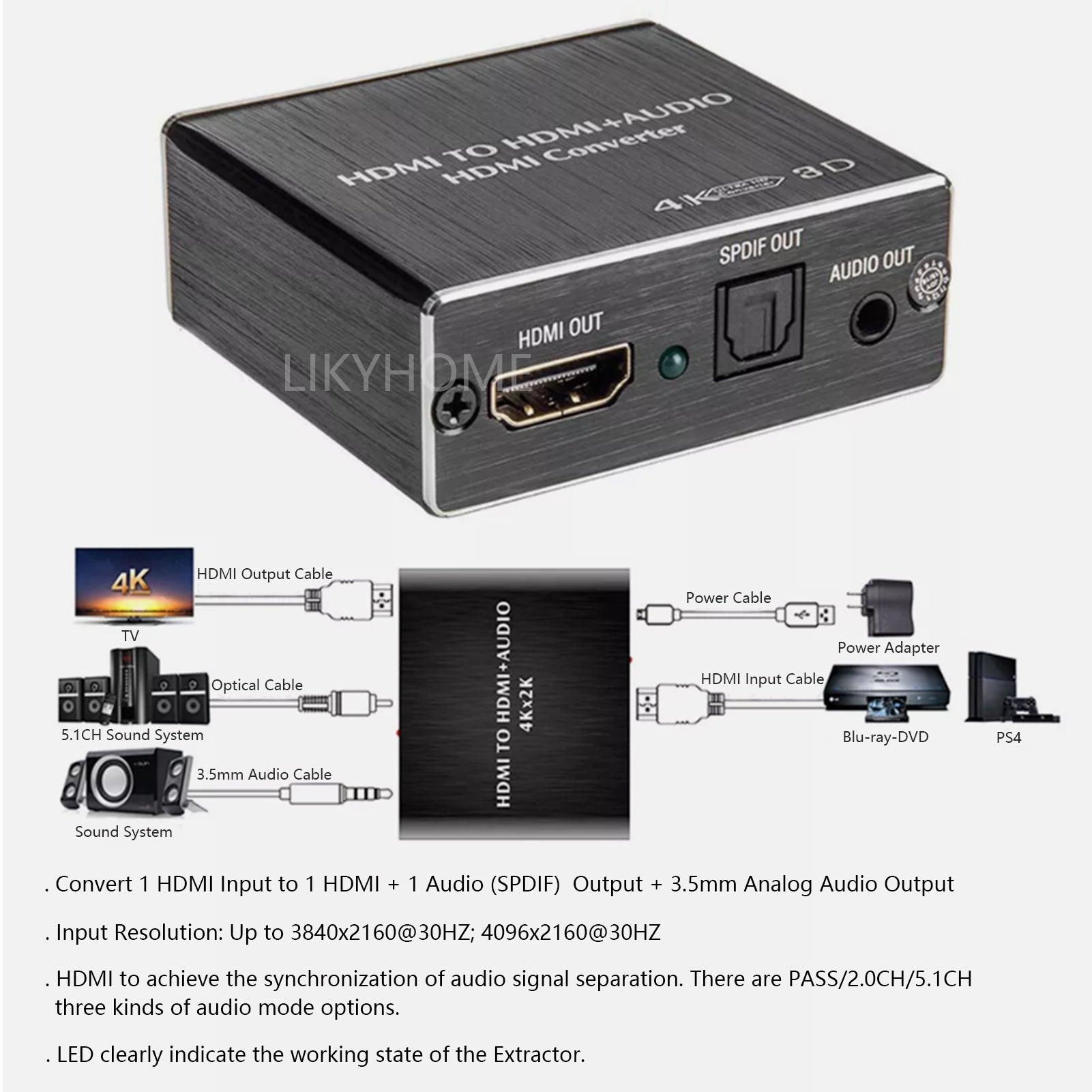

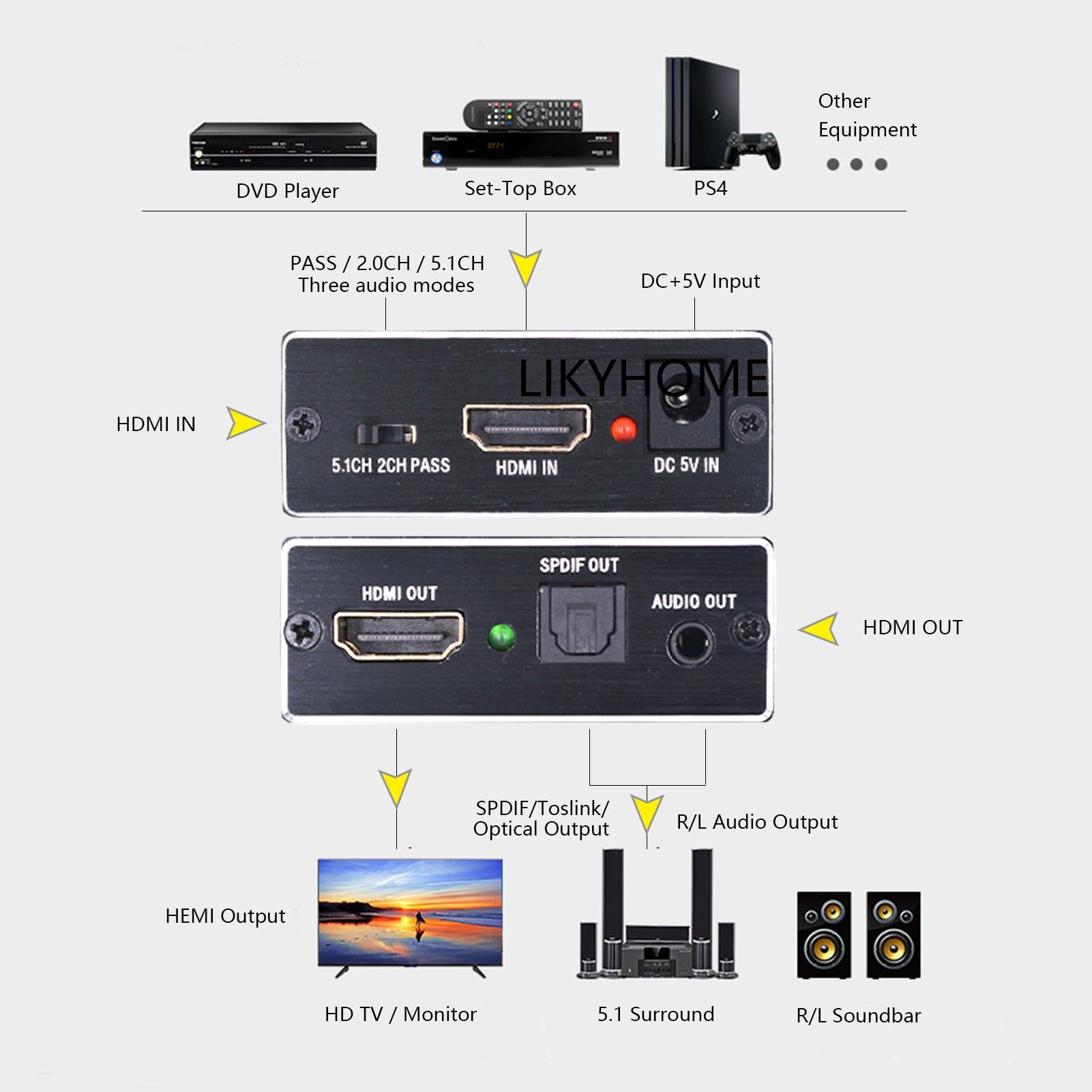

HDMI to achieve the synchronization of audio signal separation. There are PASS/2.0CH/5.1CH three kinds of audio mode options.
LED clearly indicate the working state of the Extractor.
Supported Video Color Formats: 24bits/deep color 30bit, 36bit
Audio Output: SPDIF+3.5mm Audio
Max Bandwidth: 340MHz
Max Baud Rate: 10.2GBPS
Input/Output TMDS Signal: 0.5~1.5VPLTS P-P(TTL)
Input/Output DDC Signal: 5VOLTS P-P(TTL)
Input Cable Distance: ≤7m AWG26 HDMI Standard Cable
Output Cable Distance: ≤8m AWG26 HDMI Standard Cable
Maximum Operating Current: 500MA
Operating Voltage: DC+5V
Operating Temperature Range: -15℃ to +55℃
Operating Humidity Range: 5 to 90% RH (No condensation)

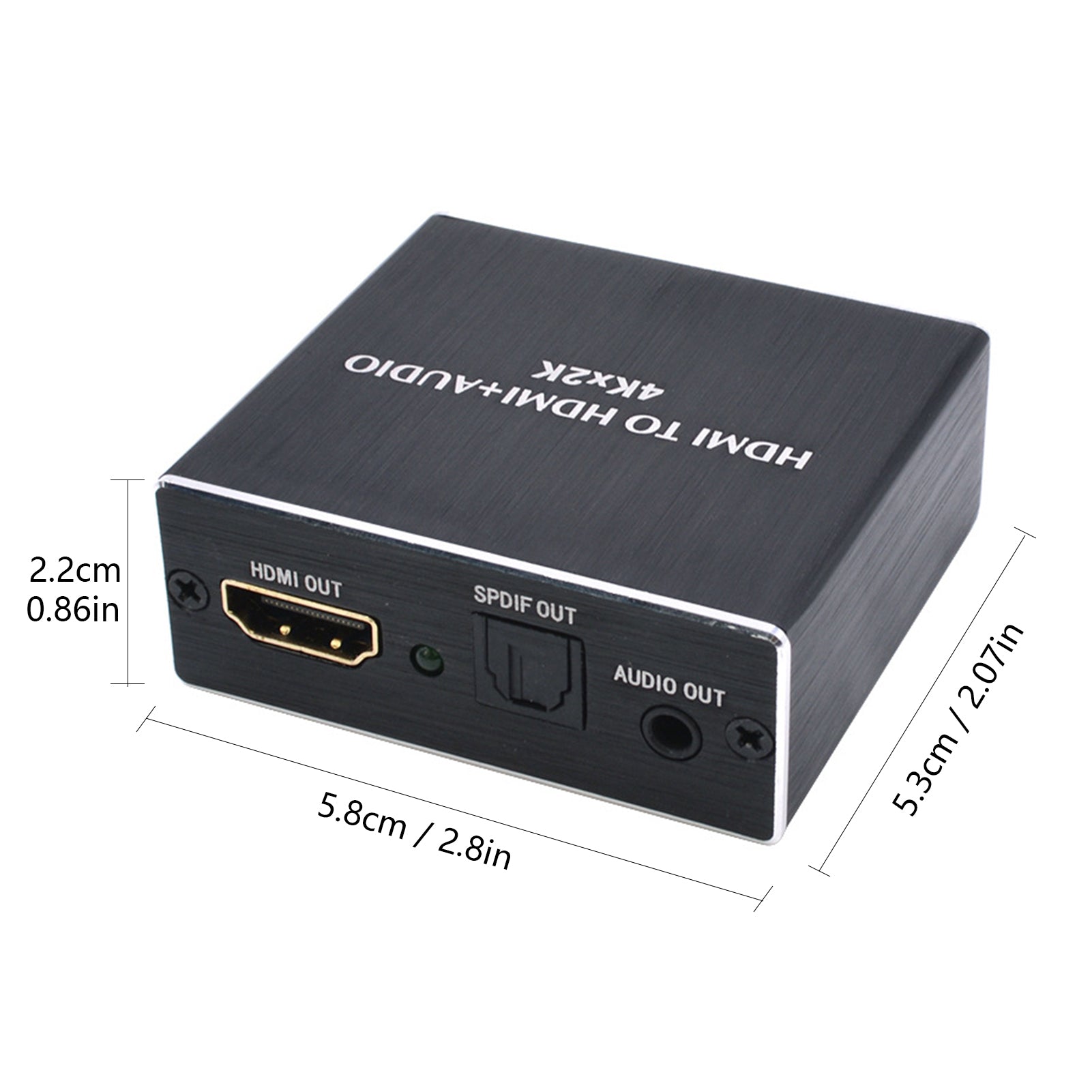

Size(Length x Width x Height): 58x53x21.9mm
Weight: 61g

Note:
When select to this mode, whether the SPDIF OUT will output 5.1 channel audio depends on whether the input source contains 5.1 channel audio. If it contains, SPDIF OUT interface will output 5.1 channel audio signal while AUDIO OUT interface output nothing. If it not contains, SPDIF OUT interface and AUDIO OUT interface are all output 2 channel audio signal.
