Measures 0 to 60V with a resolution of 0.01V

Measures 0 to 6554W with a resolution of 0.01W

Measures 0 to 65Ah with a resolution of 0.001Ah

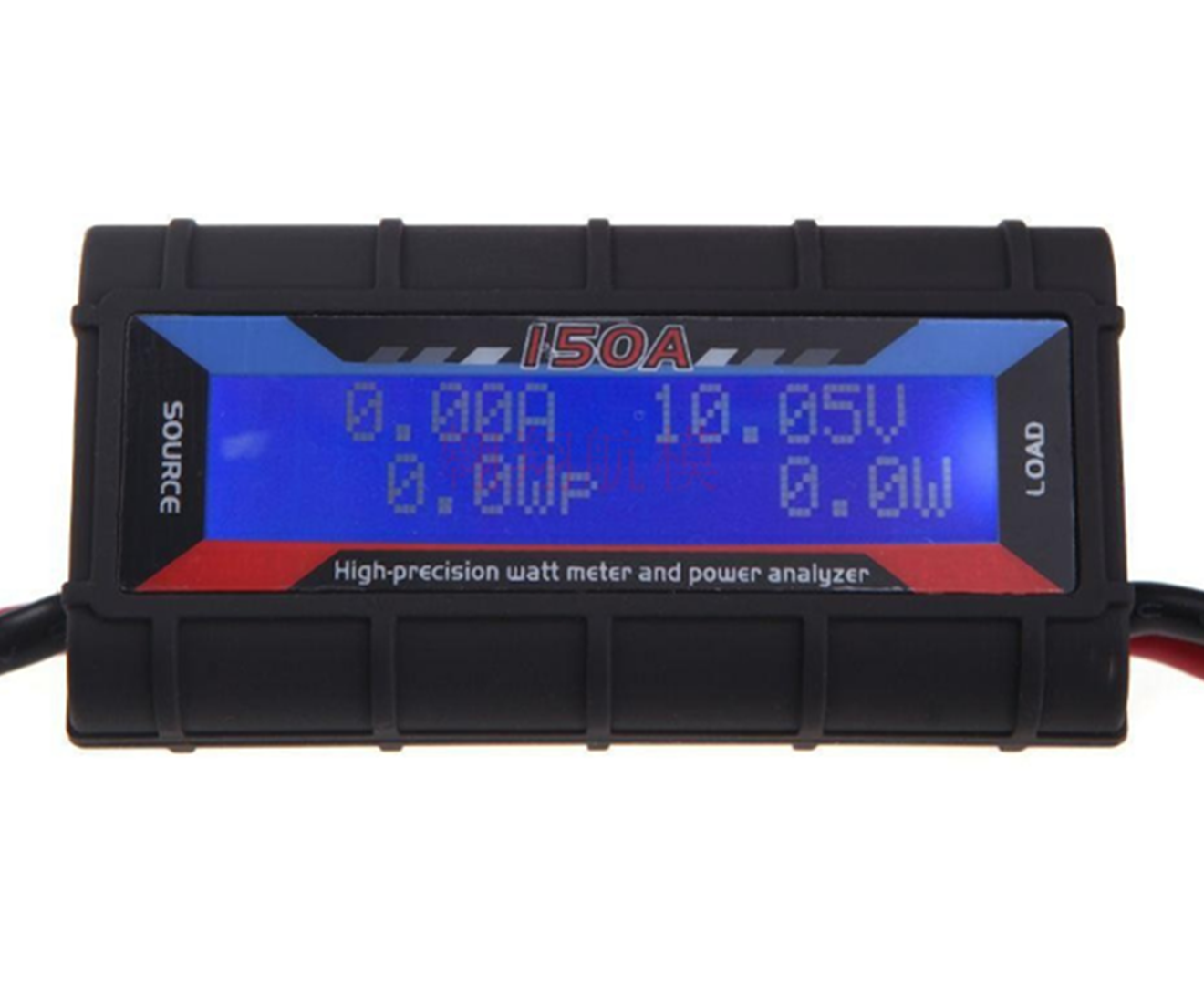

Blue back-lit 2.4" LCD display

Works on 4, 6, 12, 24, 36, and 48 volt battery bank systems.

Extremely low power consumption of 7 mA. More efficient than any LED meter.

Digital LCD LIGHT UP screen gives clear crisp number readings. BACK LIT.

Handles up to 150 amps intermittently and 75 amps continuous duty (48 Volts)

Microprocessor controlled produces extremely precise and accurate readings.

Amp Hours (Ah)andndash; Total charge Ah delivered from source to load

Amp Peak (Ap)andndash; Highest amp value delivered (typically startup cycle for inverters, compressors, fridges etc)

Amp (A)andndash; Amps being delivered at that point in time

Voltageandndash; Source voltage, and minimum Source voltage. Good for measuring voltage at lowest point of charge (eg minimum overnight voltage of car fridge battery)

Power (Watts)andndash; Peak watts, Watts being delivered at that point in time

The meter can be andldquo;turned aroundandrdquo; to measure charge going back in to the battery during a charging cycle. - In this instance, the charger (DCDC, Solar, Mains Battery Charger) is connected to Source, and the battery is connected to andldquo;Loadandrdquo;.

Charging Cycle Readings:

Amp Hours (Ah)andndash; Total charge delivered to the battery

Amp Peak (Ap)andndash; Highest charge delivered to the battery (Bulk charging)

Voltageandndash; Point in time voltage from the Charger (charger is not over or under-charging)

describe:

• Weight: 88g
• Dimensions: 85 x 42 x 25mm
• Material: Rubber Paint
• Operates :4.8v to 60v

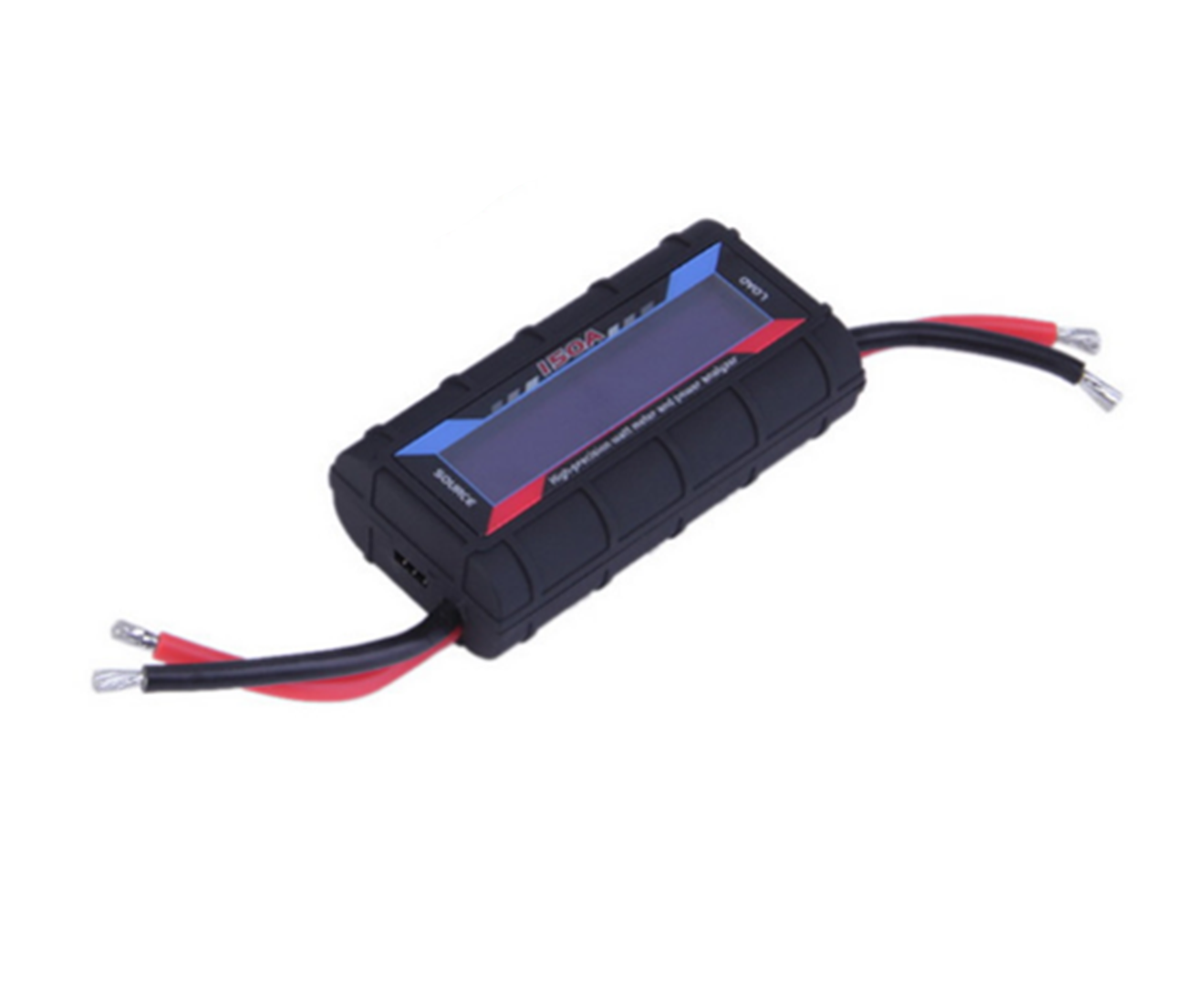

• 4 x 150A Watt Meter and Power Analyzer with 2 Anderson Plugs

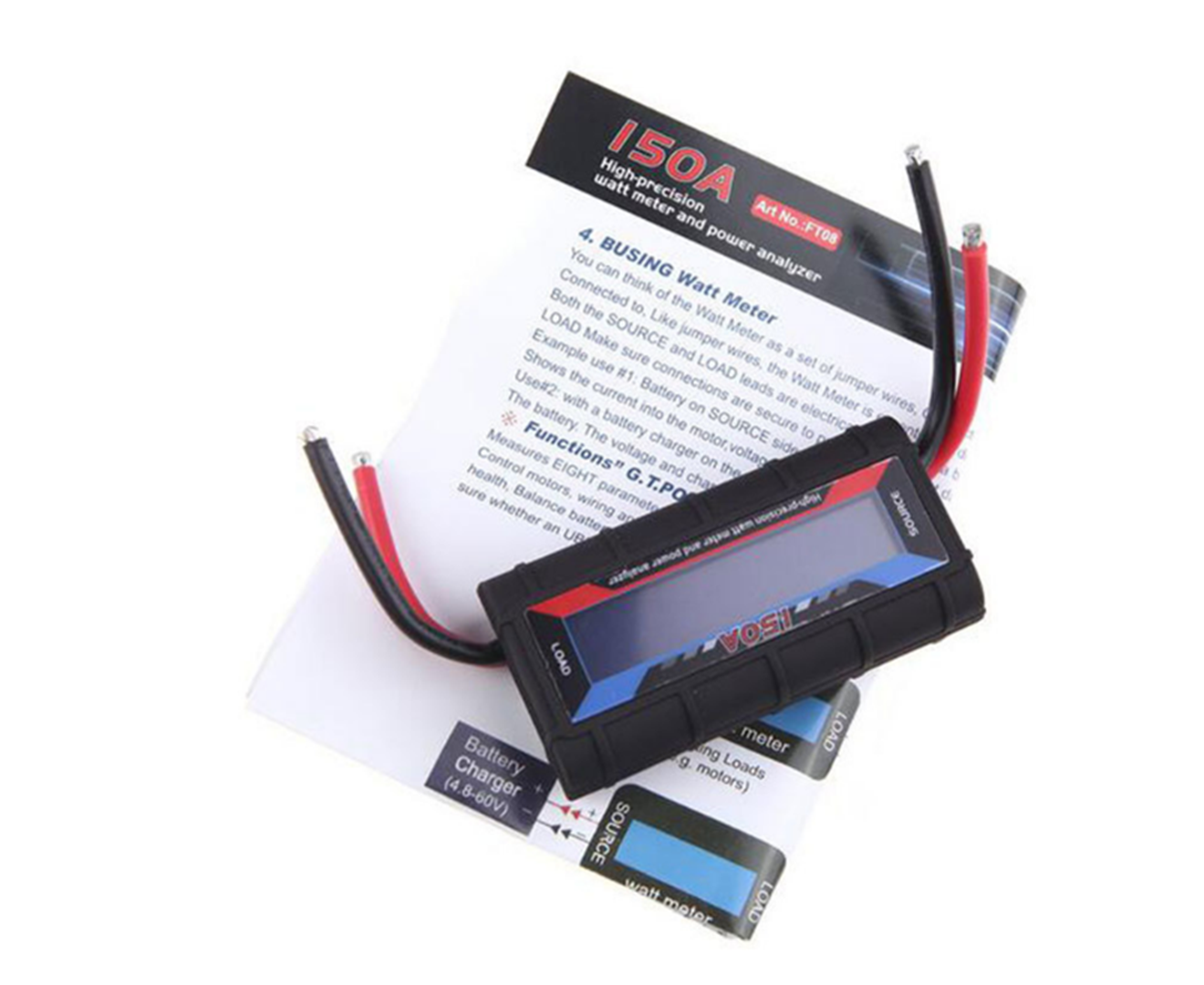

• 4 x English user manual(does not include other things in the picture)
