Description

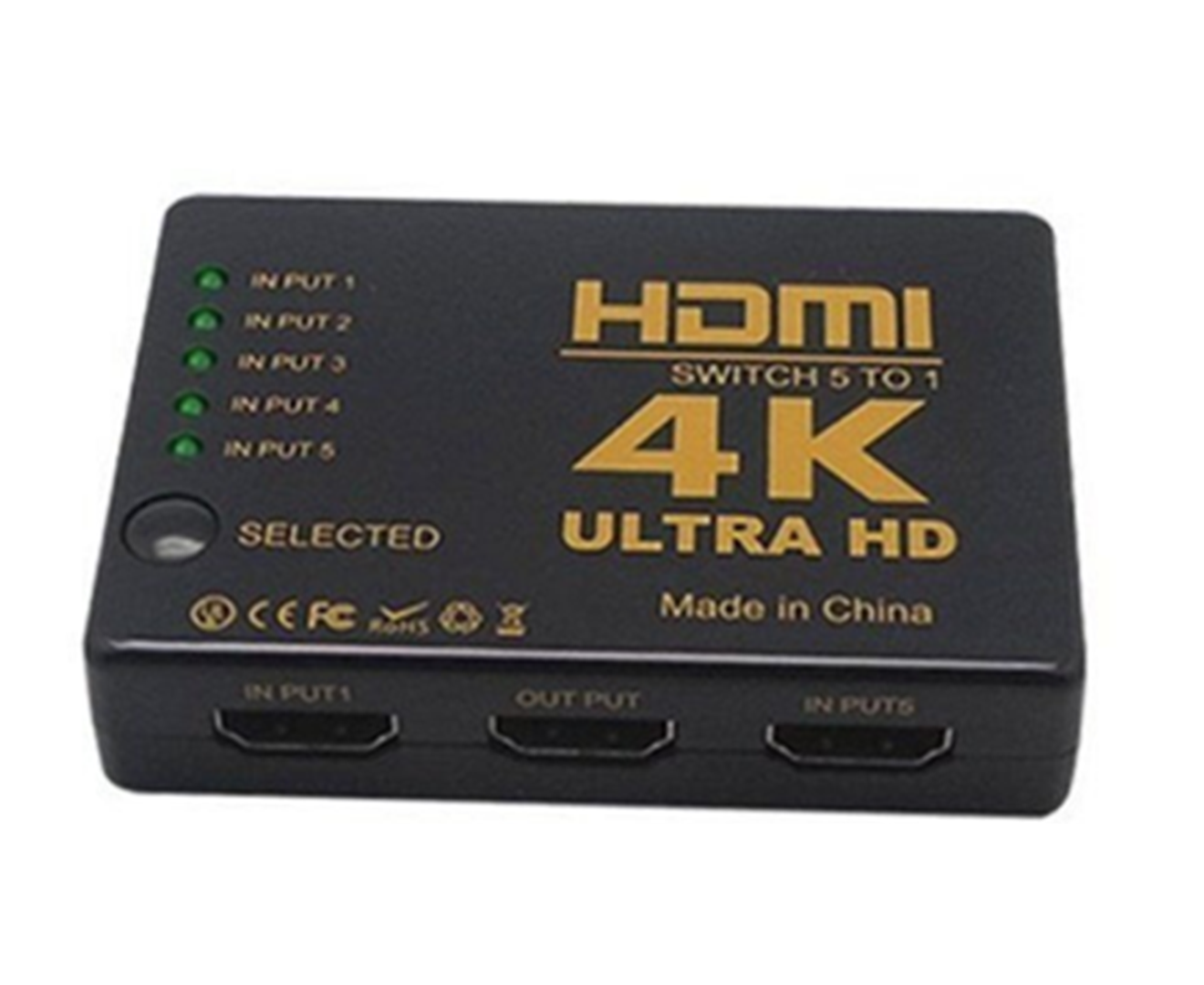

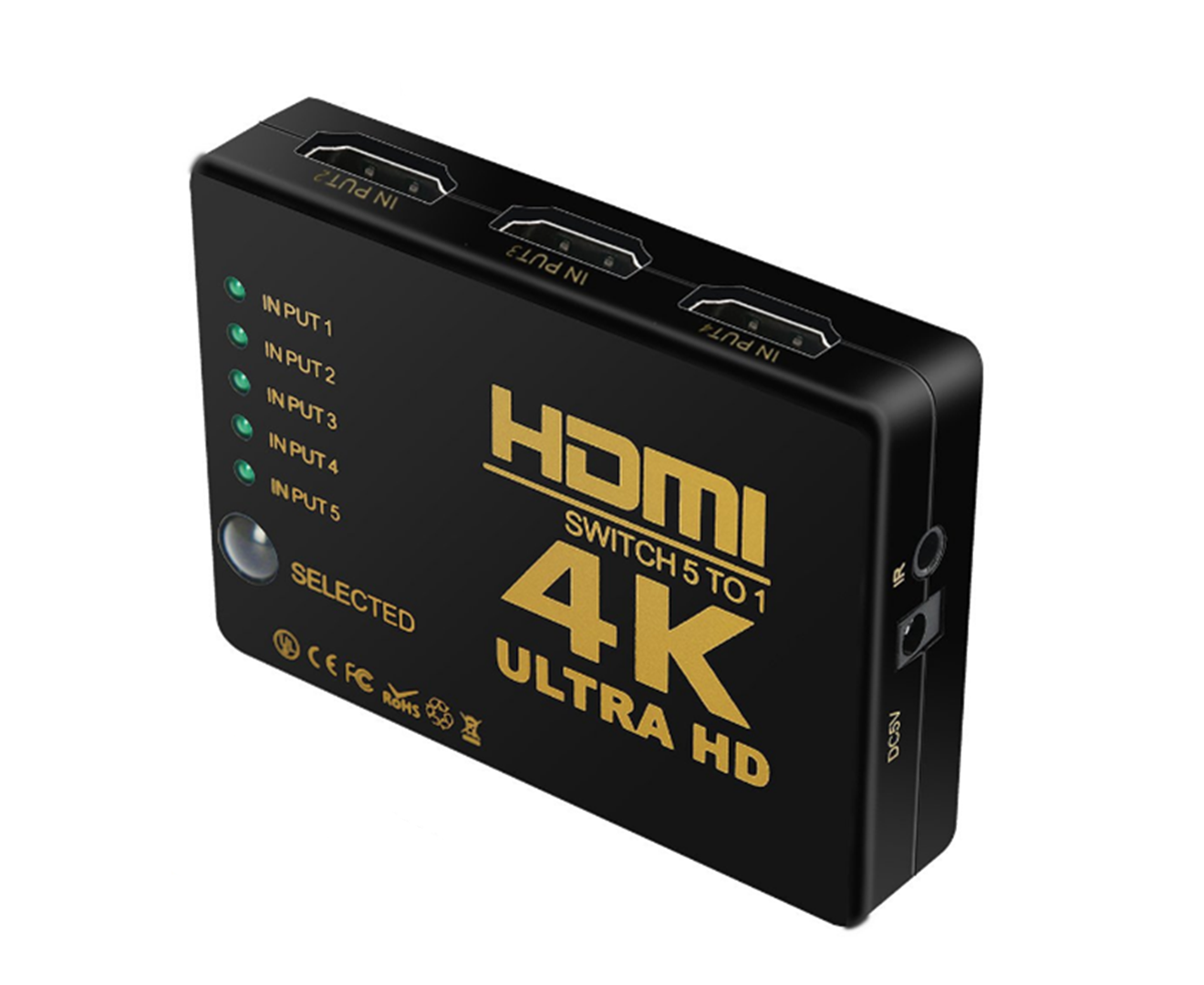

High Performance HDMI Amplifier Switch

Connect up to 5 HDMI devices to just 1 HDMI port on your HDTV/monitor

Avoid frequent plugging and unplugging of HDMI cables

Support 1080p/2460p Full HD 3D and 12-bit deep colour, retaining the crisp, clear images

High performance up to 3.4G

Support compressed audio such as DTS Digital, Dolby Digital

Compatibl with HD-DVD, Sky-HD, STV, PS3, Xbox 360, etc. (NOT Compatible with PS4!)

IR remote Control, switch the input source conveniently

Connection and Operation: Connect the HDMI Input Source into the HDMI Swither (input cables are optional)

Please Refer to Connection Diagram Section.

Press on the "Select" Button to Choose the Source Equipment.

describe:

• Inputs: 5, HDMI Type-A Female
• Output: 1, HDMI Type-A Female
• Video: Full HD 1920x1080p, Support 3D, 12-bit deep color
• Standards: HDMI 1.3b, HDCP v1.0/1.1 pass-through
• Remote Control: IR
• Remote Battery: Included
• Power Adapter: Yes
• Size: 82*18.5*58mm
• Weight: 100 grams
• Material: ABS
• HDMI resolution:24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i HDCP:HDCP 1.2
• Support video color format: 24bit/deep color 30bit, 36bit
• Support audio format: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
• Input DDC Signal: 5 volts p-p(TTL)
• Output Video: HDMI 1.4b
• Vertical Frequency Range: 50/60Hz
• Video Amplifier Bandwidth: 2.5Gbps/250MHz
• Support��HDMI 1.4b and Ultra HD the Resolution Can Up to 3840*2460(4K)
• Consumption(Max): 5W

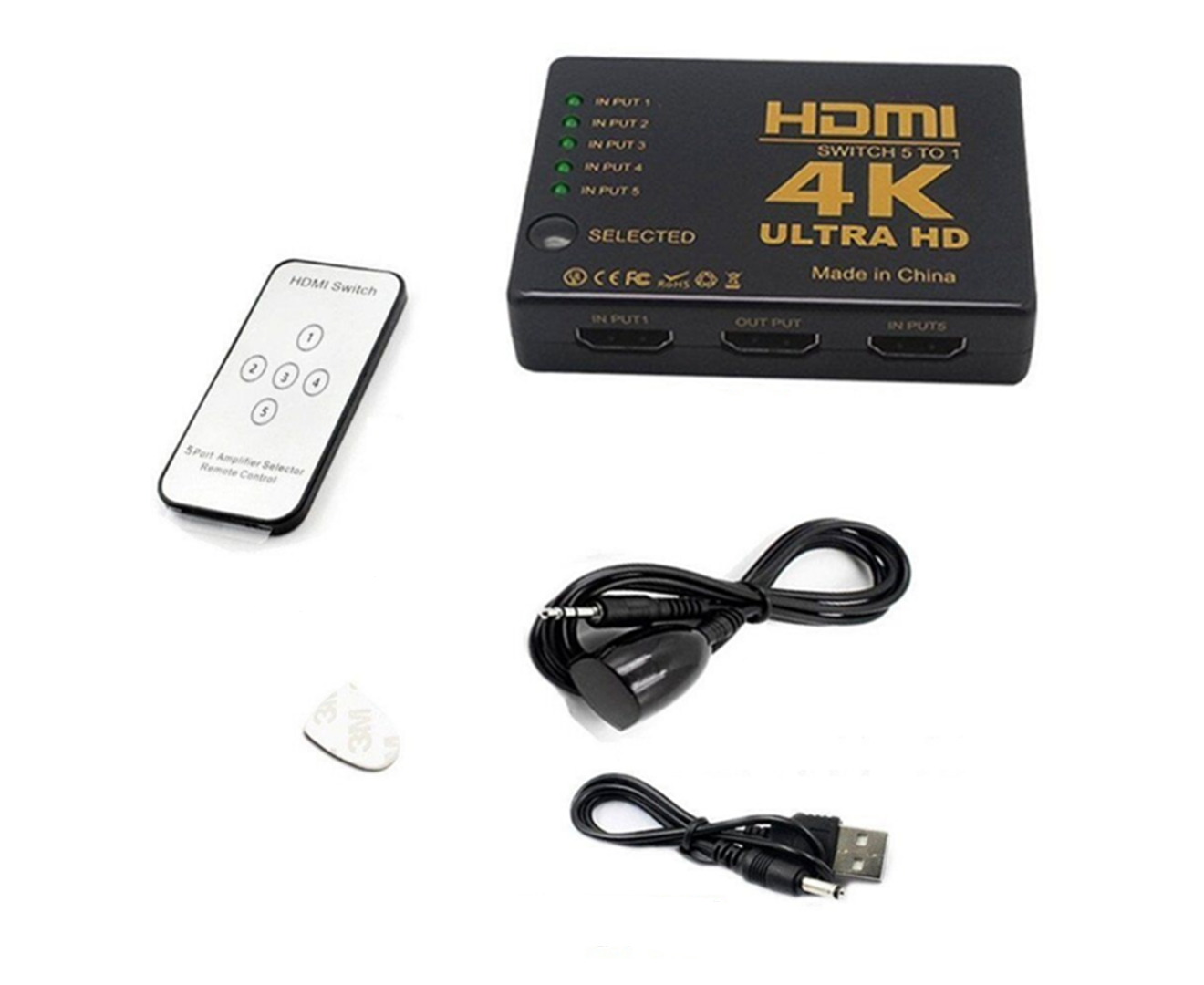

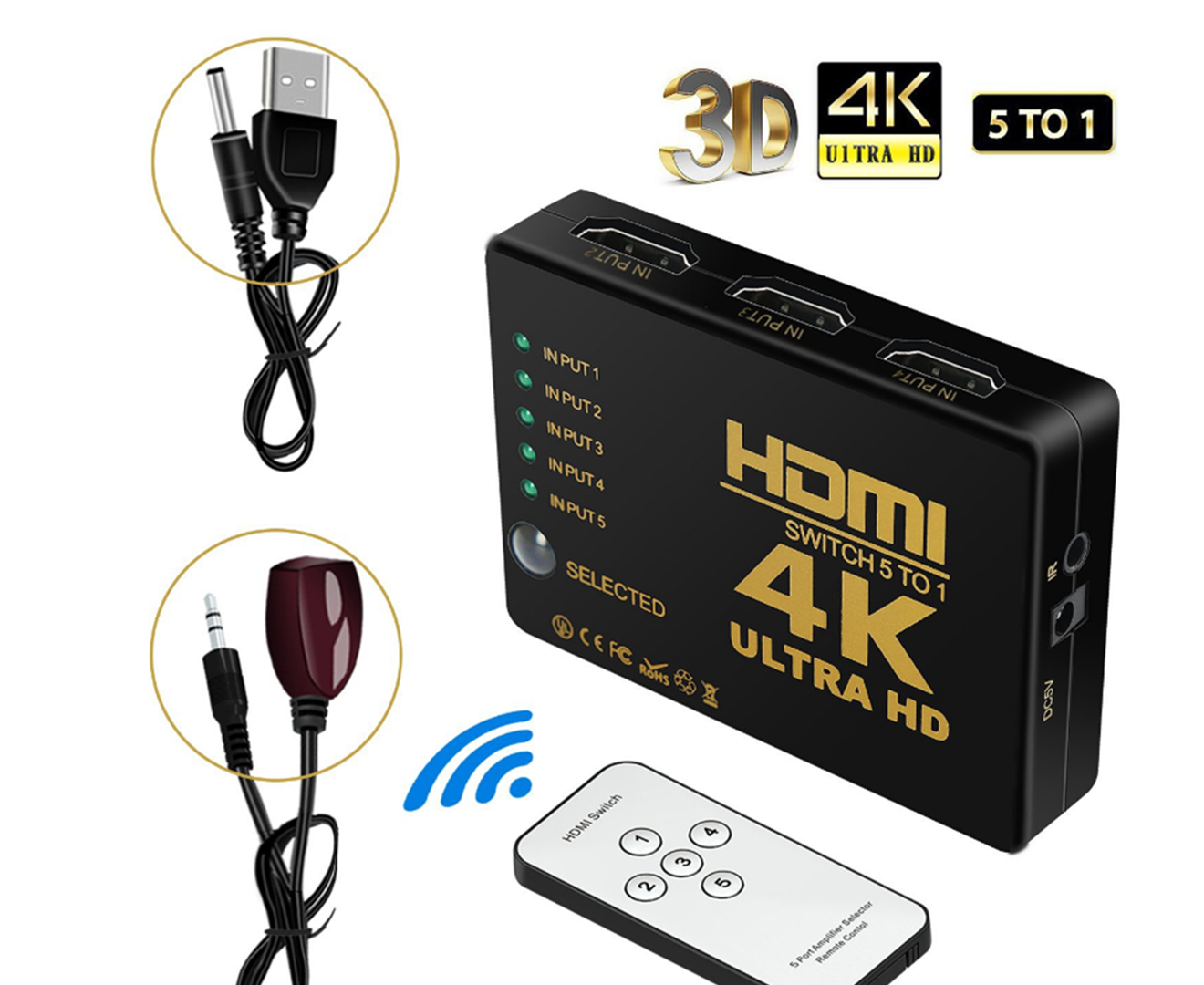

• 1 x 5 Way HDMI Switcher
• 1 x IR Remote Control
• 1 x IR Extender Receiver
• 1x USB Power Cable
• (excluding other things in the picture)
