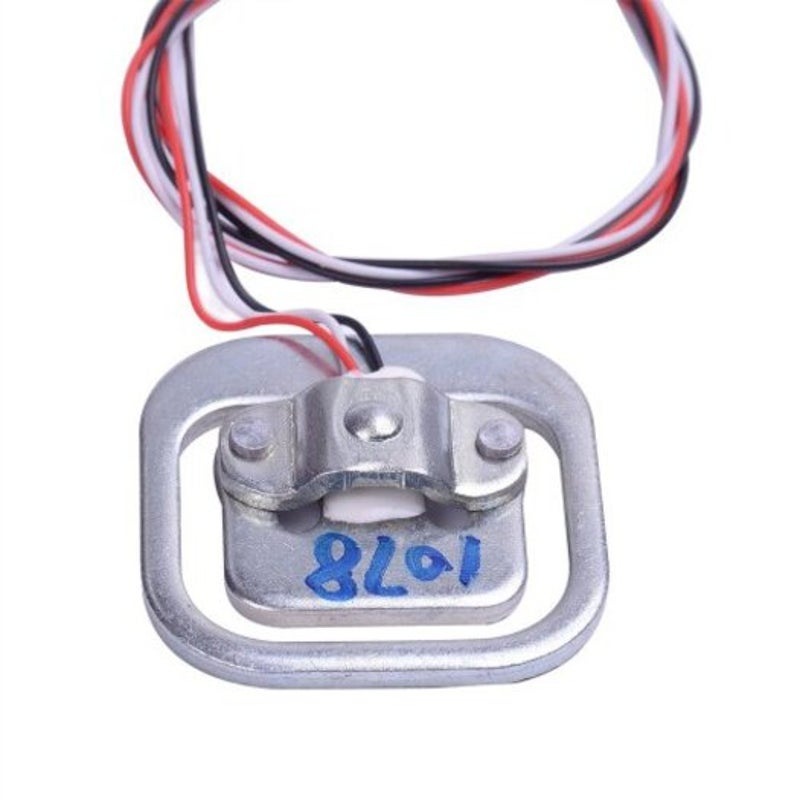

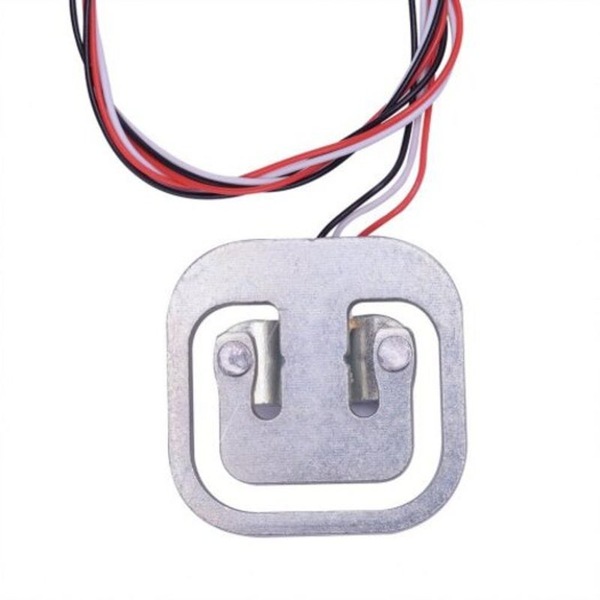

50Kg Load Cell Body Scale Weight Weighting Half Bridge Module For Arduino Silver Other Sensors

50Kg Load Cell Body Scale Weight Weighting Half Bridge Module For Arduino Silver Other Sensors

SOLD OUT


Sold by HOD HEALTH AND HOME Australia


Free Shipping on all purchases. Your parcel will also be fully insured and trackable


Need more than 1? Choose the number of sets in the dropdown to receive a bulk buy discount up to 20% off


Features:

  • This Item Is Used Widely In Hopper Scales Platform Scales Platform Balance Belt Scales And Other Electronic Weighing Devices.
  • Internal 1000 Ohm half-bridge strain gauge load cell range is 50kg half-bridge structure.
  • When measuring the correct force is applied to the outer side of the strain E-shaped beam portion of the sensor(i.e. a strain gauge affixed to the middle with a beam of white plastic cover arm)and the outside edges to form a shear force in the opposite directioni.e. in the middle of strain beam bending necessary changes can occur under stress
    strain beam side by another force can not have a barrier.

Specifications:

  • Dimension:3.4Aacute; 3.4Cm/ 1.33Aacute; 1.33Inches
  • Structure:Half-Bridge
  • Output Sensitivity:1.0Agrave;15%Mv/V
  • Nonlinearity:0.05 % F.S
  • Input Impedance: 1000Agrave;10ohm
  • Output Impedance:1000Agrave;10ohm
  • Insulation Resistance:R2000 M Ohm
  • Product Weight: 0.0190 Kg
  • Package Weight: 0.0400 Kg
  • Product Size(L X W X H): 3.40 X 3.40 X 0.50 Cm / 1.34 X 1.34 X 0.2 Inches
  • Package Size(L X W X H): 8.00 X 6.00 X 1.00 Cm / 3.15 X 2.36 X 0.39 Inches
  • Capacity:50kg/110lb(each)

You will receive:

  • 1x Sensor
