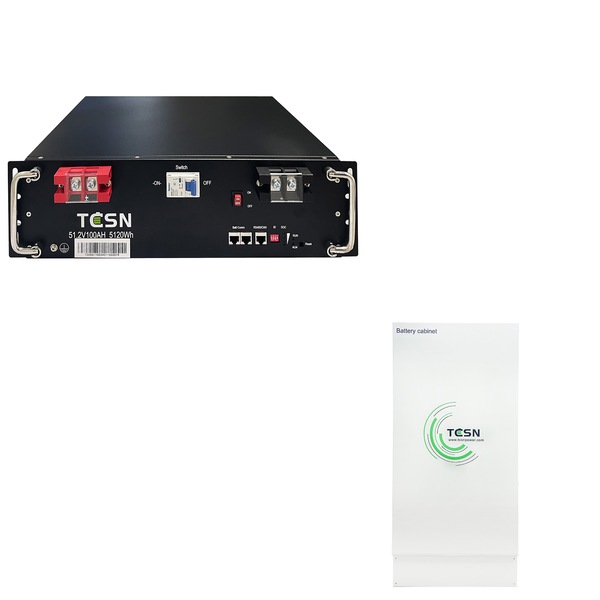

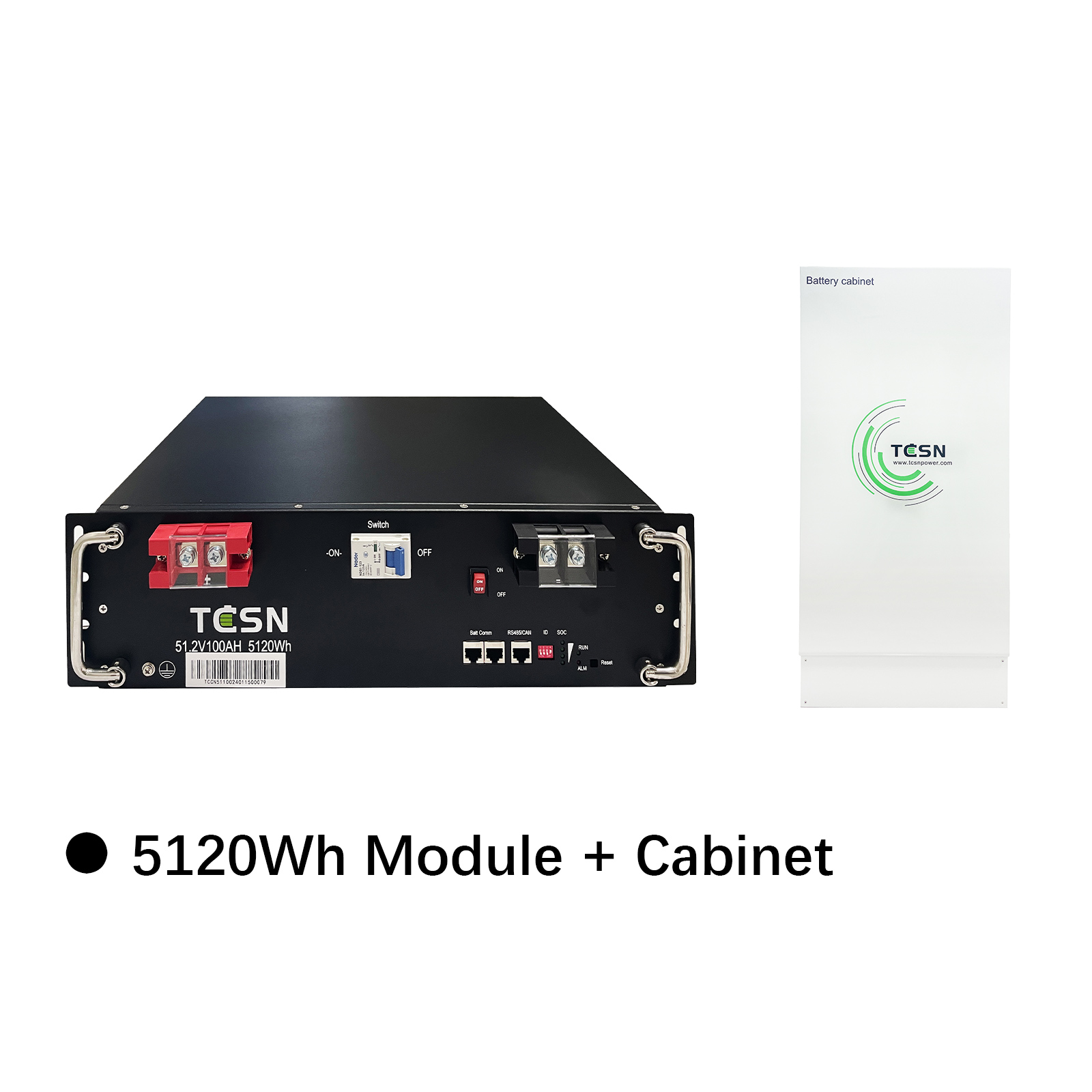

5120Wh 51.2V 100Ah LiFePO4 Battery Module + Battery Cabinet

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
Hurry! 16 items left!
$2349

Collect 2349 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Ozzie Energy
Secure ways to pay at checkout

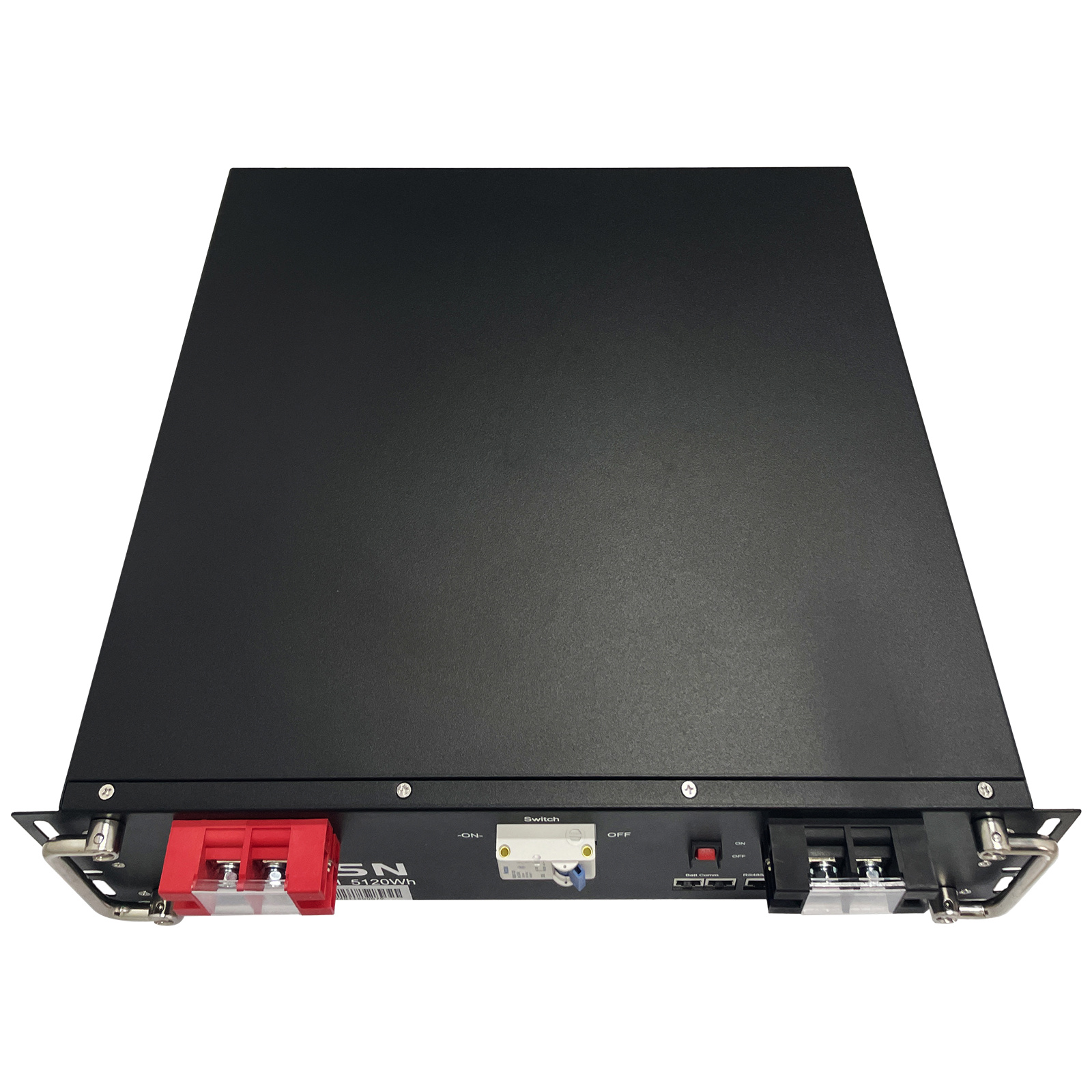

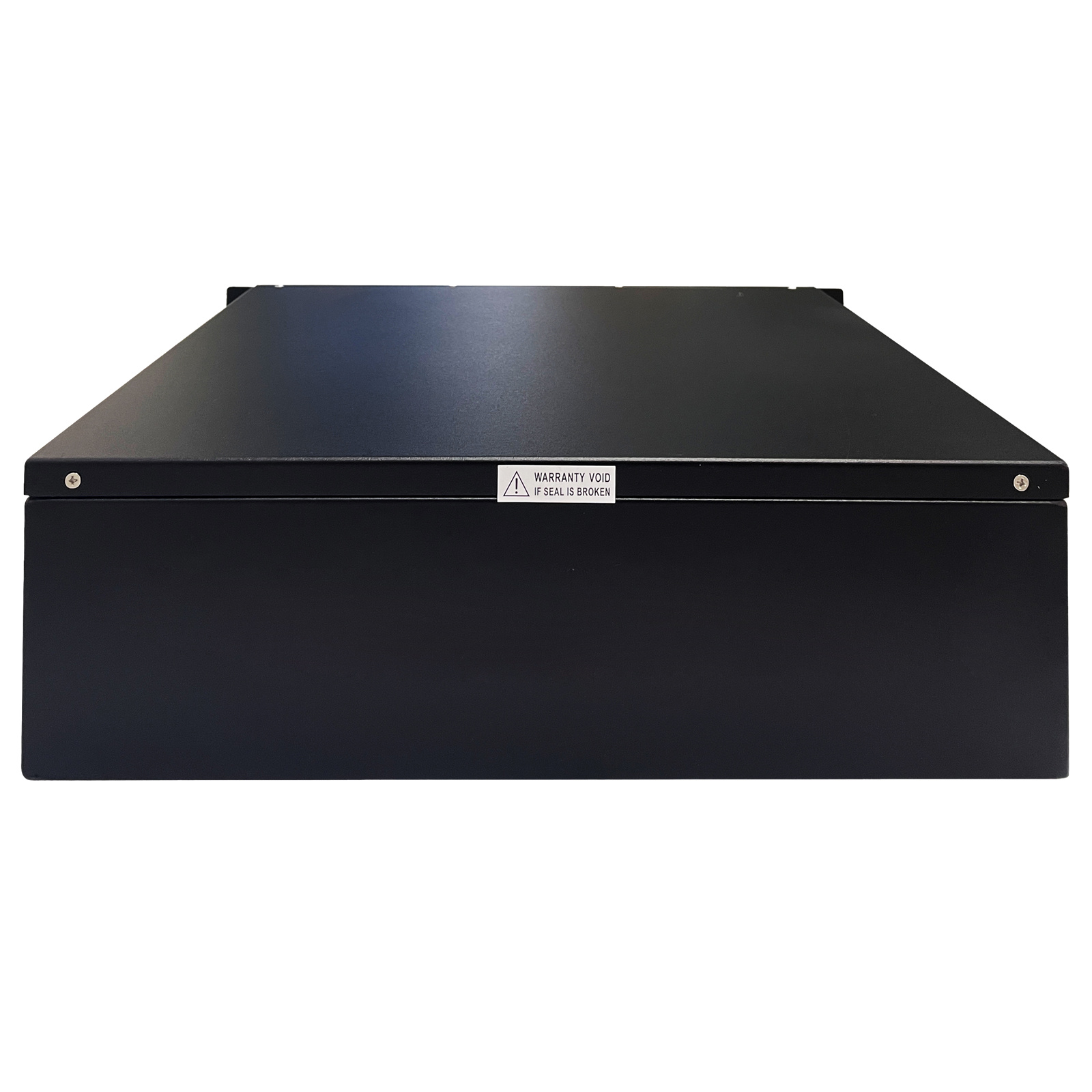

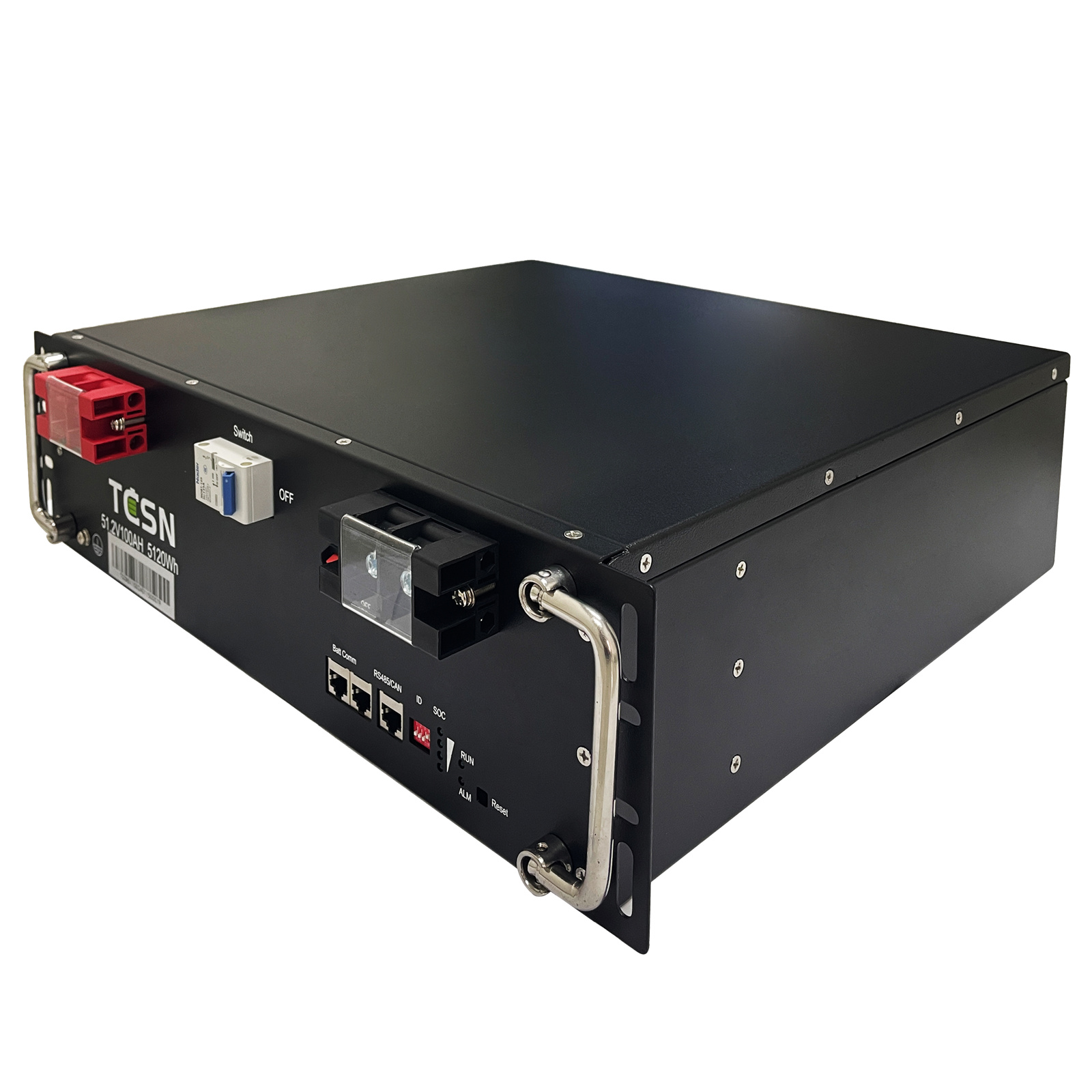

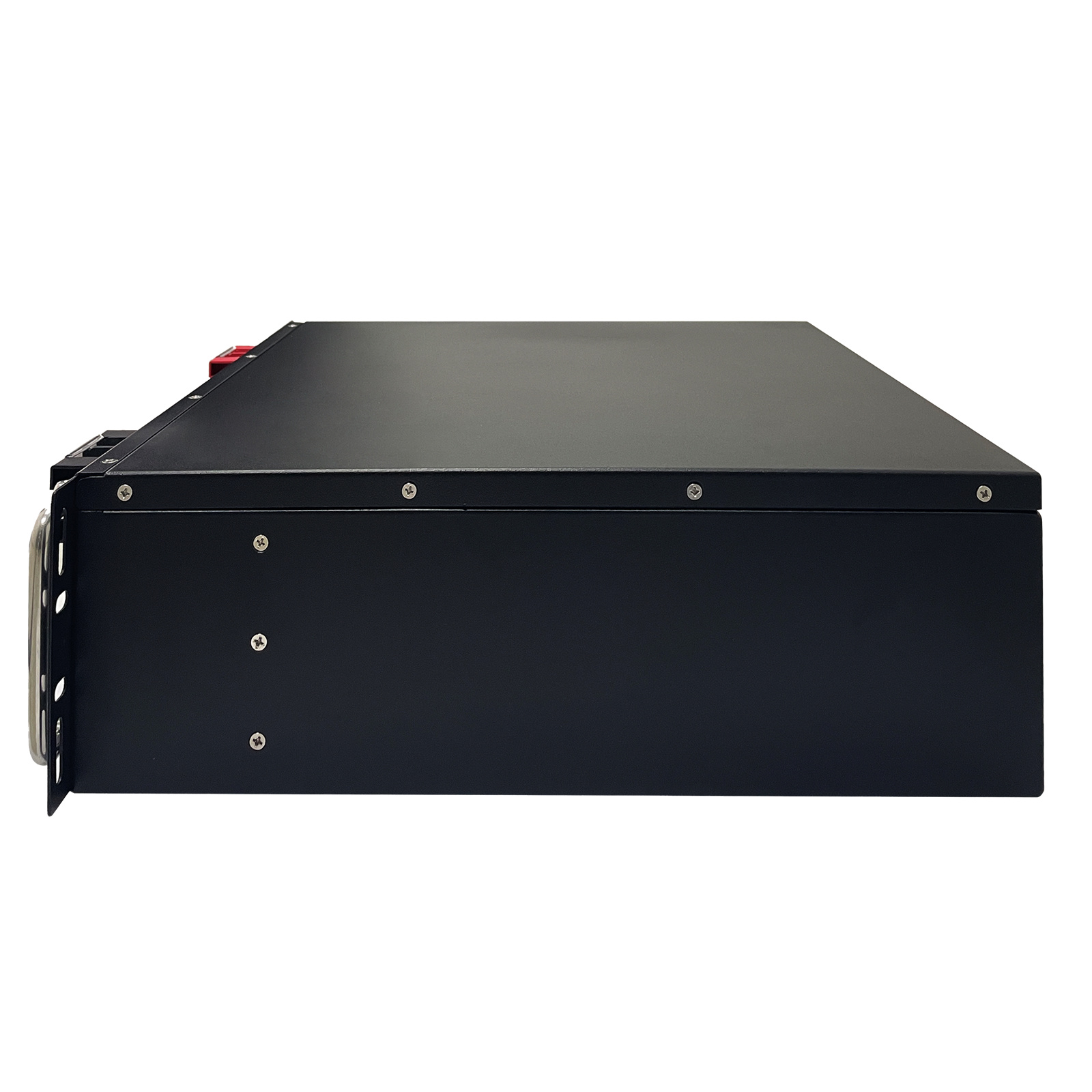

Product 1: 5120Wh 51.2V 100Ah Lithium Battery Module

  • Specifications

    • Capacity: 100 Ah
    • Energy: 5120 Wh
    • Nominal Voltage: 51.2 V
    • Balancing Voltage: >54.4V
    • Cell: Square LFP 100Ah
    • Cycle Life: 4000times(80%DOD)
    • Rated Discharge Current: 100A
    • Short Circuit Current: Approx.2000A
    • Rated Discharge Cut-off Voltage: 44.8V
    • Min. Discharge Cut-off Voltage: >40V
    • Self Discharge: <=2%/Month
    • Pulse Current: 600A(5S)

    • Rated Charge Current: 50A
    • Max. Charge Current: 100A
    • Rated Charge Voltage: 54.4 - 55.2V
    • Charge Cut-off Voltage: 58.4V
    • Storage Temp: -5°C to 35°C
    • Discharge Temp: -20°C to 60°C
    • Charge Temp: 0°C to 45°C
    • Certifications: CE/UN38.3/UL1642/IEC62619
    • IP Grade: IP21
    • Terminal: M8

  • Dimensions & Weight

    • Product Size: 442 x 420 x 130 mm
    • Package Size: 550 x 525 x 180mm
    • Product Weight: 42kg
    • Package Weight: 42.6kg

  • Package List

    • 1x Battery Module
    • 1x User Manual

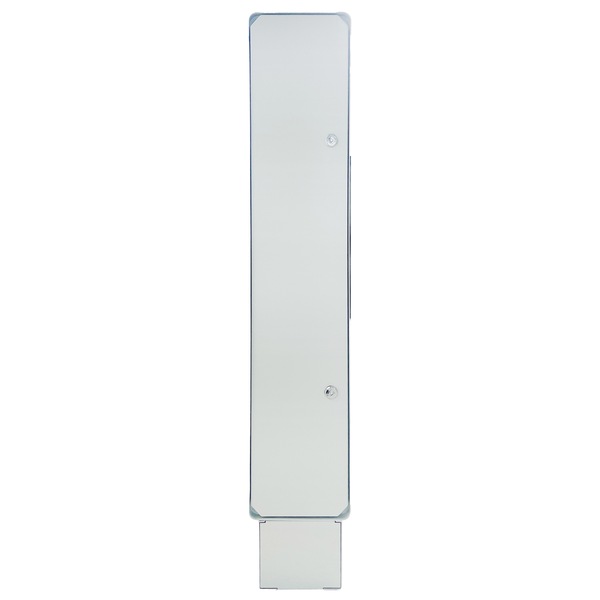

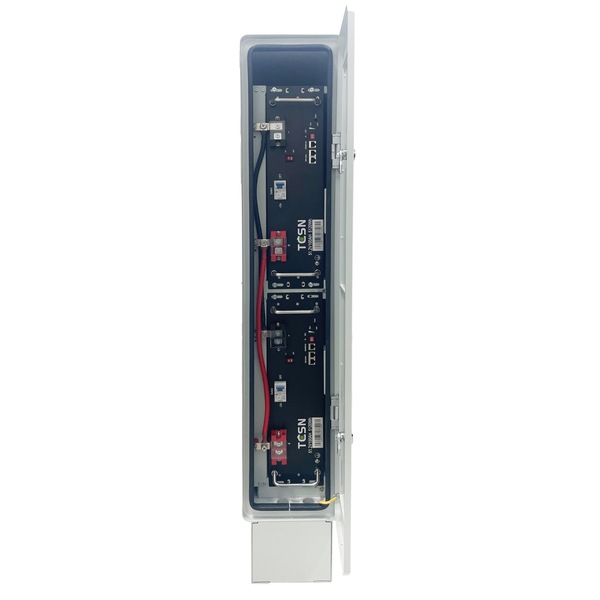

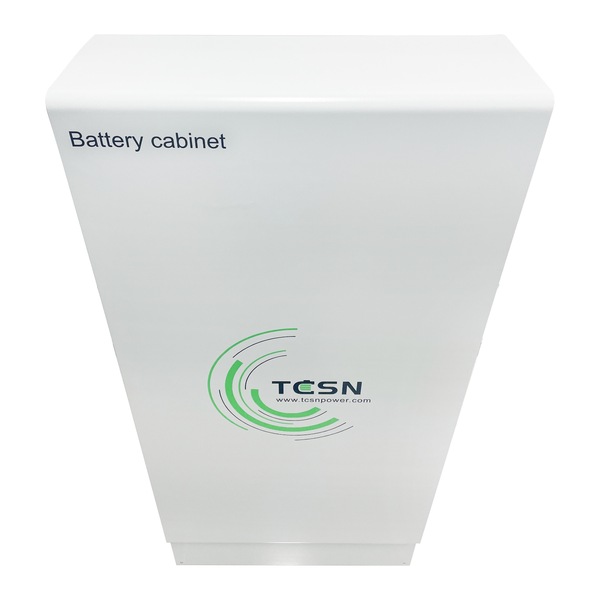

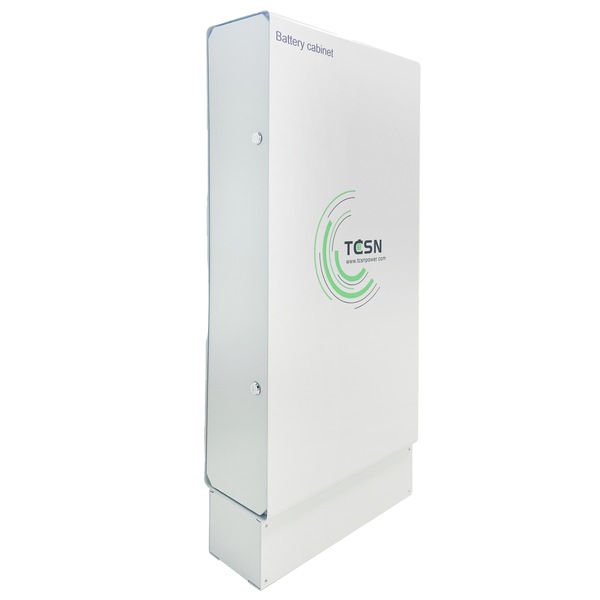

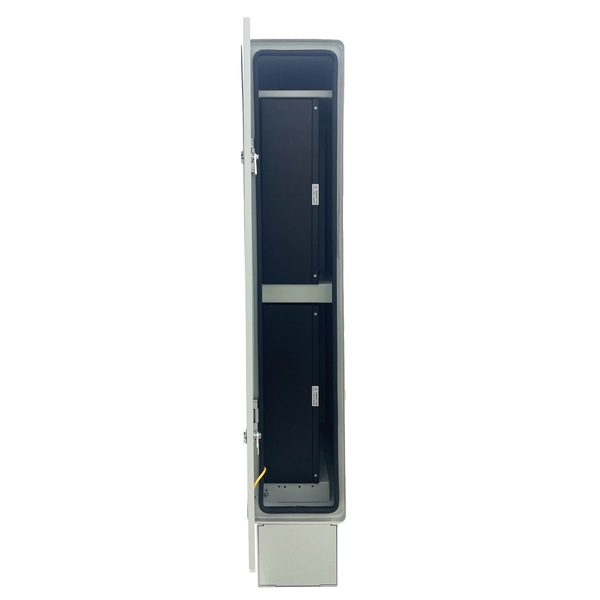

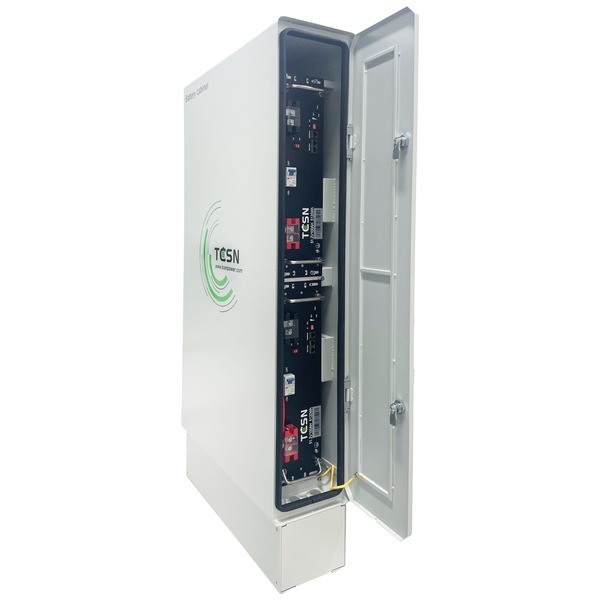

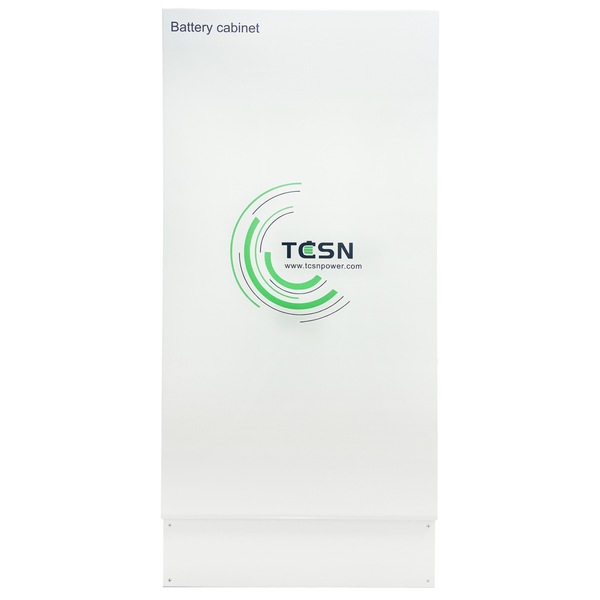

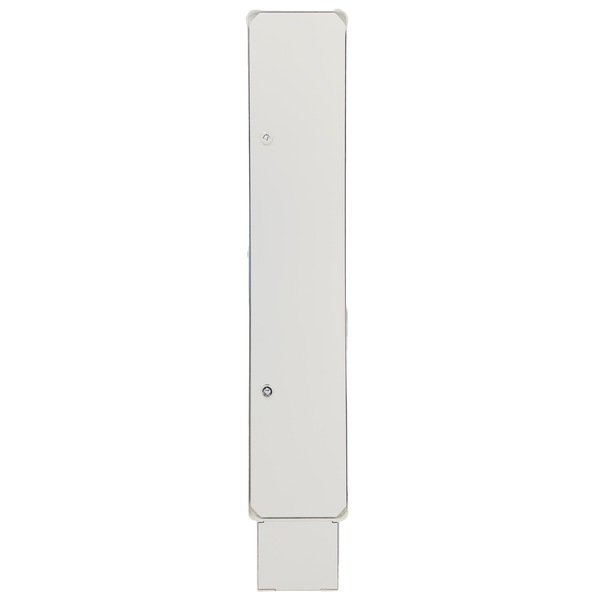

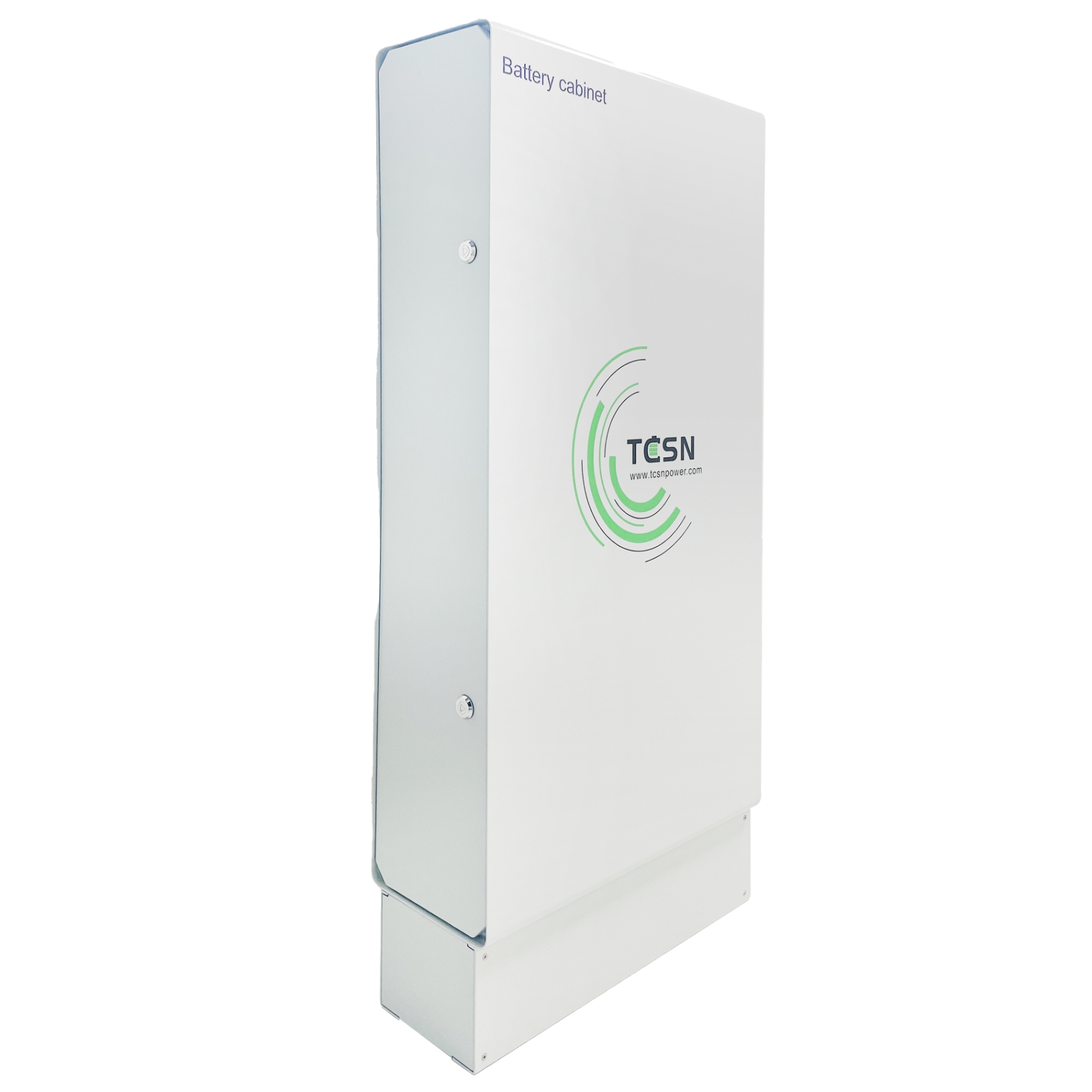

    Product 2: Battery Cabinet

  • Dimensions & Weight

    • Dimensions: 580*220*1250 mm
    • Weight: 42.5 kg

  • Package List

    • 1x Cabinet for the 5kWH battery module
    • 1x User Manual

    Tips: The items in this bundle will be shipped separately, the packages may arrive at different times, please be patient and wait.

    GTIN: 9355348081510

    Estimated Delivery Time Frame:3-8 business days
