530 Pcs Heat Shrink Tubing Set, 5 Colors, 1.5-10mm, Polyolefin, Flame Retardant, RoHs CE Approved

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Best Price in the Last 14 Days
Hurry! 18 items left!
$15.98
You save 57%Was $36.98

Collect 15 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Sold & shipped by Auzzi Store
Secure ways to pay at checkout

The 530-piece heat shrink tubing set includes an assortment of shrink sleeves for the job at hand, providing electrical insulation, mechanical protection, environmental sealing, and strain relief for applications such as back-end connector sealing, breakouts, and connector-to-cable transitions.

Specifications:

  • Large collection of heat shrink tubing 5 colours
  • Supplied Internal Diameter: 1.5 mm, 2.0 mm, 3.0mm, 4.0mm, 5.0mm, 6.0, 8.0 mm, an and 10.0mm
  • Color: Black, Red, Yellow, Blue, Green
  • Material: Polyolefin
  • Shrinkage Ratio: 2:1 (will maximum shrink to 1/2 its supplied diameter)
  • Operating Temperature: -55oC to +125oC Minimum Shrink Temp: +70oC
  • Full Shrink Temp: +110oC Maximum
  • Tensile Strength: 10.4 Mpa
  • Dielectric Strength: 15 kV / mm
  • Flammability: Flame Retardant
  • Approvals: RoHs, CE
  • Container Size (cm): 20(L) x 12(W) x 3.5(H)

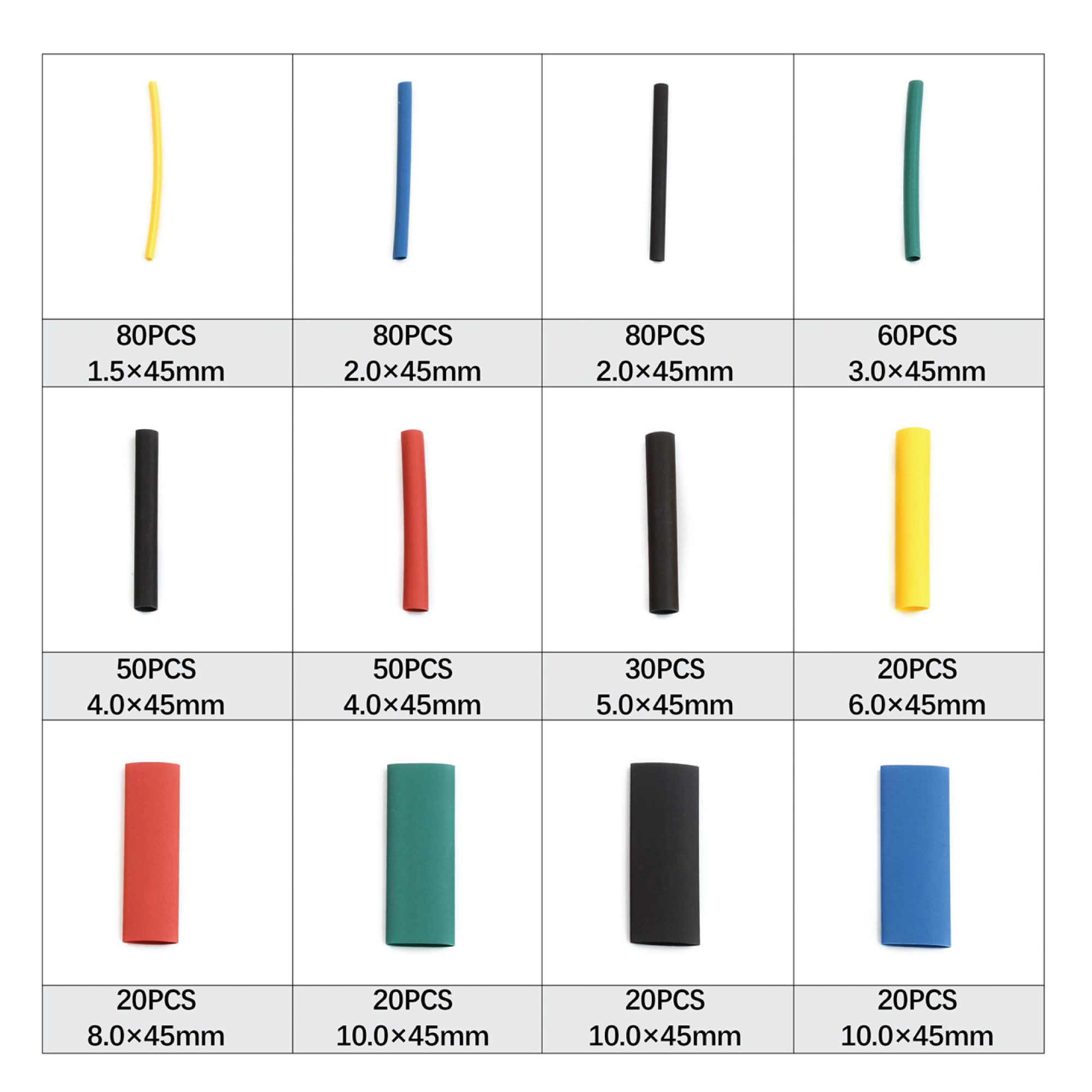

Package Includes:

(Quantity x Internal Diameter x Single Length)

  • 80 pcs x 1.5 x 45mm Yellow
  • 80 pcs x 2.0 x 45mm Blue
  • 80 pcs x 2.0 x 45mm Black
  • 60 pcs x 3.0 x 45mm Green
  • 50 pcs x 4.0 x 45mm Red
  • 50 pcs x 4.0 x 45mm Black
  • 30 pcs x 5.0 x 45mm Black
  • 20 pcs x 6.0 x 45mm Yellow
  • 20 pcs x 8.0 x 45mm Red
  • 20 pcs x 10.0 x 45mm Green
  • 20 pcs x 10.0 x 45mm Blue
  • 20 pcs x 10.0 x 45mm Black

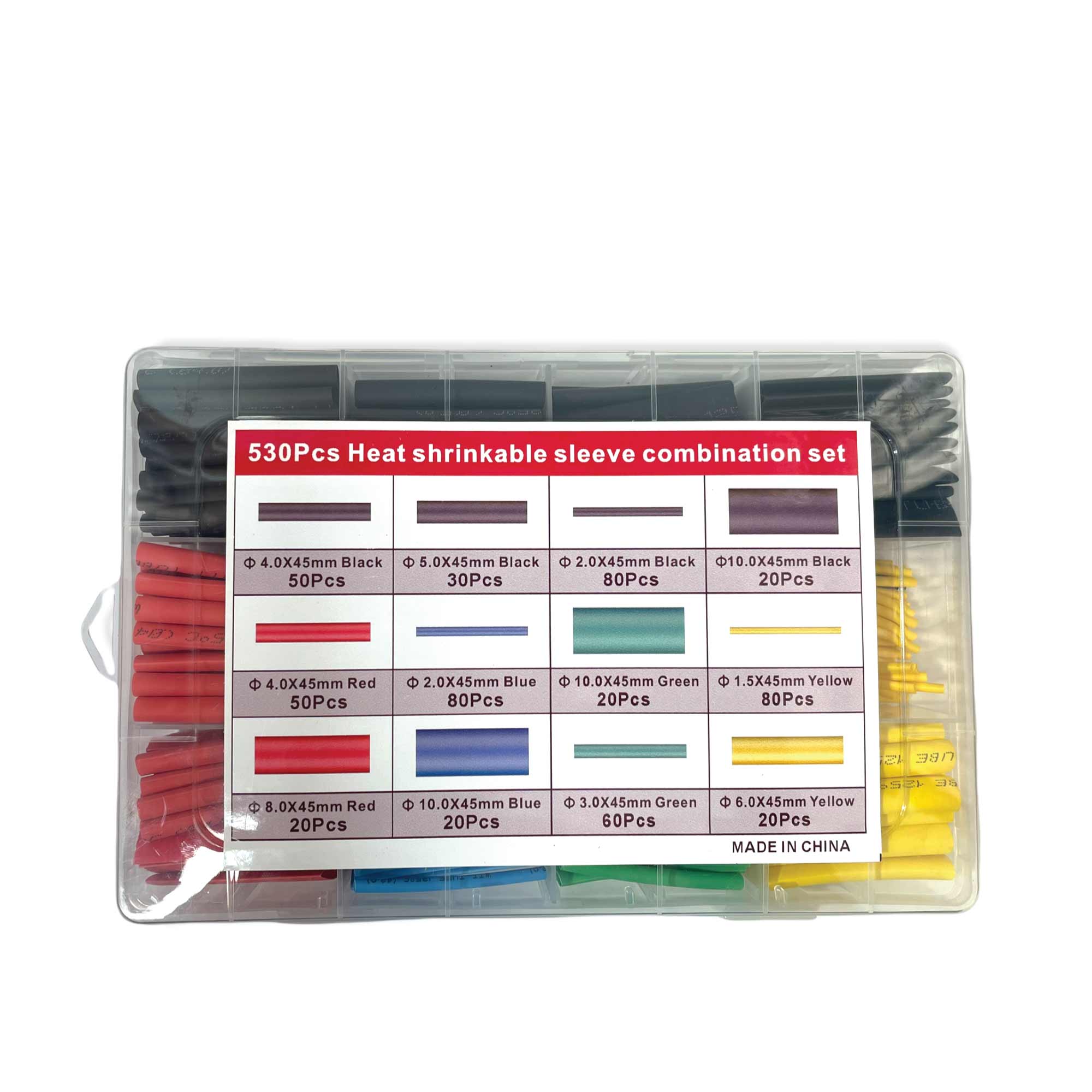

  • Packaged in 1 x Plastic Compartmentalised Container

GTIN: 9352827060349
