5combo GPS/GNSS plus 5G 4G LTE Antenna 4X4 MIMO 600-8000 MHz Omni WIFI7 M2M IoT

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Hurry! 1 items left!
$265

Collect 265 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by RF Outlet
Secure ways to pay at checkout

Description:

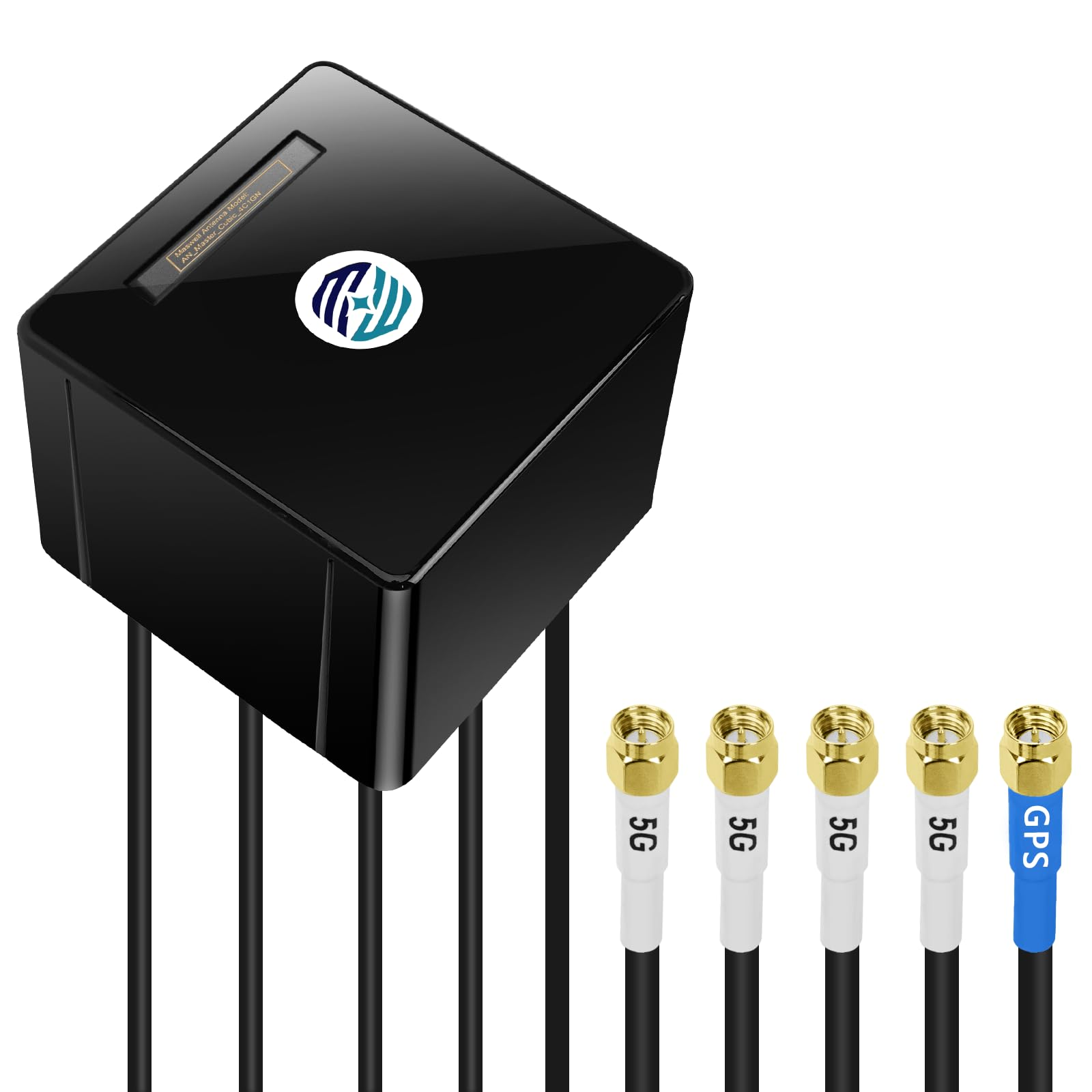

ITEM ID:AN_Master_Cubic_4C1GN

Brand Name Maswell

AN_Master_Cubic_4C1GN is a design project supervised by Australia Charted Engineer.

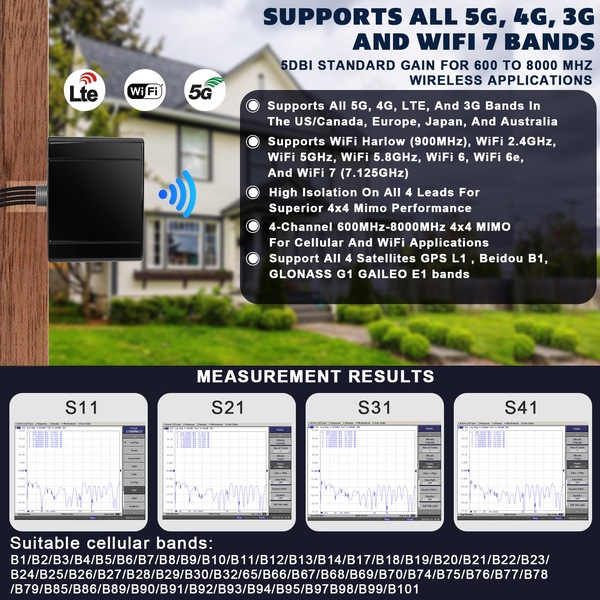

  • High quality Cellular 4X4 MIMO Antenna for 5G 4G LTE 3G WiFi 6E signal boosting antenna 600-8000MHz.
  • All GNSS L1 bands Supported GPS GLONASS GAILEO and BEIDOU

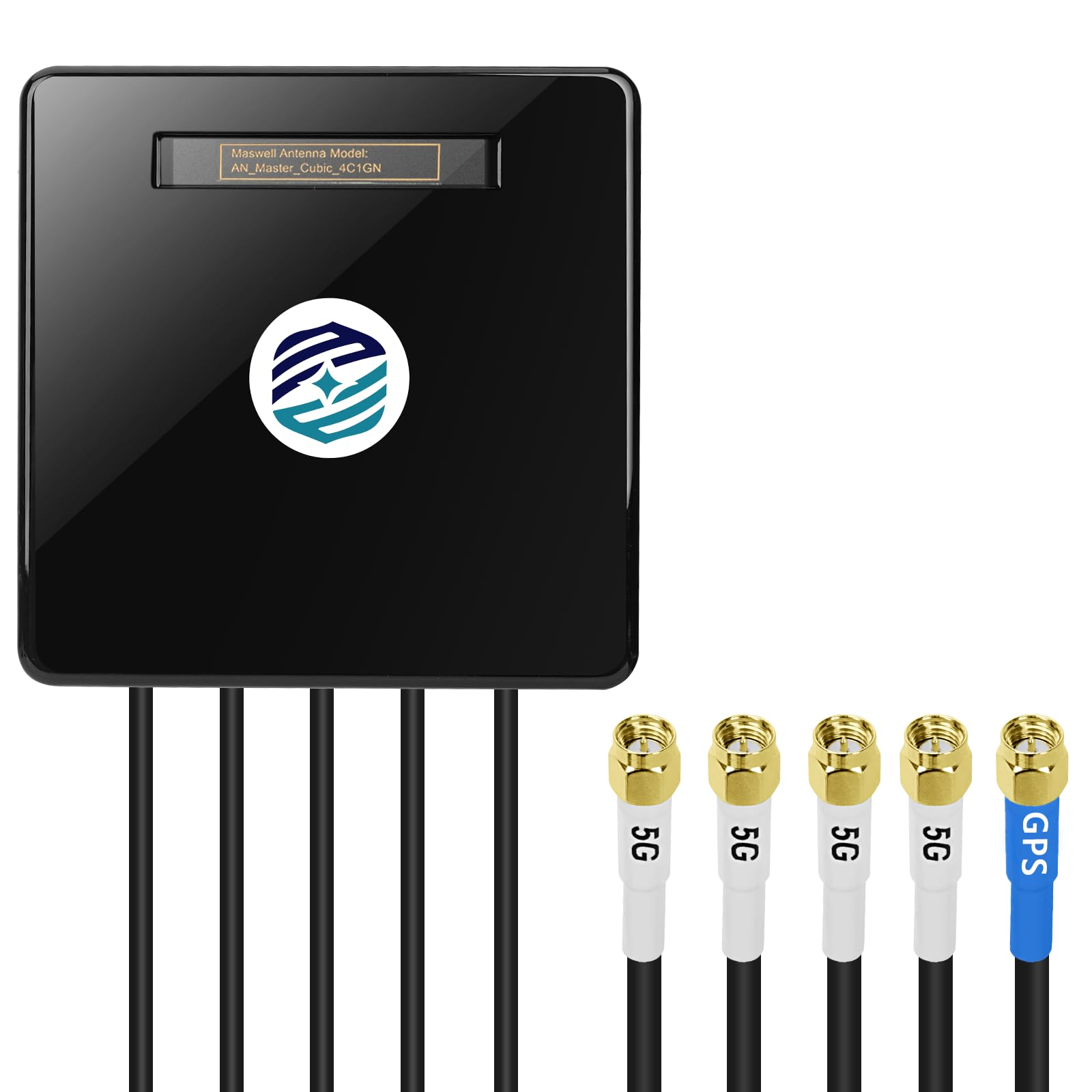

  • 5 X SMA male connectors leads.
  • High Gain 6.0 dBi (at 20cm cable length) for all your Cellular and WiFi 6E/WiFi 7 applications

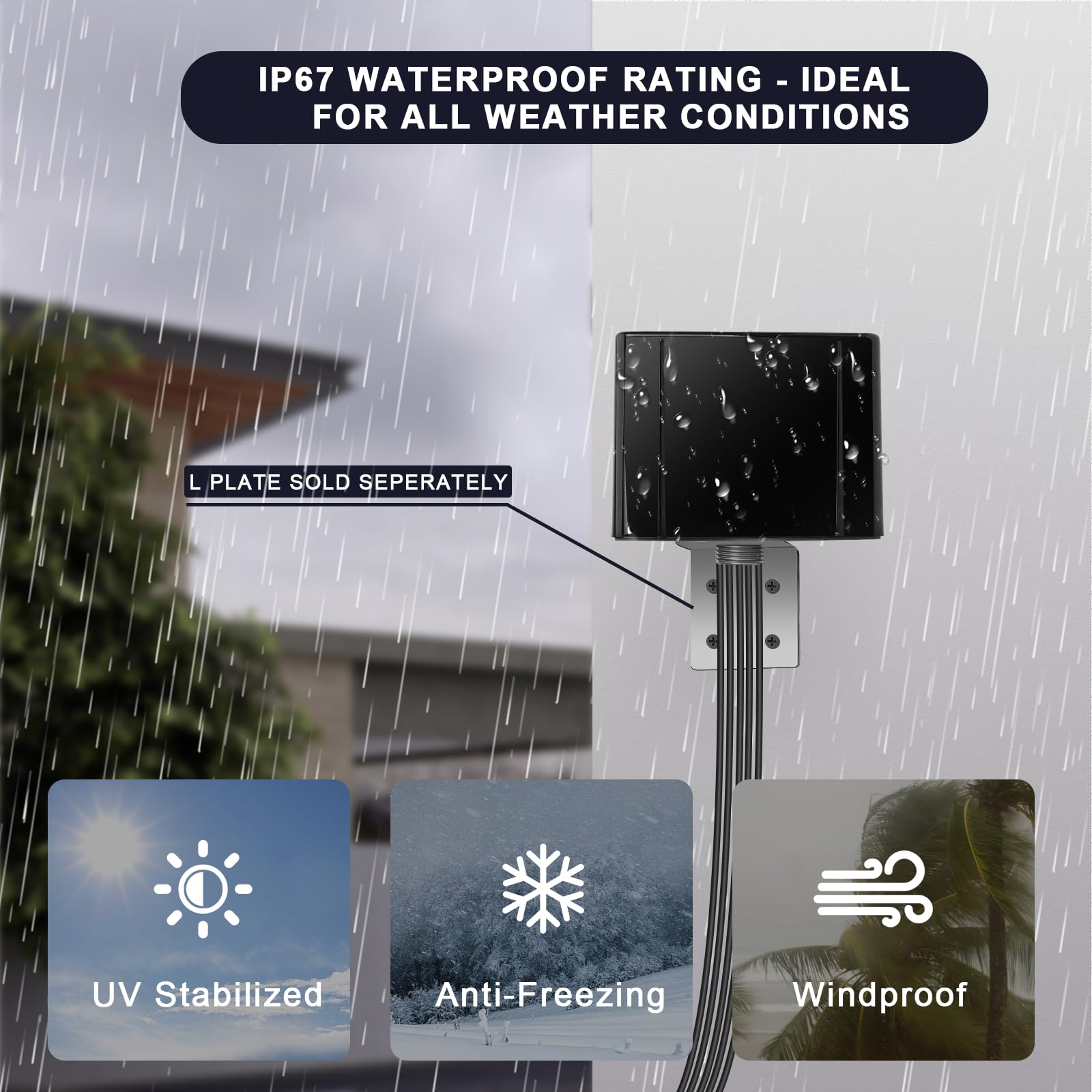

  • IP67 Waterproof 7/24 Operation Capability
  • Glossy Black Radome with UV Stabilized Capacity

Telstra: ALL 5G 4G LTE 3G Supported

Optus: ALL 5G 4G LTE 3G Supported

Vodafone: ALL 5G 4G LTE 3G Supported

WiFi: WiFi 2.4GHz WiFi 5GHz WiFi 6, WiFi 6E at 7.125GHz WiFi 7 All Supported (adapter may be required)

For all your CelFi signal repeaters: Cel Fi Pro, CelFi Solo, CelFi Go G32, CelFi Go G31,CelFi Go G41

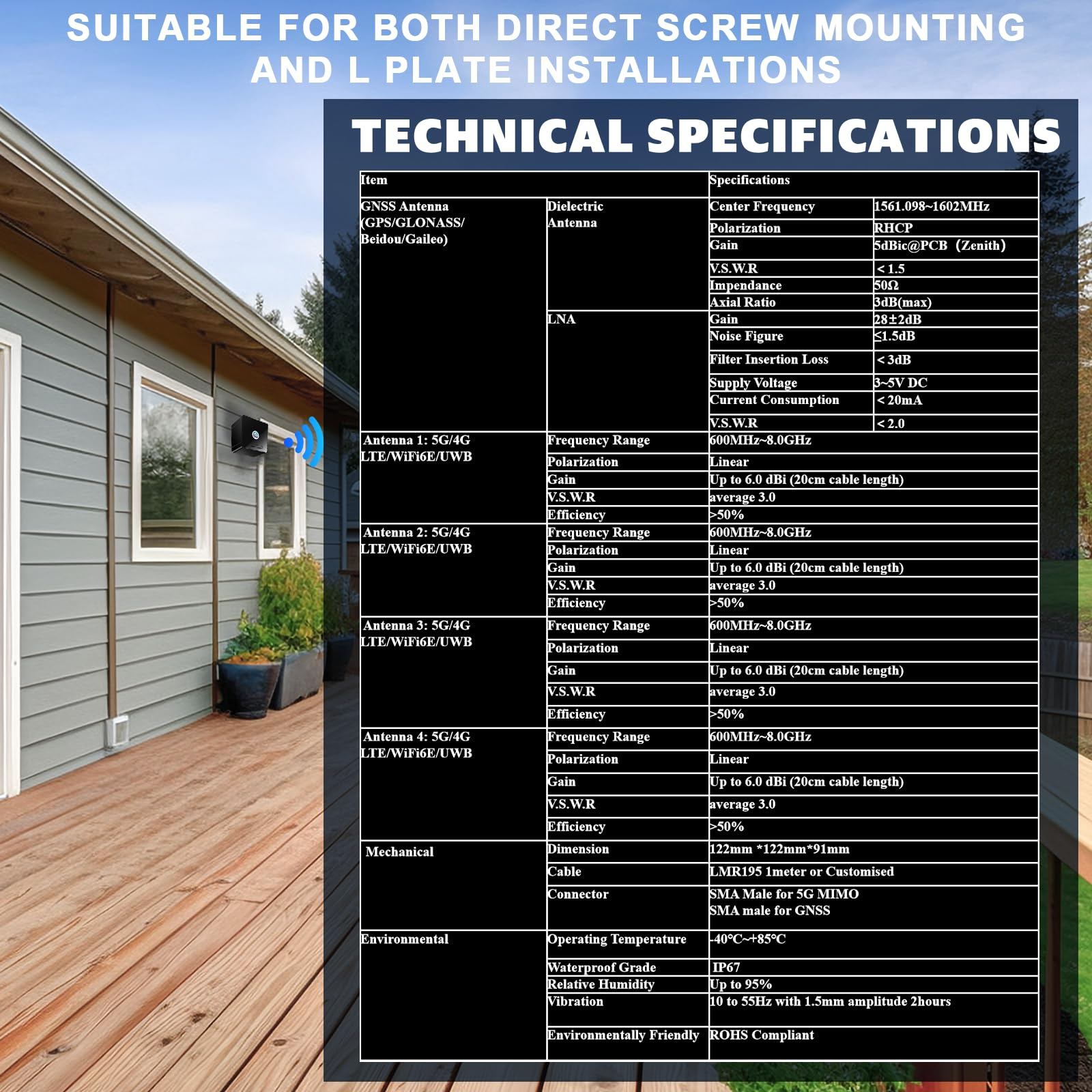

Specifications:

Electric specifications:

Antenna 1~Antenna 4:

Frequency 600-8000MHz

Band Width 7400 MHz

Gain 6dBi (@20cm cable)

V.S.W.R ≤2

Input Impendence 50 ohm

Polarization: linear horizontal/vertical

Maximum power: 50W

Isolation: 10dB

Antenna 5

Centre Frequency 1561-1602MHz

GPS L1 band GLONASS G1 band BEIDOU B1 band GAILEO G1 band
V.S.W.R(5m) 1.5 : 1

Band Width ±5MHz
Impendence 50 ohm

Polarization Type RHCP

LNA/Filter

LNA Gain(Without cable) 28±2 dB Typical

Noise Figure 1.5dB

DC Voltage 2.2~5V

DC current 5~15 mA

Mechanical specifications:

Dimensions: 122mm *122mm*91mm

Working Temp -40Degrees Celsius~+85Degrees Celsius

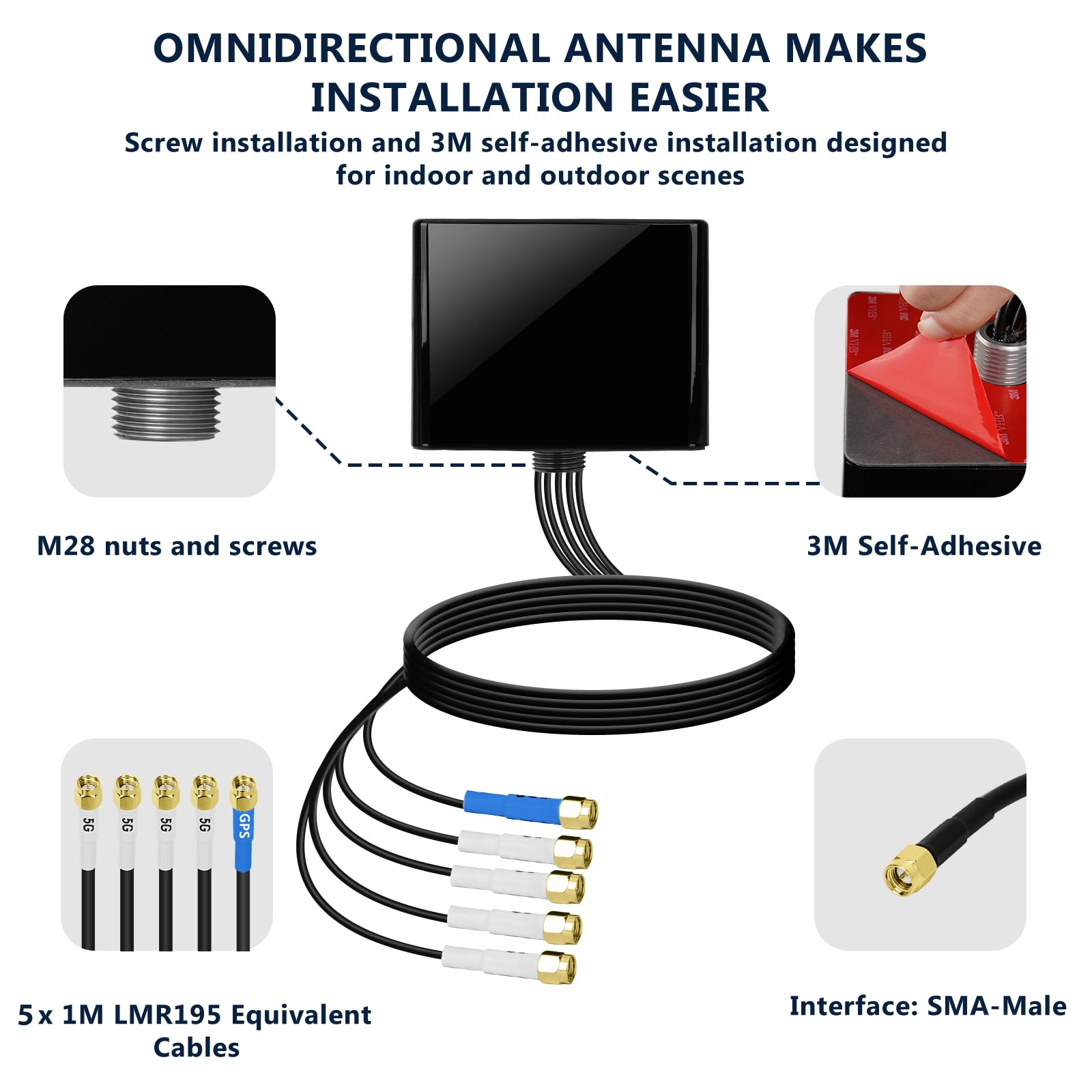

Mounting type: Screw and 3M Adhesive

Waterproof: IP 67 EU IP 67 standard PASSED: EN 60529:1991+A1:2000+A2:2013+AC:2019

China IP 67 Standard PASSED: GB/T4208-2017

Cable Length: LMR 195 2m (5 leads)

Connector type: SMA male for ALL 5 leads

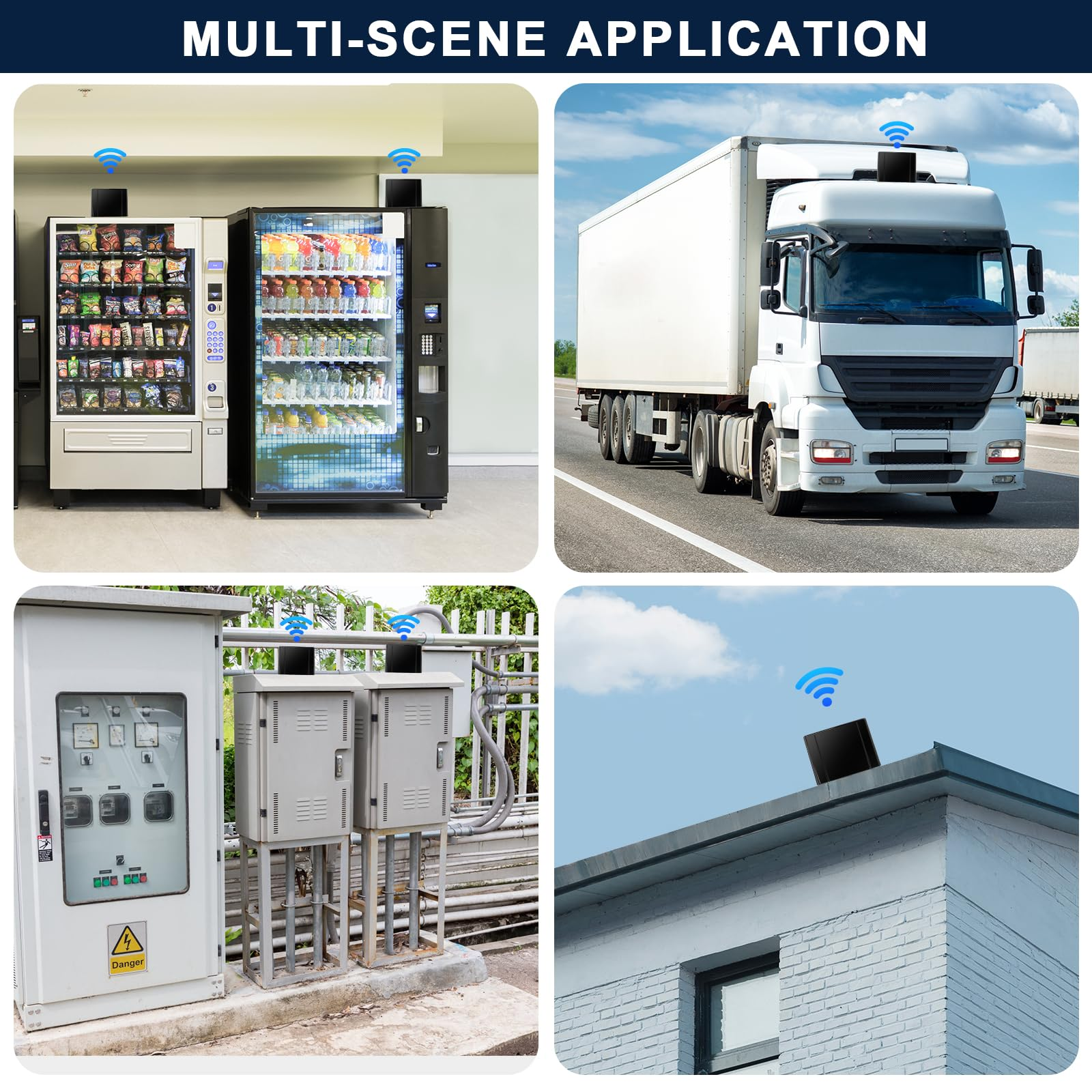

  • Outdoor screw mount antenna for GSM/3G/4G/5G signal boosting with 4*4 MIMO
  • Suitable for Telstra, Optus, VHALTE 1800,LTE 850 and 3G/4G and wifi.
  • 7/24 Operation Capability
  • Telstra: ALL 5G 4G LTE 3G Supported
  • Optus: ALL 5G 4G LTE 3G Supported
  •  Vodafone: ALL 5G 4G LTE 3G Supported
  • GNSS:ALL GPS GLONASS GAILEO BEIDOU L1 Bands Supported

GTIN: 735942985572
