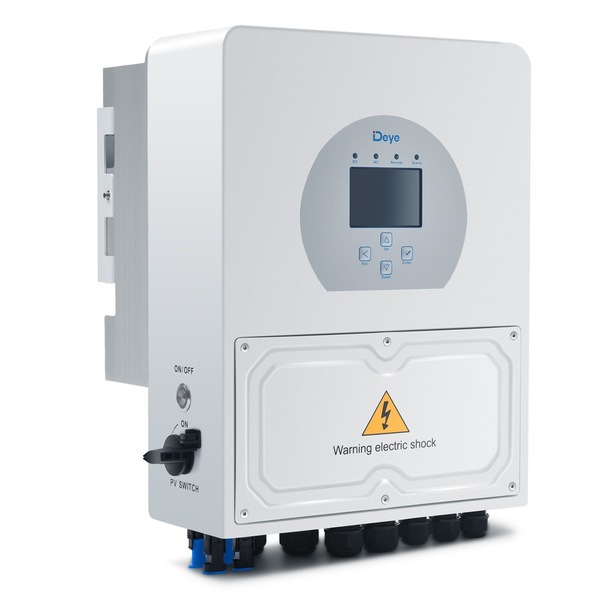

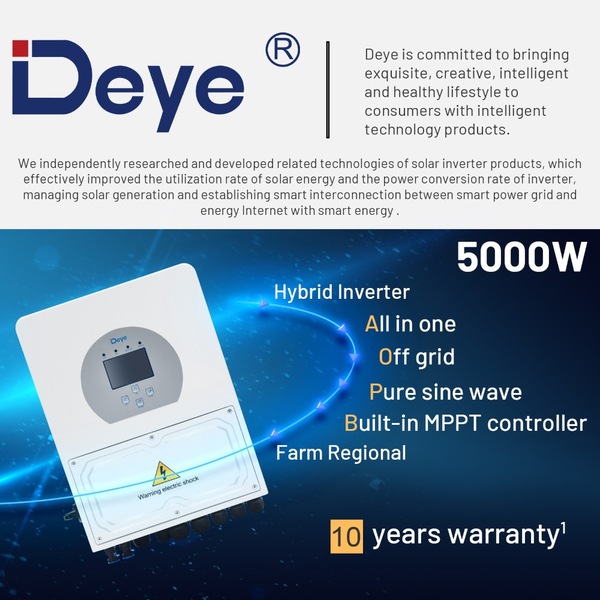

Deye 5KW Inverter MPPT Charger Regulator 5000W Hybrid Solar Inverter Off-Grid

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
Hurry! 8 items left!
$2199

Collect 2199 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Sold & shipped by Ozzie Energy
Secure ways to pay at checkout
This is a multi-function inverter/charger, combining functions of inverter, solar charger, and battery charger to offer uninterruptible power support with portable size and make the most of your solar system.

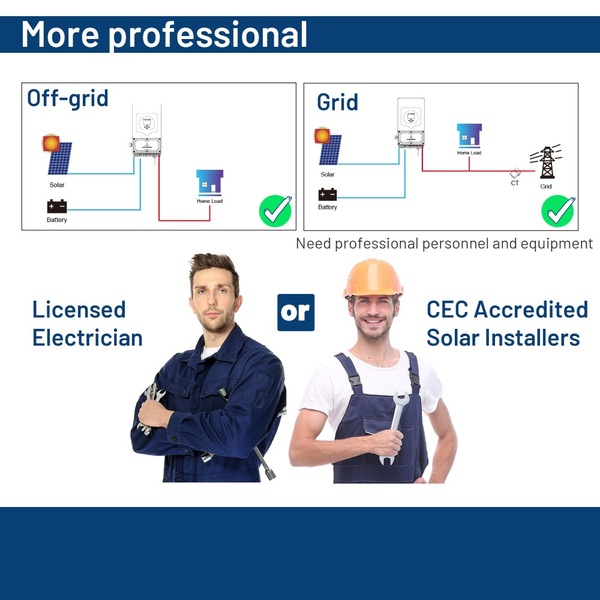

An on-grid inverter's main job is to convert DC power generated from the PV array into usable AC power. Hybrid inverters go a step further and work with batteries to store excess power as well. In the developing world, hybrid inverters are more of a necessity to compensate for weak or intermittent grids or a lack of grid electricity all together.

Stop wasting money on inefficient, overpriced inverters. Invest in one of the most versatile and effective solar power management systems out there today. Our hybrid inverters are next-level and truly worth of your purchase.

We have 5KW, 6KW, 8KW, 10KW, 12KW Hybrid inverters, you can search "Deye Hybrid Inverter" to find these models, whether you are used for energy storage, home or farm, you can find the right inverter for you. Our hybrid inverters are all in stock and can be shipped quickly from our warehouse in Australia.

Features:

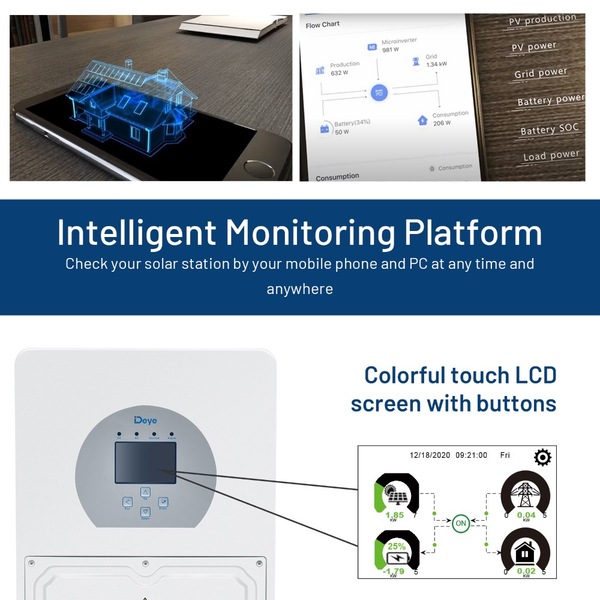

  • Colorful touch LCD, IP65
  • 6 time periods for battery charging/discharging
  • Max. charging/discharging current of 120A
  • Max.16pcs parallel

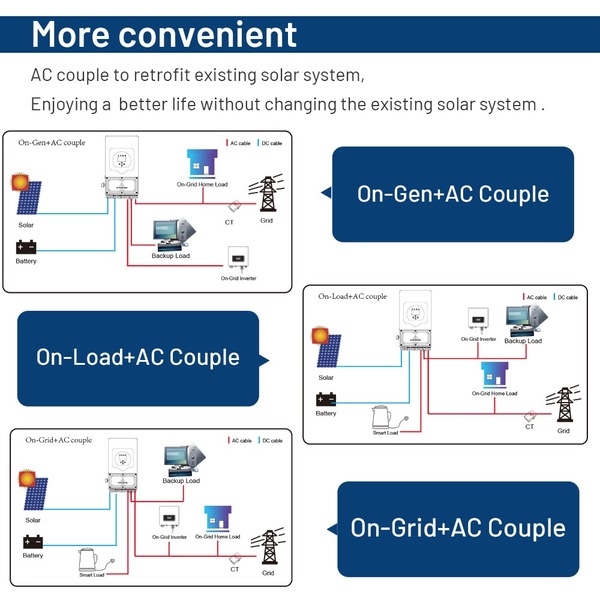

  • DC couple and AC couple to retrofit existing solar system
  • Support storing energy from diesel generator
  • 48V low voltage battery, safe and reliable

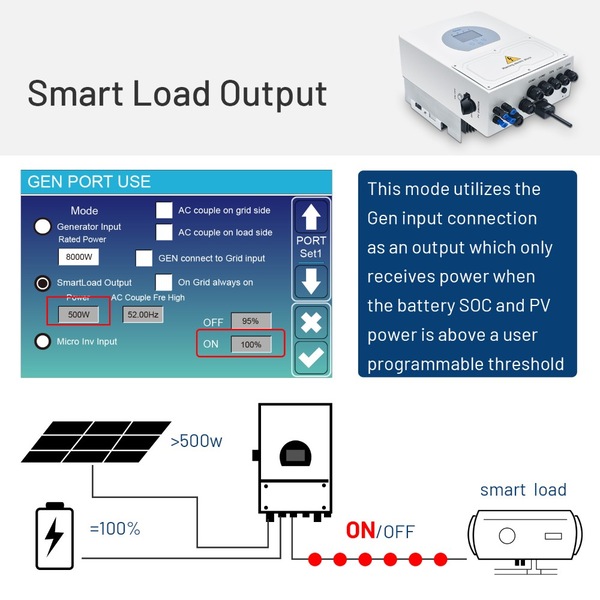

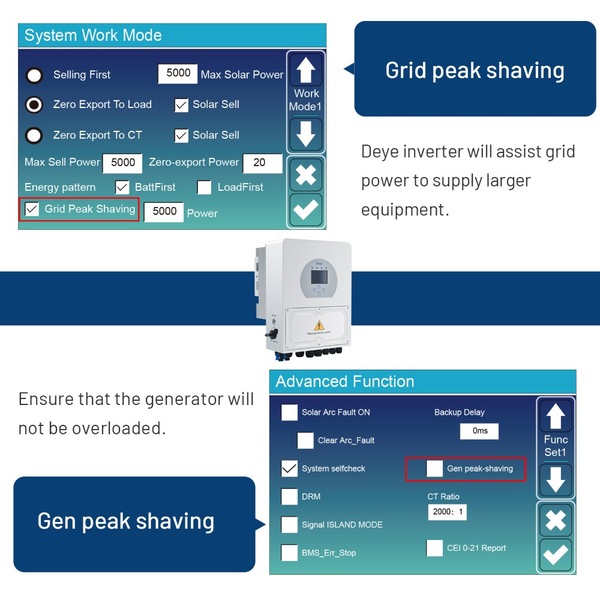

  • Unique Smart Load application and Grid peak shaving function

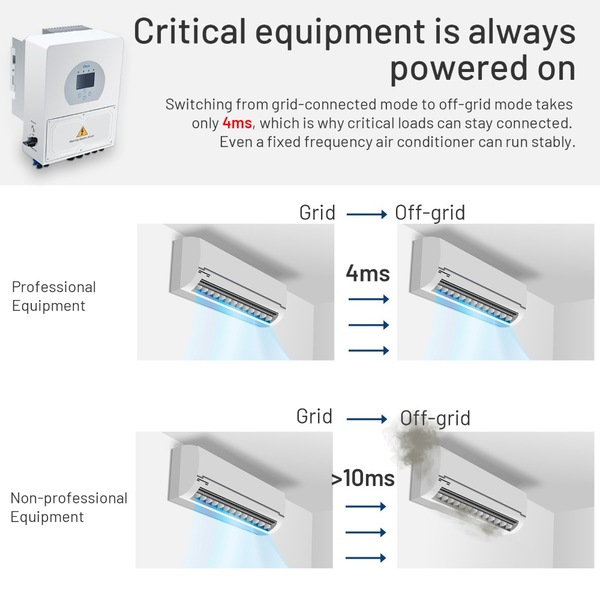

  • 4ms fast transfer from on-grid to off-grid mode, ensuing the traditional fixed frequency air conditioner works well


  • Specifications:
  • Battery Type: Lead-acid or Lithium-ion
  • Battery Voltage Range (V): 40~60
  • Max. Charging Current (A): 120
  • Max. Discharging Current (A):120
  • Charging Curve: 3 Stages / Equalization
  • External Temperature Sensor:Yes
  • Charging Strategy for Li-Ion Battery: Self-adaption to BMS

  • PV String Input Data
  • Max. DC Input Power (W):6500
  • Rated PV Input Voltage (V):370 (100~500)
  • Start-up Voltage (V):125
  • MPPT Voltage Range (V):125-425
  • Full Load DC Voltage Range (V):240-425

  • AC Output Data
  • Rated AC Output and UPS Power (VA): 5000
  • Max. AC Output Power (W): 5000
  • AC Output Rated Current (A):21.7
  • Max. AC Current (A):21.7
  • Max. Continuous AC Passthrough (A):35
  • Peak Power (off grid) :2 time of rated power, 10 S
  • Power Factor:0.8 leading to 0.8 lagging
  • Grid Type: Single Phase
  • DC injection current (mA):THD<3% (Linear load<1.5%)
  • Efficiency:
  • Max. Efficiency:97.60%
  • Euro Efficiency:97.00%

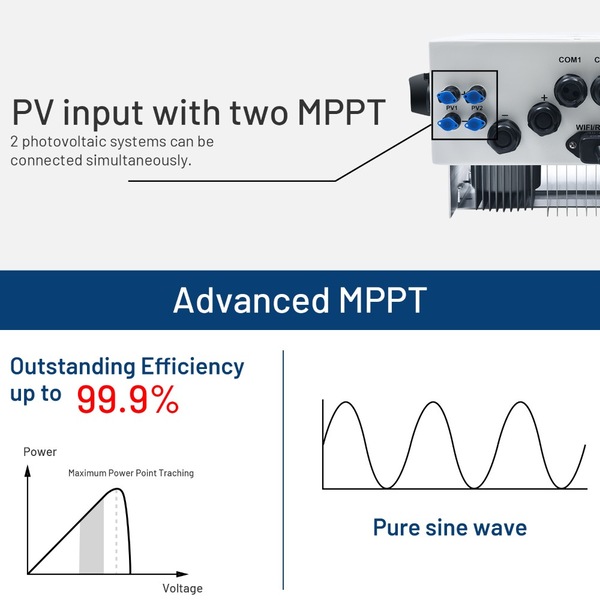

  • MPPT Efficiency: 99.90%

  • General Data
  • Operating Temperature Range (°C):-40~60°C, >45°C derating
  • Cooling : Nature Cooling
  • Noise (dB): <30 dB
  • Communication with BMS:RS485; CAN
  • Protection Degree: IP65
  • Installation Style: Wall-mounted
  • Warranty: 10 Years


  • Dimensions & Weight:
  • Weight (kg):15.1
  • Size (mm):330W x 433H x238D


  • Package:
  • 1 x Hybrid Inverter
  • 1 x Wall Mounting Bracket
  • 1 x Set of Stainless Steel Anti-collision Bolt M6 x60 x4
  • 1 x Set of Stainless Steel Mounting Screws M4 x12 x2
  • 1 x Parallel Communication Cable
  • 1 x L-type Hexagon Wrench
  • 1 x Wi-Fi Plug
  • 1 x Battery Temperature Sensor
  • 1 x Sensor Clamp
  • 1 x User Manual


  • If that's not enough, check out "Deye Hybrid Inverter.pdf" to find out more about this Hybrid Inverter.

    Deye Hybrid Inverter.pdf
