Collect 16 Everyday Rewards points
Dispatch in 2 business days

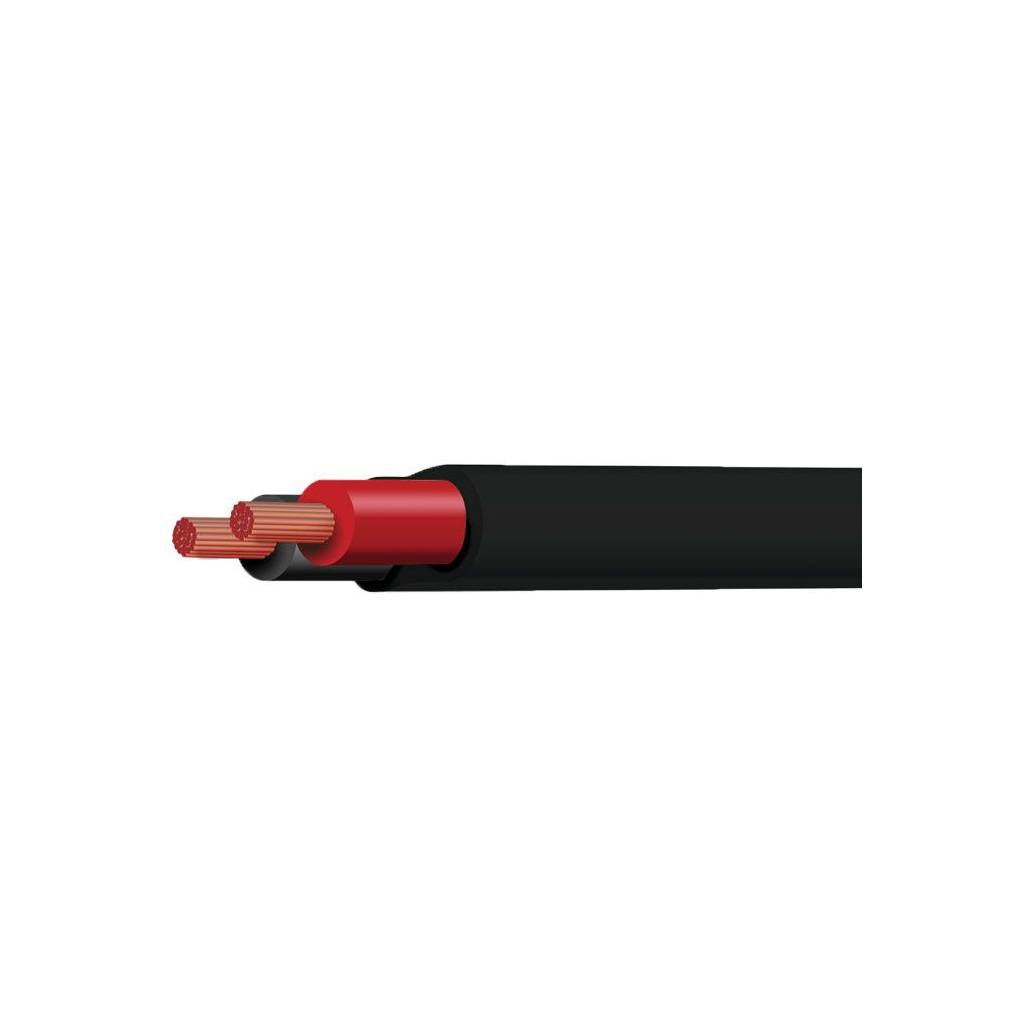

5mm (2.90mm2) 29 amp Twin Core Double Insulated Cable Aussie Made
Various Lengths
Application: Trailer Wiring, LED Lights, Solar Cabling, Low amp 12/24v Accessories
Conductor: OXYGEN FREE Plain Copper Wire to AS/NZS 1125
Insulation: V90 PVC to AS/NZS 3808
Core Colours: Red, Black
Sheath: 5V90 PVC to AS/NZS 3808
Sheath Colour: Black
Nominal Outside Diameter: 4.5 x 7.4mm
**please note - 5mm does not refer to the O.D. it is an industry term. Actual size of each core is 2.90mm2 which is rated at 29 amps continuous5mm (2.90mm2) 29 amp Twin Core Double Insulated Cable Aussie Made
Various Lengths
Application: Trailer Wiring, LED Lights, Solar Cabling, Low amp 12/24v Accessories
Conductor: OXYGEN FREE Plain Copper Wire to AS/NZS 1125
Insulation: V90 PVC to AS/NZS 3808
Core Colours: Red, Black
Sheath: 5V90 PVC to AS/NZS 3808
Sheath Colour: Black
Nominal Outside Diameter: 4.5 x 7.4mm
**please note - 5mm does not refer to the O.D. it is an industry term. Actual size of each core is 2.90mm2 which is rated at 29 amps continuous5mm (2.90mm2) 29 amp Twin Core Double Insulated Cable Aussie Made
| * MM Industry Equiv. |
No. of Cores |
Strand No. / Size |
Nominal Area (mm ) |
**AMP Rating at 30 C |
Insulation Thickness (mm) |
Sheath Thickness (mm) |
Electrical Resistance at 20 C (ohm/km) |
Nominal O.D. (mm) |
Mass (kg/100m) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| 2 | 2 | 7/0.32 | 0.56 | 10 | 0.4 | 0.6 | 33.0 | 3.1 x 4.9 | 2.7 | |
| 3 | 2 | 14/0.32 | 1.13 | 16 | 0.4 | 0.6 | 16.5 | 3.3 x 5.5 | 4.1 | |
| 3 | 2 | 14/0.32 | 1.13 | 16 | 0.4 | 0.6 | 16.5 | 3.3 x 5.5 | 4.1 | |
| 4 | 2 | 23/0.32 | 1.84 | 22 | 0.4 | 0.6 | 10.1 | 3.8 x 6.3 | 6.1 | |
| 5 | 2 | 36/0.32 | 2.90 | 29 | 0.4 | 0.7 | 6.4 | 4.5 x 7.4 | 8.8 | |
| 6 | 2 | 57/0.32 | 4.59 | 38 | 0.6 | 0.8 | 4.1 | 5.7 x 9.6 | 14 |
Estimated Delivery Time Frame:5-10 business days
Ask a Question About This Product
Reference ID: 13147190
