Collect 33 Everyday Rewards points
Dispatch in 2 business days
Specification:

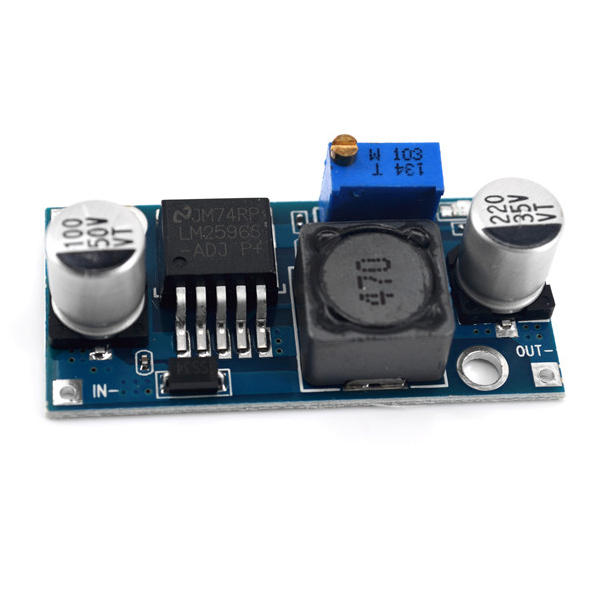

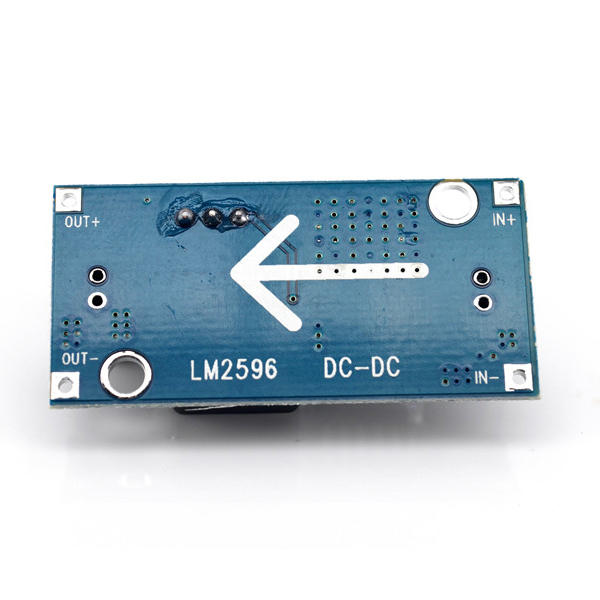

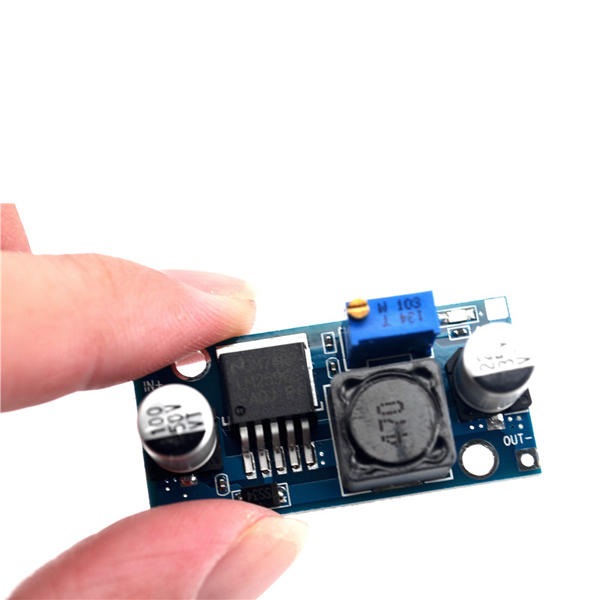

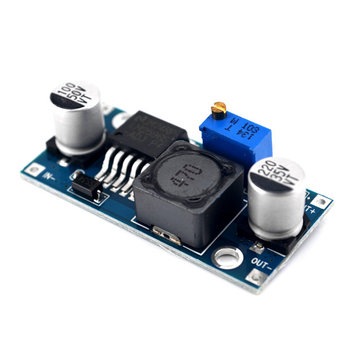

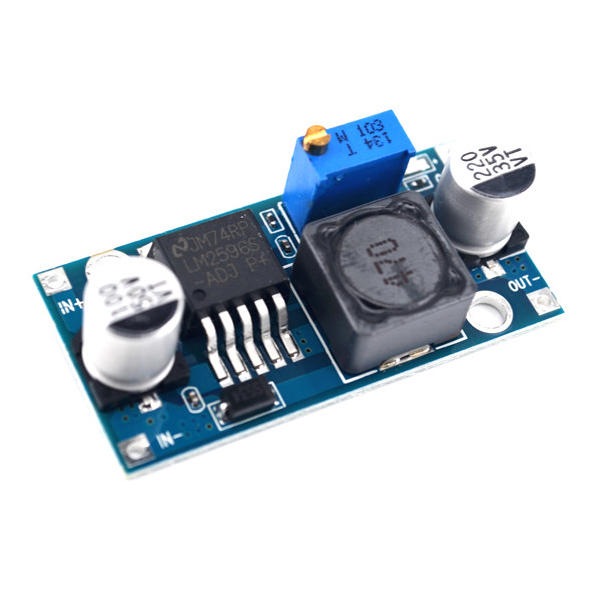

Product Name: LM2596S 3A Adjustable Step-down DC-DC Power Supply Module
Input voltage: 3.2-40V
Output Voltage: 1.25-35V (adjustable)
Output current: rated current 2A,maximum 3A
Conversion efficiency: Up to 92%
Output ripple:<30mV
Switching Frequency:65KHz
Working Temperature:-45degree~ +85 degree
Size: 43mm x 21mm x 14(length x width x height)
Connection port:
IN+ input positive,IN- input negative
Out+ output positive,Out- output negative
Input voltage range:DC 3.2V to 46V (input voltage must be 1.5v higher than the output voltage. Can't be pushed up.)
Output voltage range:DC 1.25v to 35V continuous adjustable, high efficiency (Max 92%) Max output current is 3A.
Measured 12V input, load regulation will be lower 1% when 5V current output 1A
Package included:
5 x LM2596S 3A Adjustable Step-down DC-DC Power Supply Module
Please note it will need about 12~20 days for the delivery!
Delivery times are as provided by our carriers and are estimates only. Delays may occur during peak periods, and due to factors outside the carriers control.
Thank you for your understanding!
Change of Mind Returns:
We want you to love your product so if you are not completely satisfied with your purchase let us know.
Most products come with a 30 day change of mind policy. If at any time within the first 30 days from purchase date you are not completely satisfied with your order, please contact us for return approval. Once received and inspected, we will facilitate an agreed resolution.
Please Note:
Postage is paid by the customer
The product must be returned in the original packaging, accessories included
We do not accept responsibility for return items until they reach our warehouse, so we strongly recommend using tracking and/or insurance for the delivery
Fees may apply
Warranty Claims:
Most of our products are supported by a 6 month warranty. This warranty covers all manufacturer faults with the product. Some of our products may have a different warranty period, please check the product description for this. Should an issue arise with your order, please contact us to raise a warranty claim.
GTIN: 6901722531275
Estimated Delivery Time Frame:12-20 business days
Ask a Question About This Product
Reference ID: 6005541
