Description:

1 Channel DC 12VSelf-lockingRelay Module(version 2) :
Working voltage: DC 6-24V(Recommended DC 9V 12V)
Working current: 60-70MA
Standby current: 0.12mA
Load current : AC 250V/10A, DC 30V/10A
Trigger mode: Low pulse trigger

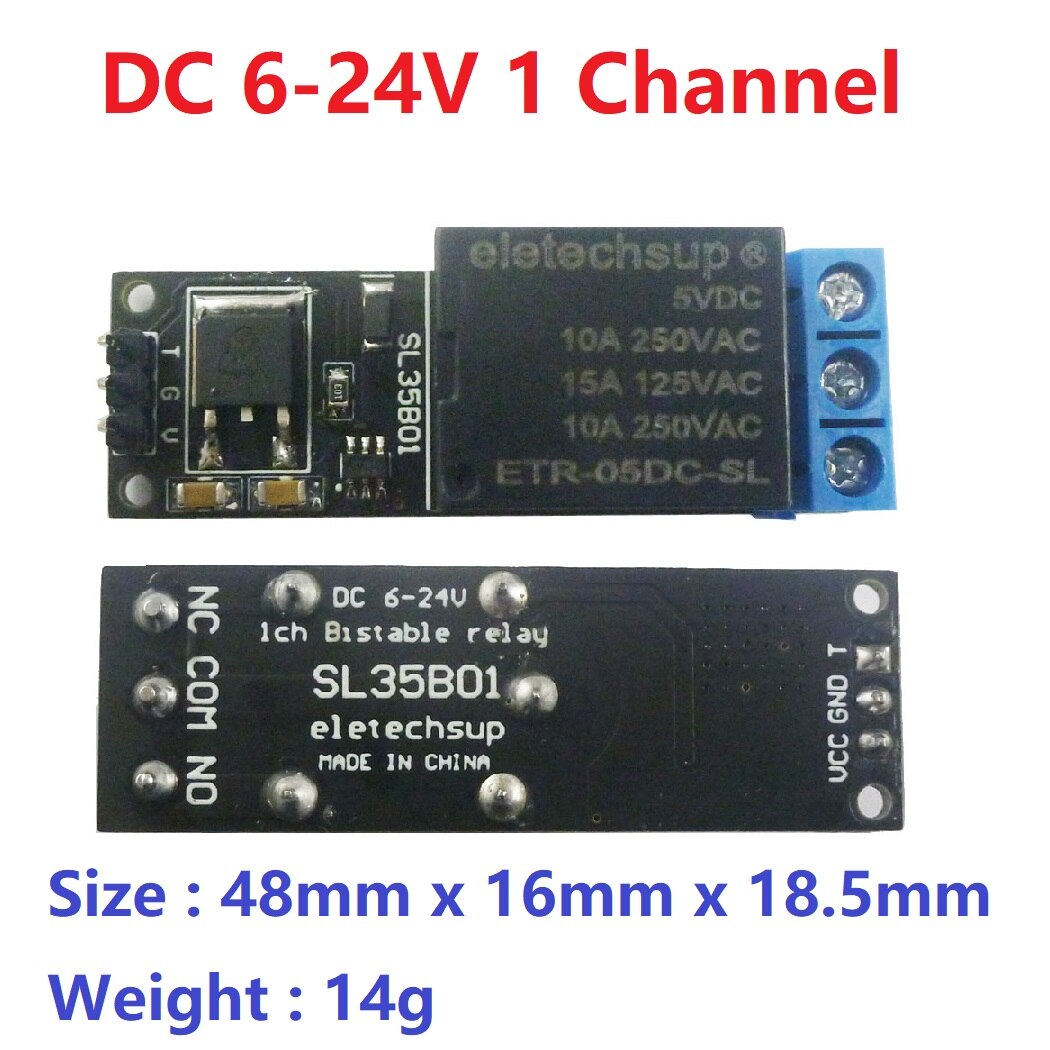

Size: 48mm * 16mm * 18.5mm (L * W * H),Very small size
Weight: 14 g

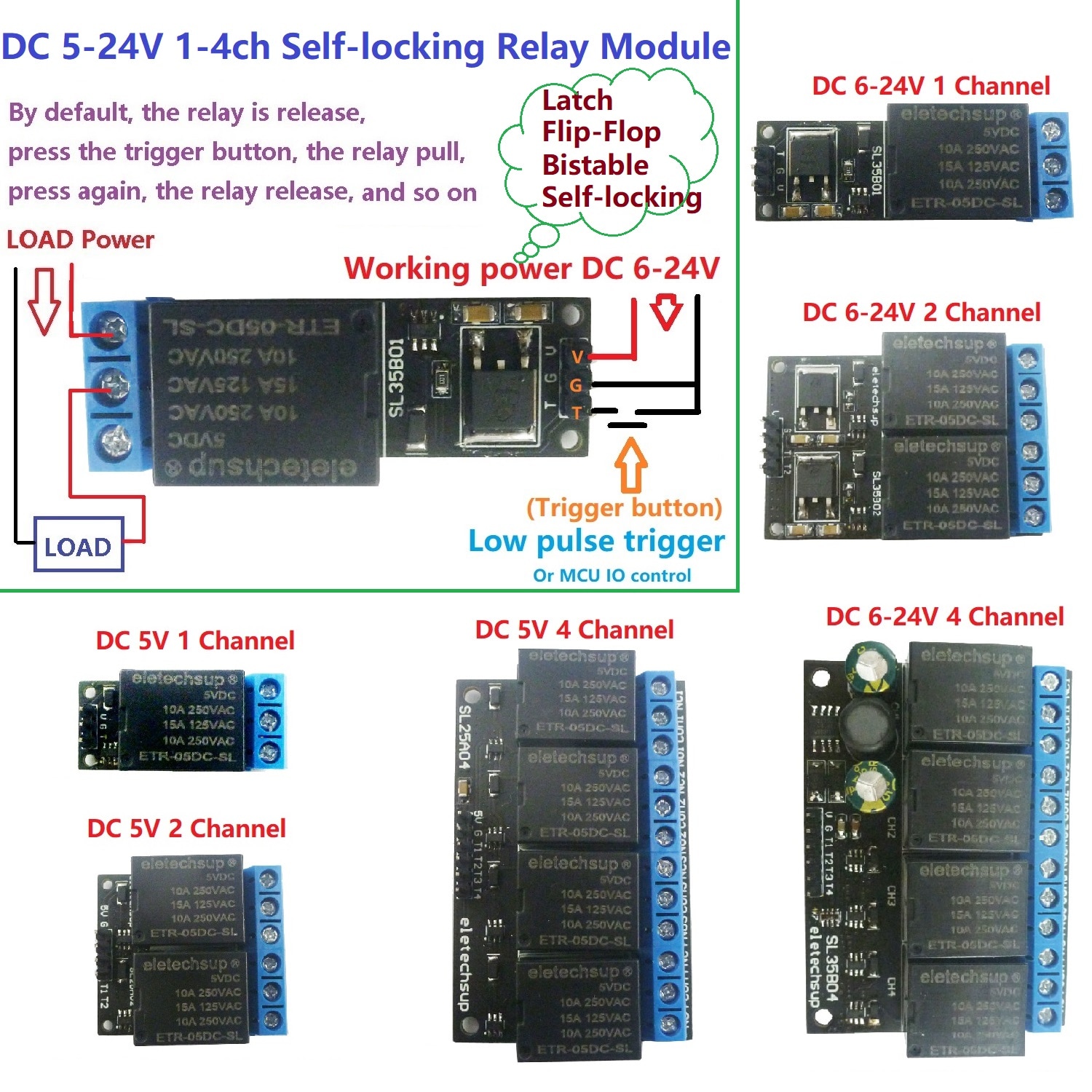

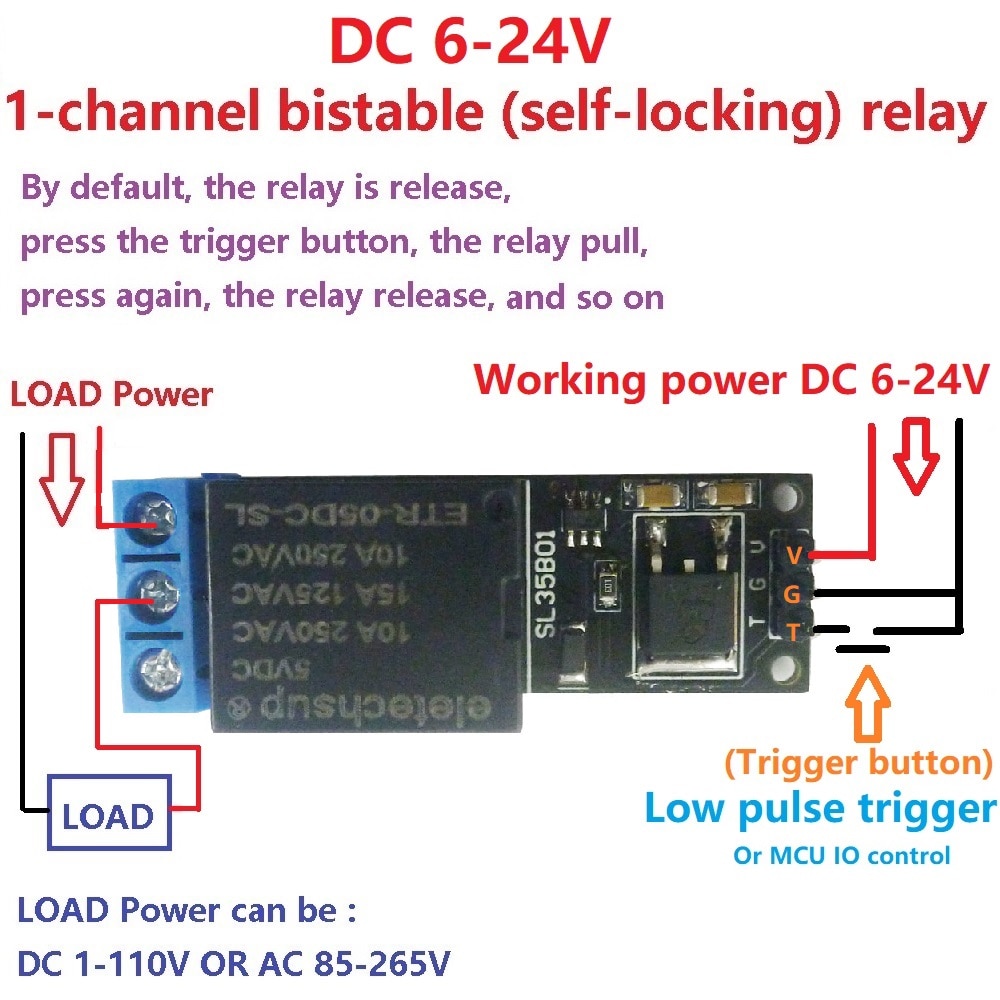

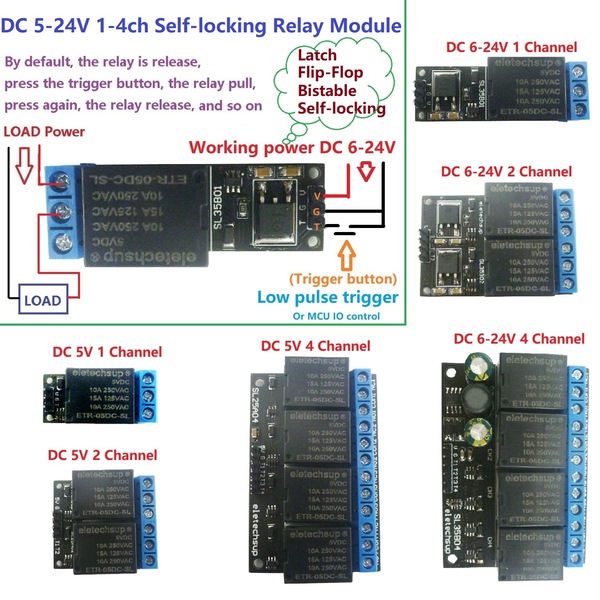

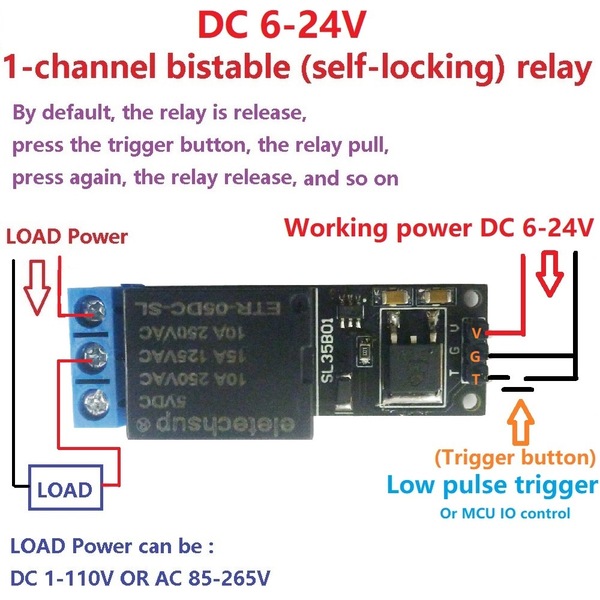

USE 1:
By default, the relay is release, press the trigger button, the relay pull, press again, the relay release, the third press, the relay pull, and so on.
USE 2:
By default, the relay is release, MCU output low-pulse(0.3-1seconds), the relay pull, low-pulse again, the relay release, thethird low-pulse, the relay pull, and so on.

Module interface:
1. VCC: positive power supply (VCC)
2. GND: negative power supply (GND)
3. T (T1/T2/T3/T4): Low pulse trigger
Relay outputs:
1. NO: normally open relay interface
2. COM: Common Interface Relays
3. NC: normally closed relay interface
USE : By default, the relay is release, press the trigger button, the relay pull, press again, the relay release, the third press, the relay pull, and so on
Typical applications:

Automotive electronics
Motor/PLC/LED
Smart Home/Home automation
Emergency lighting
MCU development board
Toy car

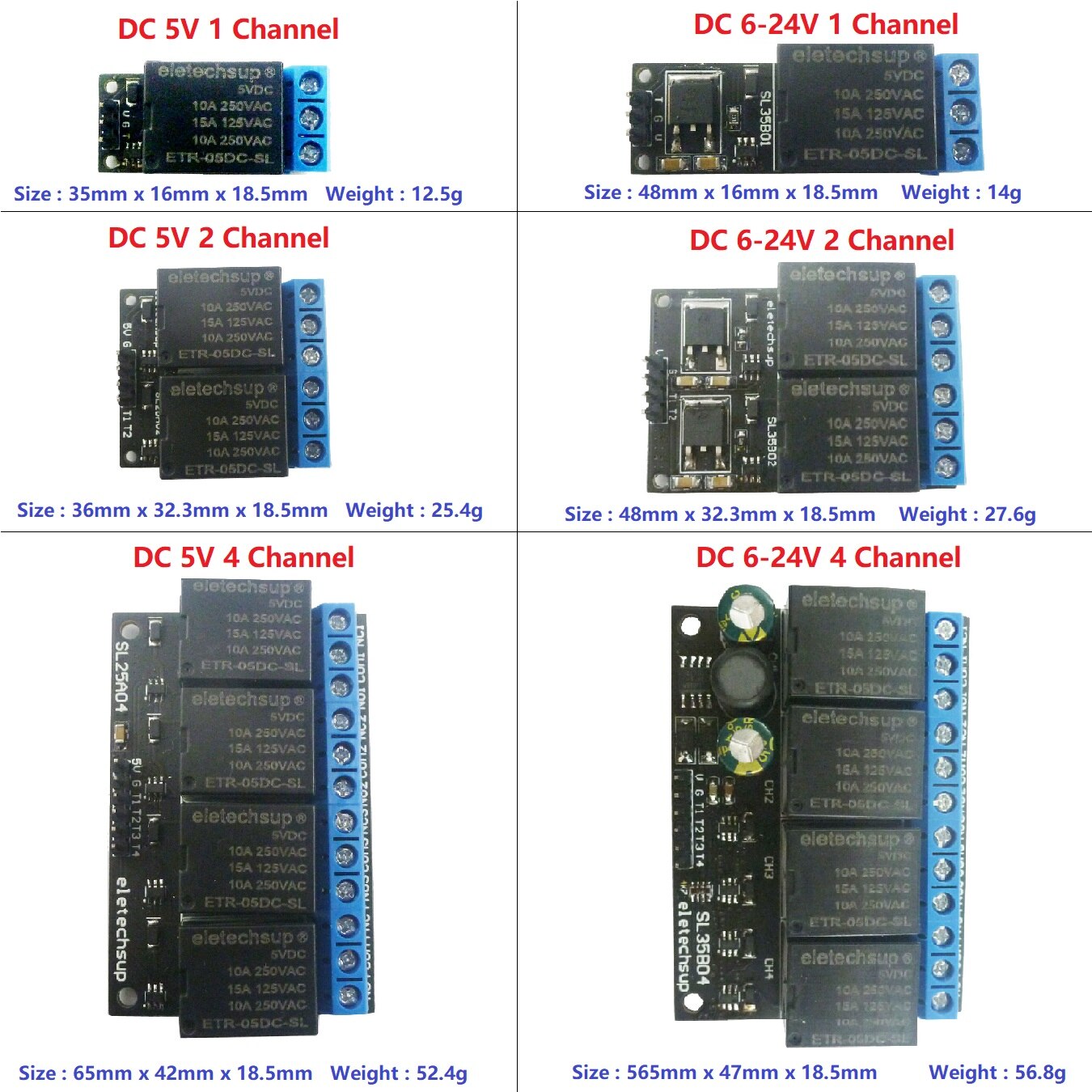

Packing list:1 pcs1/2/4 Channel DC 5V/12VSelf-lockingRelay Module
Please select the version you need

GTIN: 774048926829
