Collect 26 Everyday Rewards points
Dispatch in 2 business days

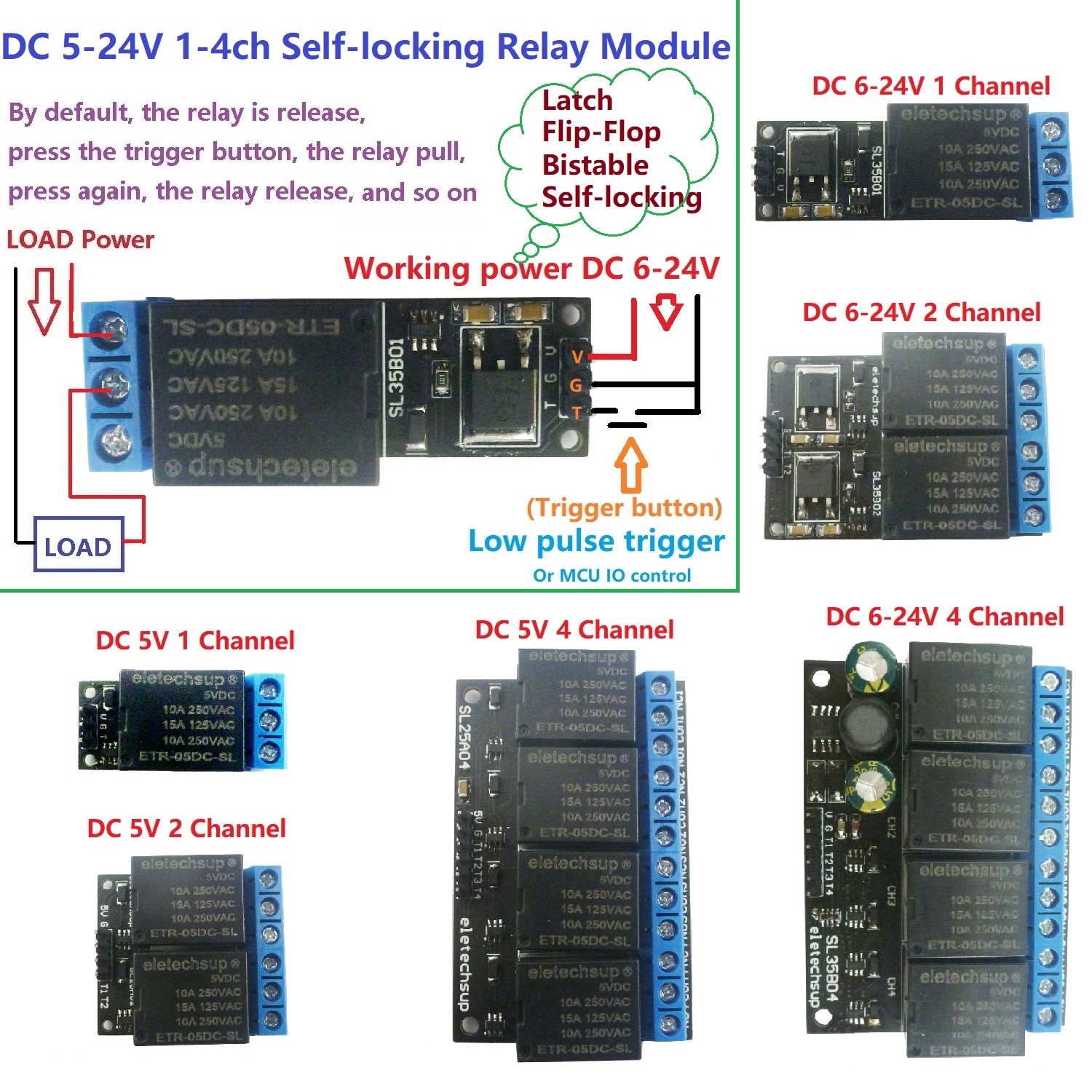

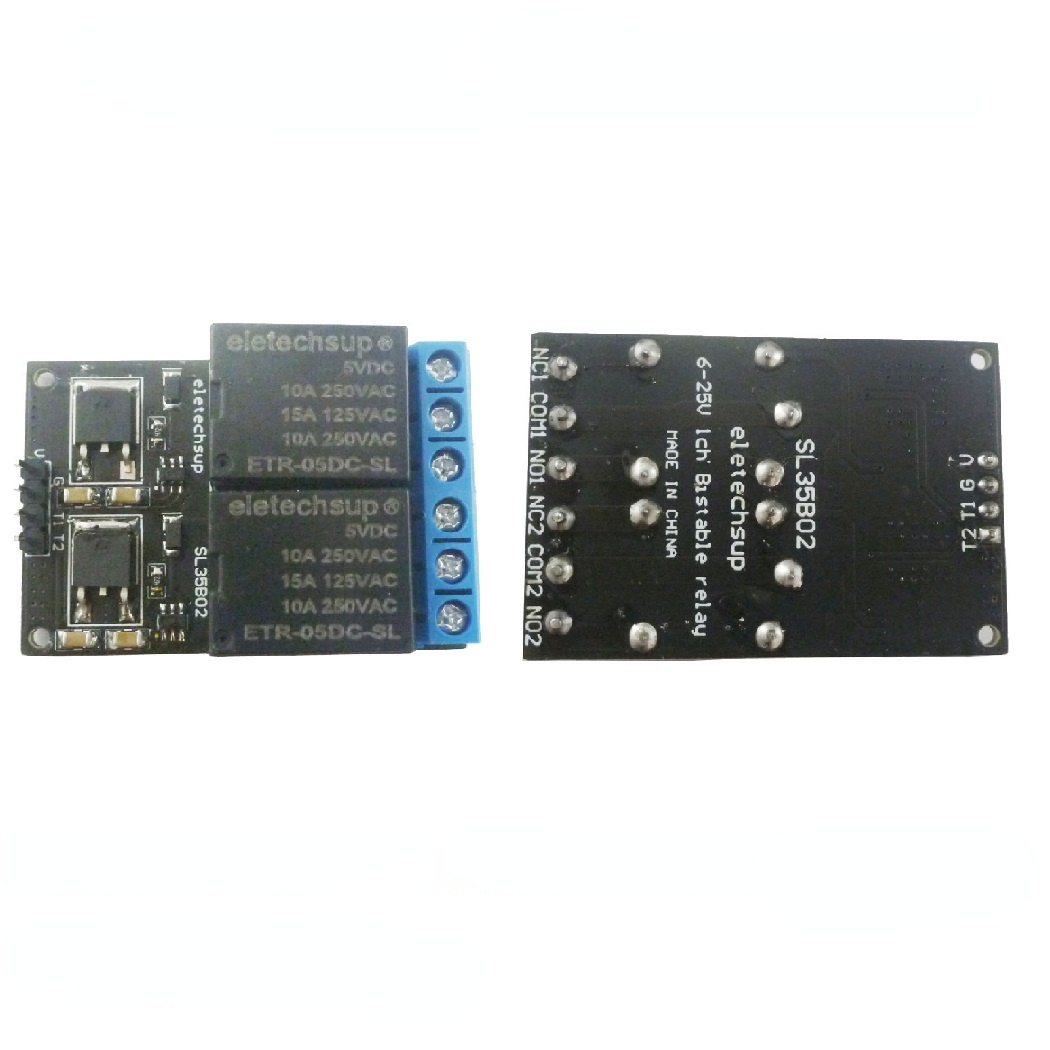

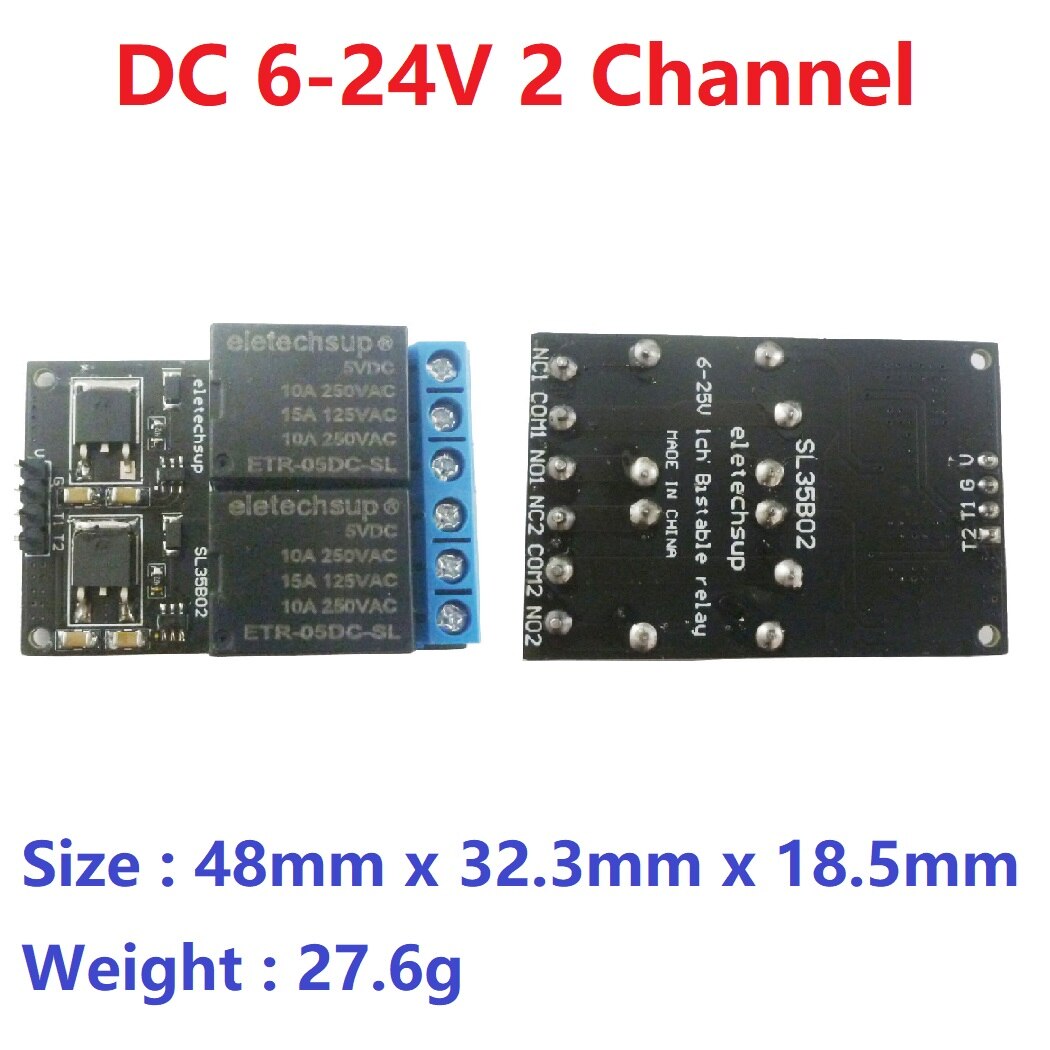

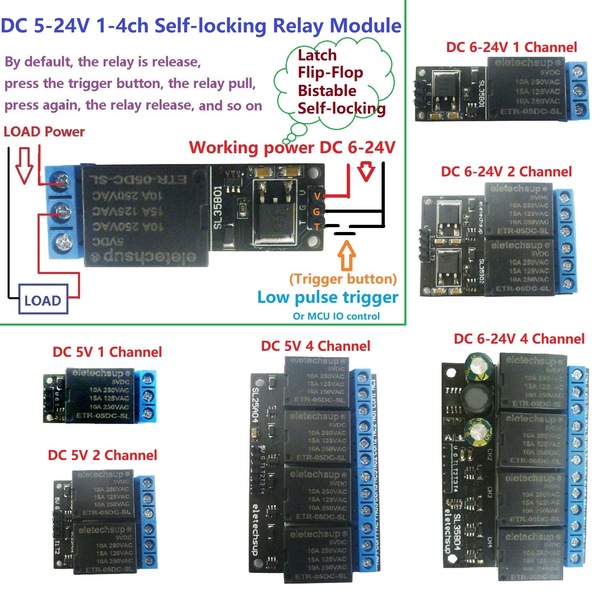

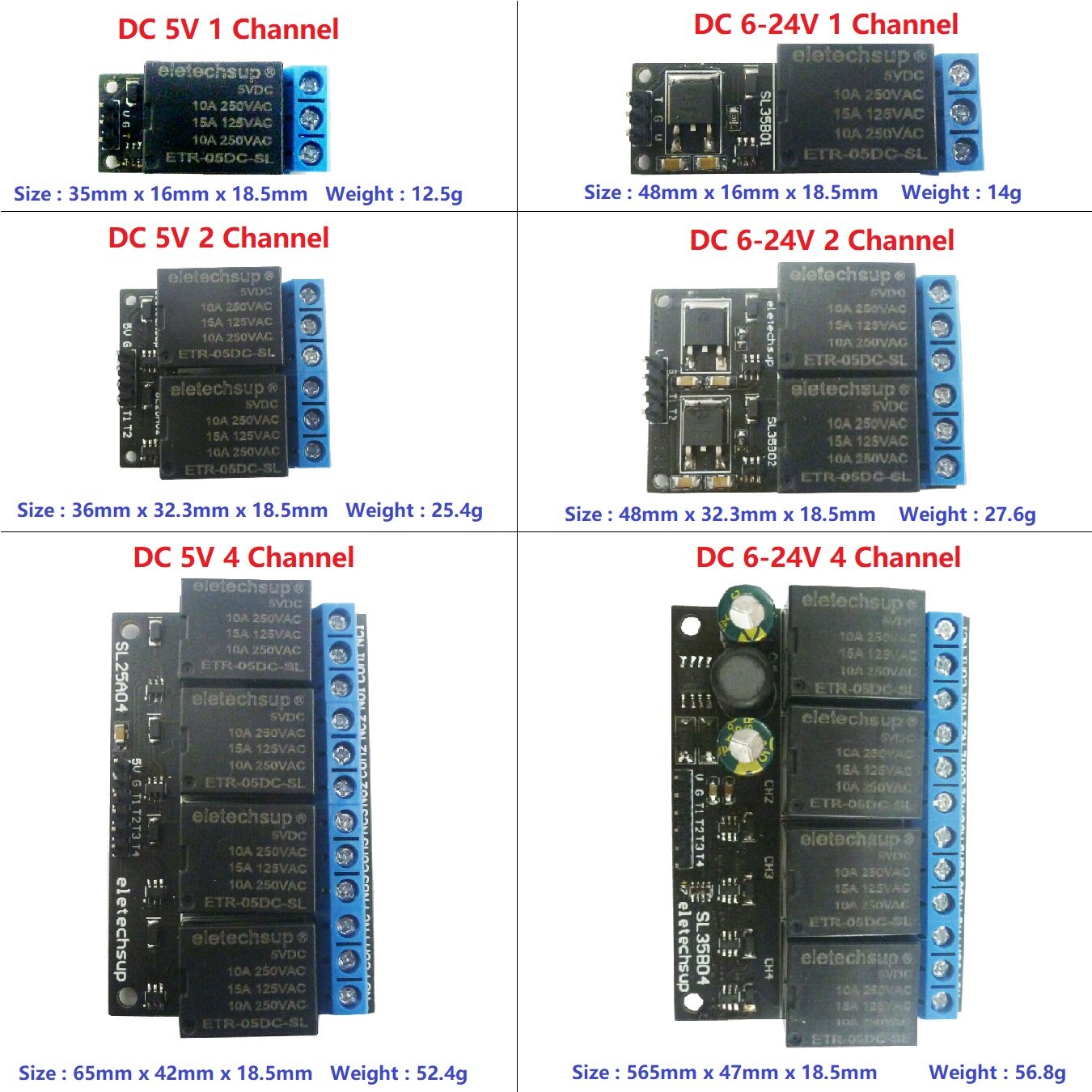

| Description: 2 Channel DC 12VSelf-lockingRelay Module(version 4) : Working voltage: DC 6-24V(Recommended DC 9V 12V) Working current: 1 relay 70MA;2 relay 140MA; Standby current: 0.24mA Load current : AC 250V/10A, DC 30V/10A Trigger mode: Low pulse trigger Size: 48mm * 32.3mm * 18.5mm (L * W * H), Very small size Weight: 27.6 g USE 1: By default, the relay is release, press the trigger button, the relay pull, press again, the relay release, the third press, the relay pull, and so on. USE 2: By default, the relay is release, MCU output low-pulse(0.3-1seconds), the relay pull, low-pulse again, the relay release, thethird low-pulse, the relay pull, and so on. Module interface: 1. VCC: positive power supply (VCC) 2. GND: negative power supply (GND) 3. T (T1/T2/T3/T4): Low pulse trigger Relay outputs: 1. NO: normally open relay interface 2. COM: Common Interface Relays 3. NC: normally closed relay interface USE : By default, the relay is release, press the trigger button, the relay pull, press again, the relay release, the third press, the relay pull, and so on Typical applications: Automotive electronics Motor/PLC/LED Smart Home/Home automation Emergency lighting MCU development board Toy car Packing list:1 pcs1/2/4 Channel DC 5V/12VSelf-lockingRelay Module Please select the version you need |
GTIN: 774048926843
Estimated Delivery Time Frame:12-20 business days
Ask a Question About This Product
Reference ID: 7040024
