This engine has a 20mm shaft diameter.

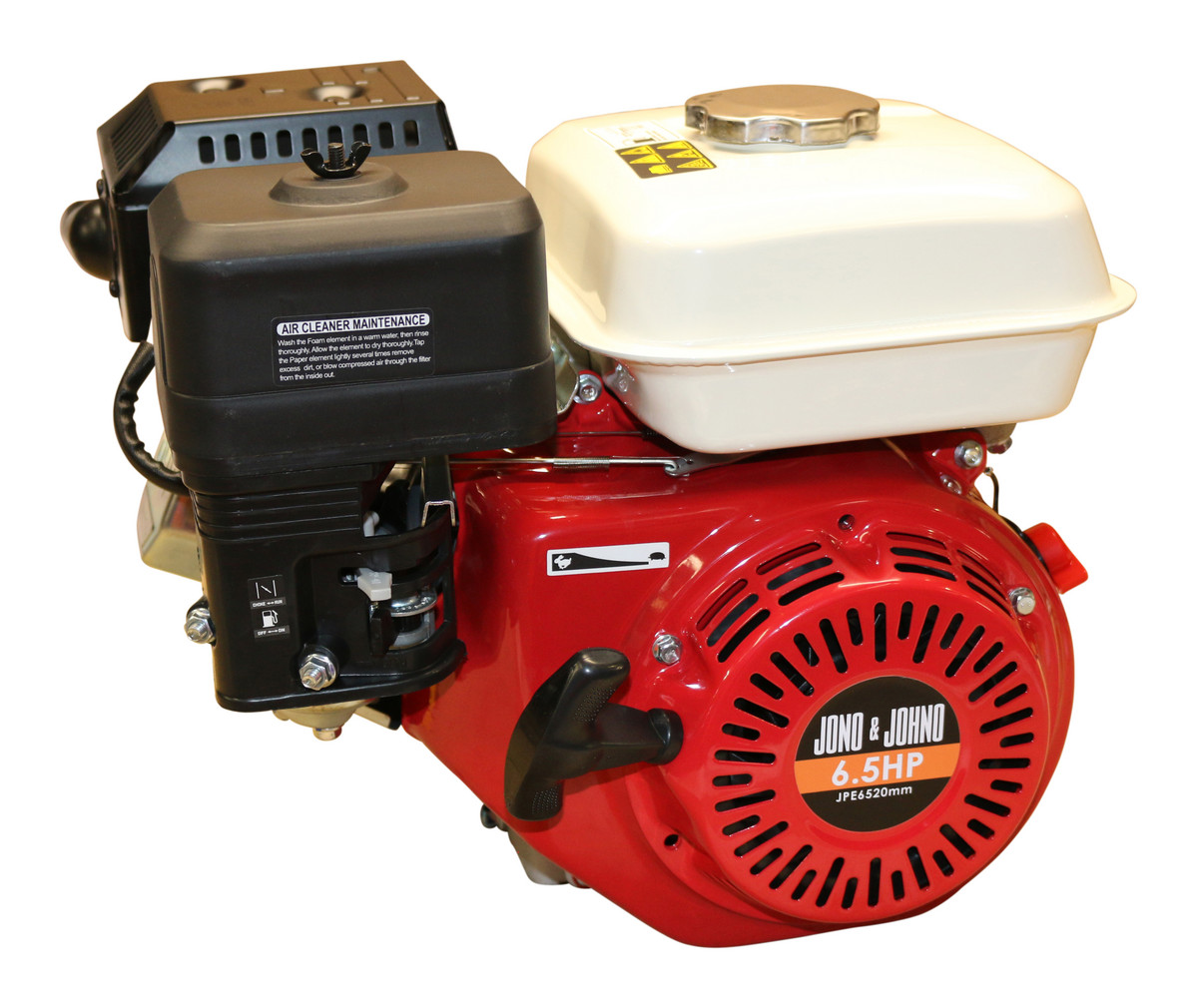

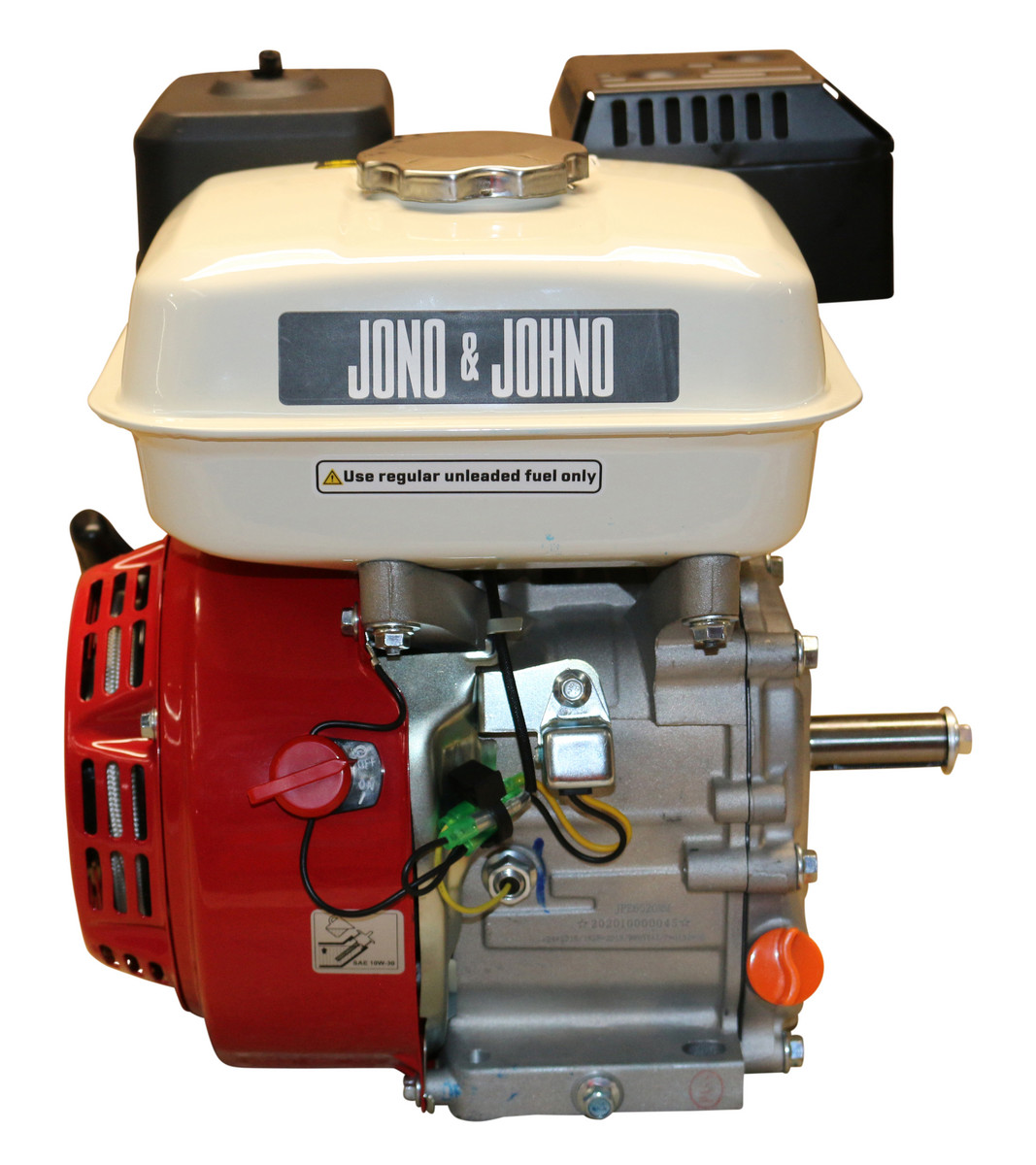

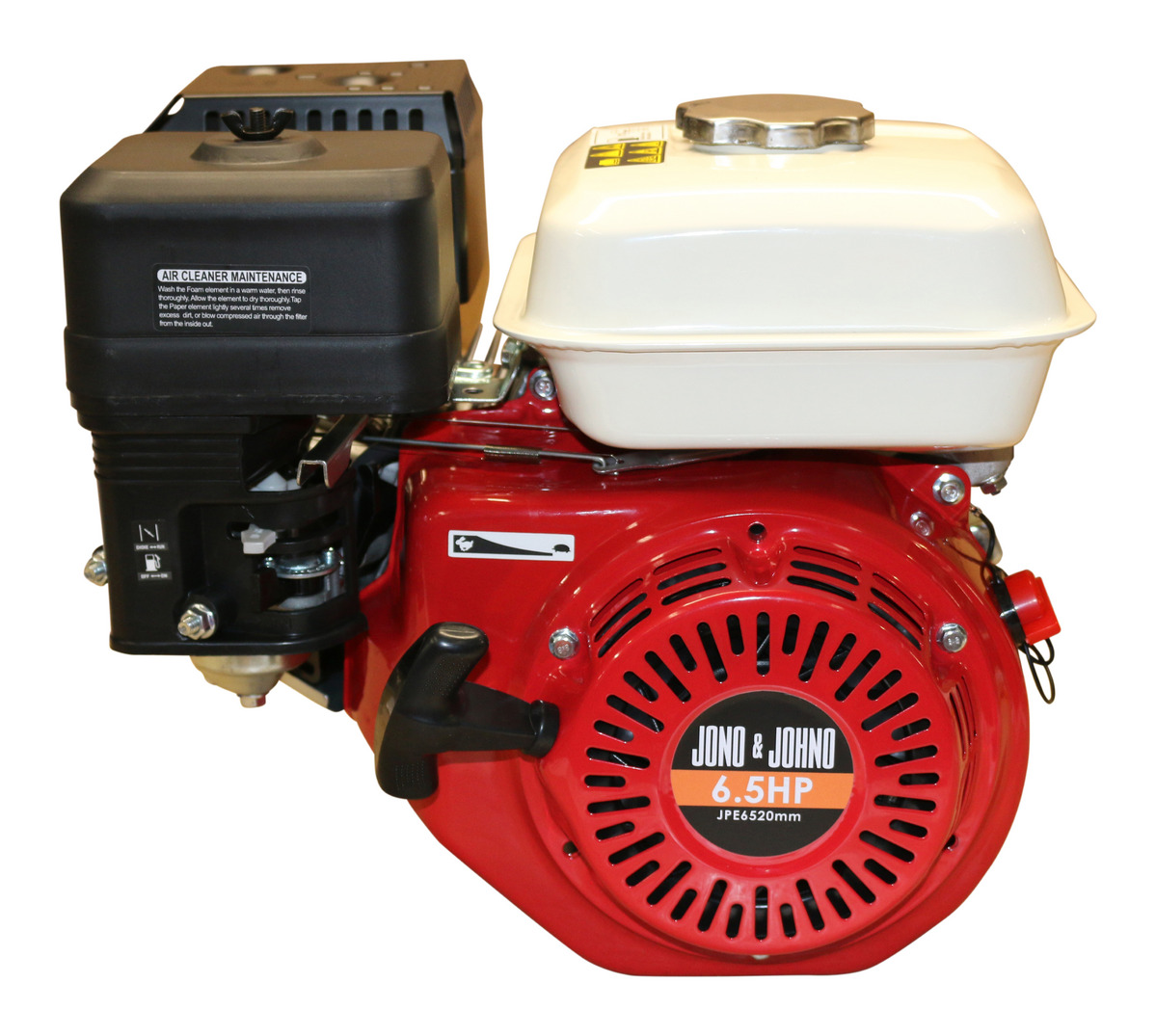

Whether you’re thinking industrial, agricultural or home use, this could be the engine for you. This engine is a Jono & Johno brand, recoil start, 4 stroke, single cylinder, petrol engine with a 6.5hp capacity. Suitable to power items such as generators, grinders, water pumps and a host of other machinery.

The engine comes with a one year parts warranty and a lifetime of after sales service.

• Air cooled, 4-stroke, OHV25 inclined single cylinder
• 6.5hp gasoline/petrol engine
• Max Power Output: 6.5hp/3600rpm
• Displacement: 196cc
• Bore x Stroke (mm): 68 x 54
• Max Torque (n.m)/rpm : 1.35(13.2)/2500
• Ignition system: Transistor Electric / Inductive Firing
• Spark Plug Type: NGK: BPR6ES Champion: RN9YC Bosch: W7DCR
• Starting system: Recoil
• Fuel Tank Capacity: 3.6L
• Oil capacity: 0.6L
• Fuel consumption: 230g/hp.h (313g/kw.h)
• Air cleaner: Semi dry, dual filter

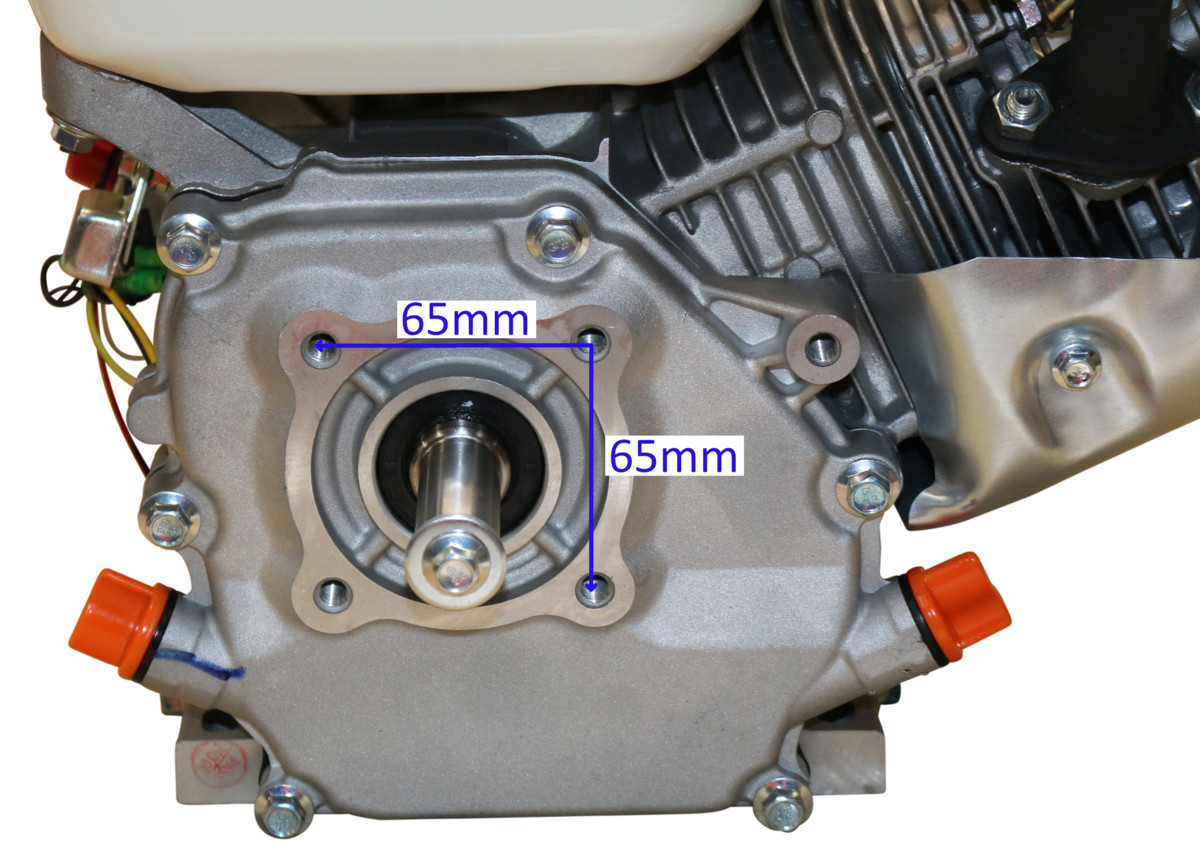

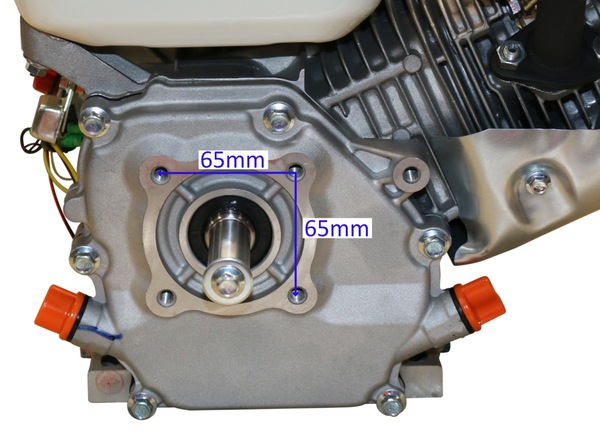

• Shaft Diameter: 20mm
• Shaft Length: 58mm (61mm from seal face)
• Shaft Internal Thread: Use M8x1x6H bolt with 1.25mm thread pitch
• Keyway Length: 50mm
• Keyway Width: 5mm

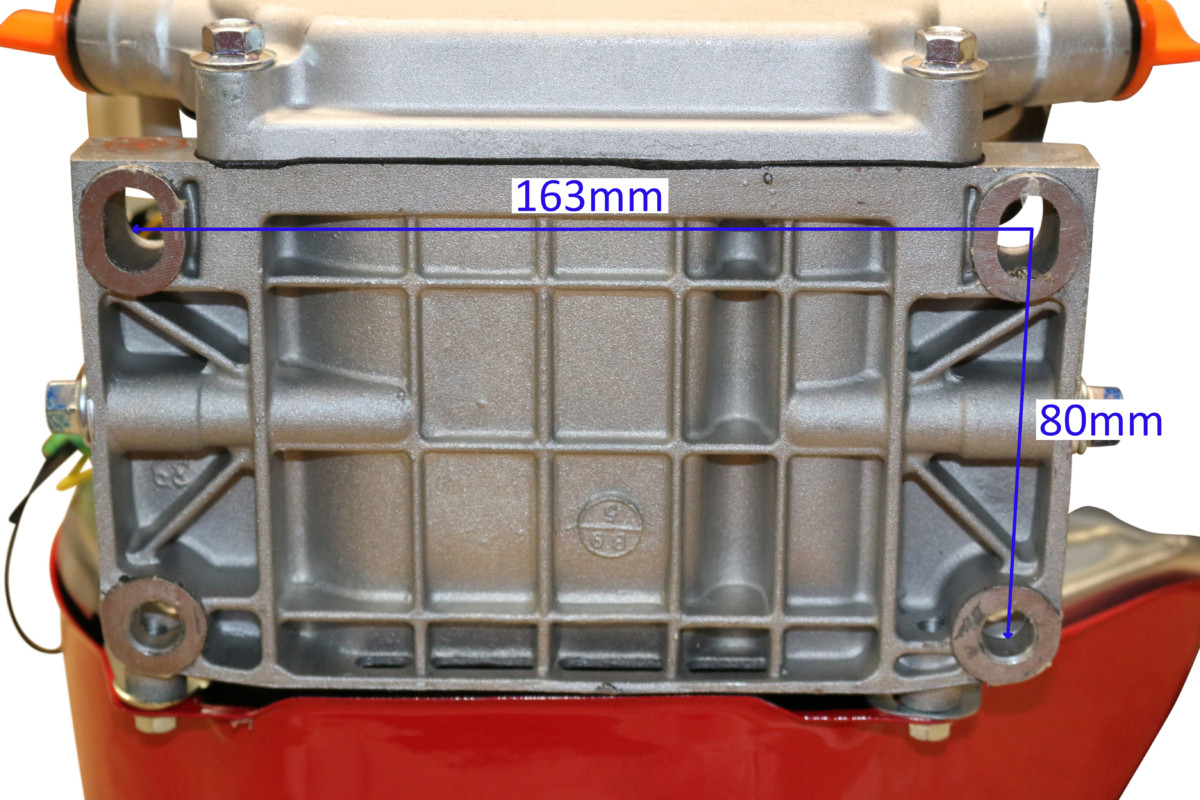

• Distance from base to centre of output shaft: 105mm
• Shaft rotation: Anti-clockwise (from output)
• Weight: 16kg
