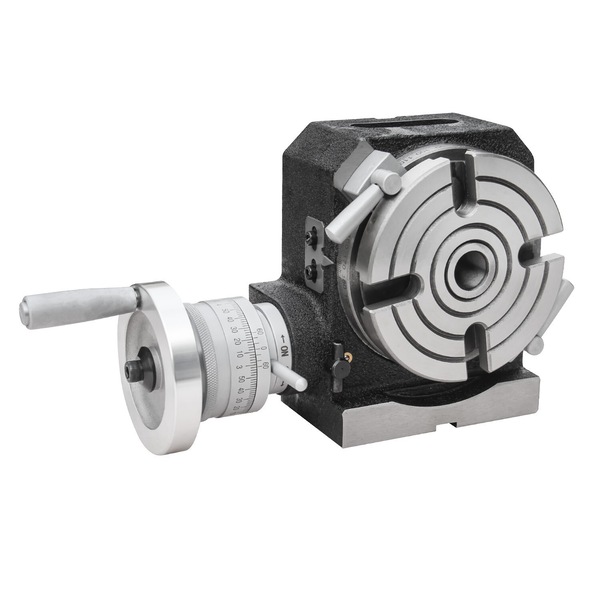

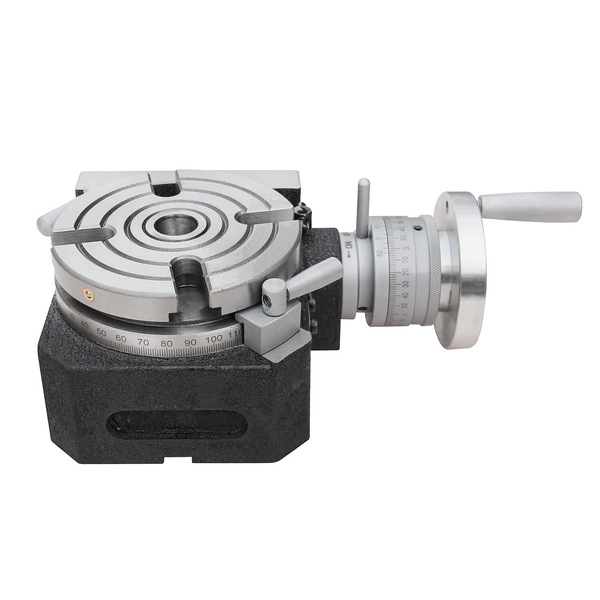

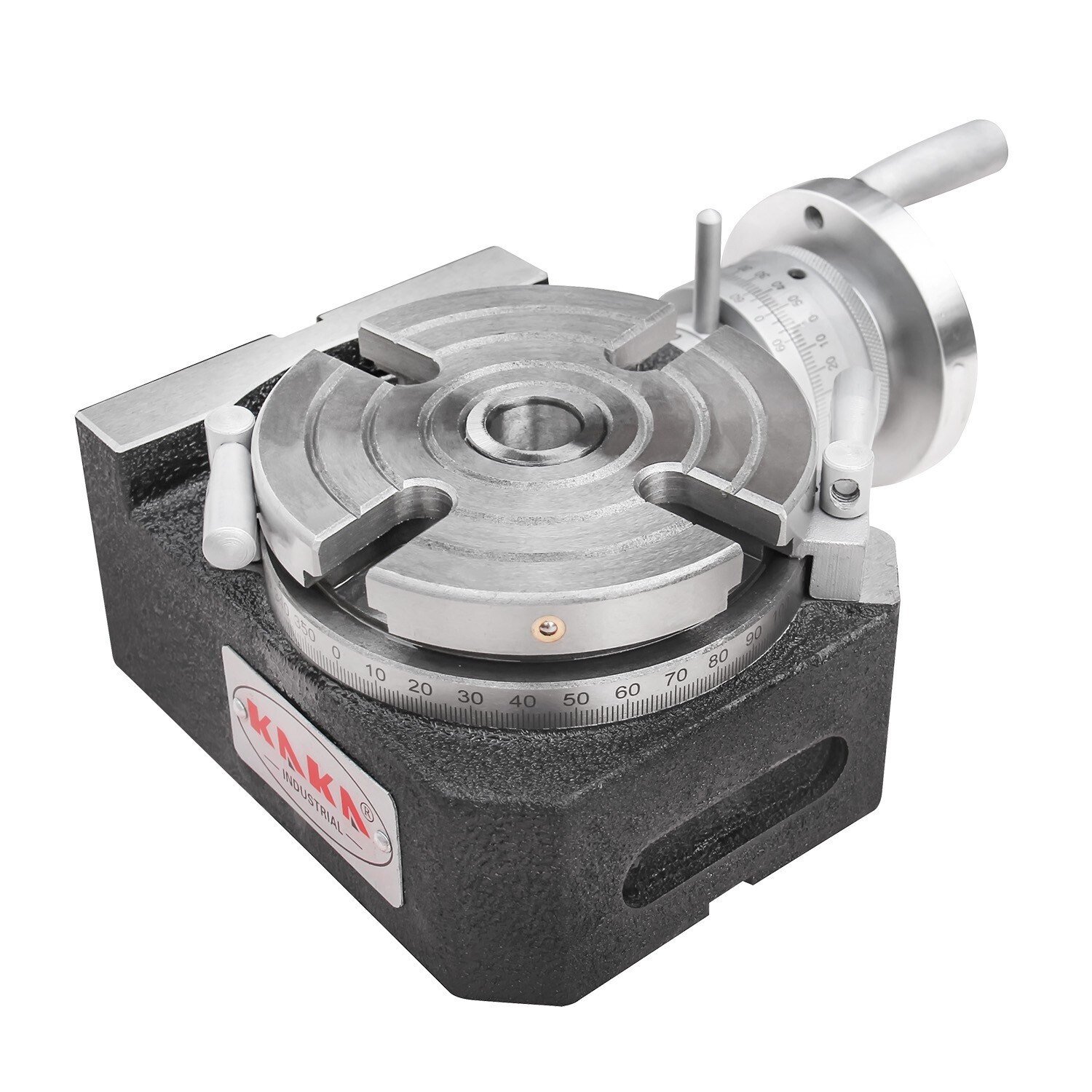

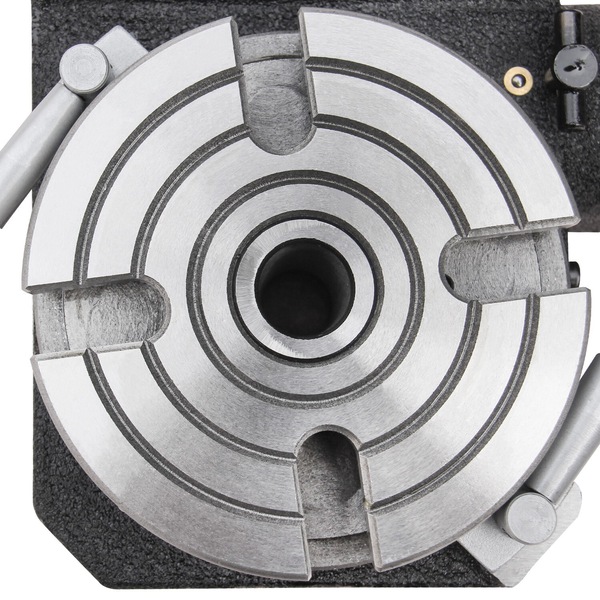

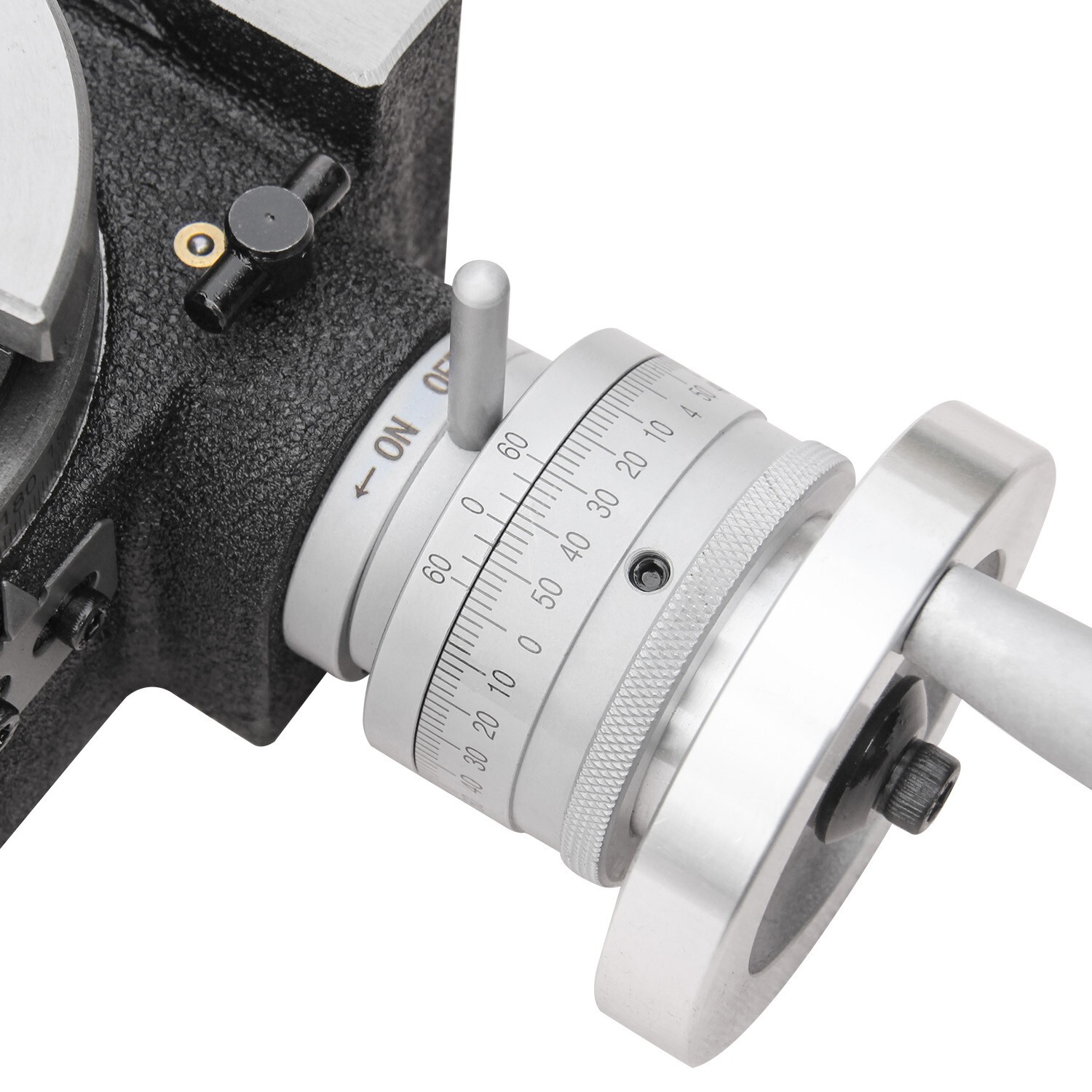

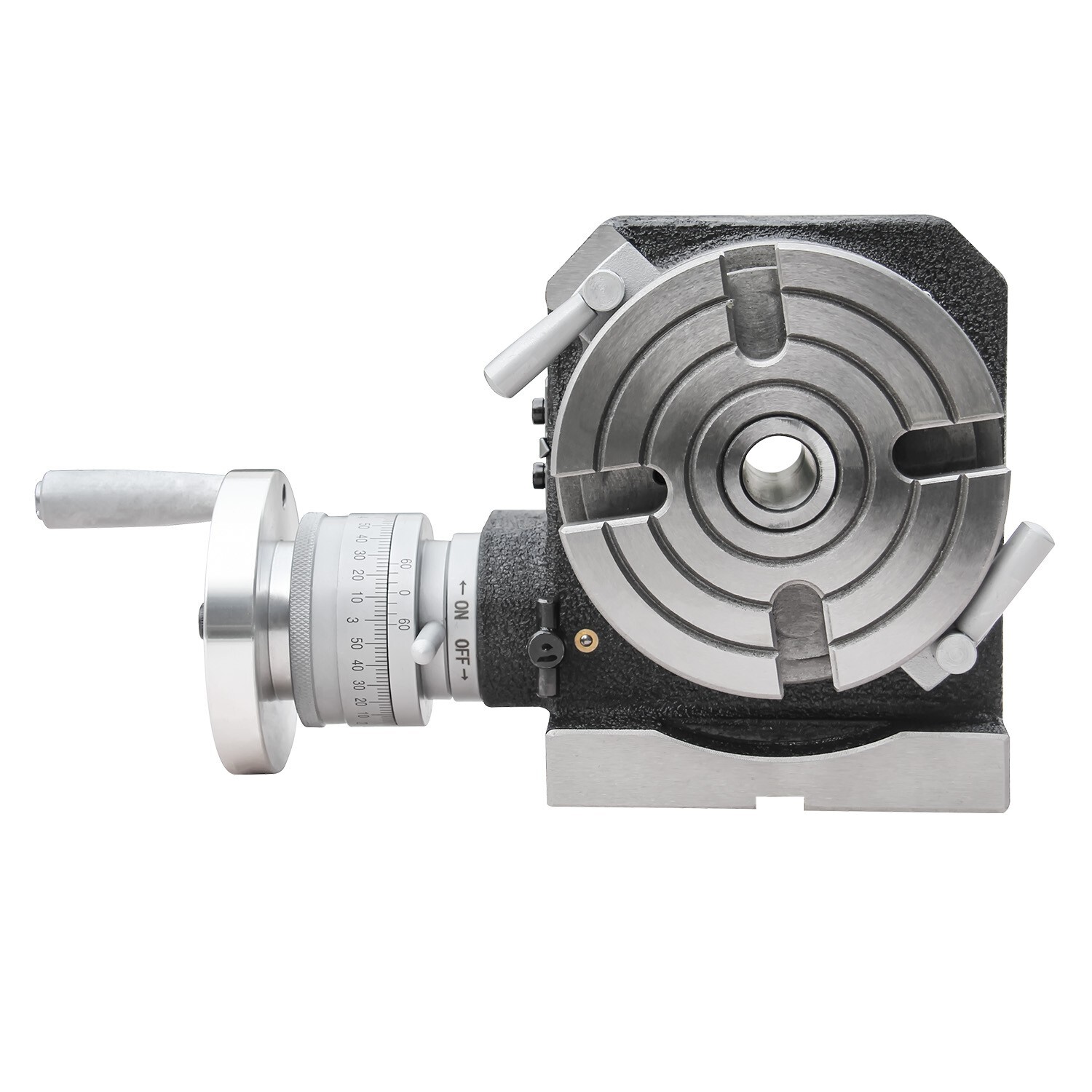

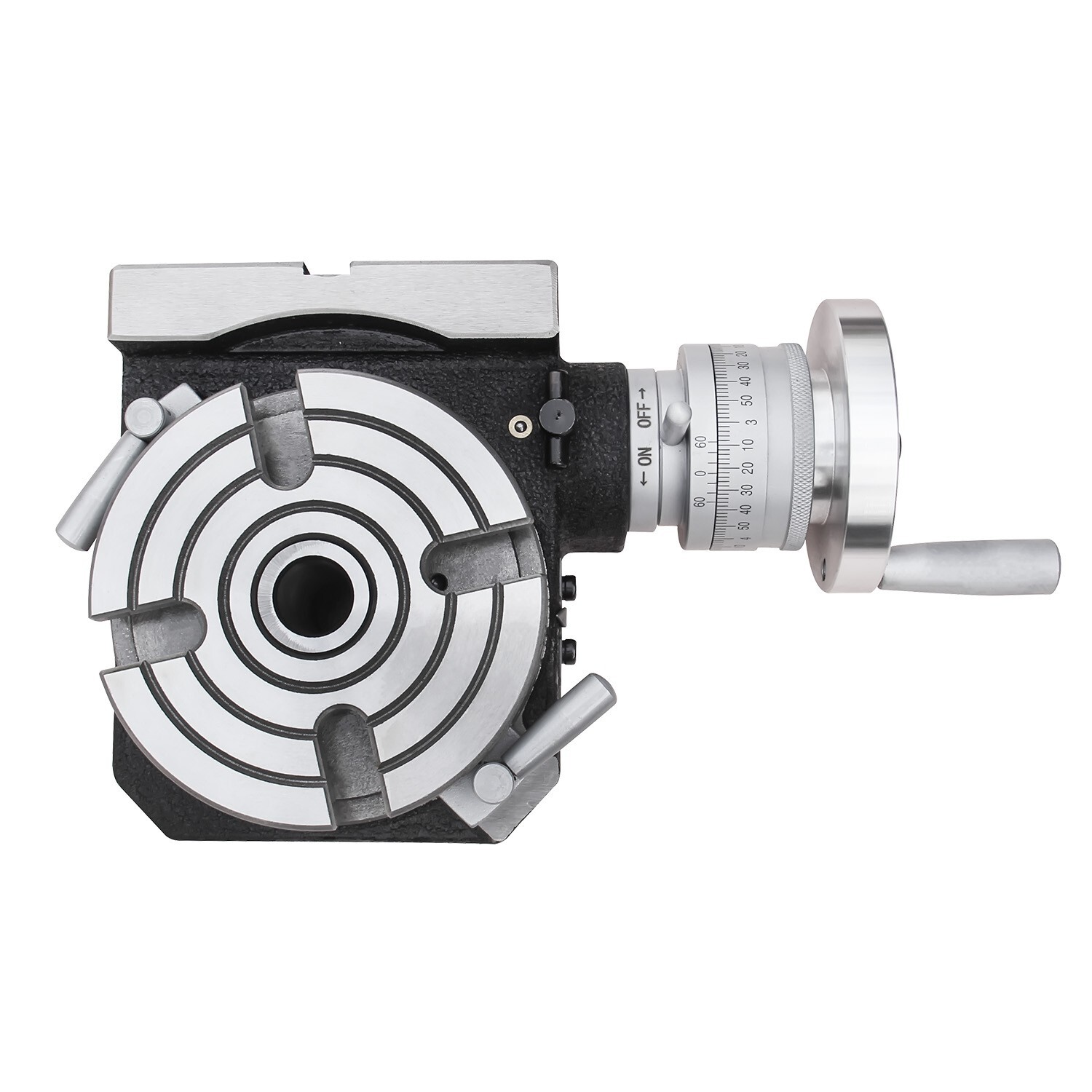

Industrial Rotary Table with Dividing Plate HVP-616" Rotary table, with dividing set of 3 plates

• 6" Horizontal & Vertical rotary table with 4 slots
• Hardened and ground work
• 90:1 ratio
• 360°  table graduation
• 100 mm table height
• Center bore MT2

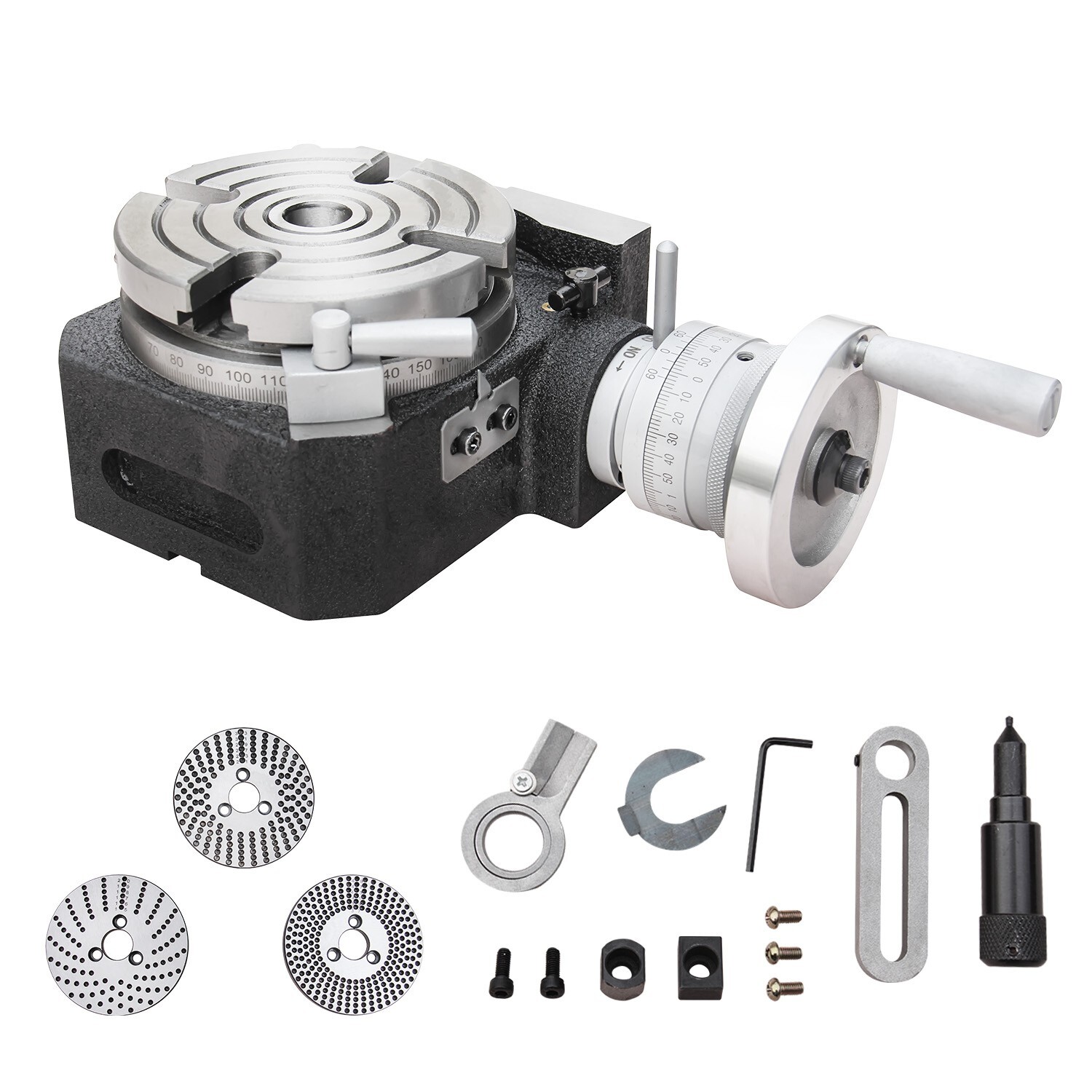

• Comes with 3 pcs of index plate
• Number of holes of the dividing/Index plate HV-6

• SKU 162312
• Model HVP-61
• Table dia.155 mm
• Morse taper of the center holeMT2
• Height of center for vertical mounting100mm
• Width of T slot14 mm
• Adjacent angle of T-slot90°
• Width of the locating key16 mm
• Modules of worm and worm gear1
• Transmission ratio of the worm gear1:90
• Graduation of the table360 °
• Rotating angle of the table with one revolution of worm5
• Index Plate A15, 16, 17, 18, 19, 20
• Index Plate B21, 23, 27, 29, 31, 33
• Index Plate C37, 39, 41, 43, 47, 49
• Packing size29x24x13 cm
• N.W./G.W.14/15 kg
