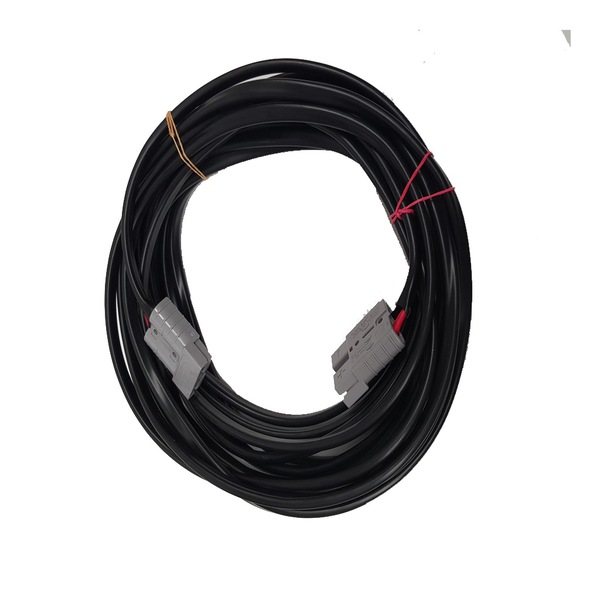

6m x 6mm Twin Core TYCAB wire with Fitted Anderson Style Plugs - Extension Lead

Cable Length - 6m

Anderson Style Plug - x 2

Cable Brand - Tycab

Voltage 12 / 24vdc

Max amps - 50 amps

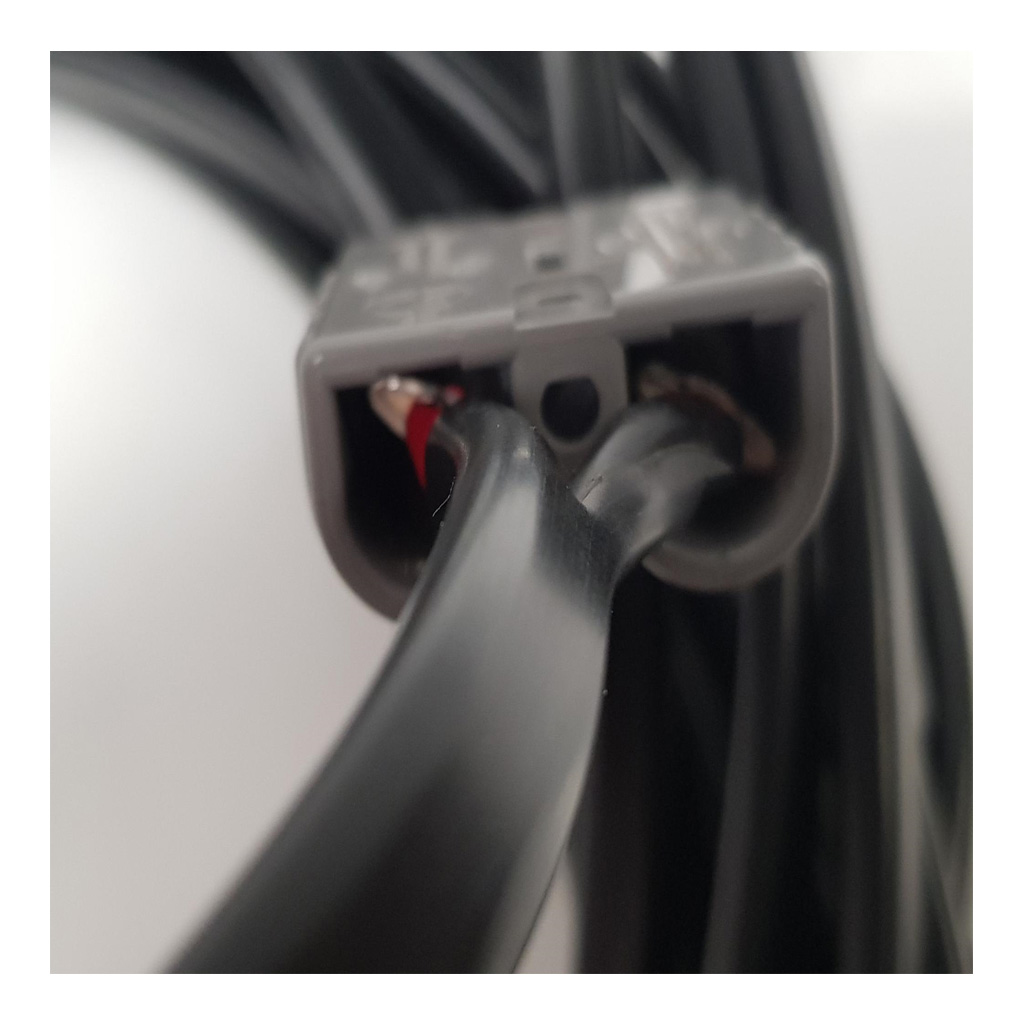

Anderson Plug poles are crimped to the 6mm cable using hydraulic crimps for greater strength and a better finish

This extension lead is assembled by Blue Bar Industries technicians in our warehouse in Caboolture QLD

Cable Specifications

Core Colours = 1. Black 2. Red
Sheath colour = Black
Nominal Area Square = 4.59mm2
Nominal O.D = 5.7mm x 9.6mm
Industry equivalent in MM Thickness = 6mm
Number of cores = 2
Amp Rating = 50amps & 38amps at 30 degrees
Insulation thickness = .6
Sheath thickness = .8
Electrical resistance at 20c (ohm/km) = 4.1
Strand Number & Size = 57/.32

6m x 6mm Twin Core TYCAB wire with Fitted Anderson Style Plugs - Extension Lead

Cable Length - 6m

Anderson Style Plug - x 2

Cable Brand - Tycab

Voltage 12 / 24vdc

Max amps - 50 amps

Anderson Plug poles are crimped to the 6mm cable using hydraulic crimps for greater strength and a better finish

This extension lead is assembled by Blue Bar Industries technicians in our warehouse in Caboolture QLD

Cable Specifications

Core Colours = 1. Black 2. Red
Sheath colour = Black
Nominal Area Square = 4.59mm2
Nominal O.D = 5.7mm x 9.6mm
Industry equivalent in MM Thickness = 6mm
Number of cores = 2
Amp Rating = 50amps & 38amps at 30 degrees
Insulation thickness = .6
Sheath thickness = .8
Electrical resistance at 20c (ohm/km) = 4.1
Strand Number & Size = 57/.32

Great for Solar Panel Extensions

Running power to 12 volt accessories

Connect with one of our female cigarette plug adaptors, USB adaptors etc

Blue Bar Industries now has Australia Made accreditation for our 12 / 24v premade leads and Adaptors..

Purchase with confidence knowing that not only are you getting a quality product but also you are supporting Australia Made from a local Australian small business..

Products that Blue Bar Industries manufacture are made with a majority of Australian Made components and assembled in our Queensland workshop
