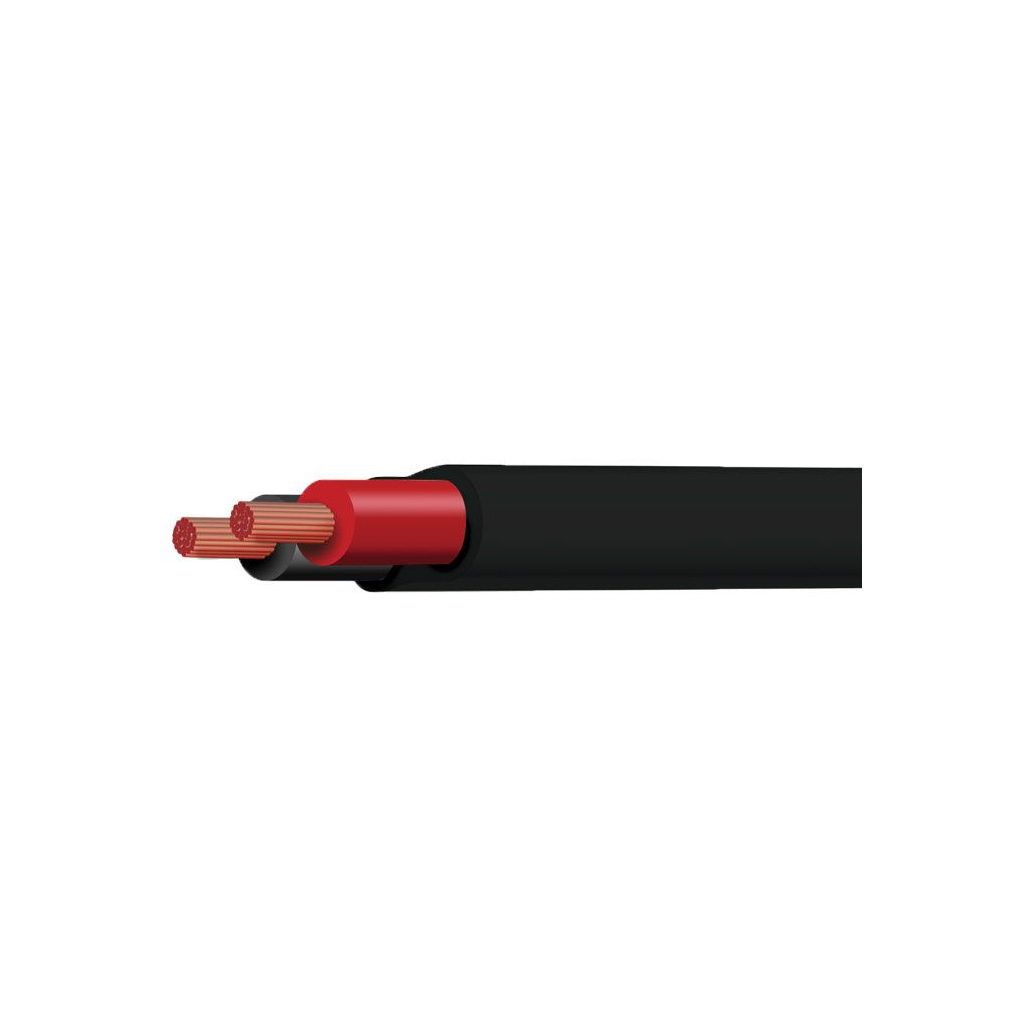

6mm (4.59mm2) Twin Core Double Insulated Cable Aussie Made
Various Lengths
Application: Trailer Wiring, LED Lights, Solar Cabling, Low amp 12/24v Accessories
Conductor: OXYGEN FREE Plain Copper Wire to AS/NZS 1125
Insulation: V90 PVC to AS/NZS 3808
Core Colours: Red, Black
Sheath: 5V90 PVC to AS/NZS 3808
Sheath Colour: Black
Nominal Outside Diameter: 5.7 x 9.6mm
**please note - 6mm does not refer to the O.D. it is an industry term. Actual size of each core is 4.59mm2 which is rated at 38 amps continuous6mm (4.59mm2) Twin Core Double Insulated Cable Aussie Made
Various Lengths
Application: Trailer Wiring, LED Lights, Solar Cabling, Low amp 12/24v Accessories
Conductor: OXYGEN FREE Plain Copper Wire to AS/NZS 1125
Insulation: V90 PVC to AS/NZS 3808
Core Colours: Red, Black
Sheath: 5V90 PVC to AS/NZS 3808
Sheath Colour: Black
Nominal Outside Diameter: 5.7 x 9.6mm
**please note - 6mm does not refer to the O.D. it is an industry term. Actual size of each core is 4.59mm2 which is rated at 38 amps continuous6mm (4.59mm2) Twin Core Double Insulated Cable Aussie Made
| * MM Industry Equiv. |
No. of Cores |
Strand No. / Size |
Nominal Area (mm ) |
**AMP Rating at 30 C |
Insulation Thickness (mm) |
Sheath Thickness (mm) |
Electrical Resistance at 20 C (ohm/km) |
Nominal O.D. (mm) |
Mass (kg/100m) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| 2 | 2 | 7/0.32 | 0.56 | 10 | 0.4 | 0.6 | 33.0 | 3.1 x 4.9 | 2.7 | |
| 3 | 2 | 14/0.32 | 1.13 | 16 | 0.4 | 0.6 | 16.5 | 3.3 x 5.5 | 4.1 | |
| 3 | 2 | 14/0.32 | 1.13 | 16 | 0.4 | 0.6 | 16.5 | 3.3 x 5.5 | 4.1 | |
| 4 | 2 | 23/0.32 | 1.84 | 22 | 0.4 | 0.6 | 10.1 | 3.8 x 6.3 | 6.1 | |
| 5 | 2 | 36/0.32 | 2.90 | 29 | 0.4 | 0.7 | 6.4 | 4.5 x 7.4 | 8.8 | |
| 6 | 2 | 57/0.32 | 4.59 | 38 | 0.6 | 0.8 | 4.1 | 5.7 x 9.6 | 14 |
