SPECIFICATION:

Input Voltage: 100-240V AC, 50-60Hz

Rated Output: 6V / 12V DC 1A

Minimum Start Voltage: 2.0V

Thermal Protect : 65'C±5'C

Working Temperature: -20�?40�?/span>

Storage Temperature: -20�?60�?/span>

Efficiency: App. 85%.

Dimension(L*W*H): 125 x 69 x 35 mm

Weight: 210g

Plug Size: EU Plug

Charger Current :  1A

DC Cable Length: 1.2M

SAE Cable: 0.5M

Battery Range: 4-60Ah (6V for 4AH - 20AH; 12V for 4AH - 60AH)

Compliant Standards: CB,CE, IEC60335, EN61000, EN55014

Fit For: Most types of lead acid batteries including Calcium, GEL and AGM, Wet,EFB, etc..

SAFETY PROTECTIONS:

1.Automatically cut off output

2.The charger will enter cut off output automatically when finished charge to prevent overcharge

3.DC input short-circuit protection

4.The charger will shut down automatically when DC input short-circuit.

5.Over-temperature protection:The charger will shut down in two situations as below, and it will enter charge mode, automatically when temperature recover to the normal condition:

a.when charger used long time under high temperature

b.When inside temperature of charger reaches the preset temperature

6.Over-voltage protection

7.Fire protection: There is no output in clamp when disconnect with battery to prevent sparks

8.Low-voltage activation: The charger will enter the charge mode automatically when voltage of end of clamp was higher than DC 2V, the charger no output if voltage lower than DC 2v

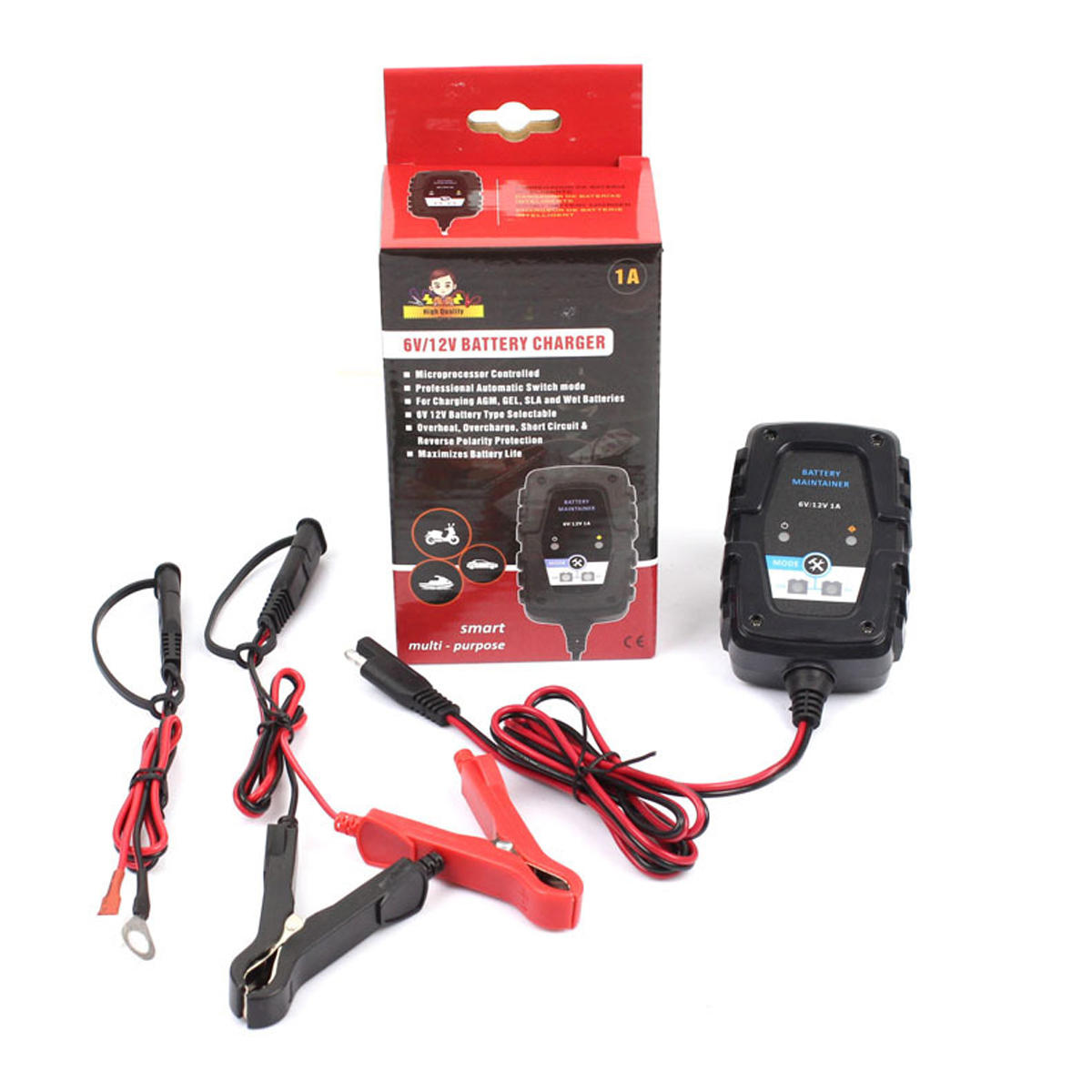

PACKAGE INCLUDED:

1 x Battery Charger

1 x English User Manual
