Collect 22 Everyday Rewards points
Dispatch in 2 business days

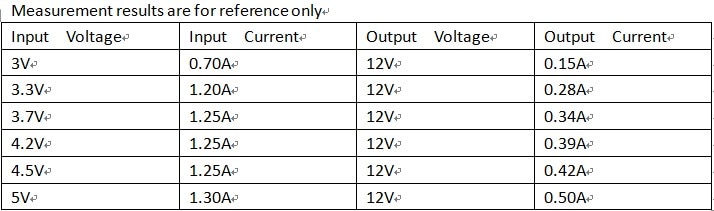

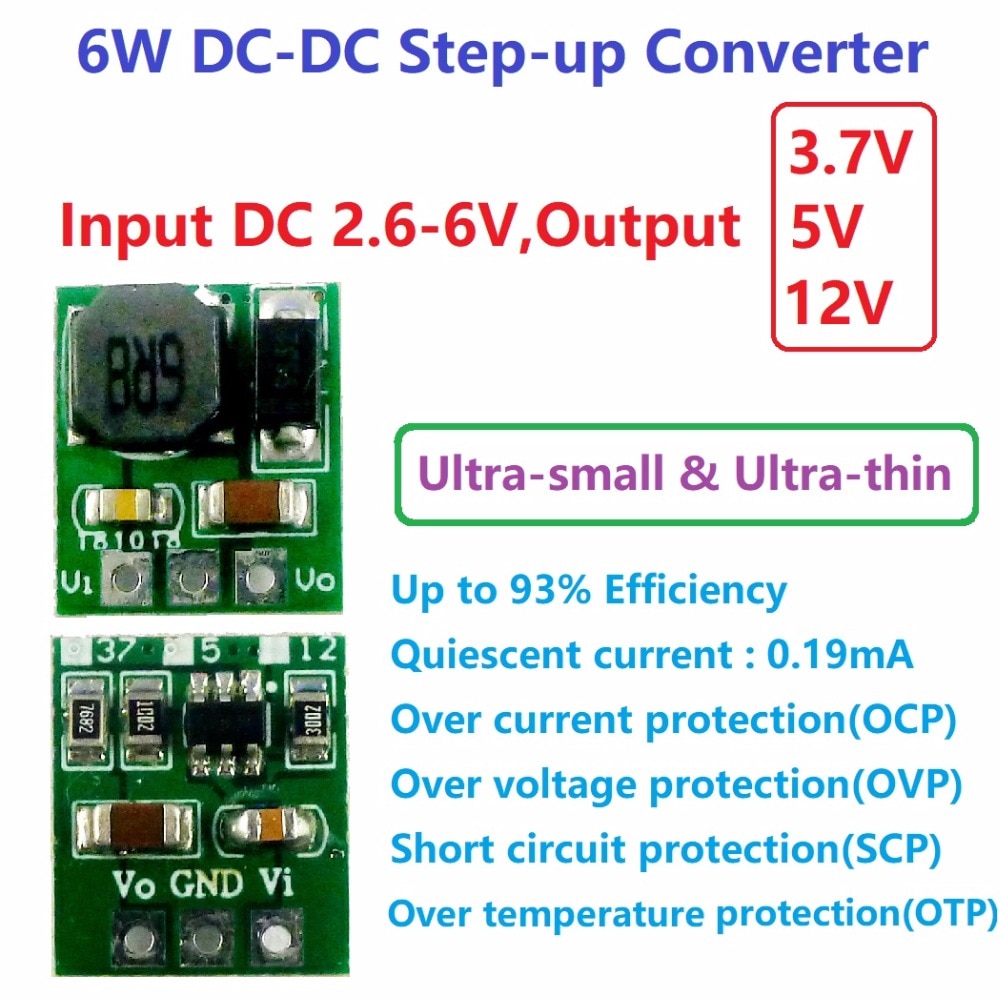

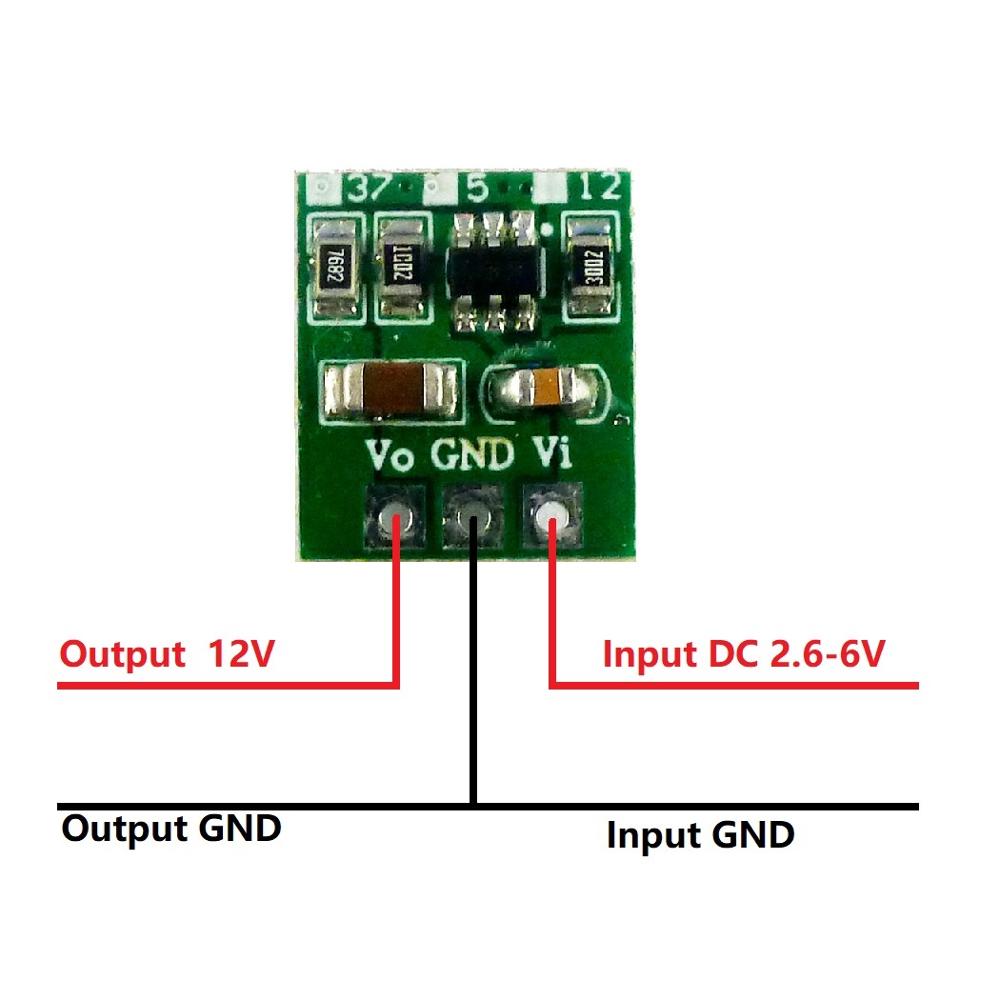

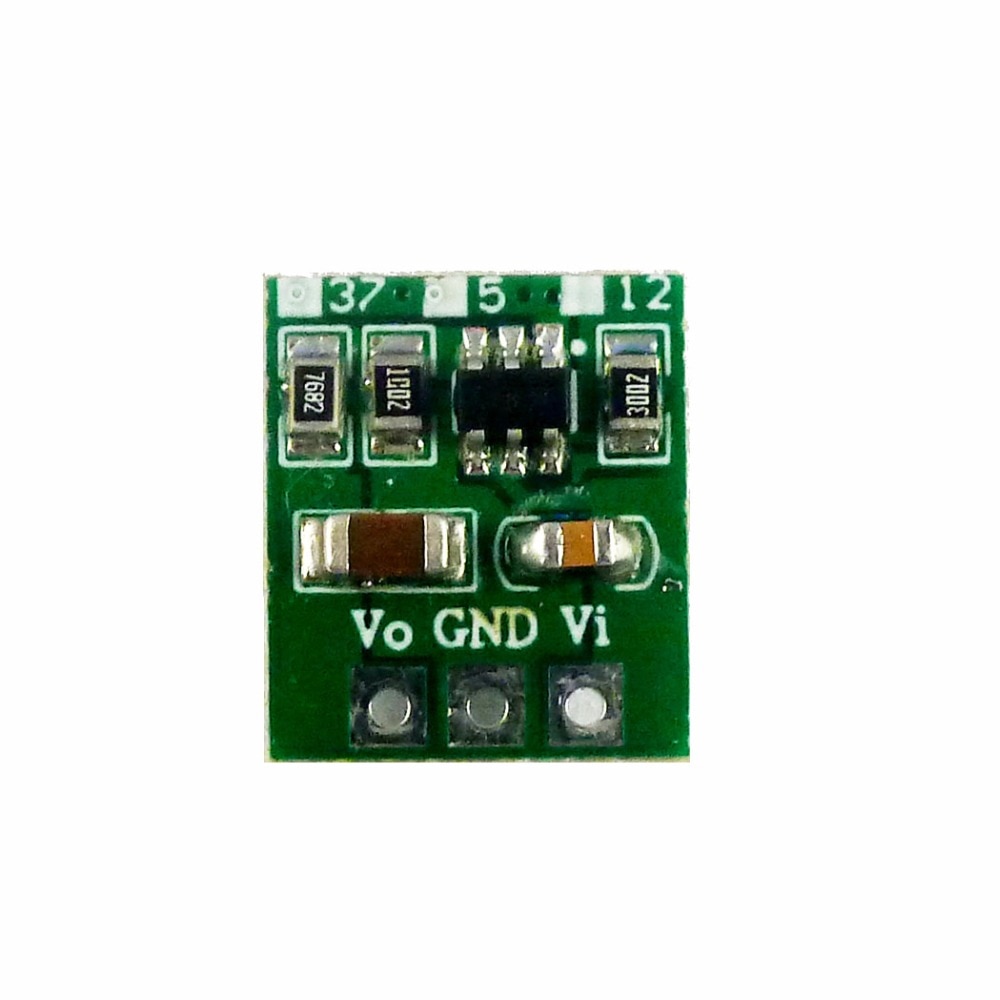

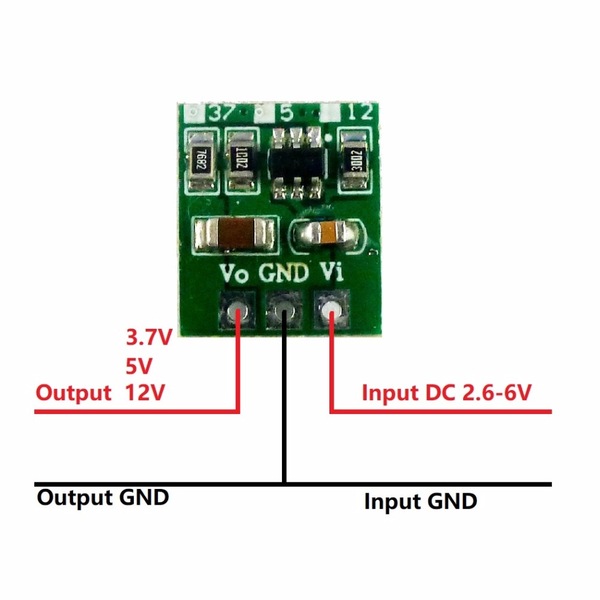

| Description:? DC DC Boost Converter Module working frequency 1MHZ. Up to 94% Efficiency (usually is 84%-91%) Quiescent current : 0.19MA. Operating temperature range : -40~+85 Degrees Celsius Storage temperature range : -65~+150 Degrees Celsius Size : 13 x 11 x 5.2mm(Ultra small and thin) Weight :? 1g(Ultralight) Protection : Over current protection(OCP) Over voltage protection(OVP) Short circuit protection(SCP) Over temperature protection(OTP) Pin description: Vi?????? : Input positive(+) GND? : Input and Output negative(GND/-) Vo????? : Output positive(+) Output 12V : Input voltage DC 2.6 ~ 6V,output DC 12V��3% Maximum output : 12V/500MA(See the table below for details)? Applications?? ? Battery powered equipment Instrumentation, multimeter Small power motors PTZ Camera webcam IP Camera Toy car boat Model aircraft power bank LED Lighting WIFI Router PLC RS485 devices Lithium battery power supply equipment Attention : This is a DC-DC voltage converter module,Must be noted when using: 1 Input voltage can not be greater than the maximum input range 2 Output power can not be greater than the maximum load for a long time 3 Input power must be greater than the output power, because the power consumption of the module itself Q & A: Q : Why output voltage is less than the nominal voltage A : Input power supply power is too low.Test the input voltage with a multimeter,a t this time of the input voltage is very low Packing list:1 PCS 6W DD0512MA Ultra-small Ultra-small & Ultra-thin DC-DC Step-up Converter |
Estimated Delivery Time Frame:12-20 business days
Ask a Question About This Product
Reference ID: 7039876
