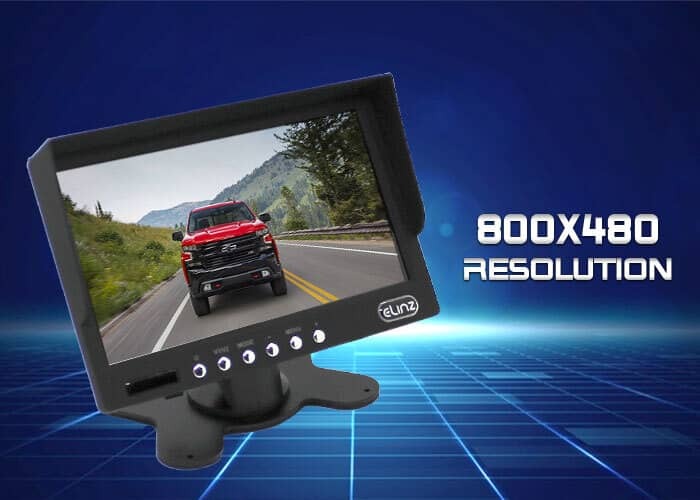

7" TFT LCD Monitor

• 800x480 Digital Screen, Crystal Clear Image
• 16:9/4:3 switch freely
• Resolution: 480TV lines
• The image supports to be rotated up and down, left and right
• Can connect to DVD / MP4 / Camera, etc.

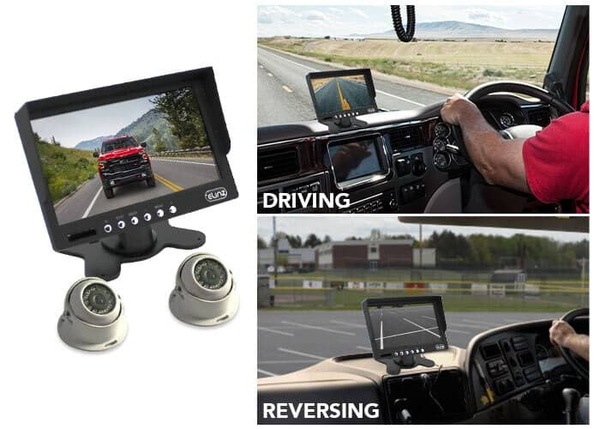

Two Video Inputs, Reversing First

• Two video inputs, reversing first connect two cameras (cameras are optional and sold seperately) to the monitor. You can view one camera while driving and the 2nd camera will turn on automatically when reversing.

Compatible to 12V/24V

• This monitor can be used with Trucks / Caravans / Cars

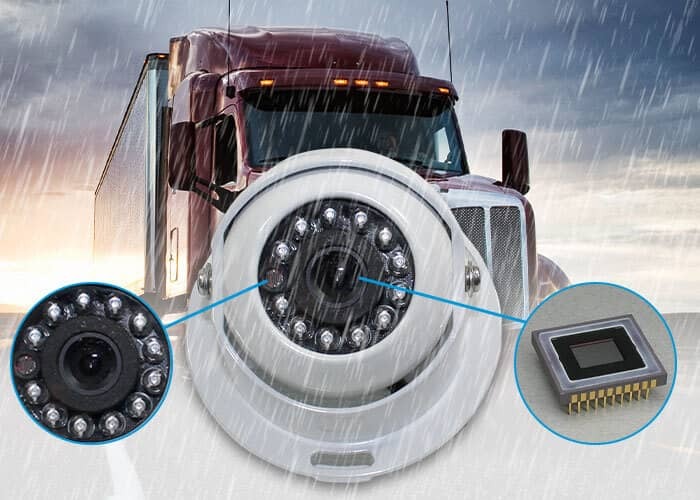

CCD Eyeball Reversing Camera

• With CCD image sensor made by sharp company
• 12 individual infrared (IR) LED to show clear images in low light especially at night circumstances.
• Heavy Duty CCD camera with hard metal cased, waterproof and mudproof.

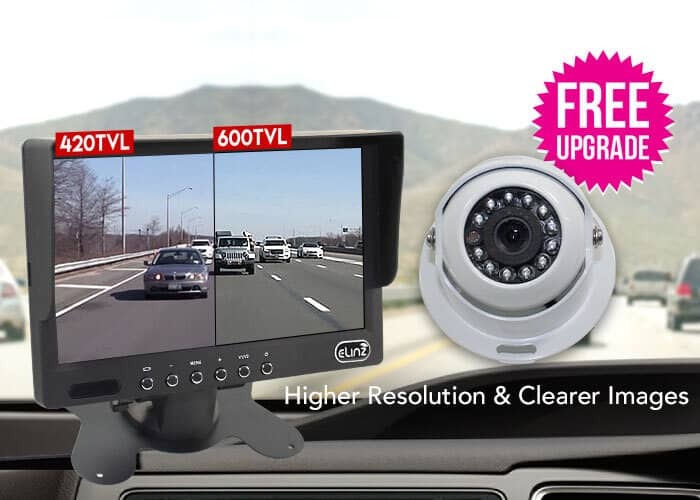

New Upgraded Model

Now Comes with 600TVL Camera

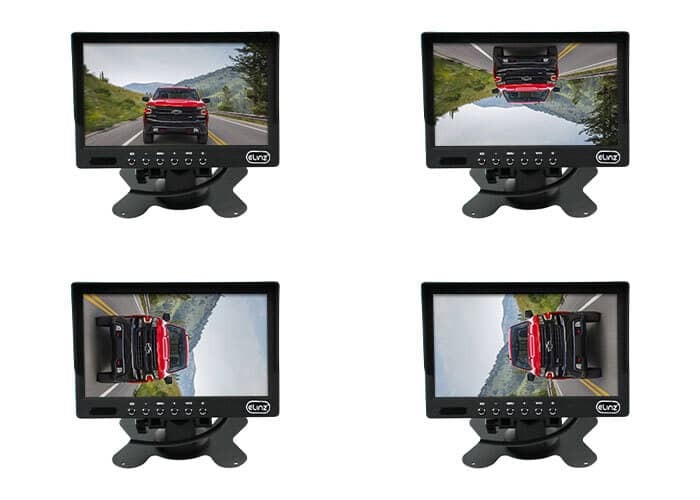

The Image can be Rotated Up, Down, Left and Right

Application #1

Application #2

Installation Diagram

• Connect and disconnect the cable between your trailer/caravan easily.
• Easy to install. You can D.I.Y. as long as you can locate your vehicle’s 12V/24V power source.

Camera Dimensions

Product Dimensions and Labels

Remote

• * No Batteries included

• 7" TFT LCD Monitor
  • 800x480 Digital Screen, Crystal Clear Image
  • 16:9/4:3 switch freely
  • The image supports to be rotated up and down, left and right
  • Can connect to DVD / MP4 / Camera, etc.
• Two Video Inputs, Reversing First
  • The image can be rotated up and down, left and right
  • Two video inputs, reversing first connect two cameras (cameras are optional and sold seperately) to the monitor. You can view one camera while driving and the 2nd camera will turn on automatically when reversing.
• Compatible to 12V/24V
  • This monitor can be used with Trucks / Caravans / Cars

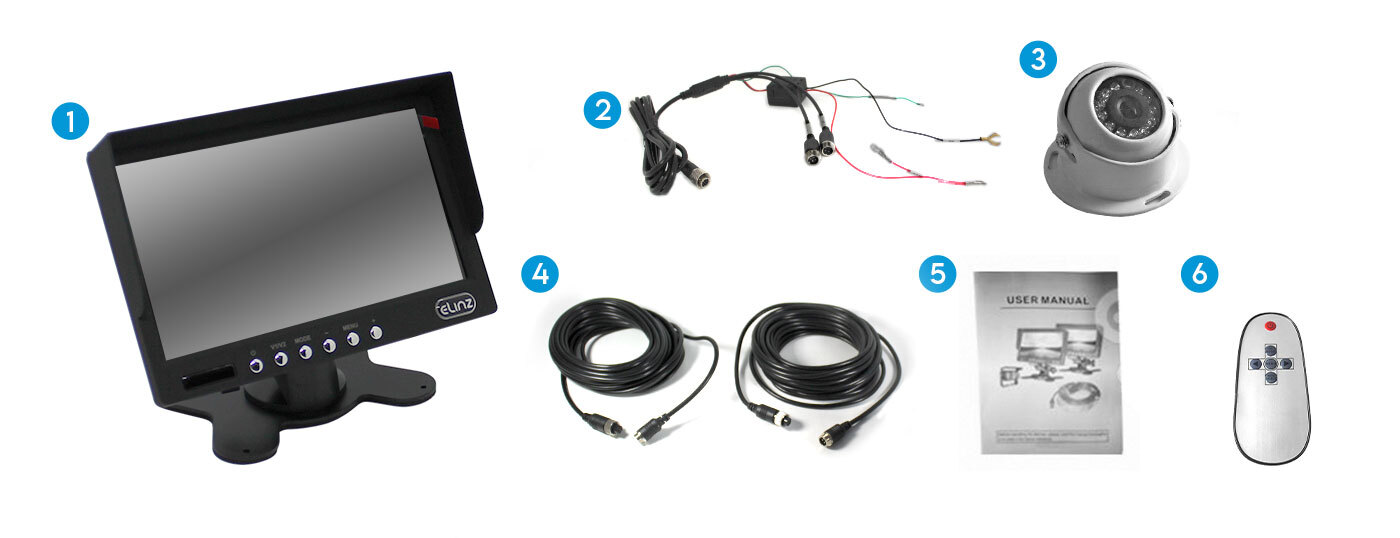

ITEM DESCRIPTION

1. 1x 7" TFT LCD Monitor

2. Power Cords

3. 1x Dome Reversing Camera

4. 2x 10M 4PIN Cables

5. User Manual

6. Remote * No Batteries included
