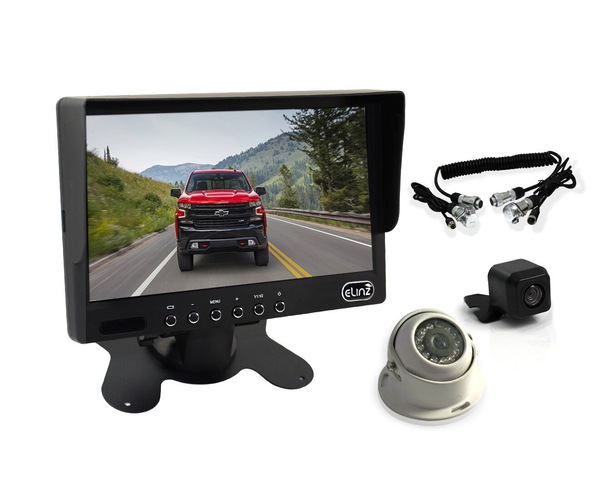

Elinz Caravan Two Camera 4PIN System Trailer cable 7" Monitor HD 12V/24V Reversing CCD Camera Kit

1 Review

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Hurry! 16 items left!
$289.95

Collect 289 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Sold & shipped by Elinz
Secure ways to pay at checkout
Pay in 4 interest-free payments of $72.49 with Learn More
Caravan Two Cameras 4PIN System with Trailer Cable

SKU: M7SRVDOM-RVSMA4PIN-CBLTRA

7" TFT LCD Monitor

  • 800x480 Digital Screen, Crystal Clear Image
  • 16:9/4:3 switch freely
  • Resolution: 480TV lines
  • The image supports to be rotated up and down, left and right
  • Can connect to DVD / MP4 / Camera, etc.

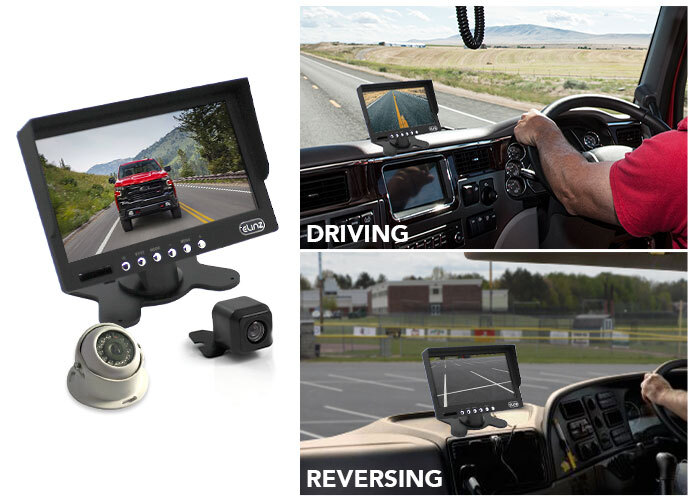

Two Video Inputs, Reversing First

  • Two video inputs, reversing first connect two cameras to the monitor. You can view one camera while driving and the 2nd camera will turn on automatically when reversing.

Compatible to 12V/24V

  • This monitor can be used with Trucks / Caravans / Cars

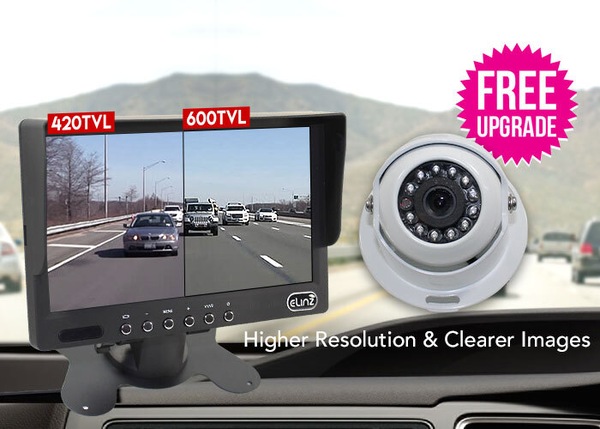

Now Comes with 600TVL Camera

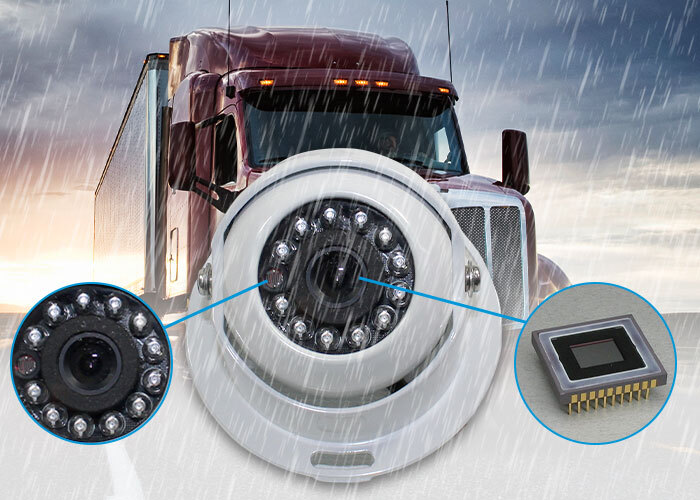

CCD Eyeball Reversing Camera

  • With CCD image sensor made by sharp company
  • 12 individual infrared (IR) LED to show clear images in low light especially at night circumstances.
  • Heavy Duty CCD camera with hard metal cased, waterproof and mudproof.

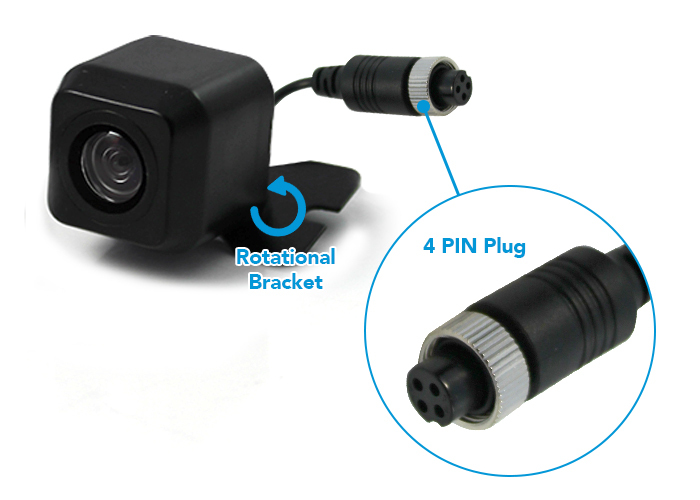

CMOS Reversing Camera

  • 150° wide angle, Sharp lens
  • Waterproof & protection against dust

New Upgraded Model

The Image can be Rotated Up, Down, Left and Right

Trailer Cable Suzy Coil

  • 5 PIN AP-TP20 metal connector with male and female connector
  • 4 PIN metal connector for CCD Camera

Waterproof Function

  • With elasticity length from 2 meters to 4 meters

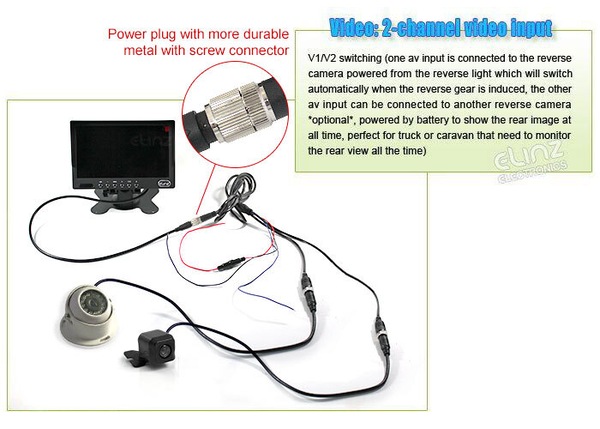

Wiring Diagram

Installation Diagram

  • Connect and disconnect the cable between your trailer/caravan easily.
  • Easy to install. You can D.I.Y. as long as you can locate your vehicle's 12V/24V power source.

Camera Dimensions

CMOS Camera Dimensions

Product Dimensions and Labels

Remote
  • * No Batteries included

MORE INFORMATION

Elinz Caravan Two Camera 4PIN System Trailer cable 7" Monitor HD 12V/24V Reversing CCD Camera Kit

7" TFT LCD HD monitor that can be connected up 2 cameras. The image can be rotated up and down, left and right. This monitor can be used with Trucks / Caravans / Cars. Two video inputs, reversing first connect two cameras to the monitor. You can view one camera while driving and the 2nd camera will turn on automatically when reversing.

PRODUCT HIGHLIGHTS

  • 7" TFT LCD Monitor
    • 800x480 Digital Screen, Crystal Clear Image
    • 16:9/4:3 switch freely
    • The image supports to be rotated up and down, left and right
    • Can connect to DVD / MP4 / Camera, etc.
  • Two Video Inputs, Reversing First
    • The image can be rotated up and down, left and right
    • Two video inputs, reversing first connect two cameras to the monitor. You can view one camera while driving and the 2nd camera will turn on automatically when reversing.
  • Compatible to 12V/24V
    • This monitor can be used with Trucks / Caravans / Cars

ITEM DESCRIPTION

  • 800*480 Digital Screen, Crystal Clear Image
  • Sunshade design
  • Two way video input
  • Suitable for 12V/24V vehicle
  • The image can be rotated up and down, left and right
  • Can connect to DVD/MP4/Camera etc
  • Camera sensor: Sharp 1/4" CCD image sensor
  • Resolution: 480TV lines
  • Waterproof rating:IP67- IP68
  • TV System : PAL/NSTC

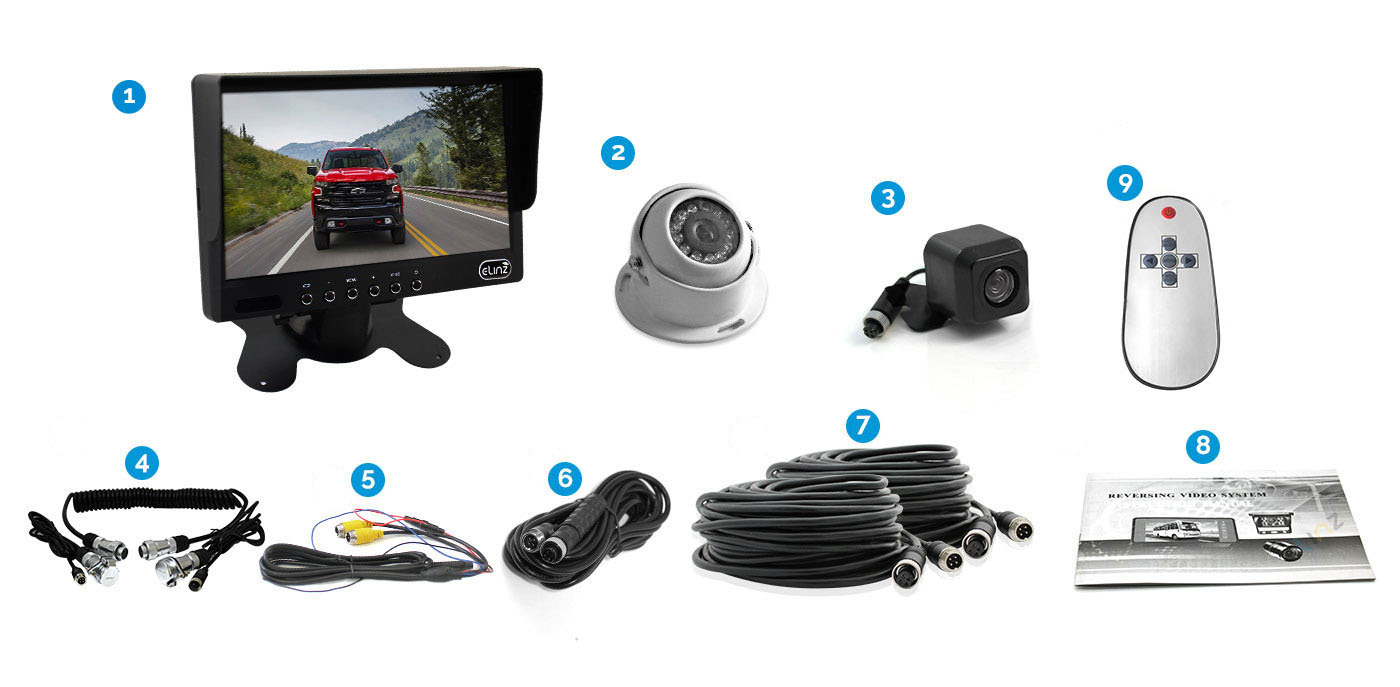

WHAT'S INCLUDED

1. 1x 7" TFT LCD Monitor

2. 1x Dome Reversing Camera

3. 1x CMOS Reversing Camera

4. Trailer Cable Suzy Coil

5. Power Cords

6. 1x 5M Cable

7. 2x 10M Cable

8. User Manual

9. 1x Remote ( * No Batteries included )

GTIN: 0686494501164

Estimated Delivery Time Frame:3-5

Ask a Question About This Product

Reference ID: 161807
