7-STAGE REVERSE OSMOSIS WATERPURIFIER + FILTERS

THIS SYSTEM IS ASSEMBLED, LEAK + PRESSURE TESTED + PERFORMANCE RATED LOCALLY AT OUR QLD PREMISES

Our locally assembled reverse osmosis units are designed to provide the purest possible drinking water at a reasonable price. All of our locally assembled units are leak tested overnight under pressure and checked to ensure that they are operating optimally and producing water of a standard that meets our quality guidelines.

There are many claimed health benefits from drinking alkaline water including a few listed [1] greater absorption of alkaline water than non-alkaline water [2] soothing acid reflux [3] increased oxygen levels in the bloodstream and improved energy [4] has anti-oxidant properties which is believed to have anti-ageing and anti-disease effects [5] supports the immune system and [6] assist with overall improved health.

Reverse osmosis technology is known for its ability to produce pure water of a consistent quality, typically reducing the total contaminant in the feed water by +/- 96% on average. Our systems are effective in removing / reducing various contaminants from your drinking water, including fluoride, chlorine, cysts, bacteria and heavy metals among many other contaminants as indicated in the table below.

CONTAMINANT REDUCTION

Barium: 97%
Potassium: 99.9%
Bicarbonate: 99.9%
Radium: 97%
Cadmium: 97%
Selenium: 97%
Calcium (Hardness): 99.9%
Silicate: 99%
Chromate: 95%
Silver: 99%
Copper: 97%
Sodium: 98%
Detergents: 97%
Strontium: 97%
Fluoride: 99%-99.9%
Sulphate: 99.9%
Lead: 97%
PCB’s: 97%
Magnesium: 99.9%
Insecticides: 97%
Nickel: 97%
Herbicides: 97%

All of the parts that come into contact with the water in our systems are manufactured from BPA free food grade plastics. All of the filters and parts that we source are of the highest quality and meet the required quality standards.

SYSTEM SPECIFICATIONS:

• Minimum feed pressure: 45psi / 300kpa
• Recommended feed pressure: 60-80psi / 400-550kpa
• Minimum operating temperature: 5°C / 40°F
• Maximum operating temperature: 45°C / 110°F
• Minimum feed water pH: pH 3
• Maximum feed water pH: pH 11
• Maximum feed water TDS: 1000ppm*
• Production rate: 100GPD / 380LPD*

Where the feed water TDS reading is high, the minimum operating pressure of the unit may be affected. If your feed water TDS is in excess of 400ppm we recommend that you consult us before you purchase. Generally these systems are suited to most town mains water supplies, however if you are intending to use the unit on tank or bore water we recommend testing the feed pressure and water quality first.

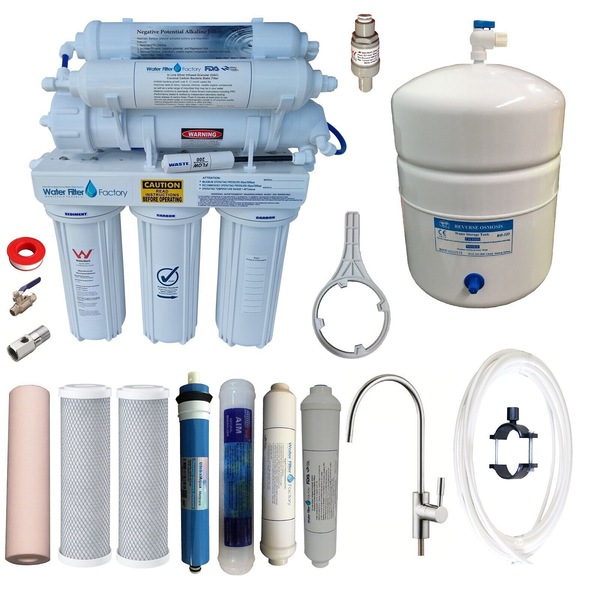

KIT INCLUDES:

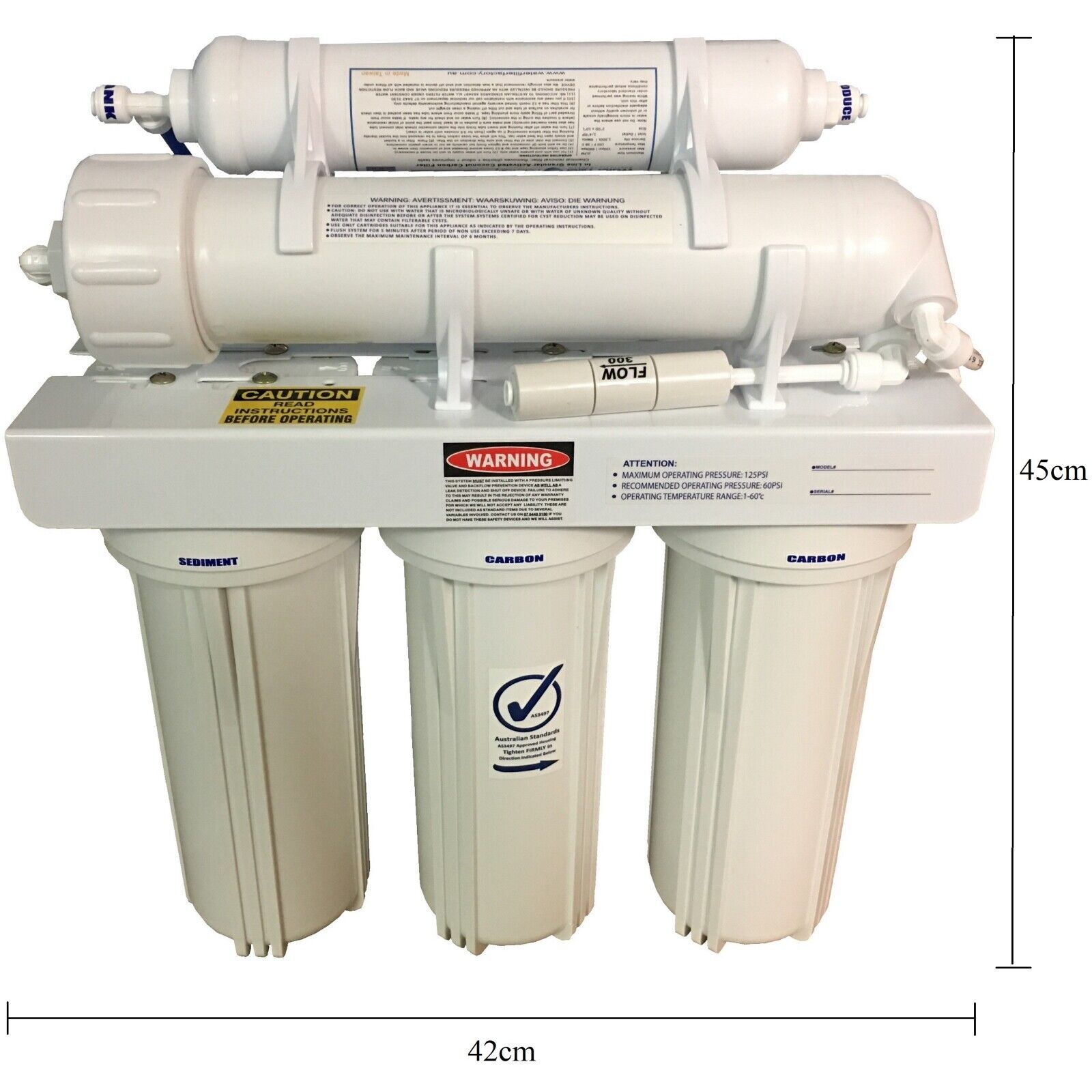

• Multi stage reverse osmosis unit: AS3497 tested and compliant 10"x2.5" pre-filter housings.
• One 10"x2.5" 0.5 micron spun sediment pre-filter.
• One 10"x2.5" Matrikx high volume carbon pre-filter.
• One 10"x2.5" 1uMn coconut carbon block pre-filter.

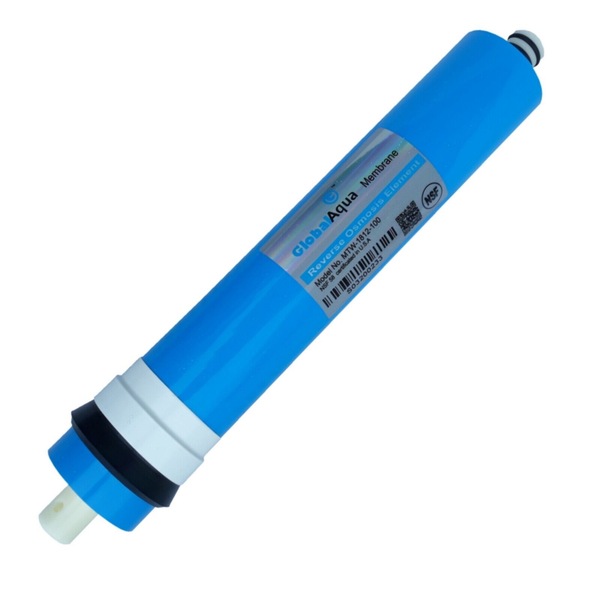

• One 100GPD TFC membrane made using materials sourced from the USA.

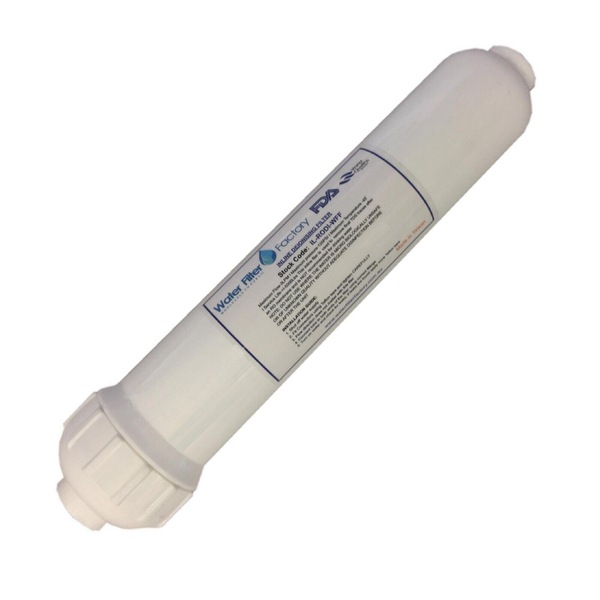

• One in line post membrane mineralising water filter.

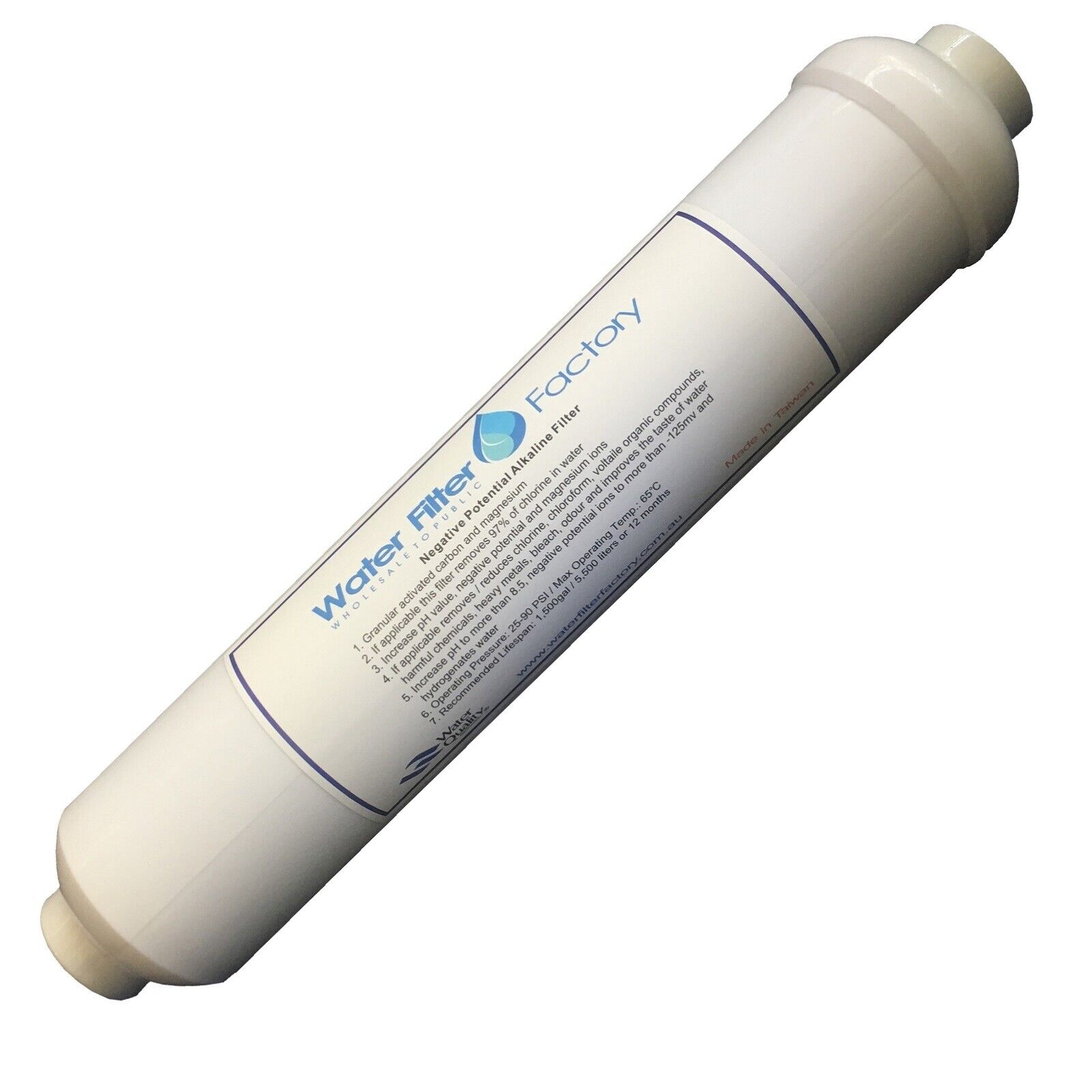

• One in line post membrane alkalising water filter.

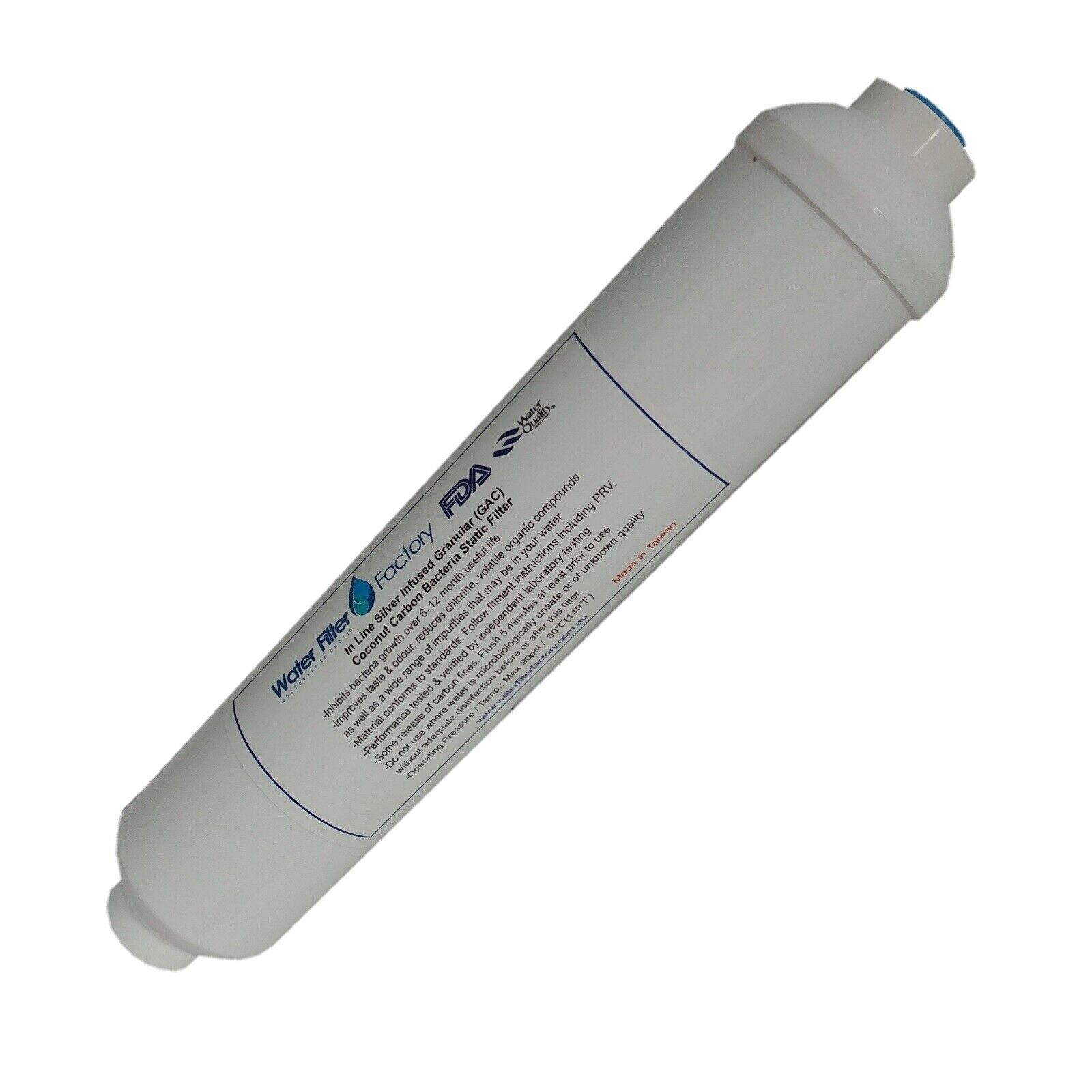

• One in line post silver infused anti-bacterial water filter.
• Your choice of one of the following accumulator tanks: 5 Litre - (33cm height, 20cm diameter). 8 Litre - (39cm height, 22cm diameter). 12 Litre - (39cm height, 28cm diameter).

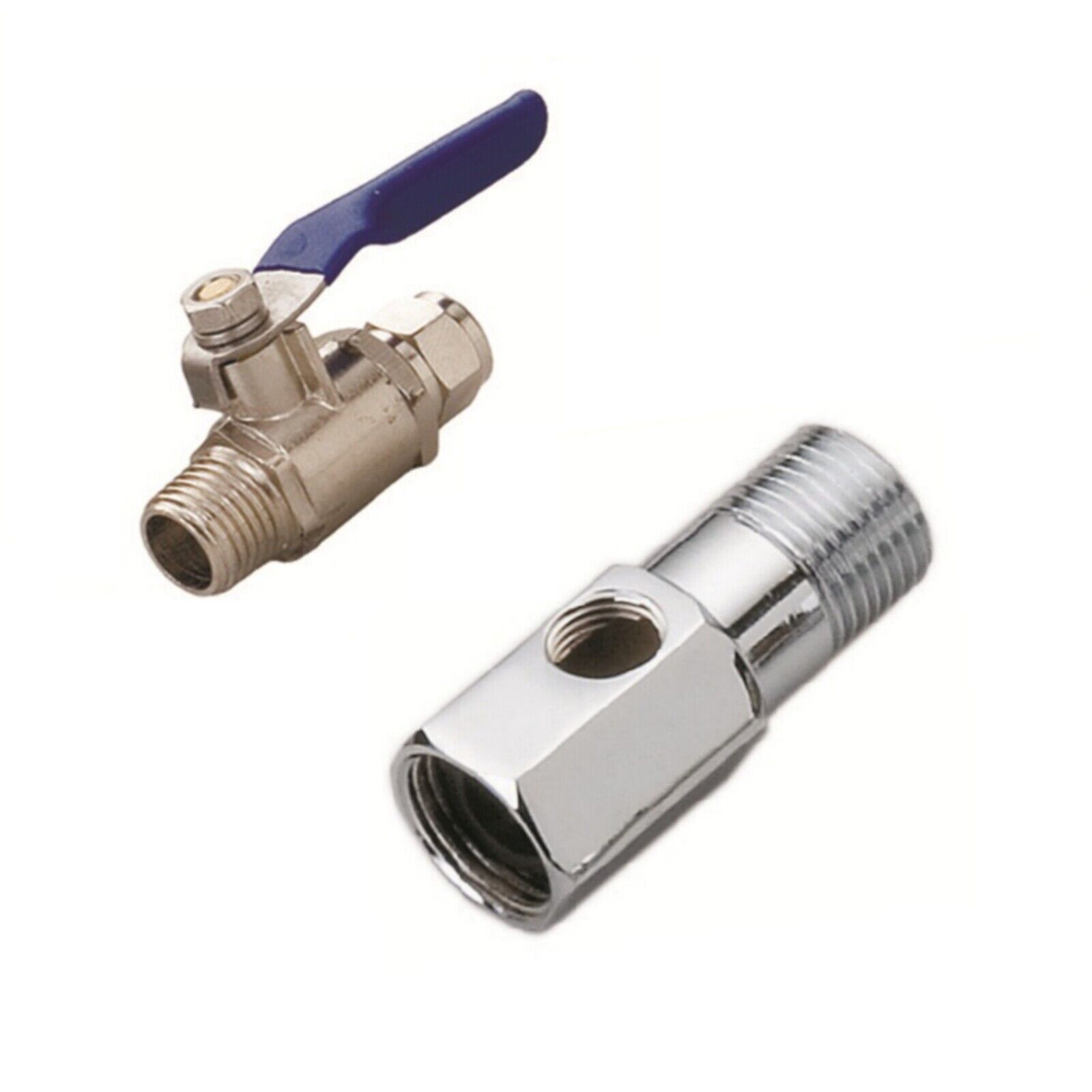

• Your choice of one of the following feed/inlet fittings: 1/2" insert - Shares normal cold water line to most mixer taps. 3/4" insert - Shares normal cold water line to most dishwasher.
• An adjustable 40mm-50mm stainless steel drain waste clamp.

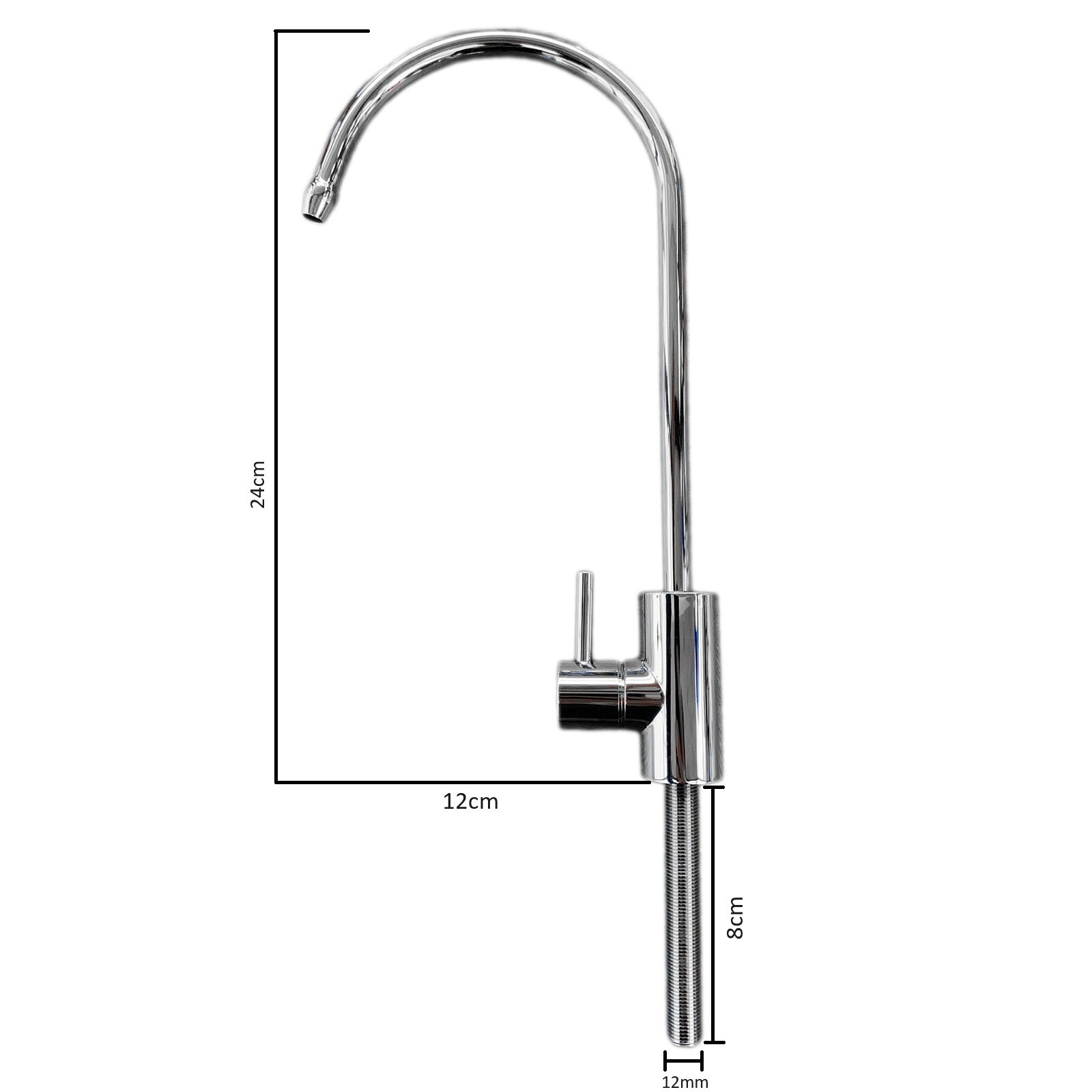

• A modern style drink water faucet tap as pictured.
• An approved 350kpa pressure reducing valve as required by Australian standards.
• A leak detection and shut off device per the 10th image listing.
• A housing spanner to open and close water filter housings.
• An installation kit including a roll of tubing, a roll of thread tape, spare fittings.
• An installation and maintenance guide.
