Specification:

Operating system: Embedded LINUX operating system

Image sensor: 1/4 HD CMOS 100W pixels CMOS sensor

Video format: HD (1280 x 720P) VGA (640 x 480P)

Video coding: H.264

Video frame rate: 1-30 frame

Video mode: Manual video recording, alarm recording

Video playback mode: Mobile client + PC client

Audio input and output: Input: built-in microphone 38DB; output: built-in 8Ω2W speaker

Built in lens: 3.6MM (standard) optional

Infrared night vision effect: The photosensitive resistance sensor switch, the LED lamp night vision 10 meters, (IR-CUT switch)

Focusing method: Manual

Minimum illumination: 0.1Lux/F1.2

PTZ control: Horizontal rotation 355 degrees vertical 100

Local storage: Support MicroSD inserted 64GB card, support 24 hours of video or video alarm

Support multiple protocols: TCP/UDP , IP , HTTP , SMTP , DHCP , DDNS , UPNP , NTP , ONVIF , RTSP

Wifi: 3DB built-in antenna support IEEE 802.11b/g/n

Image rotation: Mirror / upside down

Video control: Support

Motion Detect: Support

Alarm action: The alarm bell / mobile phone client push

Firmware upgrade: Remote upgrade through the network

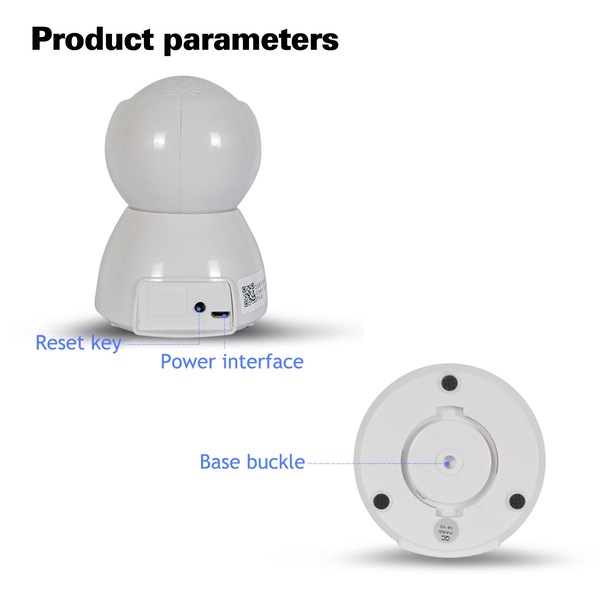

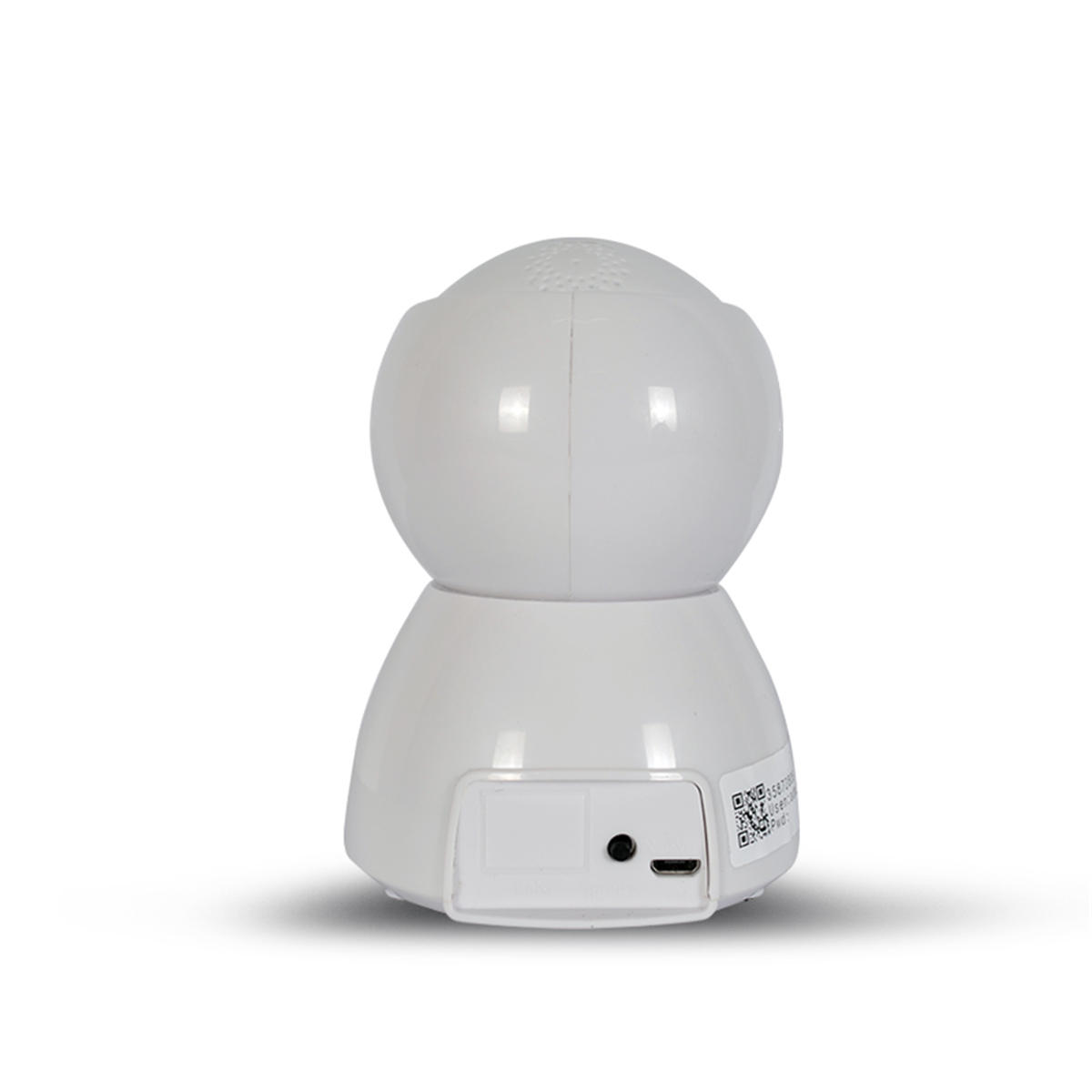

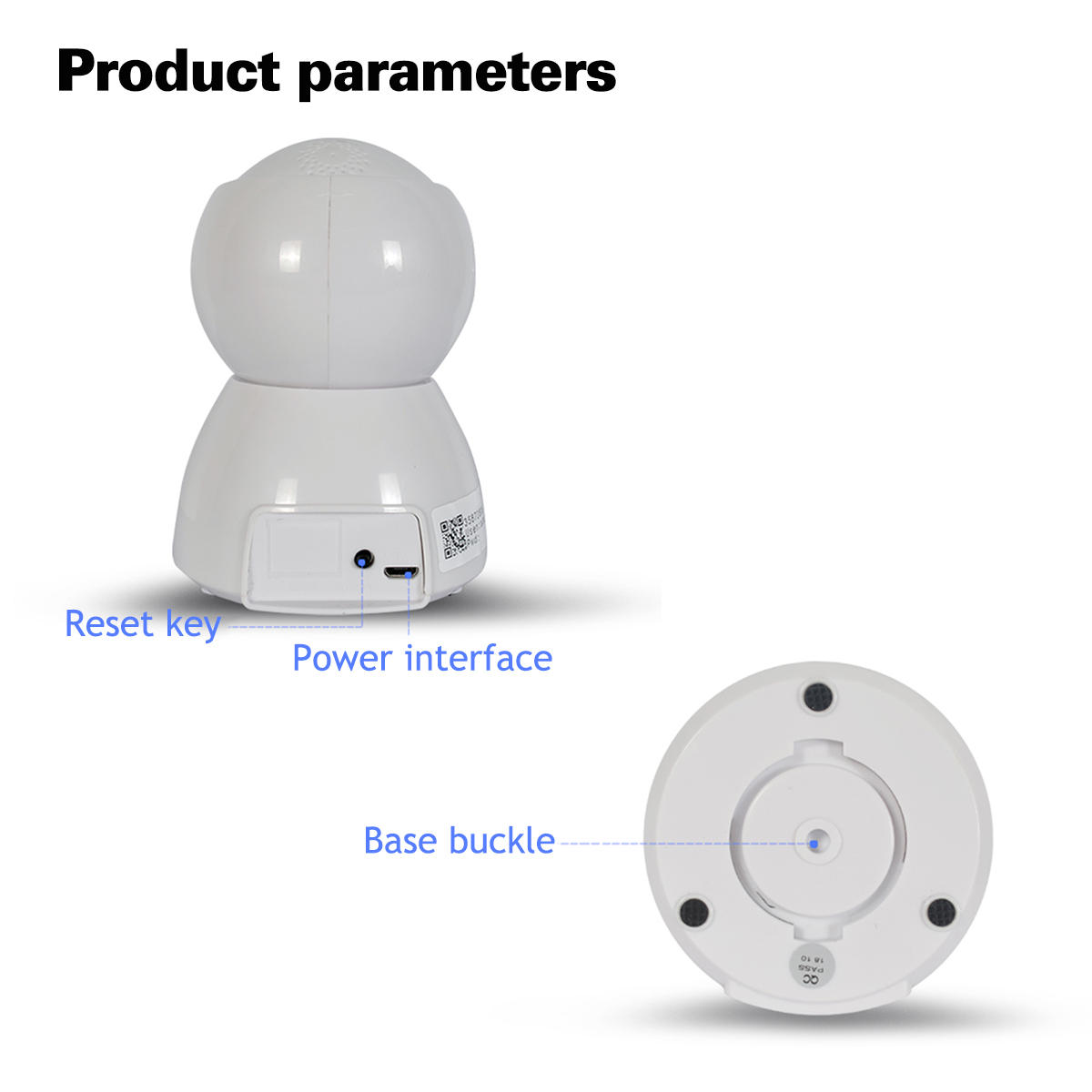

System interface: 1 USB interface , 1 TF interface

Supply voltage: 5V 1A

Working temperature: 0��~55��

Applicable scenarios: indoor

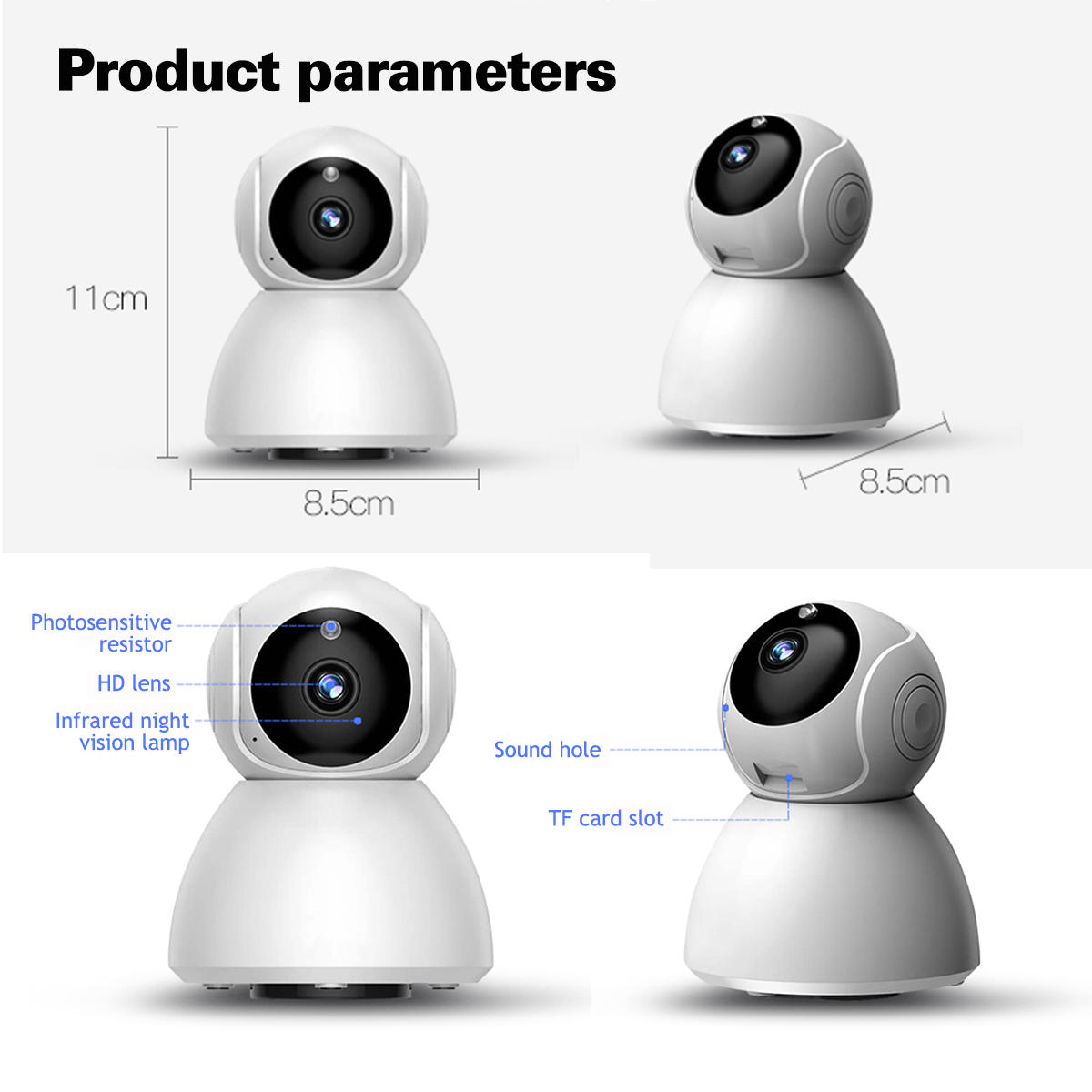

Product size: 8.5 x 8.5 x 11cm

Packing size: 16.5 x 12.5 x 10cm

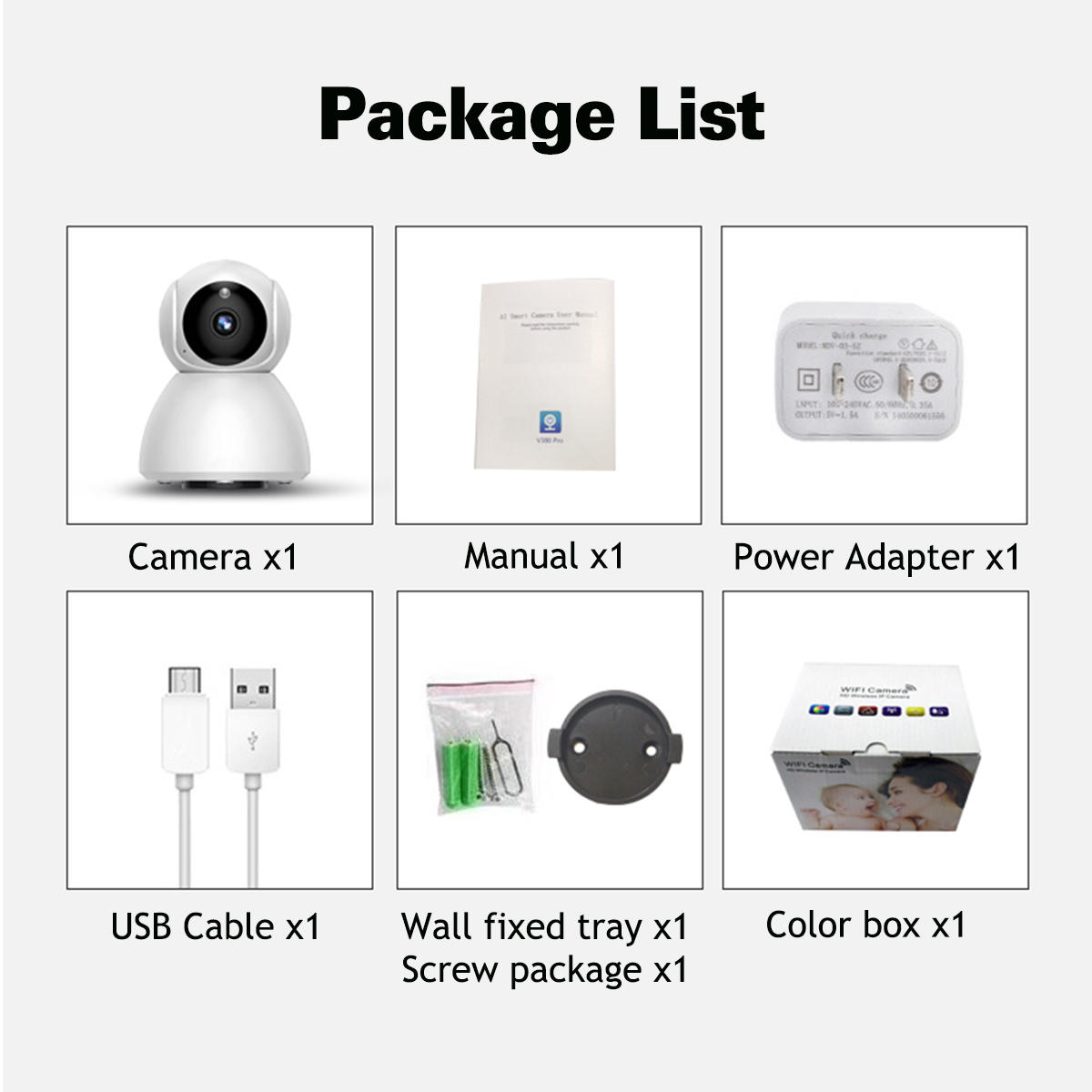

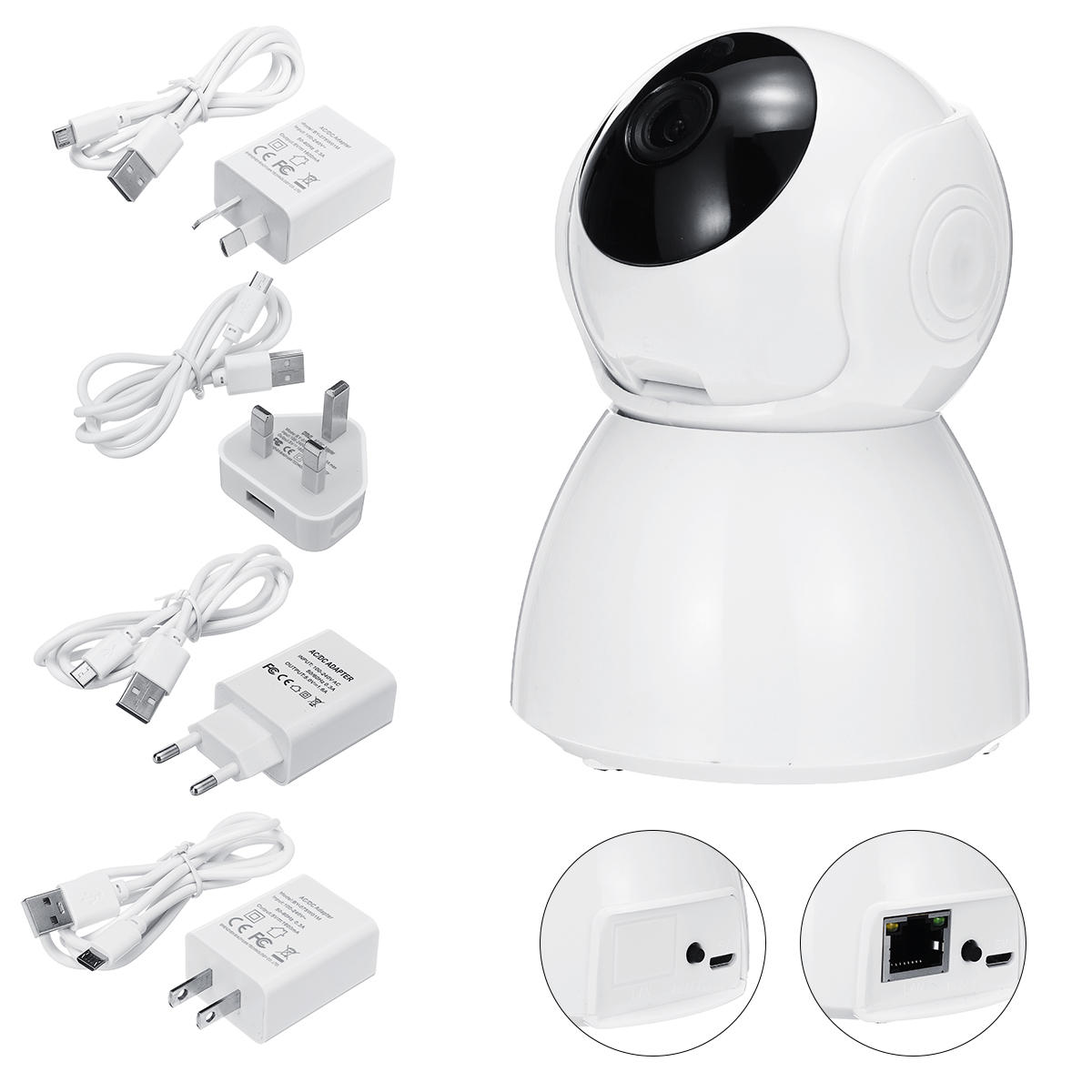

Package included:

1 x Camera

1 x Power Adapter

1 x USB Cable

1 x Wall Fixed Tray

1 x Screw Package

1 x Manual

1 x Color Box
