PRODUCT CODE: PRO-4-D

Includes final stage post RO membrane mixed resin deionising [DI] filter

This system is assembled locally in our QLD factory using high quality approved parts

Easy to carry around or wall mountable and great for producing pure H2O for topping or filling up fish tanks

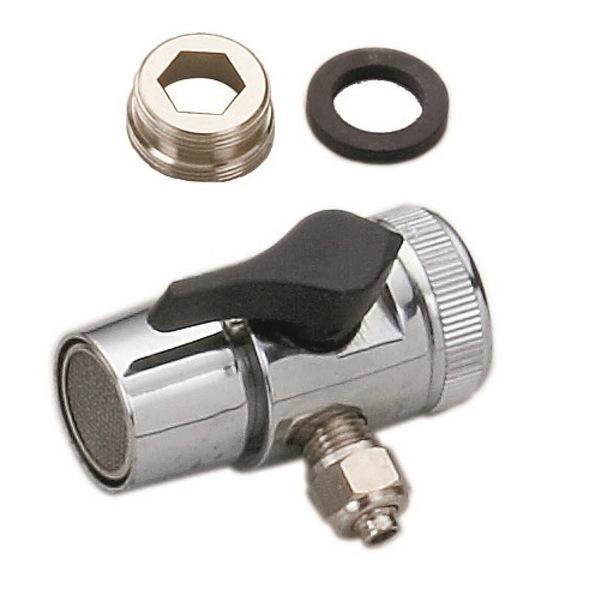

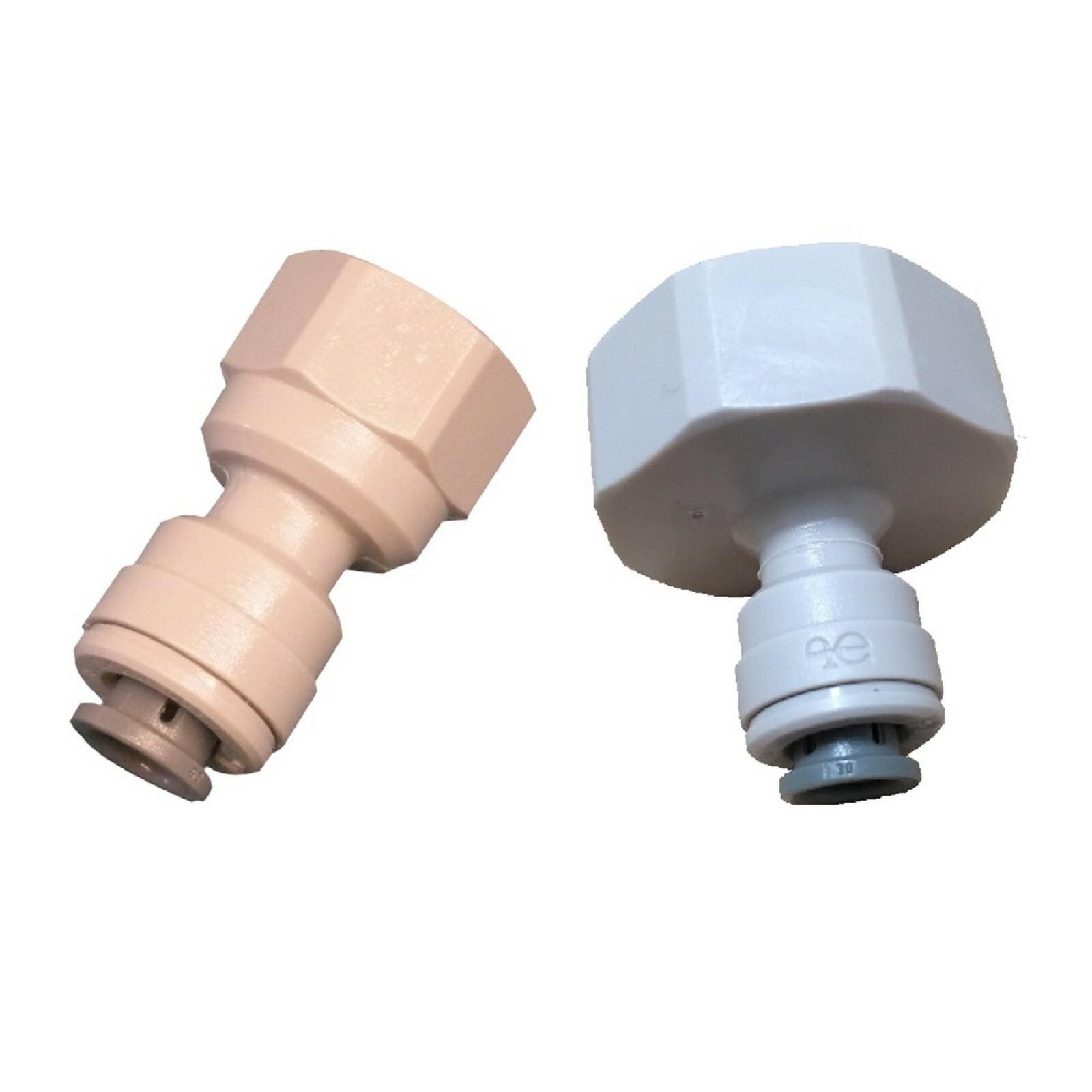

This item is sent with connectors to fit 3/4" and 1/2" garden taps [per image 7 and measure 25mm and 20mm respectively] as well a sink mixer diverter [per image 8] to fit most standard* sink mixer taps

*Standard mixer taps refer to a mixer tap where you can unscrew the aerator on the end of the tap and will be left with either a 20mm female thread or a 23mm male thread. If you have the 20mm female thread you`ll need to use the inside to outside thread converter [in the 3rd picture and supplied with this item] to connect but if you have a 23mm male thread after removing the aerator you won`t need to use the thread converter

The reverse osmosis process results in the purest possible water and results in the total dissolved solids (TDS) count dropping by +/- 96% depending on environmental factors

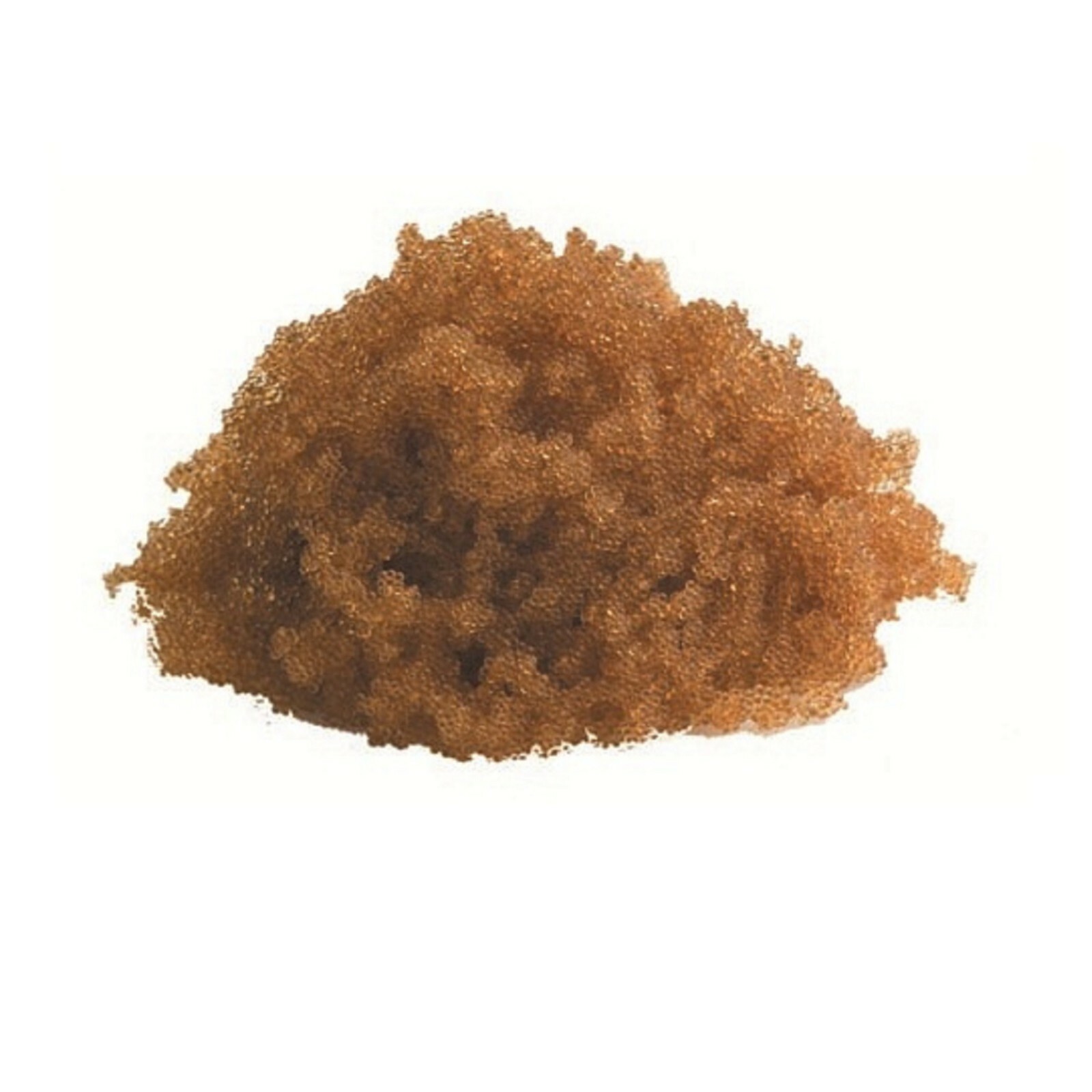

As this system also has a final stage mixed resin deioniser after the reverse osmosis membrane the removal rate increases to between 99.9%-100%

This purification process is commonly considered to be the most effective method of purification available to the public, and will consistently produce the lowest level of contaminant

RO will reduce/remove all of contaminant in the feed water including chlorine, fluoride, volatile organic compounds, disinfection by-products, heavy metals, etc

See below table for effective reduction of common contaminants:

ELEMENT/COMPOUND % REDUCTION

• Barium 99.9%
• Bicarbonate 100%
• Cadmium 99.9%
• Calcium (Hardness) 99.9%
• Chromate 99.9%
• Copper 99.9%
• Detergents 99.9%
• Fluoride 100%
• Lead 99.9%
• Magnesium 100%
• Nickel 99.9%
• Potassium 100%
• Radium 99.9%
• Selenium 99.9%
• Silicate 99.9%
• Silver 99.9%
• Sodium 99.9%
• Strontium 97%
• Sulphate 100%
• PCB’s 99.9%
• Insecticides 99.9%
• Herbicides 99.9%

All of the parts that come into contact with the water in our systems are manufactured from BPA free food grade plastics. All of the filters and parts that we use when assembling your system have NSF INTERNATIONAL (National Sanitation Foundation), WQA (Water Quality Association) or FDA (Food and Drug Administration) quality standard certification.

• Minimum feed pressure 45psi / 300kpa
• Recommended feed pressure 60-80psi / 400-550kpa
• Minimum operating temperature 5°C / 40°F
• Maximum operating temperature 45°C / 110°F
• Minimum feed water pH pH 3
• Maximum feed water pH pH 11
• Maximum feed water TDS 1000ppm
• Production rate [+/- 10%] 75GPD / 285LPD

*Where the feed water TDS reading is high, the minimum operating pressure of the unit may be affected. If your feed water TDS is in excess of 400ppm we recommend that you consult us before you purchase. Generally these systems are suited to most town mains water supplies, however if you are intending to use the unit on tank or bore water we recommend testing the feed pressure and water quality first.

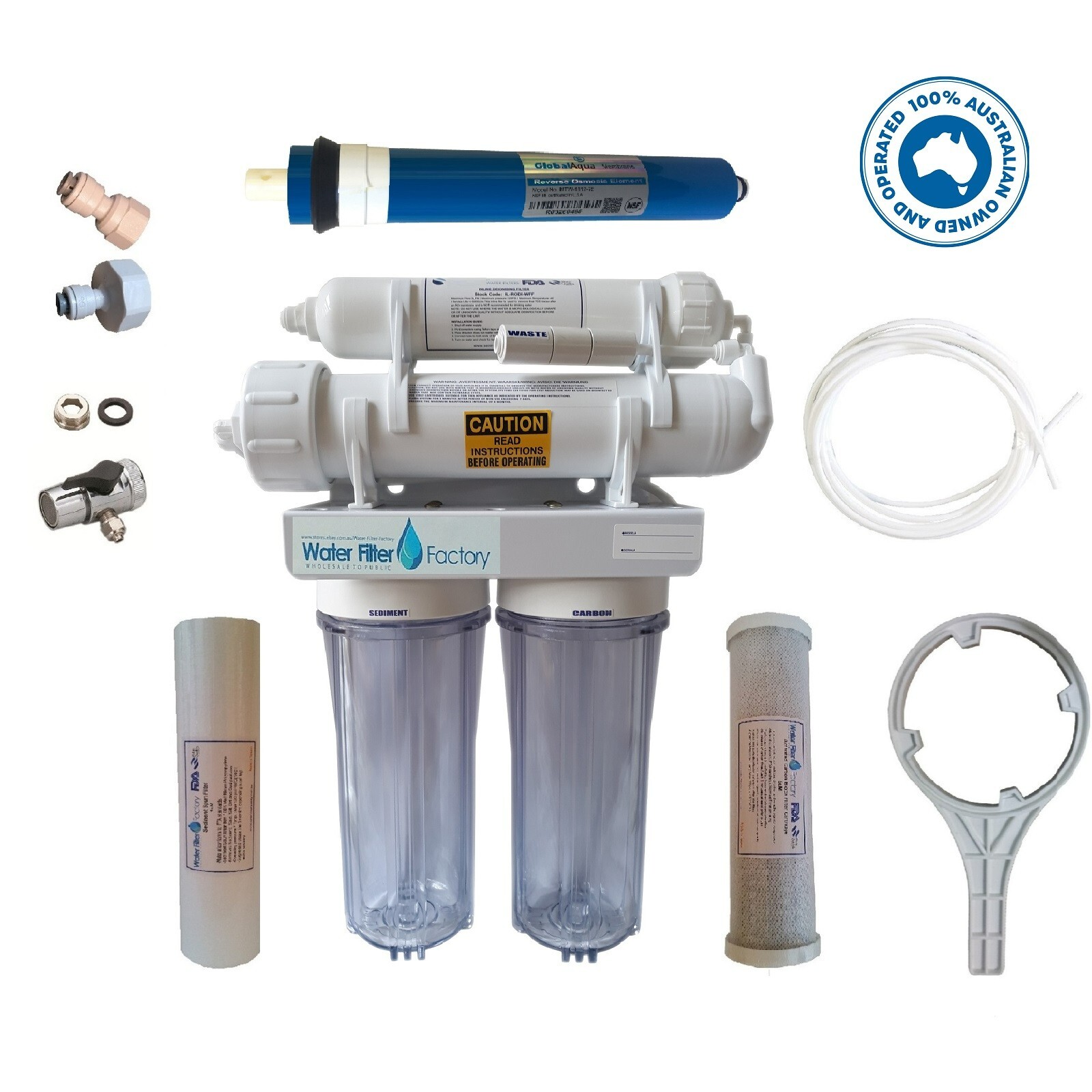

• Powder coated, mild steel folded bracket
• Two 10"x2.5" clear tinted pre-filter housings

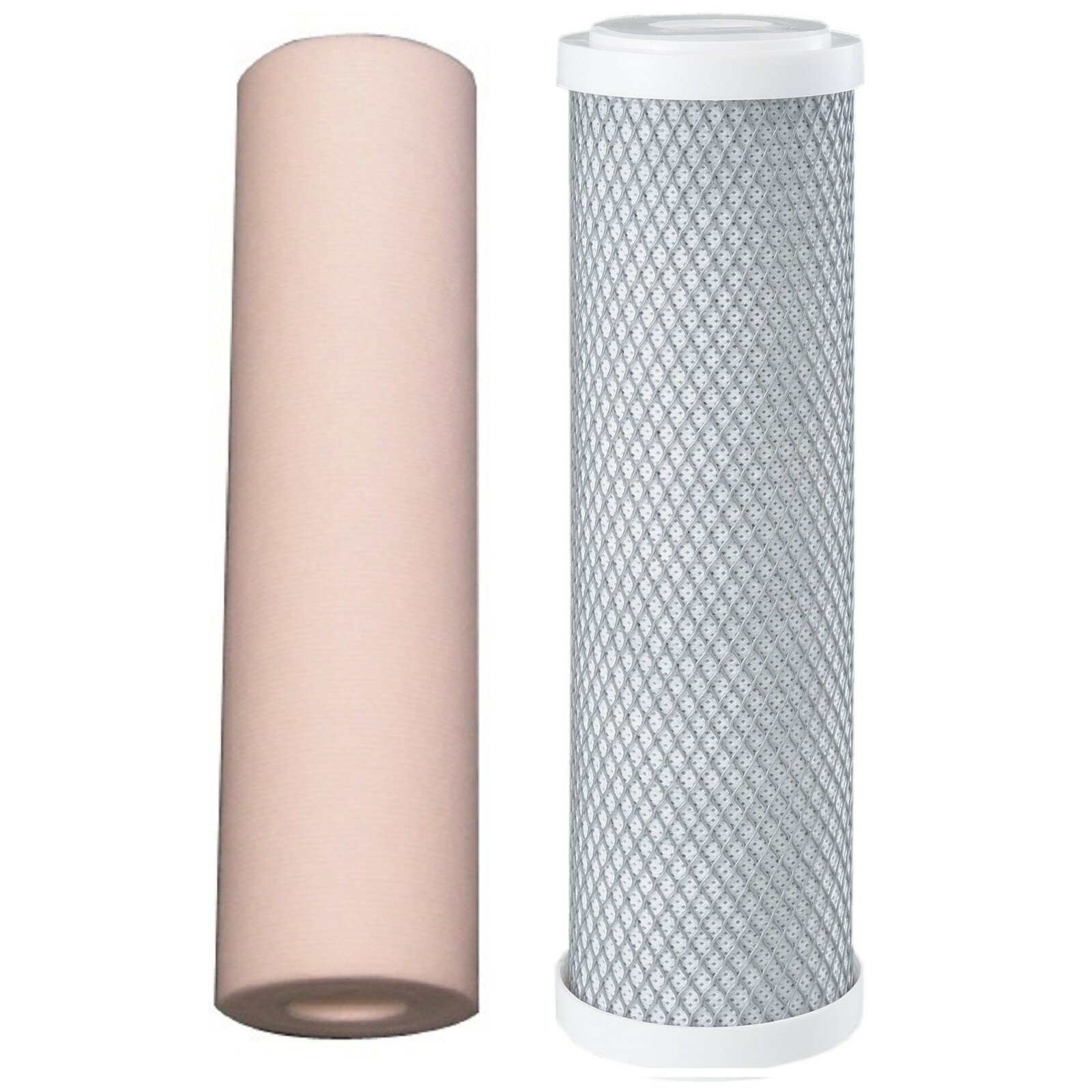

• One 10"x2.5" spun sediment filter
• One 10"x2.5" coconut carbon block

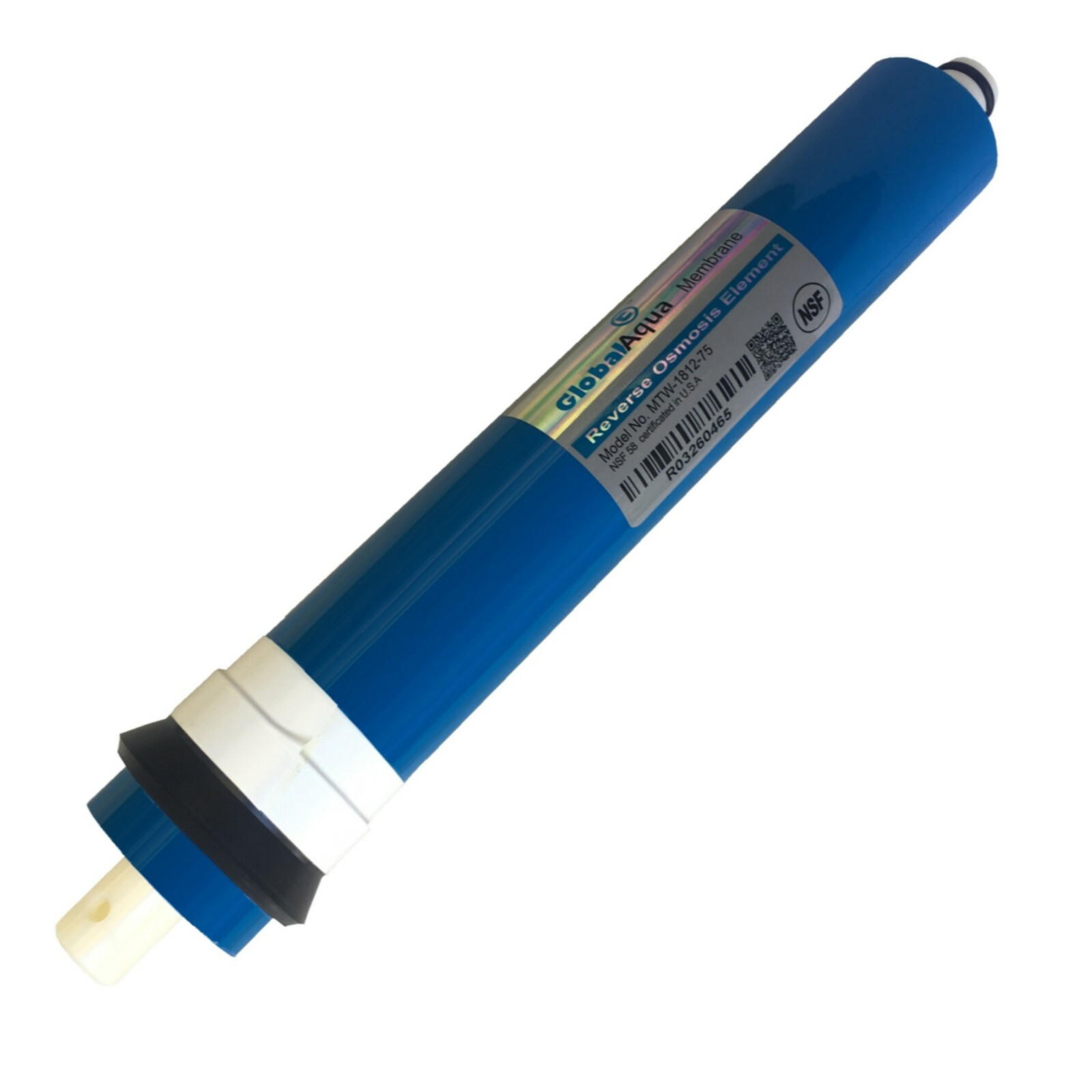

• One NSF certified 75GPD reverse osmosis membrane

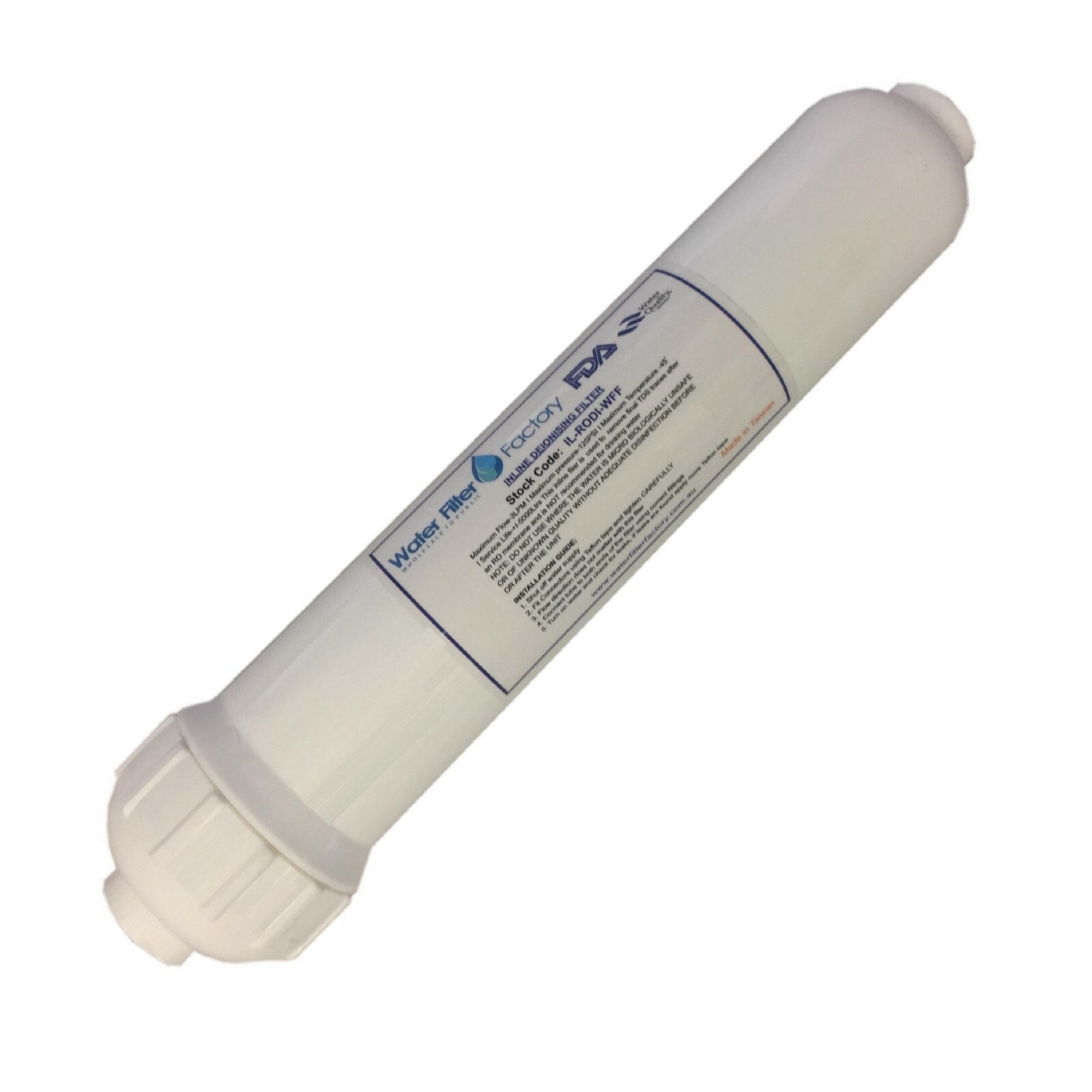

• One post membrane final stage in line resin deionising filter

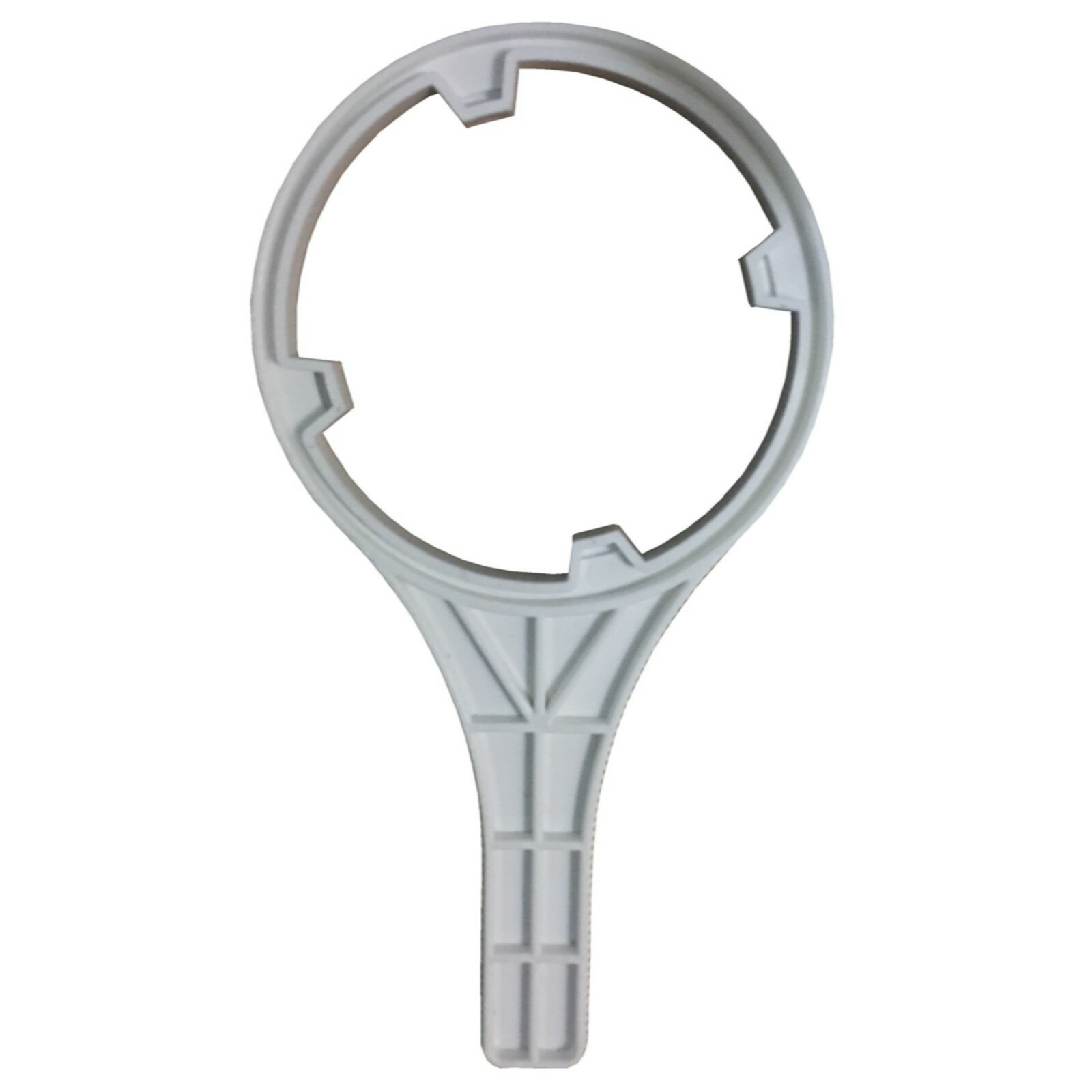

• Opening and closing housing ring spanner
• Both garden tap and sink mixer diverter valve including a thread converter
