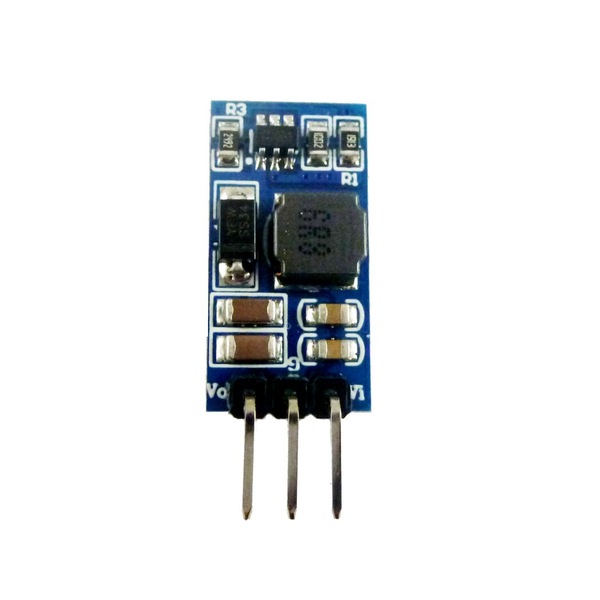

7W mini DC Boost Step-up Converter 2.6-5.5V to 12V no Pin for LED Motor

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
Image 11
Image 12
Image 13
Image 14
Image 15
Image 16
$23.57

Collect 23 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Sold & shipped by Zhongshan Junchang Mould Co Ltd (Direct Import)
Secure ways to pay at checkout
Description:

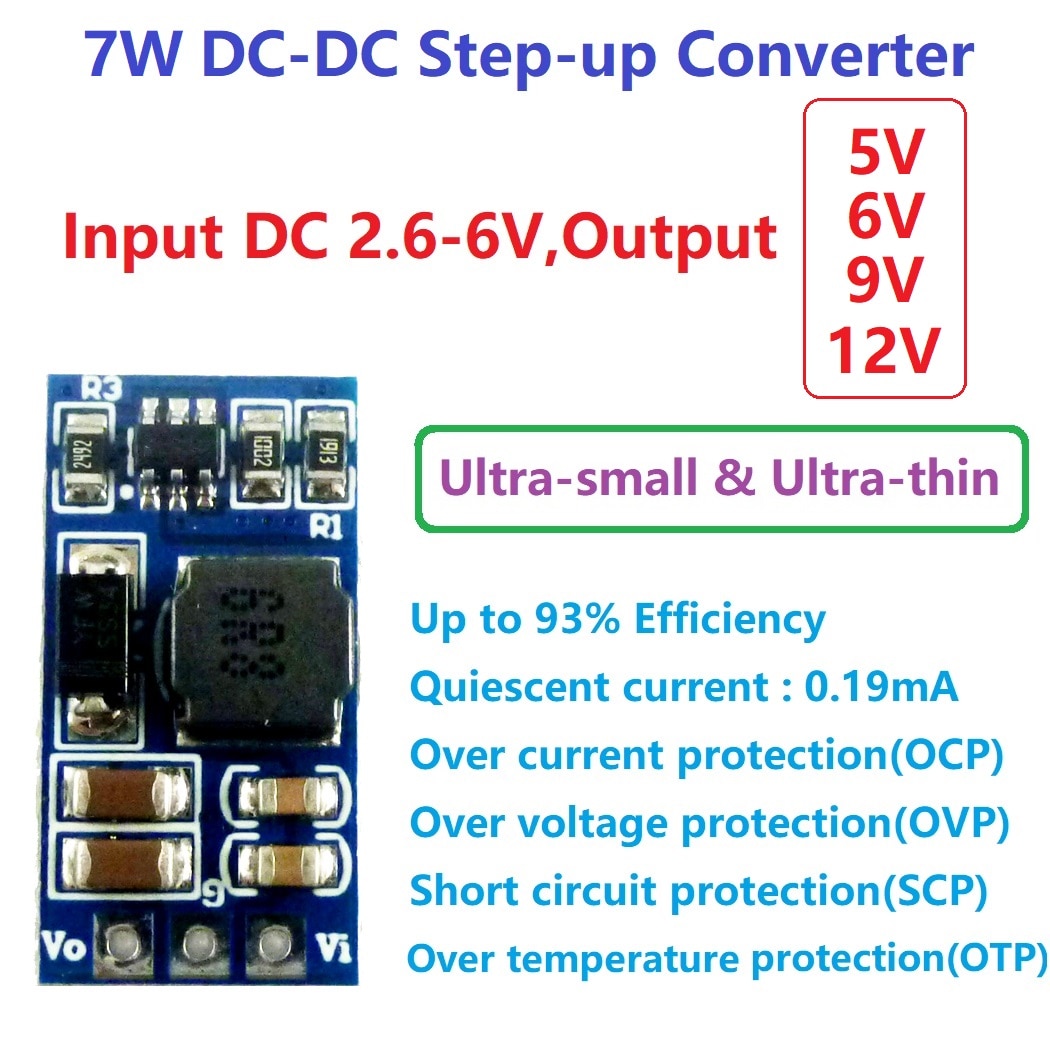

DC DC Boost Converter Module working frequency 1MHZ.
Up to 93% Efficiency (usually is 84%-91%)
Quiescent current : 190uA.

Current Limit Program(0.5-2.5A,Default 1.8A)
Operating temperature range : -40~+85 Degrees Celsius
Storage temperature range : -65~+150 Degrees Celsius
Size : 21 x 11 x 4mm(no Pin)
Weight :? 1.3g(no Pin)
Protection :
Over current protection(OCP)
Over voltage protection(OVP)
Short circuit protection(SCP)
Over temperature protection(OTP)

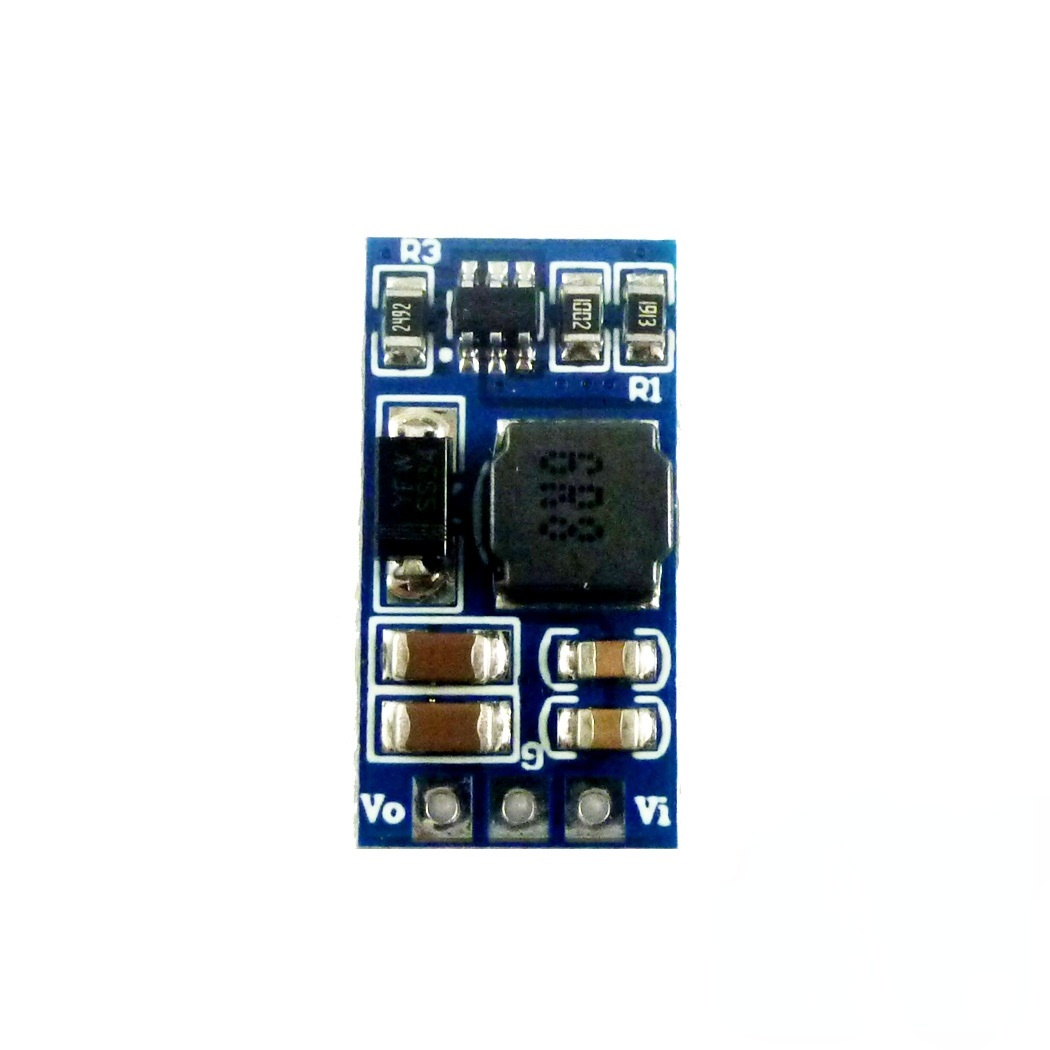

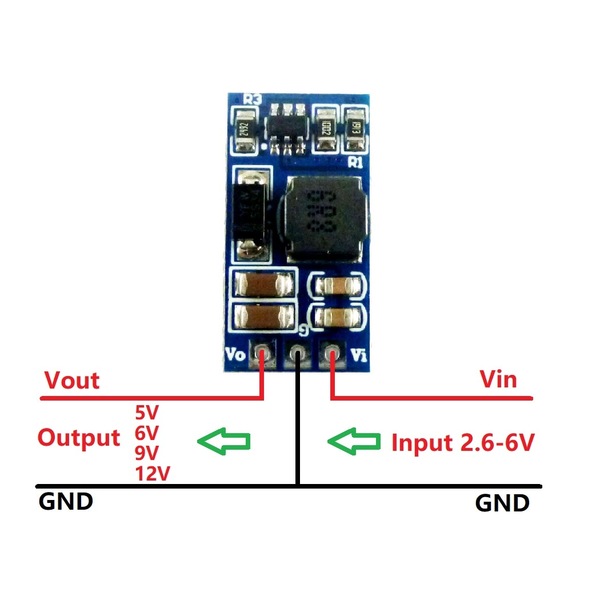

Pin description:
Pin description:
Vi?????? : Input positive(+)
GND? : Input and Output negative(GND/-)
Vo????? : Output positive(+)

Output 12V :
Input voltage DC 2.6 ~ 5.5V,output DC 12V��3%

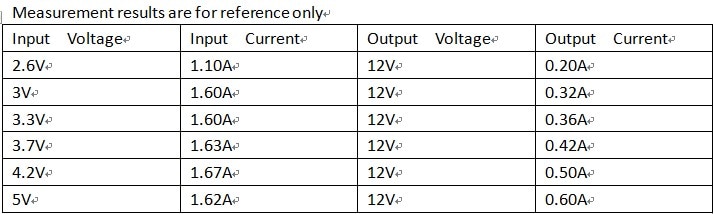

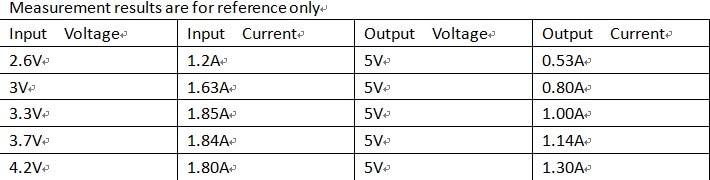

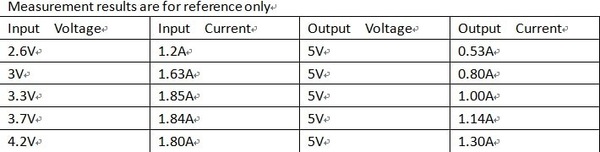

Maximum output : 12V/600MA(See the table below for details)

Applications
Battery powered equipment
Instrumentation, multimeter
Small power motors
PTZ Camera webcam
IP Camera
Toy car boat
Model aircraft
power bank
LED Motor
Solar power
WIFI Router
PLC RS485 devices
Lithium battery power supply equipment
Attention :
This is a DC-DC voltage converter module,Must be noted when using:

1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself

Q & A:

Q : Why output voltage is less than the nominal voltage
A : Input power supply power is too low.Test the input voltage with a multimeter,a t this time of the input voltage is very low

Packing list:
1 PCS 7W ND0412SA mini DC-DC Step-up Boost Converter

Estimated Delivery Time Frame:12-20 business days
