8 bit Digital Switch TTL LvTTL CMOS IO Input UART RS485 Modbus RTU Module

8 bit Digital Switch TTL LvTTL CMOS IO Input UART RS485 Modbus RTU Module

Price	$26.11
	Collect 26 Everyday Rewards points Log in to MyDeal to link your card
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Take 10% Off Purchases Over $29

Exclusive to Zhongshan Junchang Mould Co Ltd (Direct Import) products only. Expires 11.59pm 30/05/2025. Excludes Shipping. Everyday Rewards points will be collected on your total purchase less any discounts. T&C's apply.

Copy code 3EVJB

Quantity

Add to wishlist

Description:

1 Working voltage: DC 12V (6-24V)
2 Working current: 8-12MA
3 MODBUS RTU 03 06 command control mode

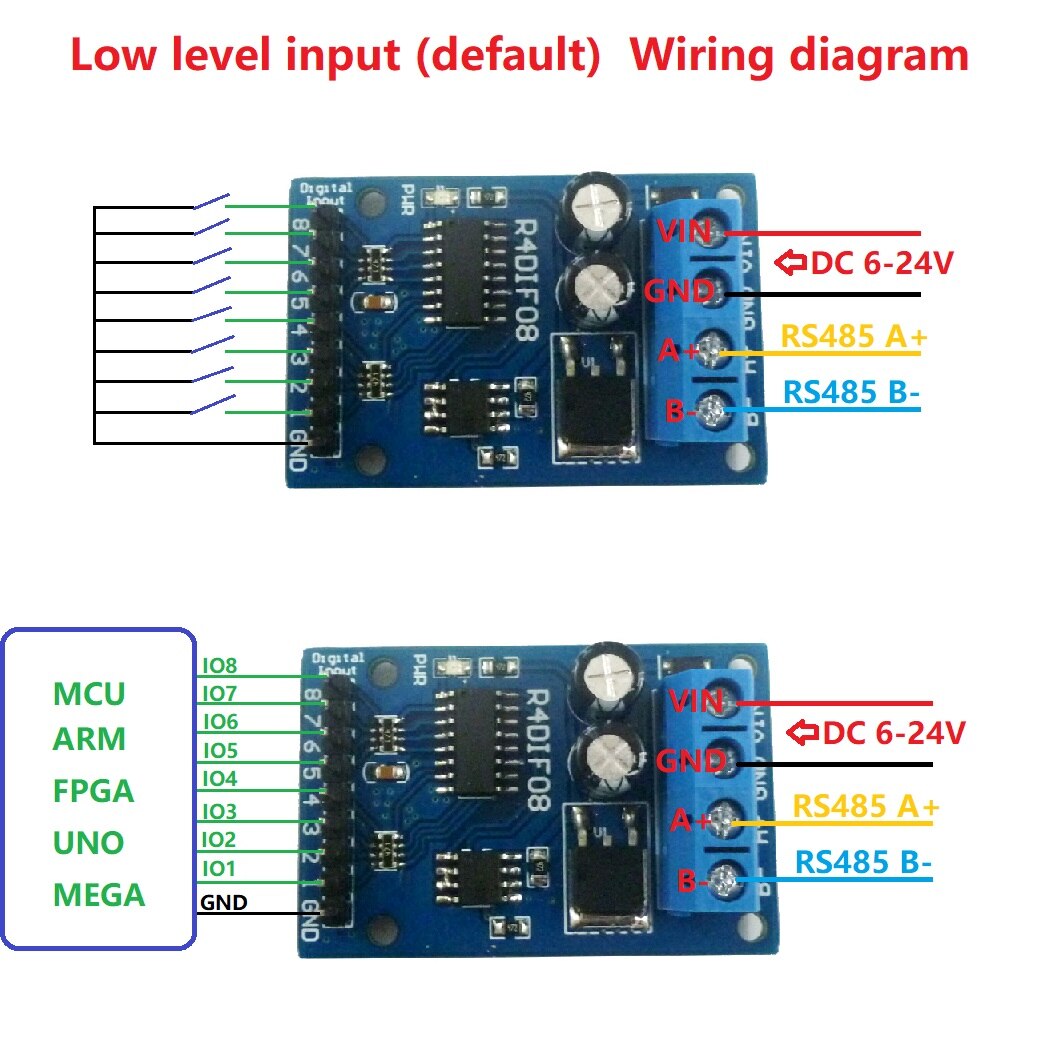

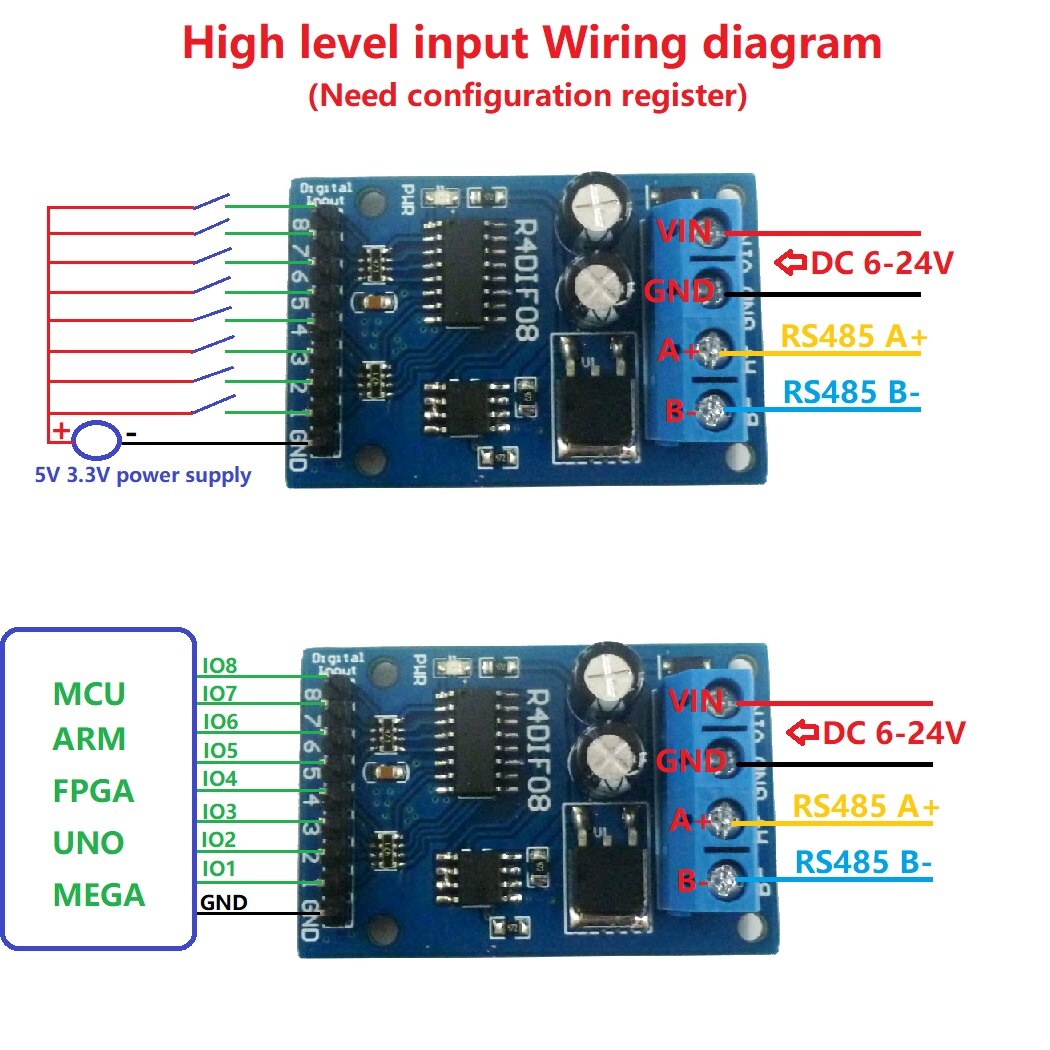

4 There are two input modes: low-level input (default) and high-level input

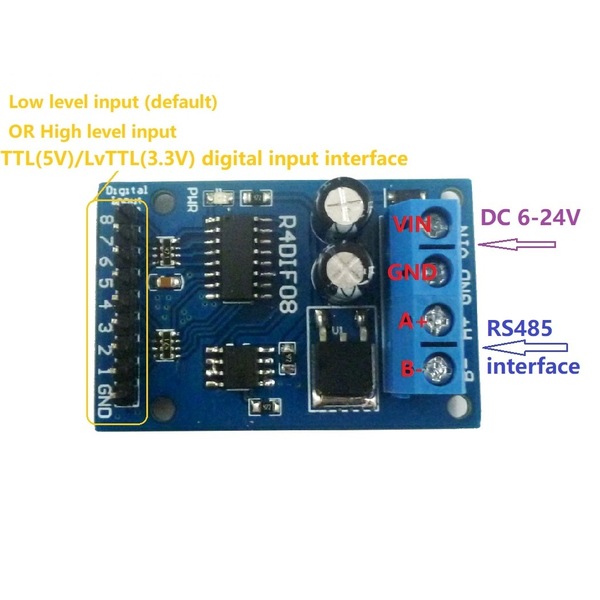

5 Input ports support TTL (5V) /LvTTL(3.3V) and compatible level
6 In MODBUS command mode, it can support up to 247 devices to be used in parallel
7 Input port status supports query (default) and automatic reporting
8 The default baud rate is 9600BPS, which can be configured to support 1200 2400 4800 19200 baud rate
9 Size: 44*29*15
10 Weight: 10 grams

Application??

Automated industry PLC
Digital to RS485
Smart Home,Home Automation ;
Identification system;
CCTV Camera PTZ Control;
Security system;
LED dot matrix screen;
RS485 remote control;

Package inlcuded:1 x 8-channel digital input module
