8 Way HDMI 2.0 18GBPS UHD Splitter
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
Sold Out
Notify me when this product is back in stock
To understand how we handle your personal information, see our Privacy Collection Notice and Privacy Policy.
Notify me when this product is back in stock
To understand how we handle your personal information, see our Privacy Collection Notice and Privacy Policy.

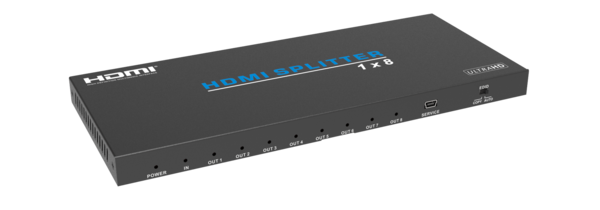

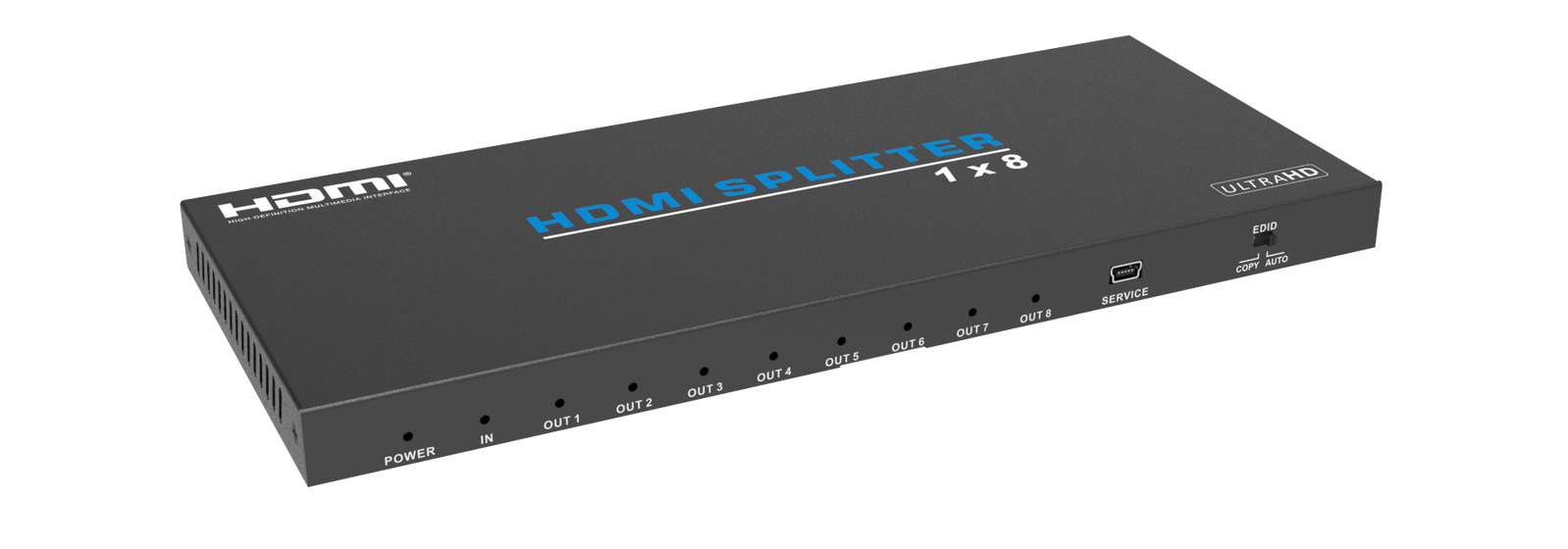

18Gbps 1x8 HDMI Splitter is an advanced solution for splitting single HDMI signal to 8 HDMI outputs synchronously. It supports up to 18Gbps bandwidth, HDMI 2.0b/HDCP 2.2 content up to 4K@60Hz 4:4:4. It can be set the COPY/AUTO EDID configuration. Supporting the latest features you can be assured of reliable and high quality HDMI distribution.
☆ HDMI 2.0b, HDCP 2.2 compliant
☆ Supports 18Gbps bandwidth
☆ Supports resolution up to 4K@60Hz 4:4:4
☆ Supports HDR function
☆ Supports COPY/AUTO EDID control via dialling the dip switch
☆ Compact design for easy and flexible installation
Specifications:
Technical |
|
HDMI Compliance |
HDMI 2.0b |
HDCP Compliance |
HDCP 2.2 |
Video Bandwidth |
594MHz/18Gbps |
Video Resolution |
480i ~1080p50/60Hz, 4Kx2K@24/30Hz, 4k2k@60Hz |
HDMI Audio Formats |
PCM 2CH, LPCM 7.1/5.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos and DTS:X |
ESD Protection |
Human body model—±8kV (Air-gap discharge) &±4kV (Contact discharge) |
Connections |
|
Input Port |
1x HDMI Type A (19-pin female) 1x SERVICE (Micro USB, Update port) |
Output Ports |
8x HDMI Type A (19-pin female) |
Mechanical |
|
Housing |
Metal Enclosure |
Silkscreen Color |
Black |
Dimensions |
243mm (W) x 102mm (D) x 16mm (H) |
Weight |
572g |
Power Supply |
Input: AC100 - 240V 50/60Hz, Output: DC 12V/1A (US/EU standards, CE/FCC/UL certified) |
Power Consumption |
6.15W |
Operation Temperature |
14°F - 122°F / -10°C - 50°C |
Storage temperature |
-4°F - 140°F / -20°C - 60°C |
Relative Humidity |
20 - 90% RH (no condensation) |
12 Month Warranty
GTIN: 9351634008308
Reference ID: 981474
