Features

Drill Hole Style Car HD Rear-View Camera, gives you a full sight of the back of your car when you are - driving

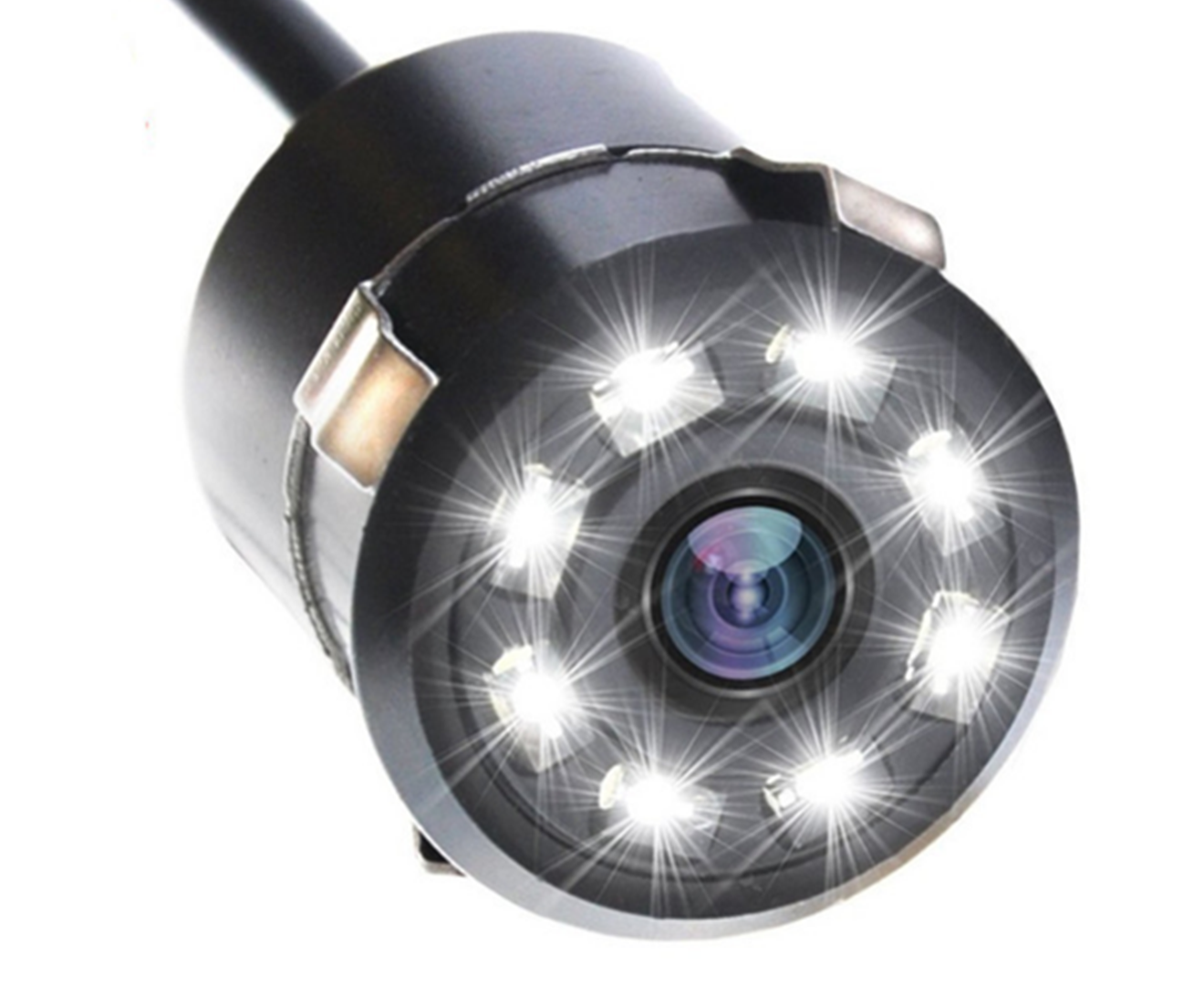

8 LED Bright Night Vision ensures the car driving safety when backup or parking at night

Anti-fog glass, CMOS imaging sensor

Support NTSC video system

With the high sensitivity, you can get rid of the poor rear vision

Use high-quality Chip to make vivid and clear images

Compact design, easy to install and operate

IP68 waterproof design, shock-proof and anti-jamming functions

Applicable to variety of vehicles: car, truck, RV, etc

Can connect to any type of monitor with a composite yellow RCA jack

The Camera can be used as front/side/rear view camera by the white and green control loop wire

The Details

• Image Sensors: PC1030 1/4 Inch Color CMOS
• Sensor Area: 4.08 x 3.12mm
• Shell material: ABS+PC
• Weight: 0.3kg
• Effective Pixels: 648 x 488 Pixels
• LED Quantity: 8 LED
• Lens Angle: 170 degrees
• Image pipeline feature: Auto exposure, AWB, AGC, Auto flicker detection and cancellation
• Video System: NTSC(Automatic throw-over)
• Minimum Illumination: 0.2Lux(0Lux with IR on)
• Scanning System: 2:1 Interlace
• Resolution : 420TV lines
• Electronic Shutter: 1/60(NTSC) / 1/50(PAL)~1/1000s
• Gamma Coefficient: 0.45
• S/N Ratio: andgt;45.6db
• Dynamic Range: andgt; 63.5db
• Waterproof Grade: IP 68
• Operation Temperature: -20��~ +75��
• Storage Temperature: -40��~+85��

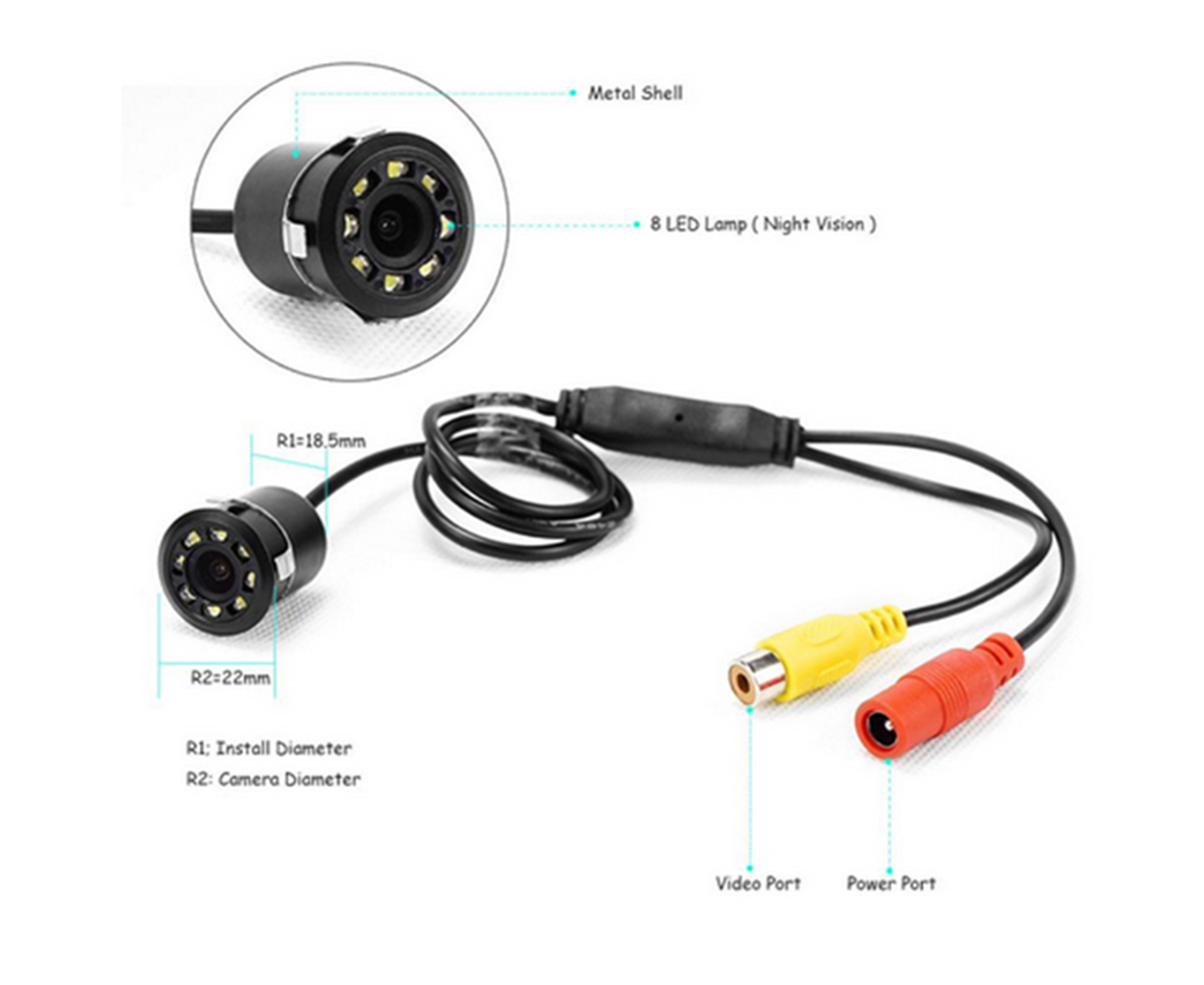

• Video Output: RCA connector, 1.0vp-p, 75Ohm
• Working Power: DC12V
• Current Consumption:60mA
• Video cable length: Approx 6 m/ 236.2 inch
• Power supply cable length: Approx 1.2m/ 47.2 inch

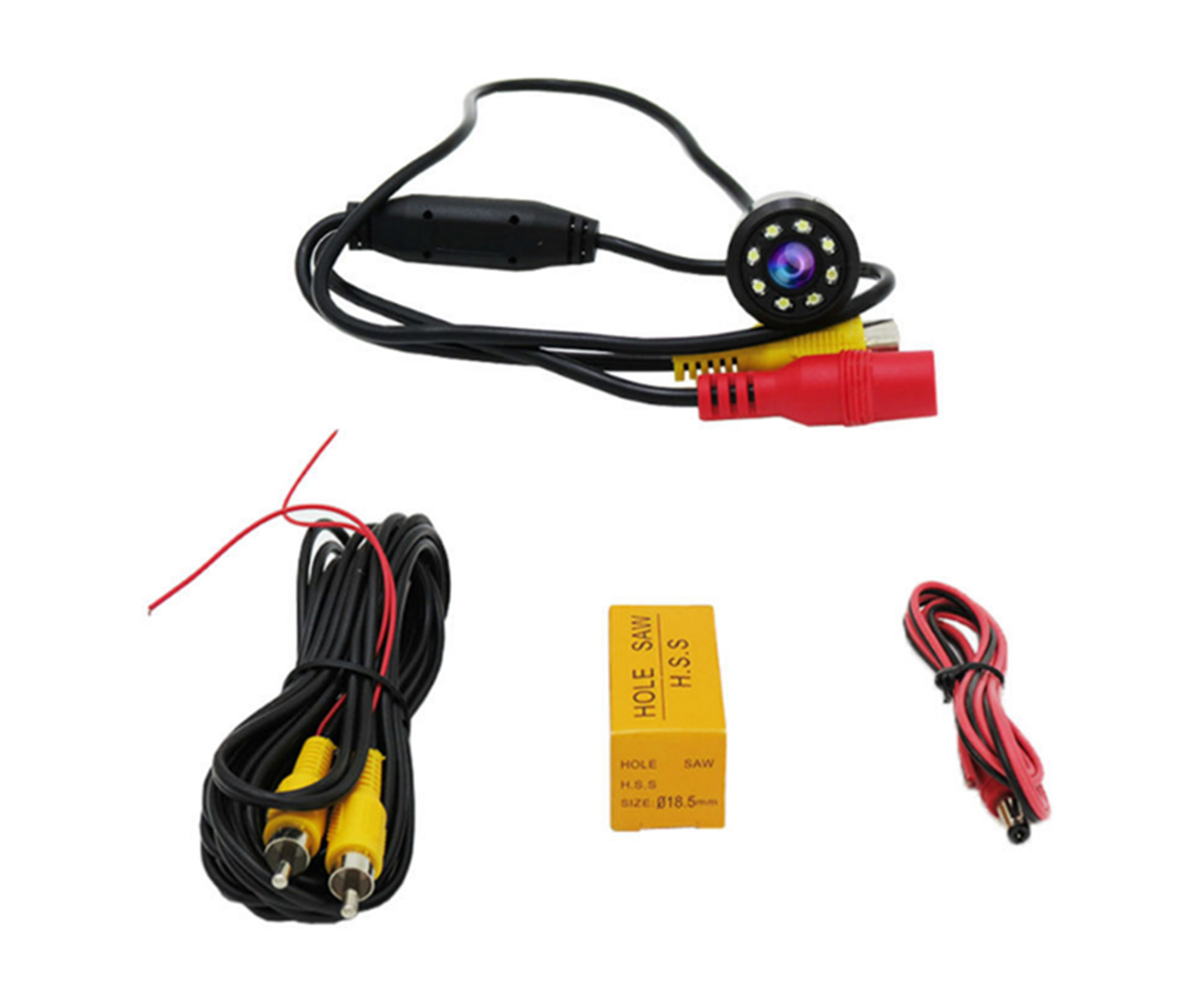

• Including: 1*camera+1*6m video cable+1*1m power cord+1*18.5mm drilling bit
• (does not include other things in the picture)
