9 Port Tp Link Tlsf1009P Desktop Switch With 8 Port Poe Plus
9 PORT TP LINK TLSF1009P DESKTOP SWITCH WITH 8 PORT POE PLUS

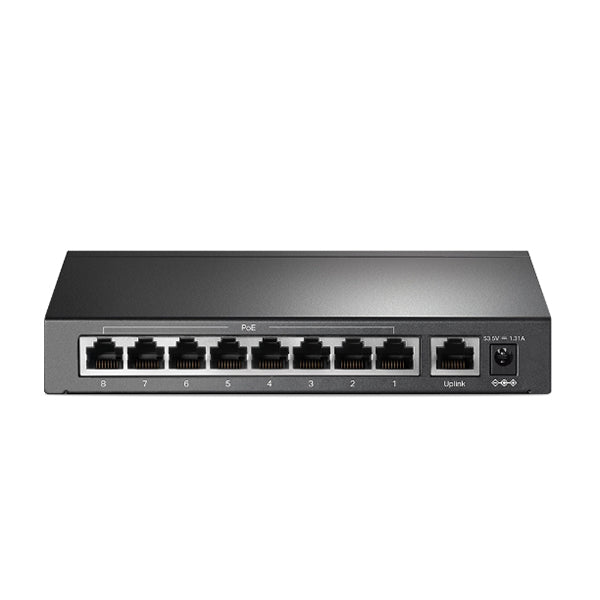

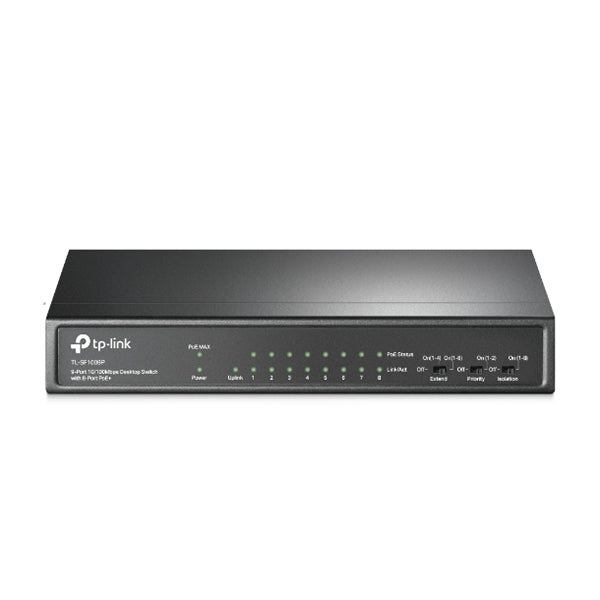

TP-Link TL-SF1009P 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+
FEATURES
9 × 10/100 Mbps RJ45 ports
8 × PoE+ ports transfer data and power on individual cables
Works with IEEE 802.3af/at compliant PDs
Supports PoE Power up to 30 W for each PoE port
Supports PoE Power up to 65 W for 8 PoE ports*
Up to 250 m data and power transmitting range under Extend Mode**
Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
Isolation Mode allows one-click client traffic separation for higher security and performance
Plug and play with no configuration required
Hardware Features
Interface
9 × 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ ports)
AUTO Negotiation
UTO MDI/MDIX
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity: Fanless
Physical Security Lock: Yes
External Power Supply: External Power Adapter (Output: 53.5VDC / 1.31A)
Packet Forwarding Rate: 1.3392 Mpps
PoE Ports (RJ45)
Standard: 802.3 af/at compliant
PoE Ports: Ports 1–8
Power Supply: 65 W
Mac Address Table: 2K
Jumbo Frame: 2 KB
Switching Capacity: 1.8 Gbps
Dimensions ( W x D x H ): 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm)
Max Power Consumption
3.6 (220/50 Hz. no PD connected)
77.08 (220/50 Hz. with 65 W PD connected)
Max Heat Dissipation
12.28 BTU/h (no PD connected)
262.84 BTU/h (with 65 W PD connected)
Software Features
Transmission Method Store-And-Forward
Advanced Functions
Compatible With IEEE 802.3af/at Compliant PDs
Extend Mode Button (Ports 1–4 and Ports 1–8, Up to 250 m PoE power supply and data transmission)
Priority Mode Button (Ports 1–2)
Isolation Mode Button (Ports 1–8)
Mac Address Auto-Learning and Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode
PACKAGE CONTENT
1 x 9 Port Tp Link Tlsf1009P Desktop Switch With 8 Port Poe Plus
