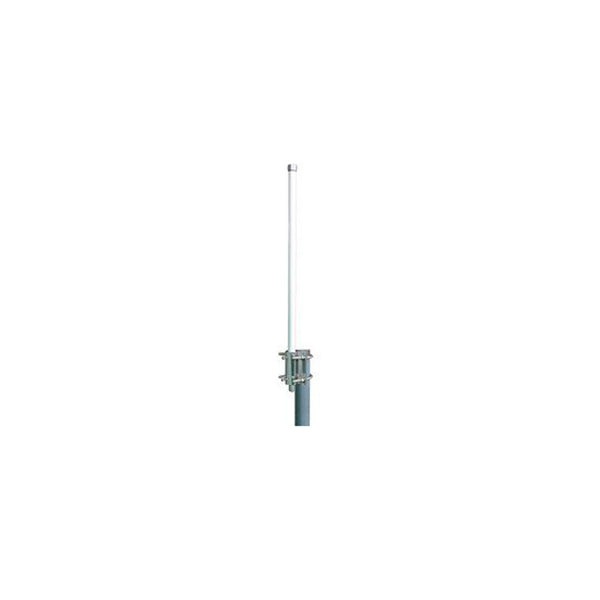

900 MHZ 6 DBI HIGH PERFORMANCE OMNIDIRECTIONAL ANTENNA - HG906UP-NF
The 900 mhz up-series are lightweight, slim, high performance omni-directional antennas designed for the 900 mhz ism band. They are ideally suited for multipoint, non line of sight (nlos) and mobile applications where compact size, high gain and wide coverage is desired. Typical applications include 900 mhz wireless lan, scada, wireless video links and 900 mhz cellular band applications.
The up-series antennas feature an integral n-female type connector and include a mast mounting kit. The kit consists of an extruded aluminum bracket and a pair of u-bolts which allows installation on masts up to 2.0” in diameter. To ease installation, the bracket can be installed first without the antenna which can then be mounted after the bracket is installed.
The up-series antennas feature a slim 20 mm diameter white uv-stable fiberglass radome for durability and aesthetics. It is designed with a sealed aluminum end cap and includes drain holes at the aluminum base to help prevent condensation build-up inside the antenna providing trouble-free performance.
FEATURES
Superior all weather performance
Rugged industrial grade design
Lightweight fiberglass radome
Integral N-Female connector
Heavy-duty steel mounting bracket
900 MHz ISM Band & Wireless LAN systems
Multipoint applications
Non Line of Sight (NLOS)
LPWAN, LoRaWAN, IoT, M2M and GSM applications
SPECIFICATIONS
Frequency Range: 902-928 MHz
Gain: 6dBi
Polarisation: Vertical
Vertical Beamwidth: 35deg
Horizontal Beam Width: 360deg
Impedance: 50 Ohm
Max. Input Power: 50 Watts
VSWR (avg.): < 1.6:1
Connector Type: N-Type Female
Dimensions: 585mm x 25mm
Pole Mount Diameter: 30-50mm dia
Operating Temperature: -40° C to 60° C
Rated Wind Velocity (max.): 130 MPH (210km/h)
RoHS Compliant: Yes
PACKAGE CONTENT
1 x 900 Mhz 6 Dbi High Performance Omnidirectional Antenna Hg906Up Nf
1 x Extruded aluminum bracket and a pair of U-bolts
