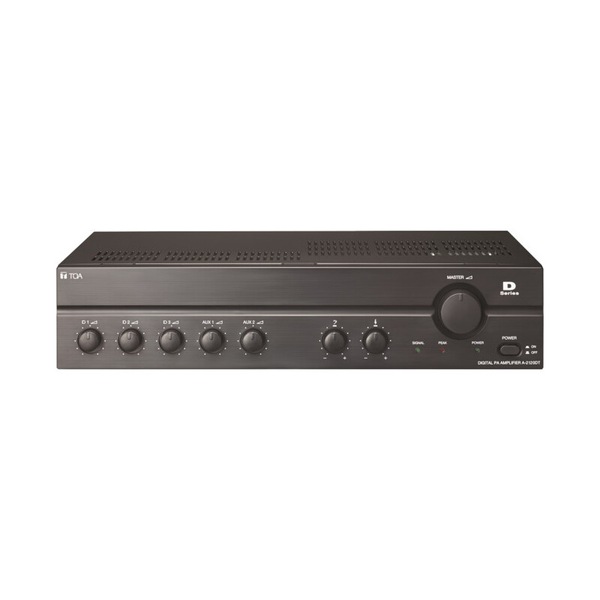

A2120DT TOA 120W 100V Line Only PA Amp Vox Muting and Tones 100 Volt Output TOA 120W 100V LINE

Image 1
Image 2
Shop More Products
A2120DT
120W A-2000D Series 100v ( only )mixer amplifier with Tones

The A-2000D series is a range of high performance digital mixer power amplifiers suited for broadcasting paging and/or background music in schools, retail shops, offices, factories, houses of

worship and large function rooms.

The A2120DT Mixer Power Amplifiers is designed to be a highly cost effective solution to the demands of PA applications.

The A2120DT has 6 tones via contact trigger ( Chime, Bell, Evac, Alert, Lockdown and all clear )

. The A-2000 series makes available a wide range of power outputs (A-2030D: 30W, A-2060D: 60W, A-2120D: 120W, A-2240D: 240W), with a frequency response of 50 - 20,000 Hz and distortion under 1%.

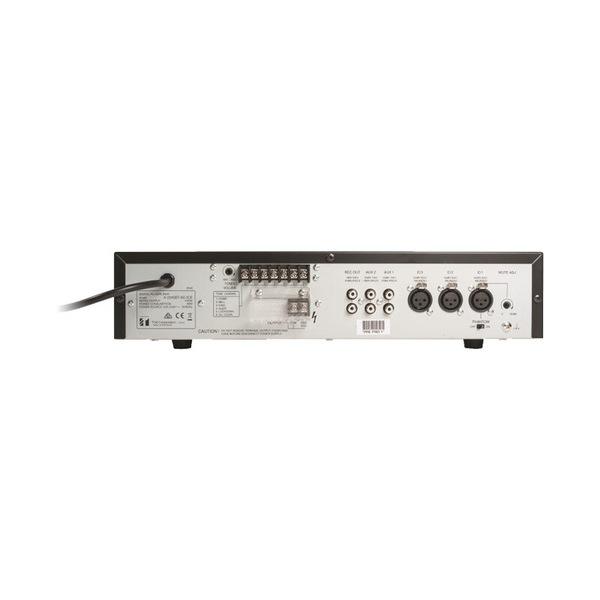

Three balanced/XLR3-31 type MIC inputs and two unbalanced/RCA pin jack AUX inputs, along with high impedance balanced (floating) speaker outputs and unbalanced REC outputs ensure operational versatility.

Phantom power and Vox muting are available on MIC 1, along with tone control for bass and treble.

Power, signal and peak indicators are provided.

All 2000D Series Mixer Amplifiers Feature:
  • 100 volt, output
  • 3 balanced XLR microphone inputs with phantom power onmic 1
  • Vox muting on mic 1
  • 6 tones via contact trigger ( Chime, Bell, Evac, Alert, Lockdown and all clear )
  • Bass and treble control with boost and cut
  • 50Hz to 20kHz frequency response
  • 240VAC or 24VDC operation
  • Rack mountable with MB25B brackets
  • 3 year warranty
Specifications
MODEL A2120DT
Power Source 220 - 240V AC, 50/60 Hz
Rated Output

120 watt

Power Consumption 34W (AC operation at 1/8 maximum output without clip)
Frequency Response 50 - 20,000Hz (±3dB)
Distortion Under 1% at 1 kHz, 1/3 rated power
Input

MIC 1 - 3: -60dB*, 600, Balanced, 3P XLR

AUX 1, 2: -20dB*, 10 k, Unbalanced, RCA pin jack

Output

Speaker out: Balanced (Floating) High Impedance: 83 (100V)

Rec out: 0 dB*, 600, Unbalanced, RCA pin jack

Tones 6 tones via contact trigger ( Chime, Bell, Evac, Alert, Lockdown and all clear )
Phantom Power DC +21V (MIC 1)
Signal to noise ratio Over 60dB
Tone Control Bass: ±10dB at 100Hz/Treble: ±10dB at 10kHz
Muting MIC 1: Mutes other input signals by 0 - 30dB attenuation
Indicator Power LED, peak LED, signal LED
Dimensions 420 (W) × 100.6 (H) × 280.3 (D) mm
Weight 4.6 kg
*0dB = 1V _
