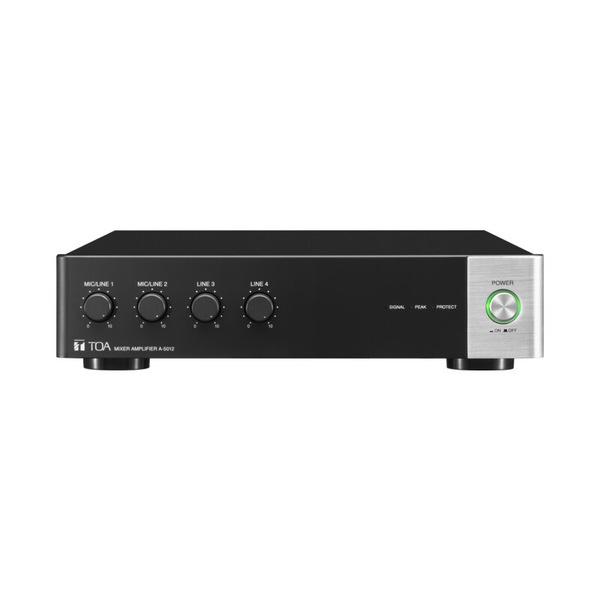

The A-5012 is a half-rack 1-unit size 120W desktop mixer power amplifier.
Inputs 1 and 2 can be set for either MIC or LINE sound sources, and its output is compatible with both high-impedance (100 V and 70 V lines) and low-impedance (4 ) speaker connections.
Functions can be set with a PC using the dedicated setting software.
The A-5012 is ideal for use as a mixer amplifier in smallcommercial facilities and conference rooms.
With the use of an optional rack mounting bracket, it canbe mounted in an EIA Standard equipmentrack (1 unit size)
Power Source | 100-240 V AC, 50/60 Hz |
---|---|
Rated Output | 120 W |
Power/CurrentConsumption | 207 W (rated output), 39 W (based on cULus standards) Max. 3 A |
Frequency Response | 50 Hz - 20 kHz (1/8 rated output) |
Distortion | 1 % or less (1 kHz, rated output) |

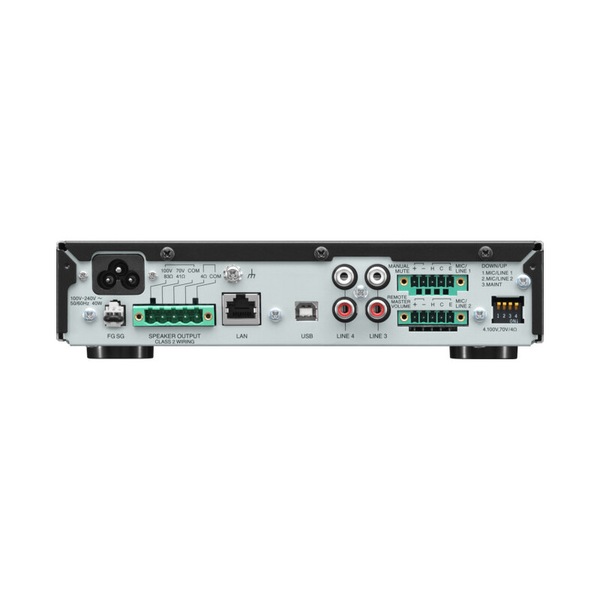

Input | INPUT 1, 2: MIC -60 dB(*1) LINE -20 dB(*1) MIC/LINE selectable 2.2 k, electronically-balanced, removable terminal block (5 pins) INPUT 3, 4: LINE -20 dB(*1), 10 k, unbalanced, RCA pin jack |
Output | SPEAKER: 4 , 70 V (42 ), 100 V (83 ), removable terminal block (5 pins) |
Signal to Noise Ratio | MIC 1, 2: 50 dB or more LINE 1 - 4: 70 dB or more (A-weighted) |
Function | Parametric equalizer: 5 points settable on each input and output 20 Hz - 20 kHz ±15 dB Q: 0.267 - 69.249 Compressor: ON/OFF settable on Inputs 1 and 2 (OFF by default) Threshold, Ratio, Attack time, Release time, and Gain are settable independently on each input. |
Control | Mute control, Remote master volume control, Power ON/OFF switch, Ground lift |
LED Indicator | Power indicator, Signal indicator, Peak indicator,Protect indicator |
Network I/F | 100BASE-TX |
Operating Temperature | 0 °C to +40 °C |
Operating Humidity | 35 % to 80 % RH (no condensation) |
Finish | Panel: PS resin, black Case: Surface-treated steel plate, black, paint |
Dimensions | 210 (W) × 52.5 (H) × 375 (D) mm (8.27× 2.07" × 14.76")" |
Weight | 3.9 kg (8.6 lb) |
Accessory | CD (setting software) x 1, Large type removable terminal plug (5 pins) x 1, Small type removable terminal plug (5 pins) x 2, Plain washer (*2) x 6, Bracket mounting screw (M3 x 10) (*2) x 6, Power supply cord (2 m (6.56 ft)) x 1 |
Option | Half width blank panel: MB-15B-BK (for rack mounting one A-5012 unit) (*2) Rack joint bracket: MB-15B-J (for rack mounting two A-5012 units) (*2) Rack runner: YA-706 |
