Abeeway Lorawan As923 Smart Iot Gps Tracker Badge With Panic Button

Image 1
Best Price in the Last 14 Days
$89.95
You save 10%Was $99.95

Collect 89 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Sold & shipped by Crazy Sales Australia
Secure ways to pay at checkout

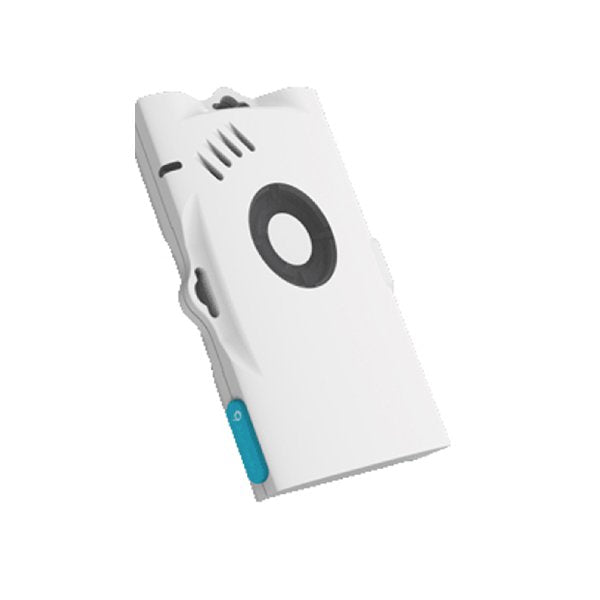

ABEEWAY LORAWAN AS923 SMART IOT GPS TRACKER BADGE WITH PANIC BUTTON

Abeeway LoRaWAN AS923 Smart IoT GPS Tracker Badge with Panic Button. The Abeeway Smart Badge is a portable multi-mode IoT GPS tracker in ID card format with embedded sensors combining multi-constellation GNSS, Low-power GPS, Wi-Fi Sniffer, BLE and LoRaWAN® TDoA geolocation technologies, supporting seamless outdoor and indoor geolocation.

This device is ideal for contact back-tracing, zone notification and monitoring of workforce safety and security. Simple to use, a single button gives you access to the numerous functionalities you may personalize for your needs, e.g. as a Panic/SOS Button. A local zoning feature is able to signal danger zones with a 96 dBa buzzer. It has a robust, industrial grade magnetic connector for recharging the battery, and optional multi-slot charging/upgrade dock.

Please note that this device does not include a data/power cable. This will need to be purchased separately. See related products below.

Need help selecting the right IoT solution?

Go Wireless NZ now offers a full consultation service through its subsidiary company Scopious IoT Ltd to help you to start building your IoT network today. We now offer a full service, including everything from the LoRaWAN Network Server, automated bulk provisioning of gateways and devices, simple field force onboarding tools, vendor relationships for IoT hardware design services, Integrations and API’s for third party connectivity.

FEATURES

Motion Tracking: Real-time position when motion is detected

Permanent tracking: Regular interval real time position

Start/End motion tracking: Receive position messages during motion start and end events

Fix on demand: Obtain tracker position when needed (very low power operating mode)

Activity tracking: Monitor activity rate with embedded sensors

Dust-proof and powerful water jets - (IP 65)

LoRaWANTM Class A radio

Geofencing zone detection

Proximity detection

SPECIFICATIONS

Size: 90mm x 65 mm x 11 mm (L x l x h)

Weight: 64g

IP Rating: IP65

Operating temperatures: -10°C to 55°C

Charging temperatures: 0°C to 45°C

Storage temperature: 10°C to 30°C (recommended)

Time storage: max 6 months

Humidity: 5% to 95% non-condensing

GNSS Position Accuracy: (50%-90%) 10 to 20 meters

Time To First Fix: Cold start 30-50 seconds

Hot start: 5 seconds

Acquisition sensitivity: -140 dBm

Position Accuracy: (50%-90%) 15 - 30 meters

Time To First Fix: 10 seconds

Acquisition sensitivity: -144 dBm

Indoor and Deep Urban Position Accuracy: 20 - 50 meters

Time to get a position: 3 seconds

Sensitivity: -86 dBm

BLE Indoor Position Accuracy: 5 - 15 m

Time to get a position: 1 second

LoRaWAN® Modem: Semtech SX1261 transceiver

Protocol: LoRaWAN Class A

LoRaWAN® frequency: AS923MHz

Configuration supported LoRaWAN®: OTA or ABP

RF power: 14 dBm / 18 dBm (max)

Min sensitivity: -130 dBm in SF 10

LoRaWAN® receiver: -135 dBm in SF 12

Wi-Fi Frequency band: 2412 – 2472MHz

BLE sensitivity: -88 dBm

BLE RF output power: 4 dBm max

BLE frequency band: 2402 – 2480MHz

Radio regulatory certification: EC, FCC, IC, TELEC, IMDA

PACKAGE CONTENTS

1 x Abeeway Lorawan As923 Smart Iot Gps Tracker Badge With Panic Button ( Charge  cable not included)

SKU: DEABE309-20-4AS
