Description：

Supports multiple WAN connections and dual-link redundant backup, providing enterprise-level firewall and VPN security protection, and easily builds a high-speed and stable home or small and medium-sized enterprise network. Integrated with dual-mode VDSL2/ADSL2+ access, it is compatible with mainstream broadband standards worldwide (such as G.993.2/30a/G.INP, etc.). Dual-band Wi-Fi (2.4G+5G) supports 802.11ac/a/n protocols, and 2x2 MIMO achieves gigabit wireless coverage. Equipped with 4 Gigabit LAN ports, 2 USB ports, and dual FXS voice ports, it supports SIP/VoIP calls and T.38 fax, and has a built-in TR069 remote management system. With a simple design and built-in antennas, it is plug-and-play and easy to deploy. It has passed CE/FCC certifications and has strong future expandability.

Features: Multiple WAN connections, firewall security, user-friendly setup, fast and reliable home networking, dual-failover redundancy and future-proof connections, free ACS/TR069 network management.

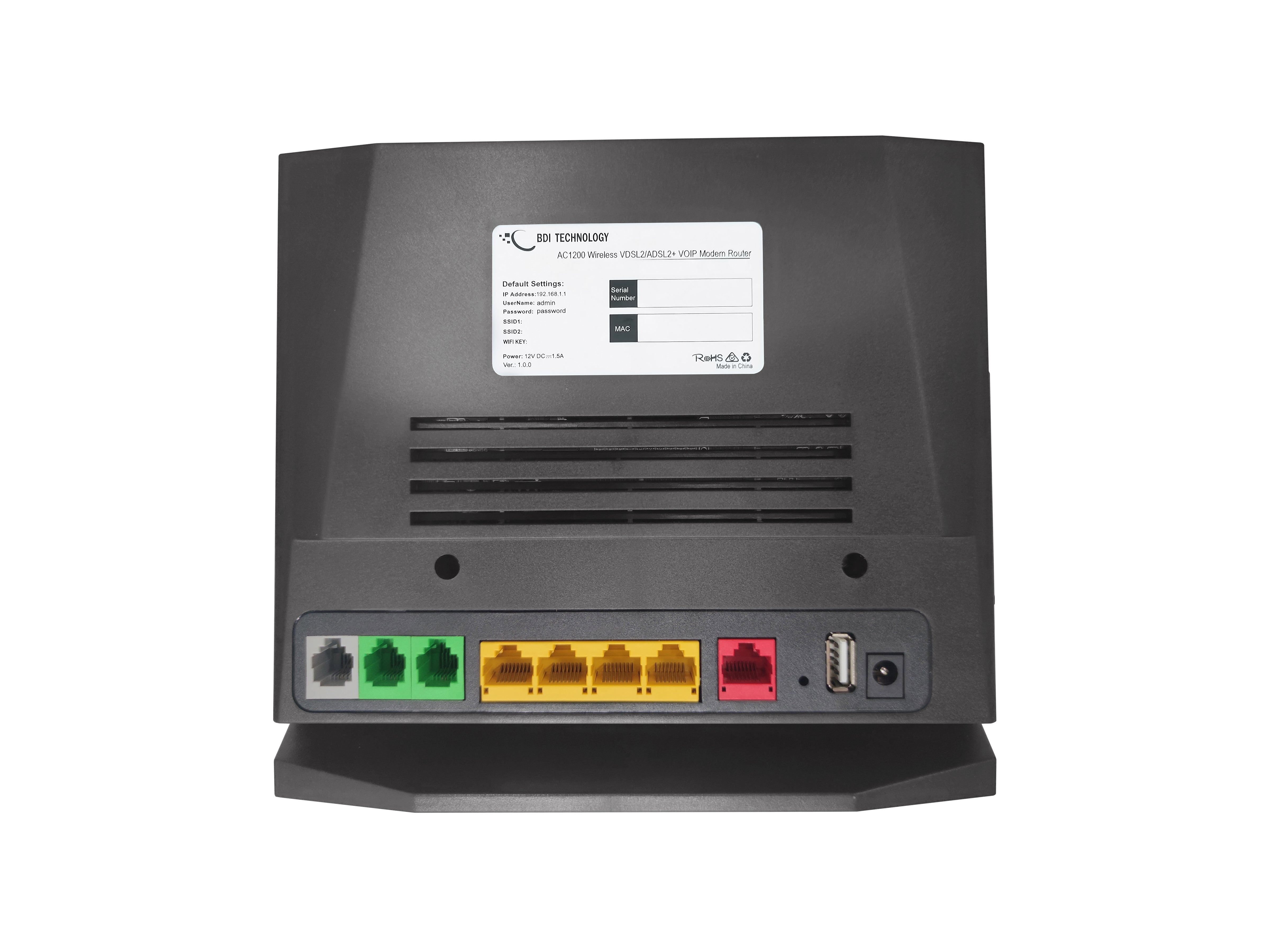

Interface: 1*10/100/1000Mbps RJ-45 WAN port
1*RJ-11 VDSL2/ADSL2+ port
4*10/100/1000Mbps RJ-45 LAN ports
2*RJ-11 FXS ports
2*USB ports

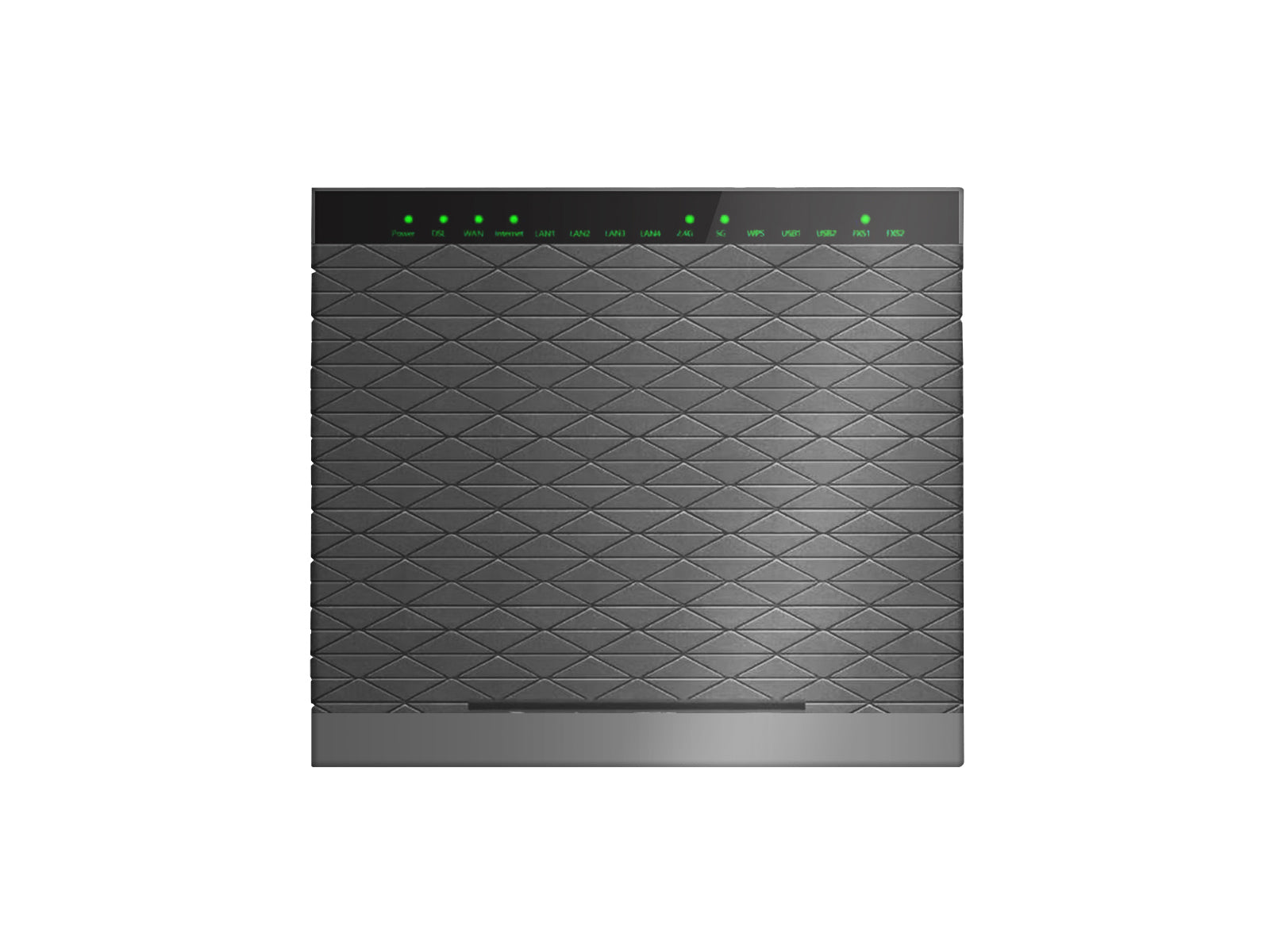

LEDs: Power, Broadband, Internet, WLAN, WPS, Phone, USB
Antenna: nternal antennas
VDSL Standards: ITU-T G.993.2 VDSL2
8a,8b,12a,12b,17a,30a profile
G.vector
ATM and PTM
G.INP
ADSL Standards: G.992.1 (G.dmt), G.992.2 (G.lite),
G.992.3 (ADSL2),G.994.1(G.hs),
G.992.5 (ADSL2+) ,G.997.1
ADSL physical connection ATM AAL5
AAL5 (RFC2684/1483)
Wi-Fi: Frequency: 2.4 GHz, 5GHz
IEEE 802.11a/n/ac Wi-Fi @ 5GHz(2x2)
IEEE 802.11b/g/n Wi-Fi @ 2.4GHz(2x2)
WEP/WPA/WPA2 Security
VOIP: HTTP Authentication: Basic and Digest Access Authentication.
RTP Payload for DTMF Digits, Telephony Tones and Telephony Signals
SIP
T.38：Procedures for real-time Group 3 facsimile communication over IP networks
Certification: CE FCC

Packaging:
1 x Router DS244WTV-V2 entity
1 x Packaging box
1 x Power source
1 x User manual
1 x Ethernet cable
1 x Telephone line
