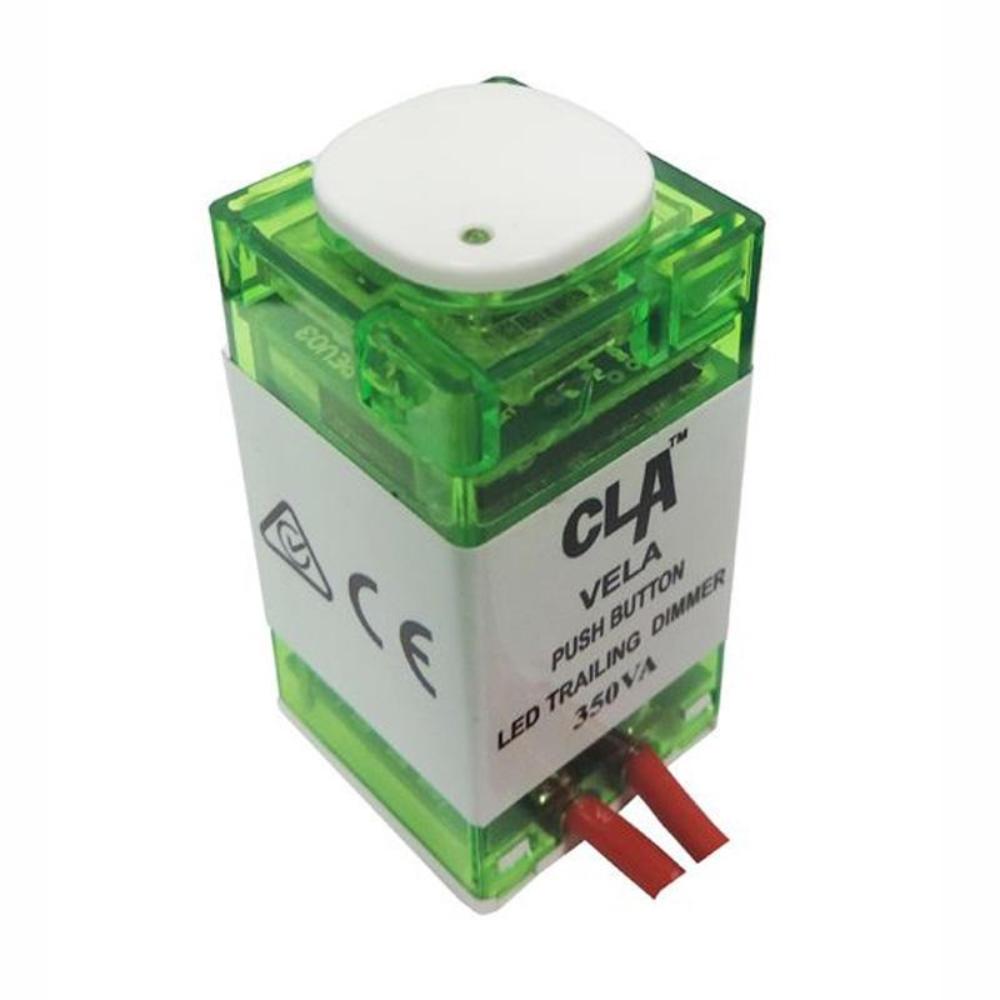

ACC: Push Button LED Trailing Dimmer w/ Round/Square Edge Face CLA Lighting - PL-VELA

Image 1
Image 2
Image 3
$66.05

Collect 66 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by The Lighting Outlet
Secure ways to pay at checkout
Features:
  • Soft start
  • Overload protection & short circuit protection
  • Easy to mount in most Australian plates
  • Suitable for dimming dimmable LED globes, incandescent globes, high voltage halogen globes, electronic transformers with low voltage halogen globes
  • Long press dimming button to dim
  • Short press dimming button to on/off

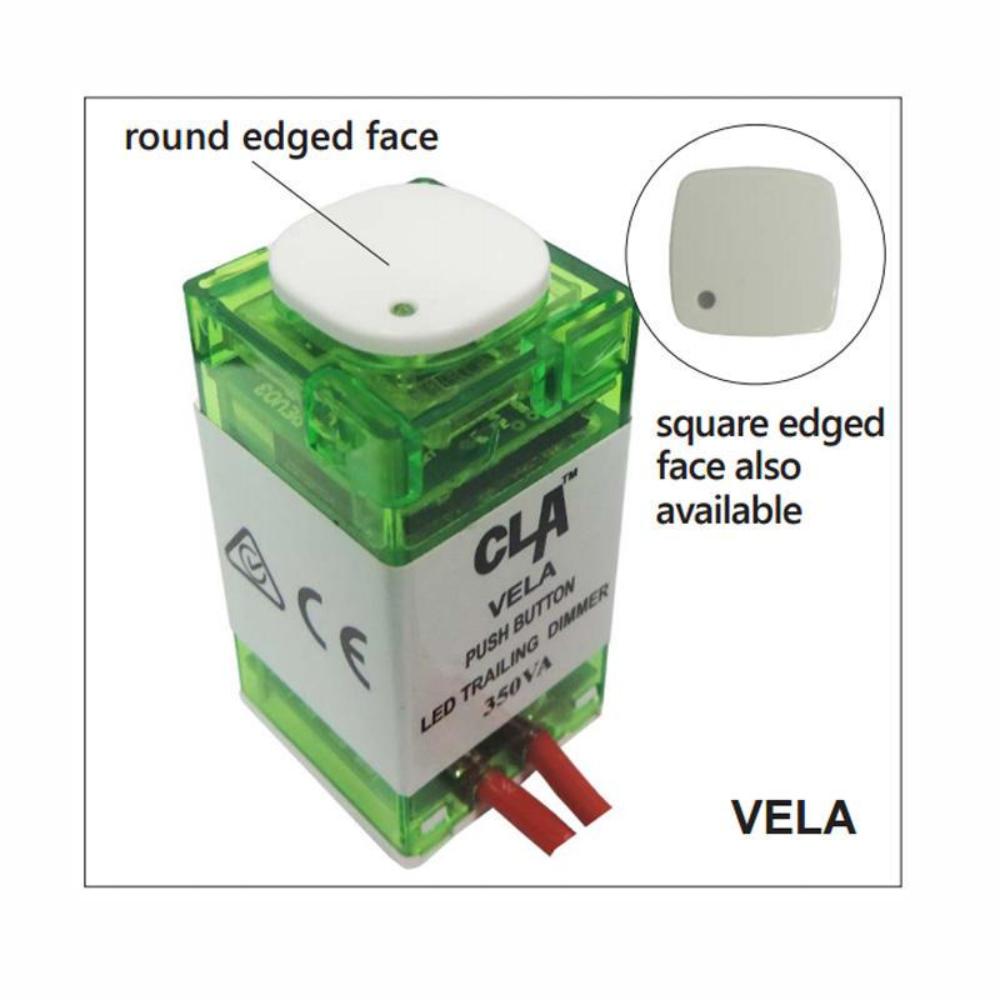

  • Comes with 2 face caps round & square edged to suit most Australian plates
  • IP rating: IP20
  • 3 year replacement warranty
  • Suitable for 2 way switching
Programming:
Minimum brightness setting
(1) Remove the top cap
(2) Long press programming button until LED flashes slowly
(3) Long press dimming button to set level
(4) Double press dimming button to exit programming mode

Maximum brightness settting
(1) Remove the top cap
(2) Long press programming button until LED flashes, short press programming button, until LED starts to flash fast
(3) Long press dimming button to set level
(4) Double press dimming button to exit program mode

Technical Data:

● Rated voltage & frequency _ 220-240V AC 50Hz
● Rated Power 5-350VA
● Hi-Pot Applying 3KVrms voltage between the surface of the button of the unit against its opening ends of two fly wires which are electrically connected together, the unit will not have trigger current higher than 1mA during the 1 minute test duration
● Environmental Requirement Ambient temperature: 0 to 40°C Operating humidity: 10% to 95% RH, no condensing Storage temperature: 0 to 60°C Storage humidity: 10% to 95% RH, no condensing
● Altitude This product can only be operated at less than 2000 meters above to sea level
● RoHS The European Directive 2011/65/EU RoHS Compliance required
● Reach The European Union directive 1907/2006/EC Compliance required
● Life time of rotary button Min. 20,000 cycles
● Wiring Practices Comply with AS/NZS 3133
● Logo of certification CE, RCM

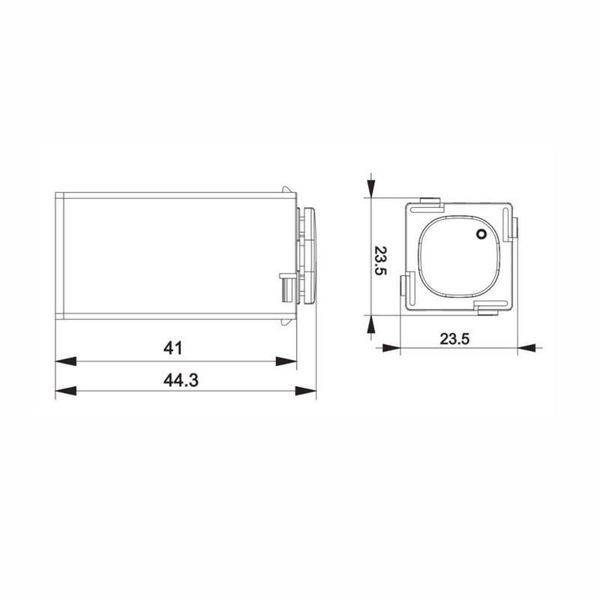

● Size 23.5mm x 23.5mm x 44.3mm (W x L x H)


Specifications:
Order Code: VELA
Brand Name: CLA Lighting
Category: Accessories- Dimmer
Style: Push Button
Face: Round Edge & Square Edge
Voltage: 220-240V
Current: AC Hertz: 50Hz
Rated Power: 5-350VA
Ta (Ambient Temperature): 0 to 40°C
Operating humidity: 10% to 95% RH, no condensing
Tc (Case temperature temperature): 0 to 60°C
Storage humidity: 10% to 95% RH, no condensing
Width: 23.5mm
Length: 23.5mm
Height: 44.3mm
IP Rating: IP20
Life time of rotary button: Min. 20,000 cycles



GTIN: 9326191025532
