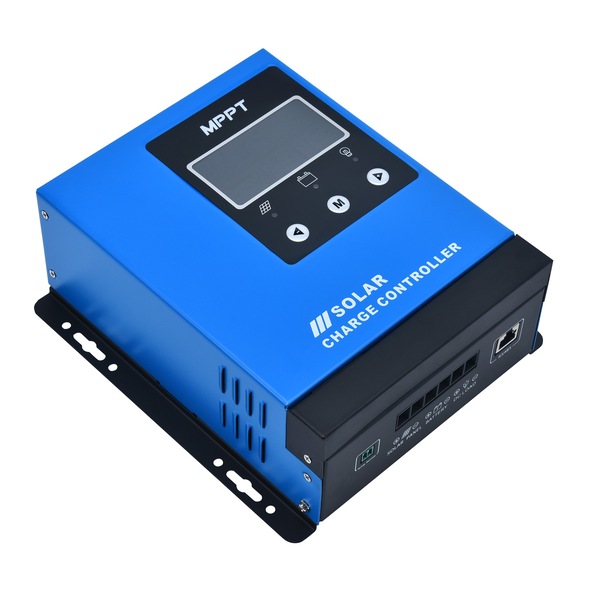

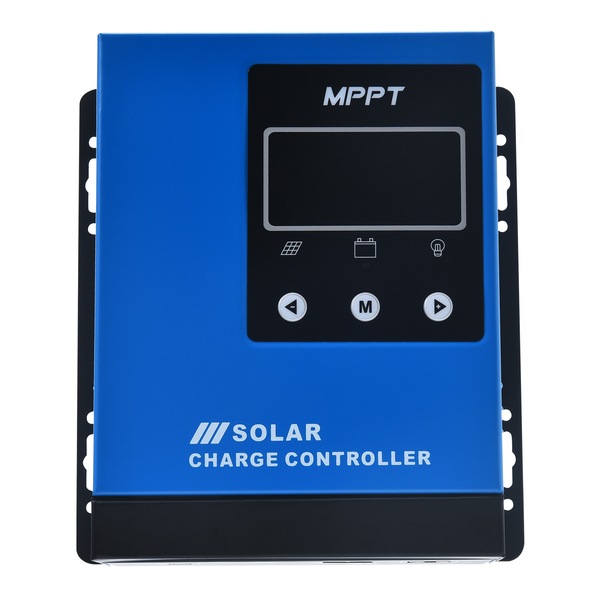

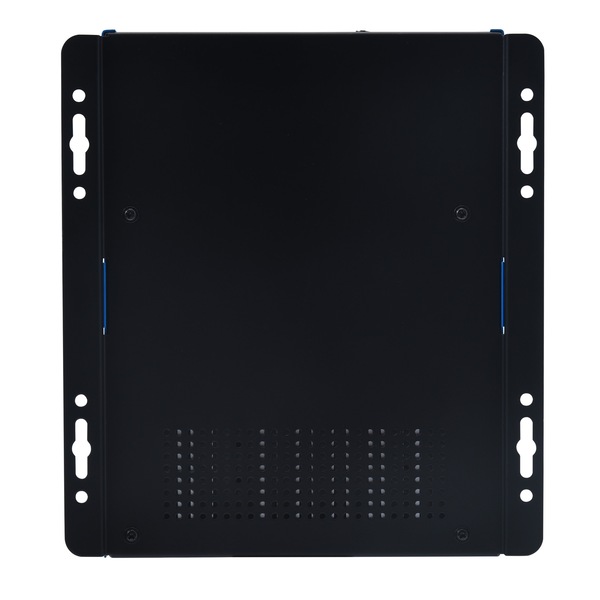

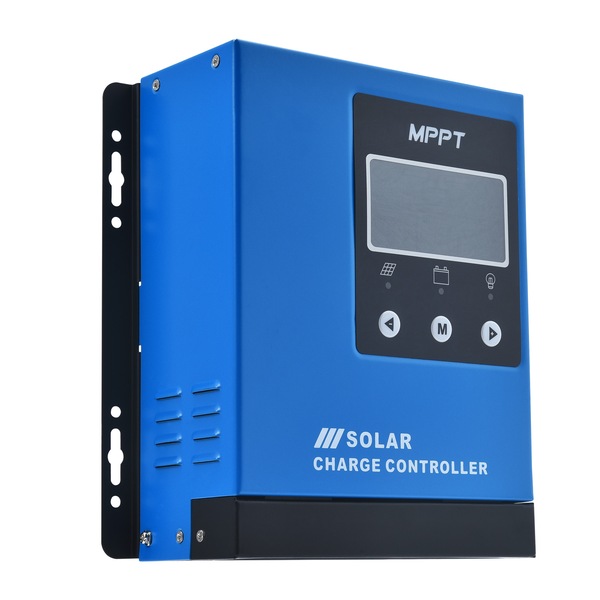

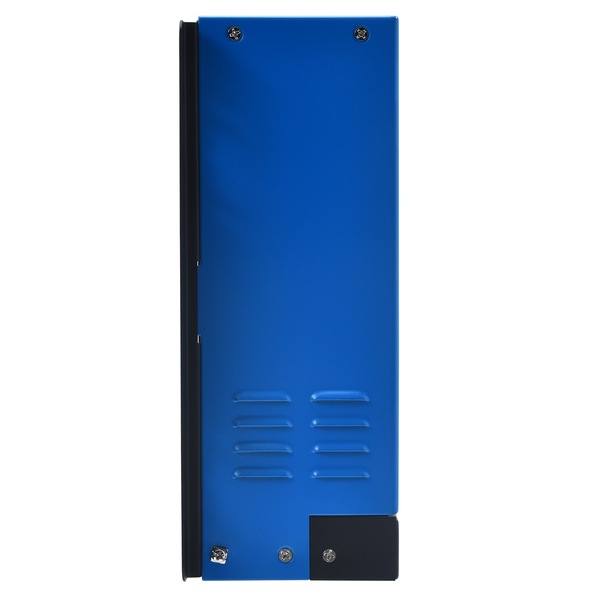

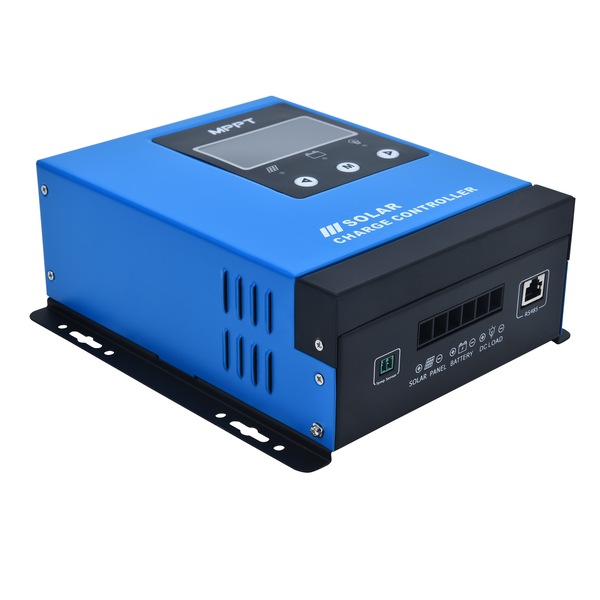

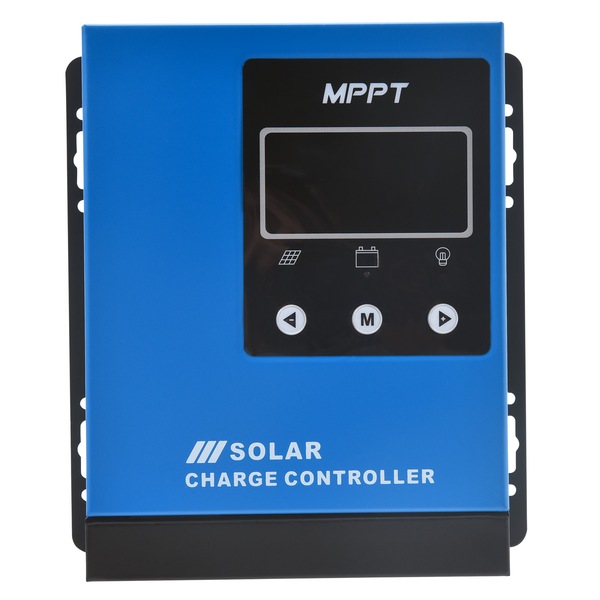

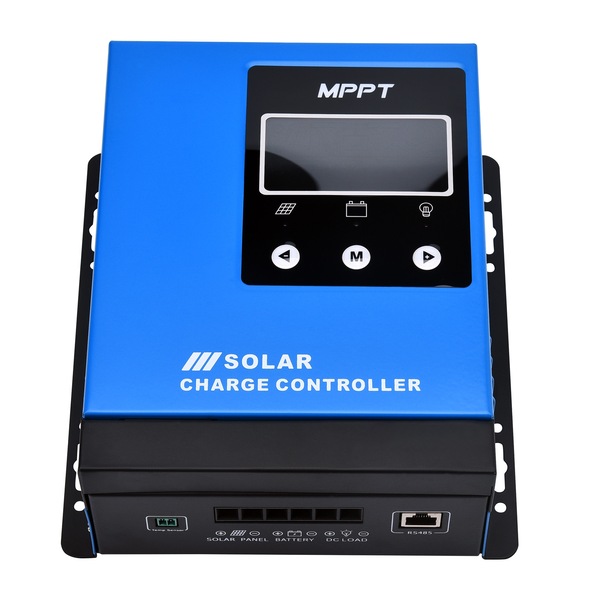

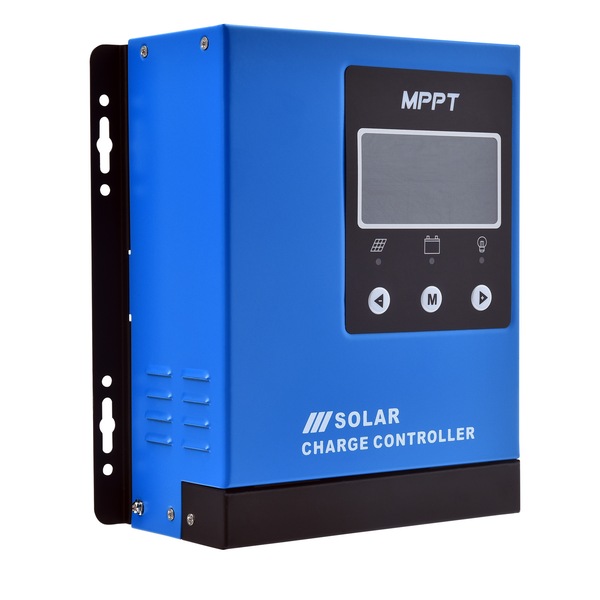

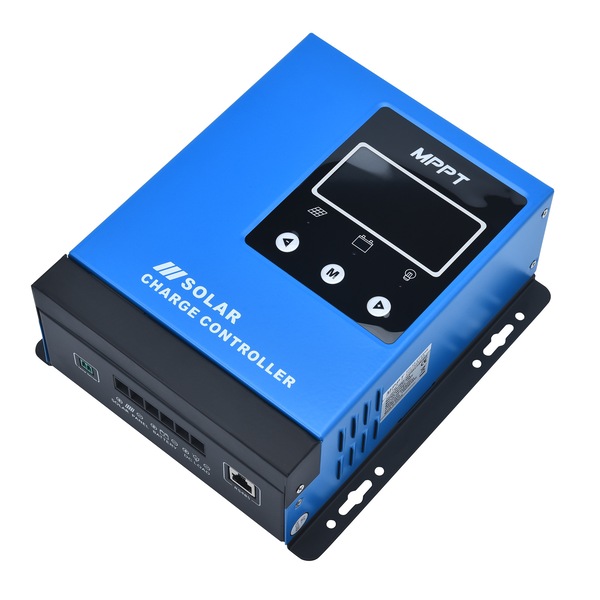

Acemor 12V Solar Charge Controller 30A MPPT LCD Bluetooth

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
SaleEnds 18/06/2025
Limited Stock
$149
You save $110Was $259

Collect 149 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Sold & shipped by Ozzie Energy
Secure ways to pay at checkout
Our 30A MPPT Charge Controller With Bluetooth is the most efficient type of charge controller.

Features:
  • With up to 99% tracking efficiency, it ensures maximum power point solar charging that gets more energy to your battery bank.
  • Capable of automatically detecting 12V/24V/36V/48V lead acid battery systems, this crucial component is preset to also work With Gel, Flooded (wet cell), Sealed, and even Lithium batteries.

  • Specifications:
    Input :
  • Maximum PV open circuit voltage: 150V (at the lowest temperature) 138V (at a standard temperature of 25°C)
  • Minimum PV voltage: 20V/40V/60V/80V
  • Rated Charge Current: 30A
  • Maximum input power:
  • 12V: 390W
  • 24V: 780W
  • 36V: 1170W
  • 48V: 1560W
  • Output:
  • System voltage: 12V/24V/36V/48VAuto
  • Rated Discharge Current: 15A
  • Self-consum: <35mA(48V)
  • Low voltage disconnect voltage:
  • 10.8V/21.6V/32.4V/43.2V
  • Low voltage recovery voltage:
  • 12.6V/25.2V/37.8V/50.4V
  • Load control mode: Normal, light control, light and timing control, timing control, reverse light control
  • Light control point voltage: 5V/10V/15V/20V
  • Other:
  • Human interface:Color LCD with backlight, 3 buttons
  • Cooling mode:Iron case heat sink and cooling fan
  • Wiring:High current copper terminal≤25 mm² (3AWG)
  • Temperature probe:10K, line length 3 meters
  • Communication mode: RS485, RJ45 port
  • Working temperature range: -20~+55°C
  • Storage temperature range: -30~+80°C
  • Humidity: 10%~90% No condensation

  • Dimension & Weight:
  • Size: 220mmx200mmx83mm
  • Weight: 2.2KG

  • Package:
  • 1x solar controller

  • GTIN: 9355348067828
