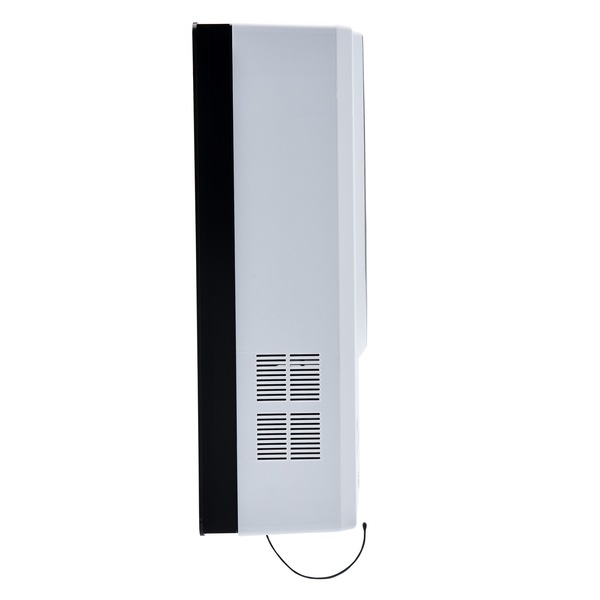

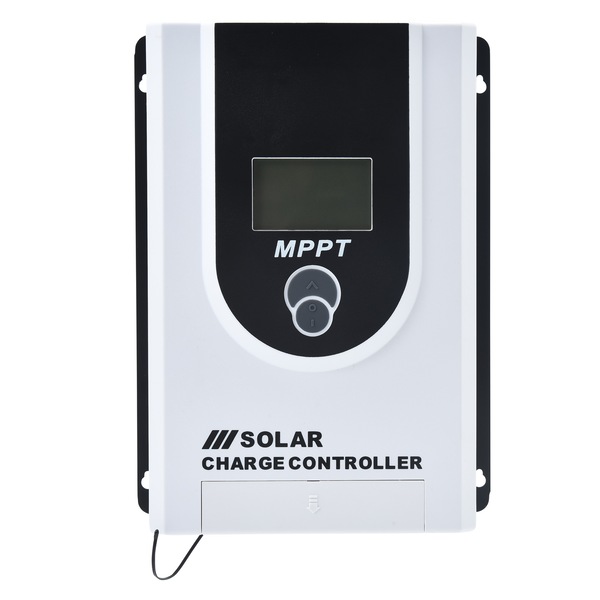

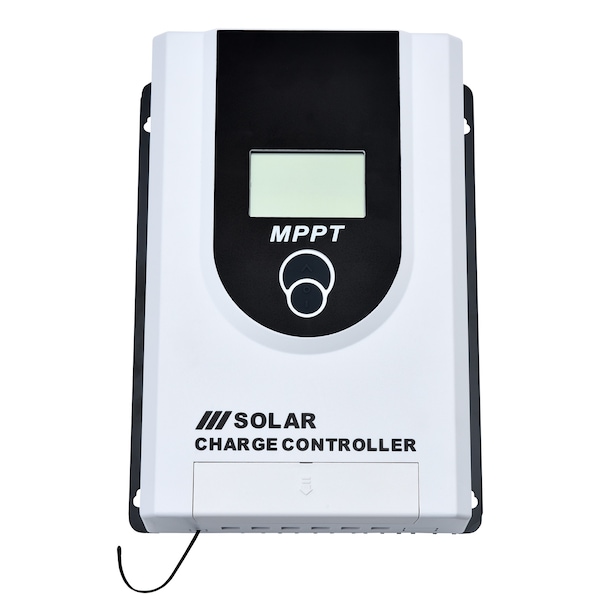

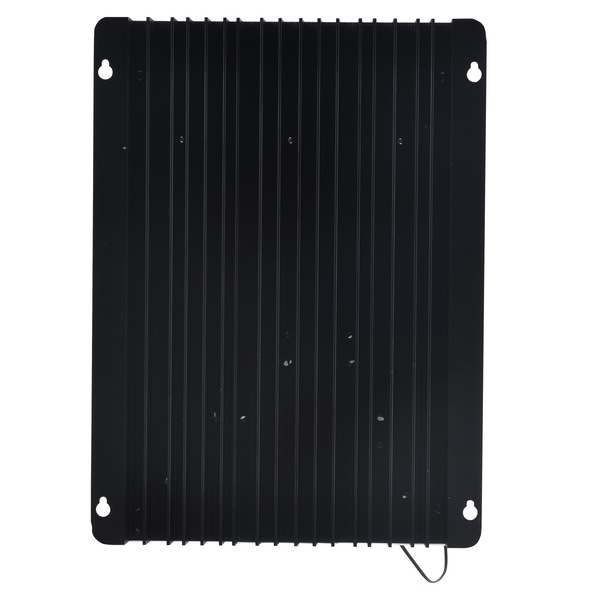

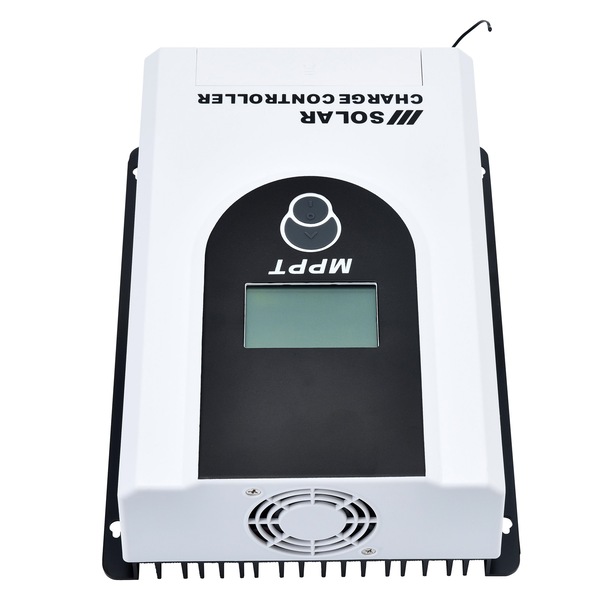

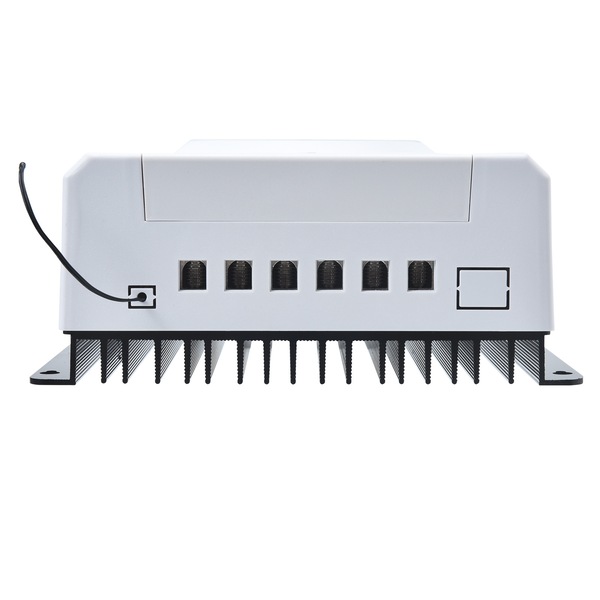

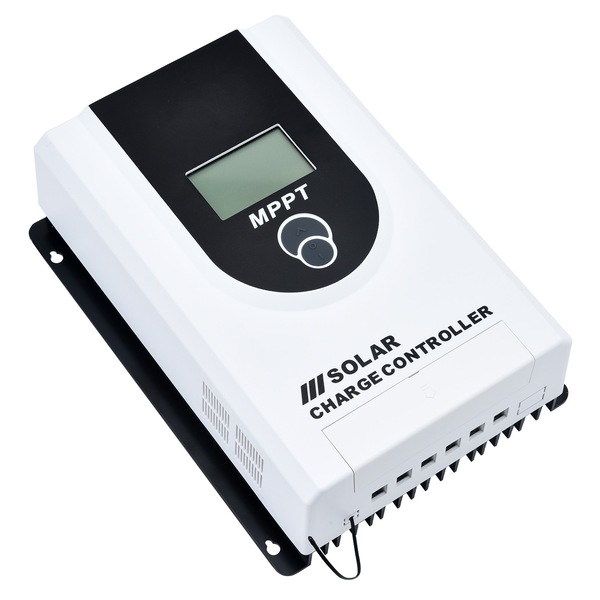

Acemor 12V Solar Charge Controller 60A MPPT Auto LCD

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
Hurry! 10 items left!
$309

Collect 309 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 24-48 hours

Sold & shipped by Ozzie Energy
Secure ways to pay at checkout
Pay in 4 interest-free payments of $77.25 with PayPal

Popular Products

Our 60A MPPT Charge Controller is the most efficient type of charge controller.

Features:
  • With up to 99% tracking efficiency, it ensures maximum power point solar charging that gets more energy to your battery bank.
  • Capable of automatically detecting 12V/24V lead acid battery systems, this crucial component is preset to also work With Gel, Flooded (wet cell), Sealed, and even Lithium batteries.

  • Specifications:
    Input:
  • Rated charge current:60A
  • Max open voltage of solar panel: 100V (at the lowest temperature) 92V (at a standard temperature of 25°C)
  • Minimum PV input open circuilt voltage(Voc): 20V/40V
  • System rated voltage:12/24V Auto recognized
  • Maximum battery voltage: 8V-32V
  • Maximum input power: 780W(12V) 1560W(24V)
  • Output:
  • Battery type: User default, Sealed, Flooded, GEL, LiFePO4, Li(NiCoMn)O2.
  • LVR *: Maintenance-free lead-acid battery, GEL. lead-acid Flooded battery: 12.6V
  • LVD *: Maintenance-free lead-acid battery, GEL, lead-acid Flooded battery: 10.8V
  • Static loss: <50mA
  • HVD: Lead acid battery 16V
  • Light control voltage: 5V/10V/15V/20V
  • Temperature compensation coefficient: '-4mV/°C/2V(25°C)
  • Discharge loop voltage drop: ≤2 V
  • LCD temperature: -20°C ~ +70 °C
  • Operating temperature: -20°C ~ +55 °C
  • Storage temperature: -30~ +80 °C
  • Working humidity: ≤90%. No condensation
  • Protection class: IP30
  • Grounded type: Positive grounded
  • Terminal wiring: 25mm²/3AWG
  • Optional function: RS485/RJ45 port

  • Dimension & Weight:
  • Dimension: 261mmx191mmx84mm
  • Hole size for installation: 180mmx214mm
  • Aperture for installation: Φ5mm
  • Weight: 2.5kg

  • Package:
  • 1x solar controller

  • GTIN: 9355348067804
