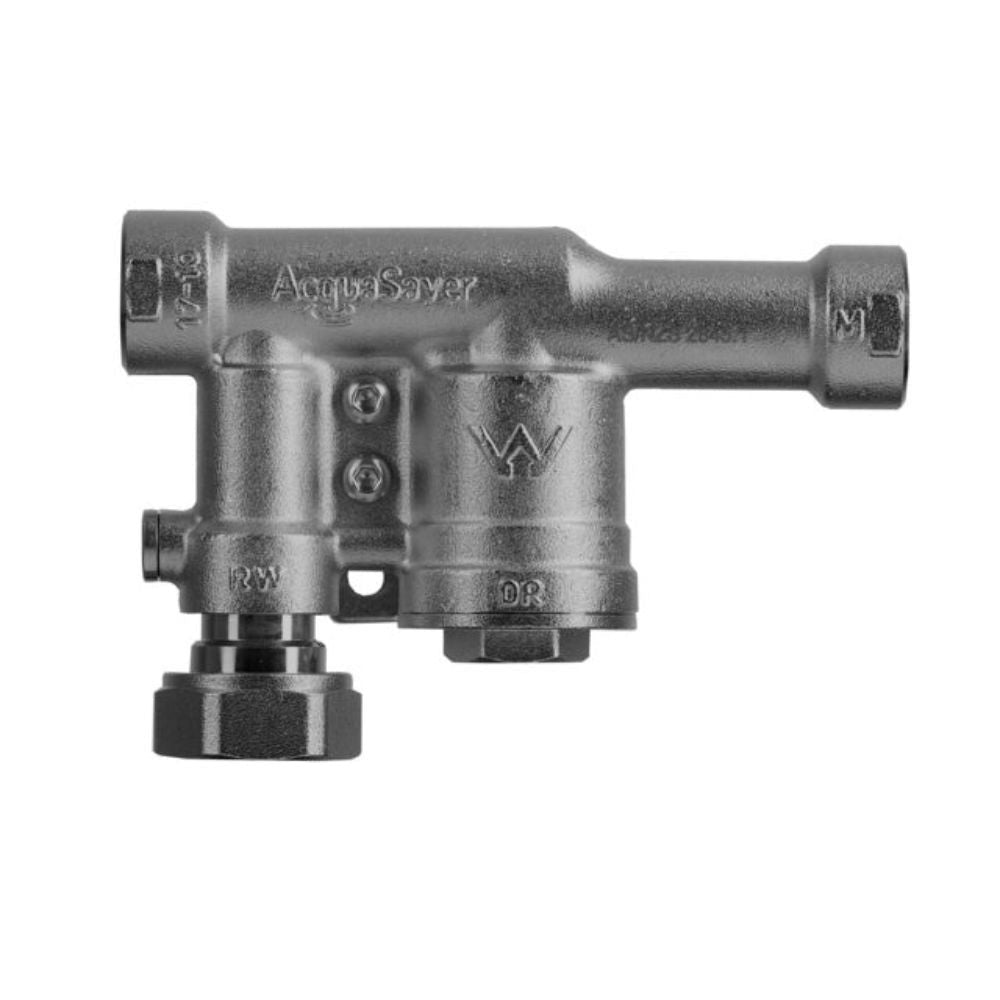

The AcquaSaver® Valve is a fully automatic mechanical rainwater/mains water changeover device designed for pressure pump supply systems for harvesting rainwater for the toilet, laundry and household applications with automatic mains backup.

It is suitable for up to 2 toilets and washing machine and an extra tap outlet.

Meets Requirements of ATS 5200.477.

Complies to AS/NZS 3500.1 when installed by a licensed plumber.

Specifications:

• Max Mains Pressure 500 KPa
• Max Pump Pressure 600 KPa
• Min Pump Pressure 300 KPa
• Max Flow Rate 50 LPM
• Max Water Temperature 40 C
• Min Water Temperature 0 C
• Pump Inlet 25mm 1 BSP F
• Mains Water in 20mm 3/4 BSP F
• Outlet 20mm 3/4 BSP
• Weight 0.85 KG

Product Features:

• Easy to install
• Patent design
• Solid Brass mounting bracket (optional)
• Watermark approved to ATS/NZS 5200.477
• Does not require regular maintenance
• No electrical consumption - No electronic components
• Solid brass construction - Fully weatherproof - Built to last
• Suitable for any pressure pump with sufficient head pressure
• Can be mounted in any position
• Built-in dual check valve for backflow prevention
• 2 Year warranty

Materials:

• Solid Brass Construction

Market Sectors:

• Commercial
• Light Industrial
• Muncipal
• Residential
• Agriculture
• Golf/Turf Irrigation
• Mining
• Building Services

The product image shown is for illustration purpose only
